Compact All-Freezer

SKU: FS24LMED2
Designed and constructed to meet strict CDC, VFC and VFA freezer guidelines
Estimated Time to Ship:

Next day shipping

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
Add a naturally antimicrobial copper handle for added protection against germs and bacteria.
21.75" H x 18.5" W x 17.63" D
(55cm H x 47cm W x 45cm D)

Overview
Nominal Height 22.0" (56 cm)
Height of Cabinet 21.75" (55 cm)
Nominal Width 19.0" (48 cm)
Width 18.5" (47 cm)
Nominal Depth 18.0" (46 cm)
Depth 17.63" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 1.4 cu.ft. (40 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.0
Weight 40.0 lbs. (18 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101056449
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 14.38" (37 cm)
Interior Width 13.5" (34 cm)
Interior Depth 13.25" (34 cm)
Shelf Type Wire
Shelf Qty 1
Thermostat Type Digital
Refrigerant Type R600a
Refrigerant Amount 0.8 oz.
High Side PSI 110.0
Low Side PSI 70.0
Level Legs 2
Compressor Step Height 8.5" (22 cm)
Compressor Step Width 13.5" (34 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -20º to -15ºC

Exterior
TM1A - Factory-installed dry contacts with remote alarm
Remote alarm contacts with continuous temperature display
LHD - Left hand door swing
Door reversal to left hand swing
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
DTMEDF - Digital thermostat with Fahrenheit readout
Change thermostat to read in Fahrenheit (no charge)
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Handle
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection

Reliable temperature stability

Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions

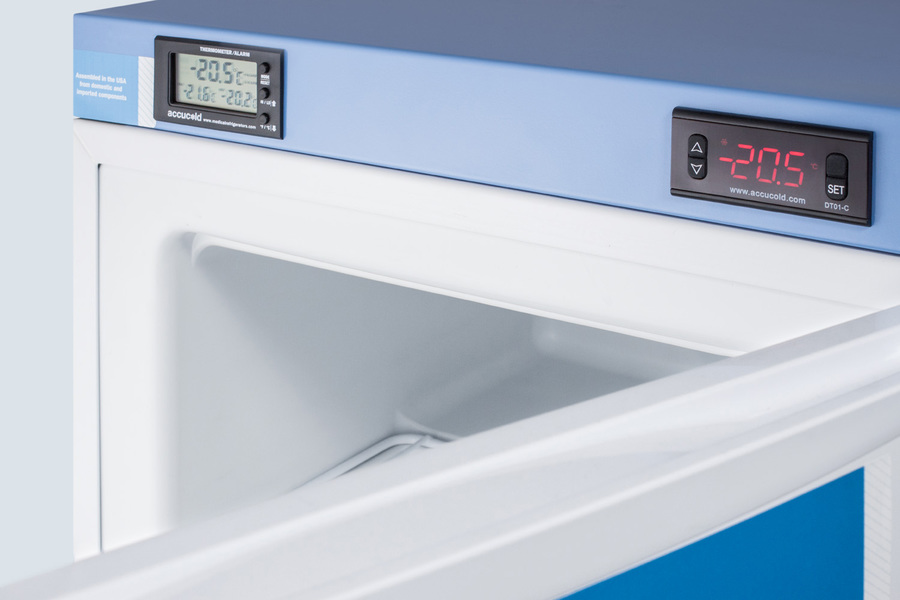

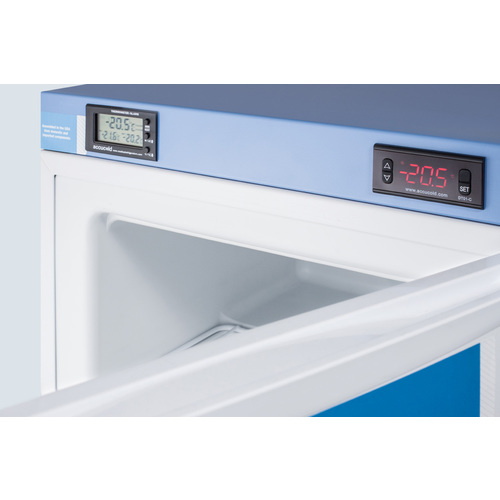

Digital thermostat

Electronic controls for more precise temperature management, with temperature readout and controls externally located for added convenience

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

NIST calibrated temperature display

Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

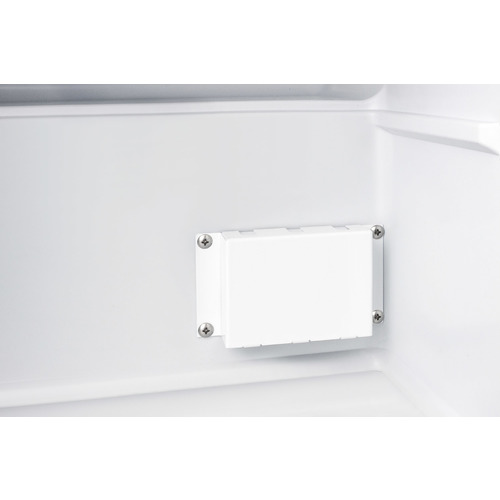

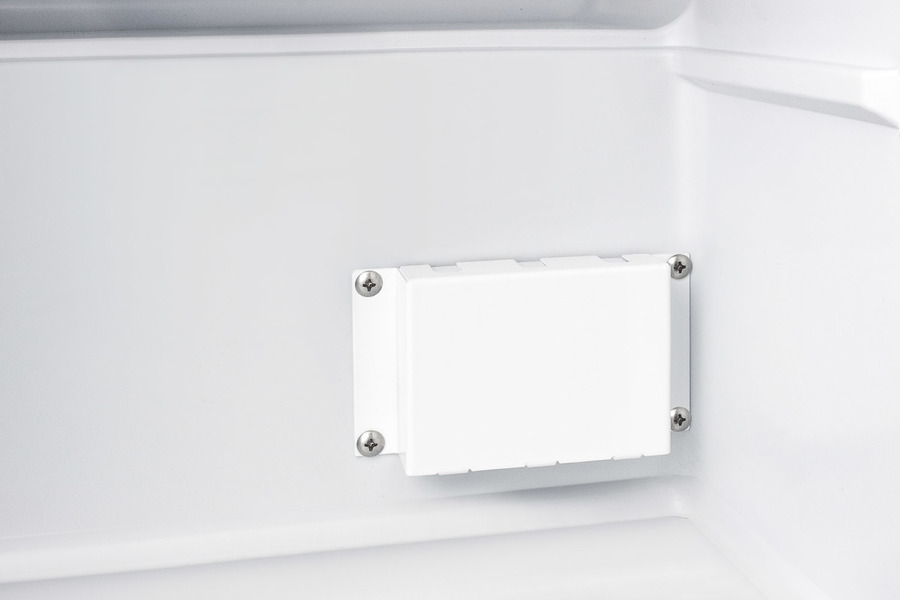

Buffered temperature probe

Thermometer probe is encased in a glycol-filled bottle to maintain temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines

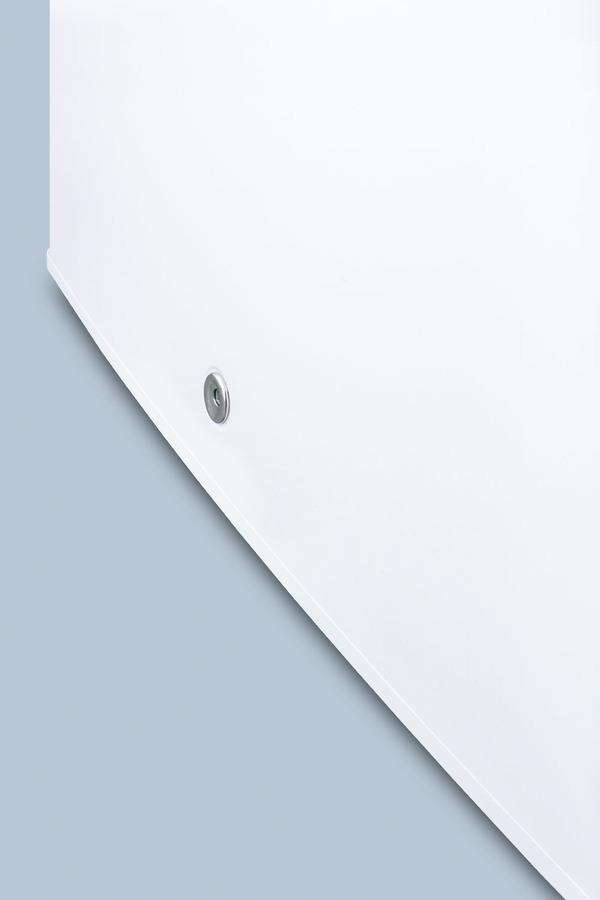

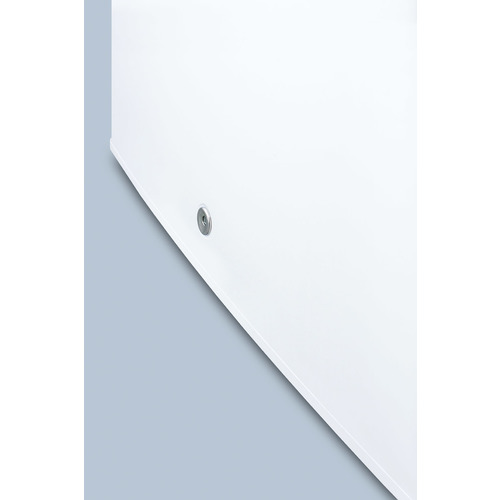

Factory installed lock

Keyed lock for convenient security, with two keys included

Manual defrost

Static cooling system for reduced temperature fluctuations

Hospital grade cord and plug

Secure three-pronged cord for added unit safety

3/8" access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

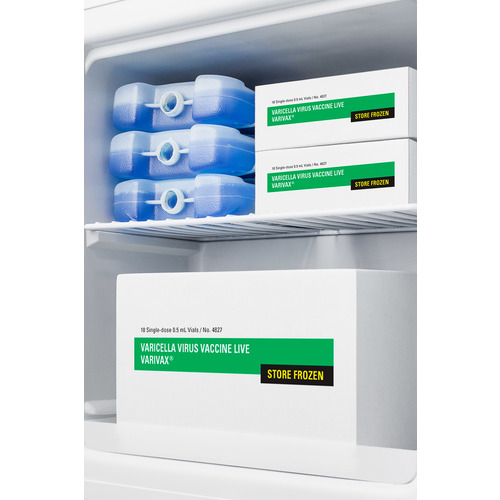

Removable shelf

Includes one wire shelf for easier storage

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Fully finished white cabinet

Allows the unit to be used freestanding

Foamed-in-place cabinet

Quality design ensures efficiently insulated interior

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Factory reversible door

Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)

Extended warranty

This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor

Approved for use in the USA and Canada

ETL and ETL-C listed for North American sales

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

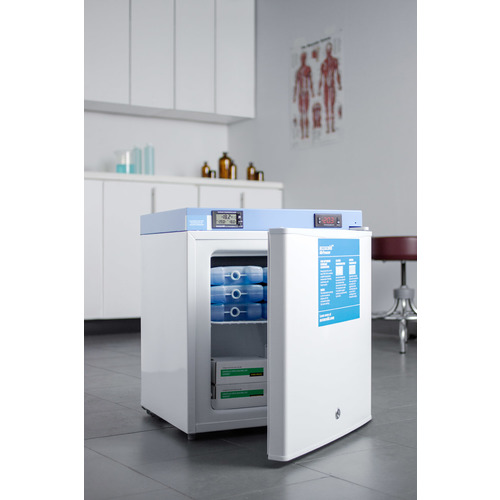

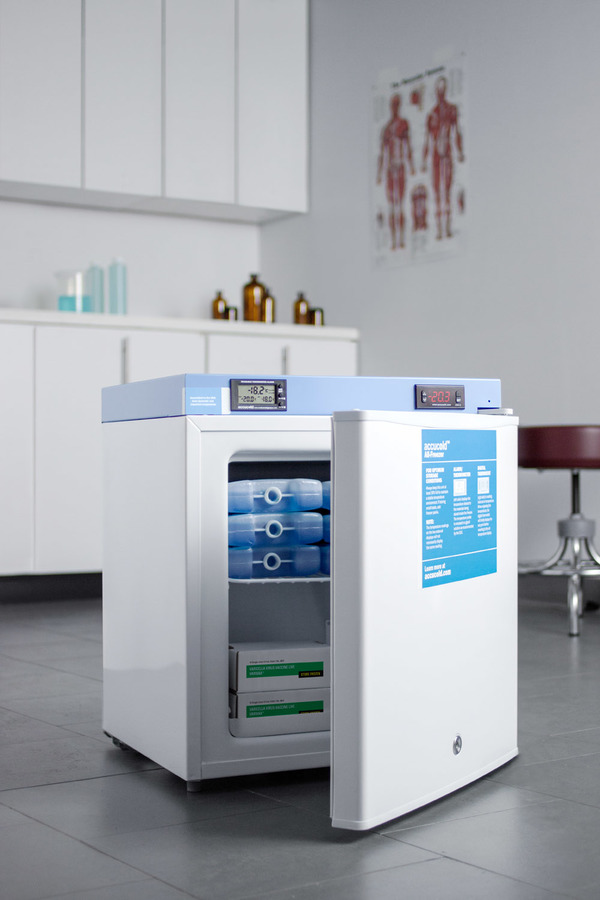

Accucold's MED2 series puts the most commonly requested features into a quality line of all-refrigerators and freezers specially designed to store vaccines and other sensitive materials in medical, scientific, pharmaceutical, and laboratory institutions.

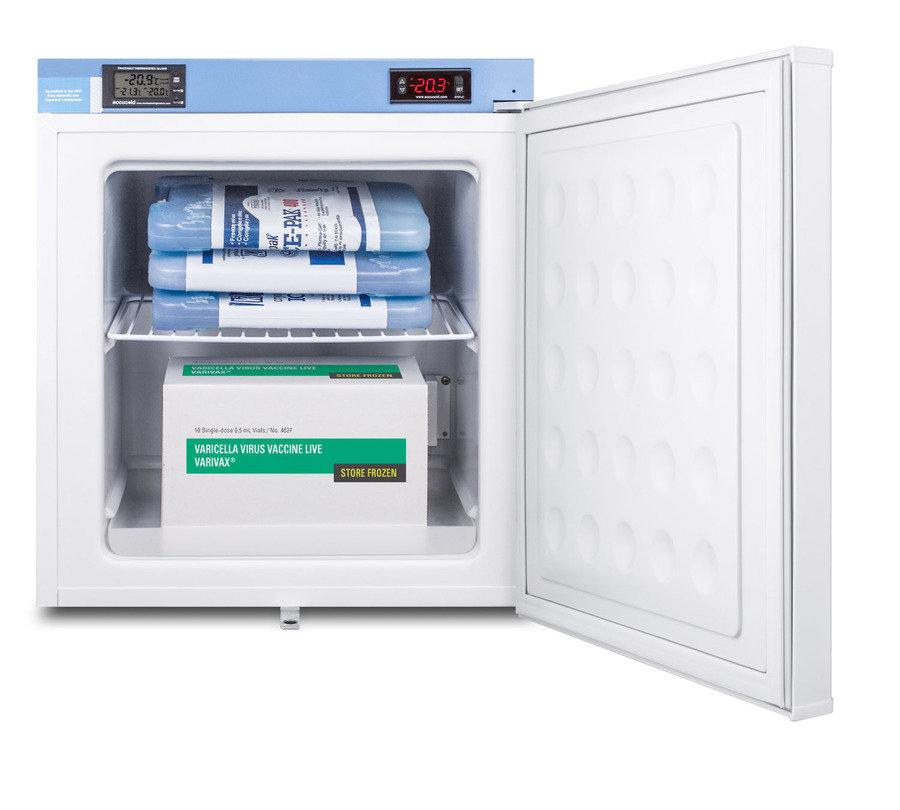

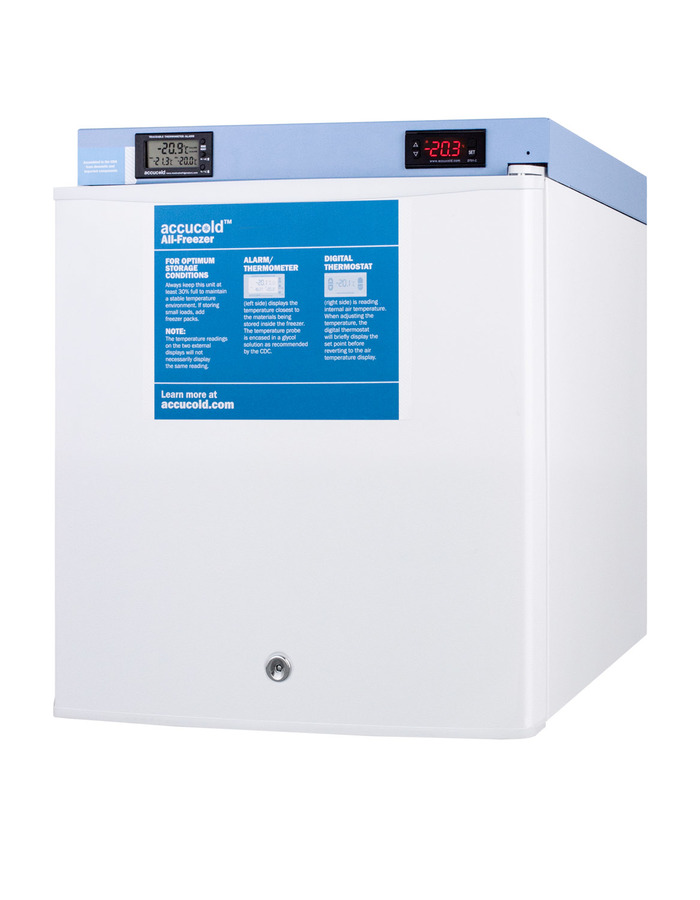

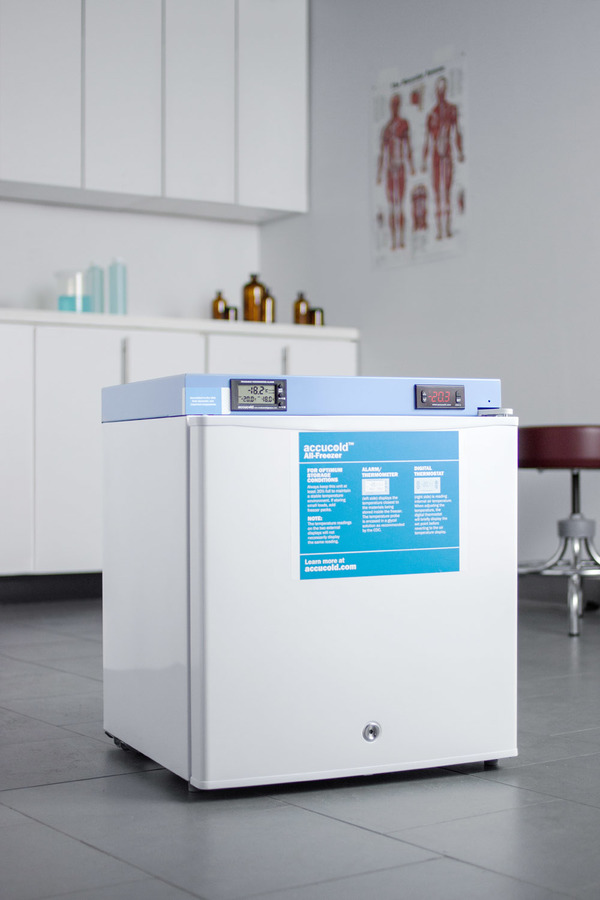

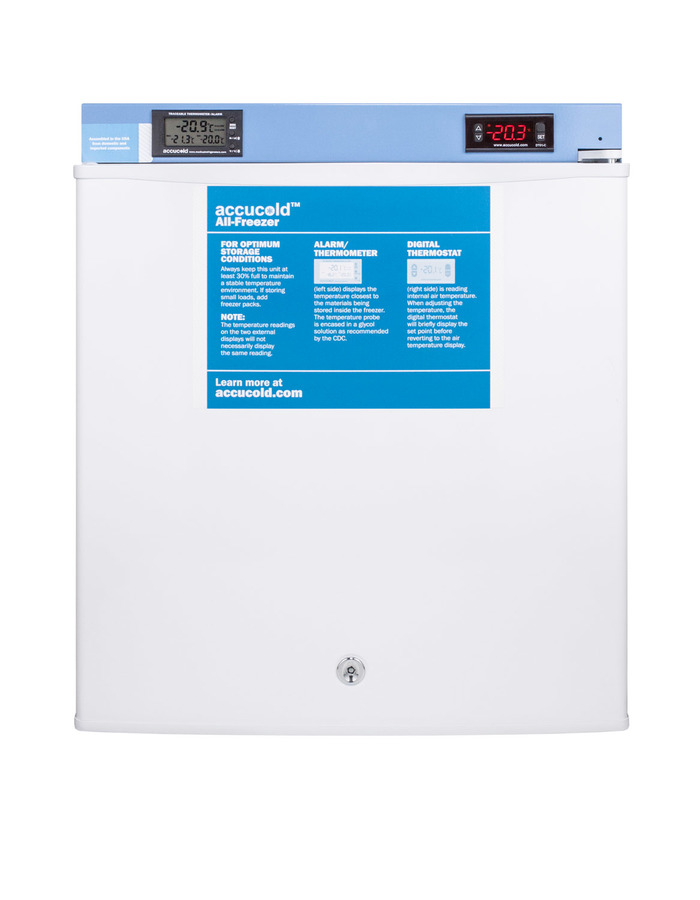

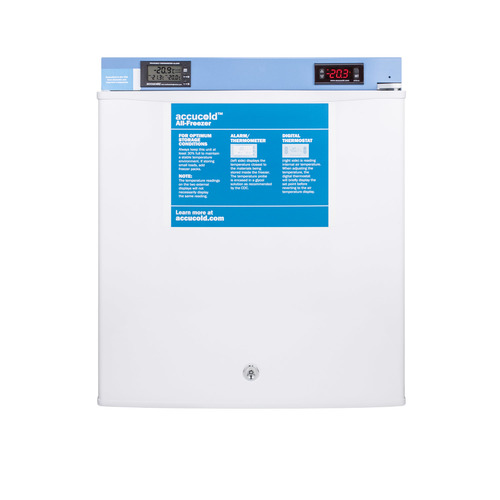

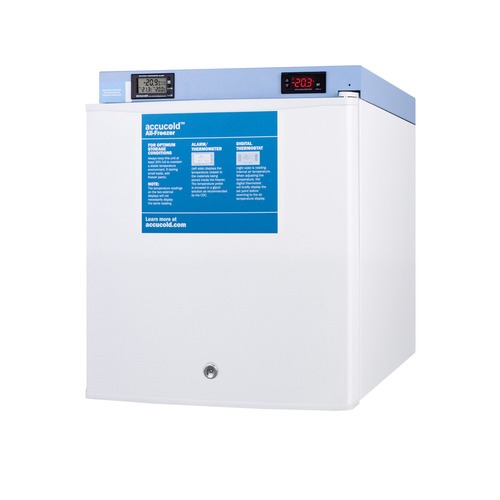

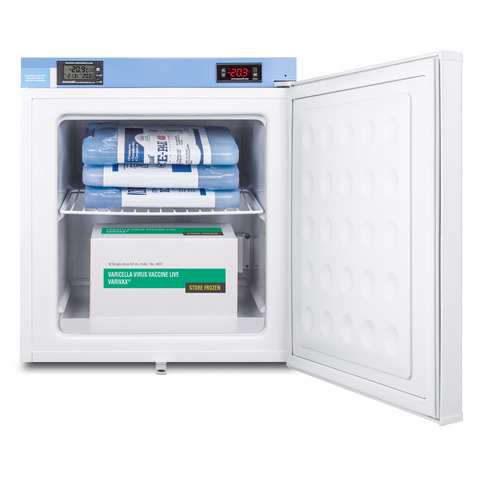

The FS24LMED2 is a compact manual defrost all-freezer designed for use on top of counters. This unit is  designed with an external front control panel that allows users to adjust and monitor the temperature without opening the door and exposing stored contents to ambient temperature. A keyed lock offers security and a hospital grade 'green dot' cord provides added safety in high traffic environments.

As recommended by the CDC, VFC and VFA programs, the FS24LMED2 is equipped with a NIST calibrated thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit. Each FS24LMED2 ships with a certificate of calibration for your records. The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a glycol-filled bottle to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment.

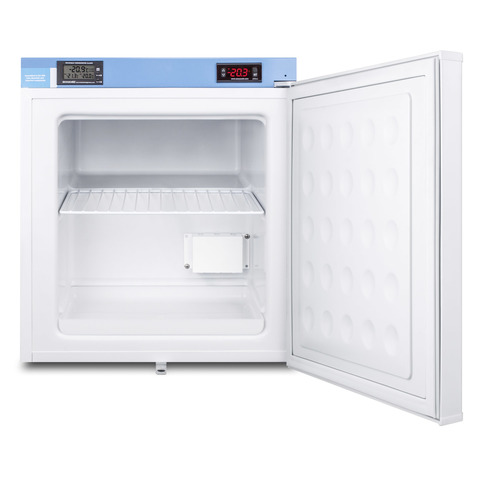

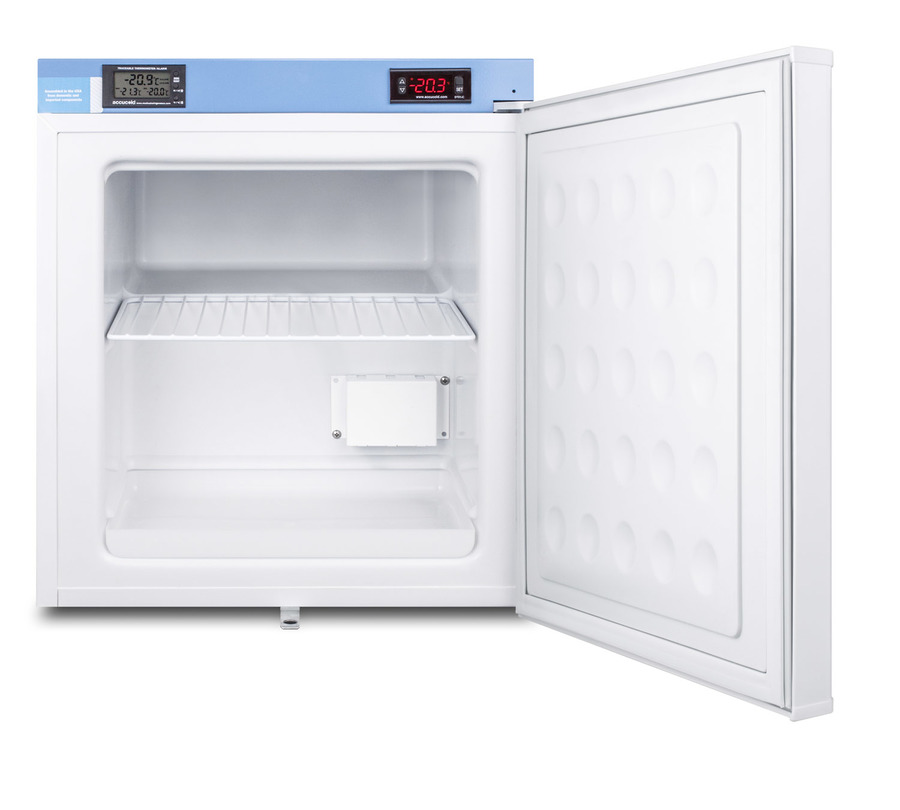

The FS24LMED2 features a 1.4 cu.ft. interior capacity. A removable wire shelf offers convenient storage. It can operate as low at -20ºC, ideal for storing certain vaccines and other sensitive medical contents. This unit has a flat door liner as recommended by the CDC.

All MED2 series units are assembled in the USA from domestic and imported components. This unit can also be customized with additional features, including a power-out alarm or USB temperature logger with a digital display. Contact our product specialists to learn more. Products in the MED2 series come with a two year warranty on parts and labor and a five year warranty on the compressor.

*NOTE: This unit's thermostat is pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order.

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.

Download
BROCHURE w/ DRAWINGS
FS24LMED2.pdf
Download
TECHNICAL DRAWING (.dwg)
FS24LMED2_FREEZER__A-C_2000_.dwg
Download
MSDS INFORMATION
Propylene_Glycol_SDS.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
