Compact All-Freezer

SKU: FS24LPLUS2

Includes a NIST calibrated thermometer with a current and high/low temperature readout

Estimated Time to Ship:

3 to 5 days

How to Buy

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

20.0" H x 18.5" W x 17.63" D
(51cm H x 47cm W x 45cm D)

Overview
Nominal Height	20.0" (51 cm)
Height of Cabinet	19.63" (50 cm)
Height to Hinge Cap	20.0" (51 cm)
Nominal Width	19.0" (48 cm)
Width	18.5" (47 cm)
Nominal Depth	18.0" (46 cm)
Depth	17.63" (45 cm)
Depth with door at 90°	34.5" (88 cm)
Capacity	1.4 cu.ft. (40 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	35.0 lbs. (16 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101057750
Freezer
Door Swing	RHD
Reversible	Factory Reversible
Interior Height	14.38" (37 cm)
Interior Width	13.5" (34 cm)
Interior Depth	13.25" (34 cm)
Shelf Type	Wire
Shelf Qty	1
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.8 oz.
High Side PSI	110.0
Low Side PSI	70.0
Level Legs	2
Compressor Step Height	8.5" (22 cm)
Compressor Step Width	13.5" (34 cm)
Compressor Step Depth	6.0" (15 cm)

Exterior

TM1A - Factory-installed dry contacts with remote alarm Remote alarm contacts with continuous temperature display	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	LHD - Left hand door swing Door reversal to left hand swing
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix
FA Rear - Fan assist Fan assisted cooling for enclosed use in cubbies or cabinets, rear breathing	FA Front - Fan assist Fan assisted cooling for enclosed use in cubbies or cabinets, front breathing
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Lock

AC Keypad - AC powered keypad lock

KEYPAD - Battery-powered keypad door lock

Handle

TBC Copper Towel Bar Handle

CP Full-Length Copper Pipe Handle

Compact dimensions

Ideal size for use on top of counters

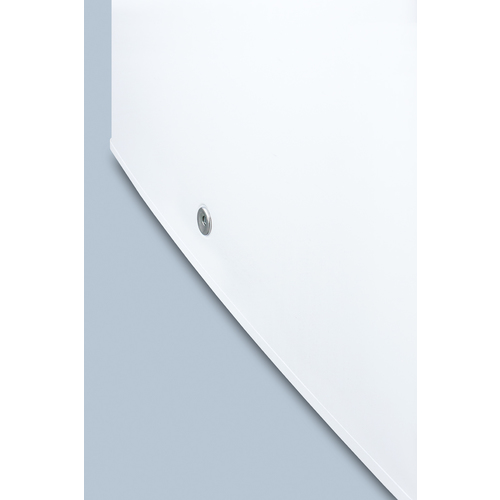

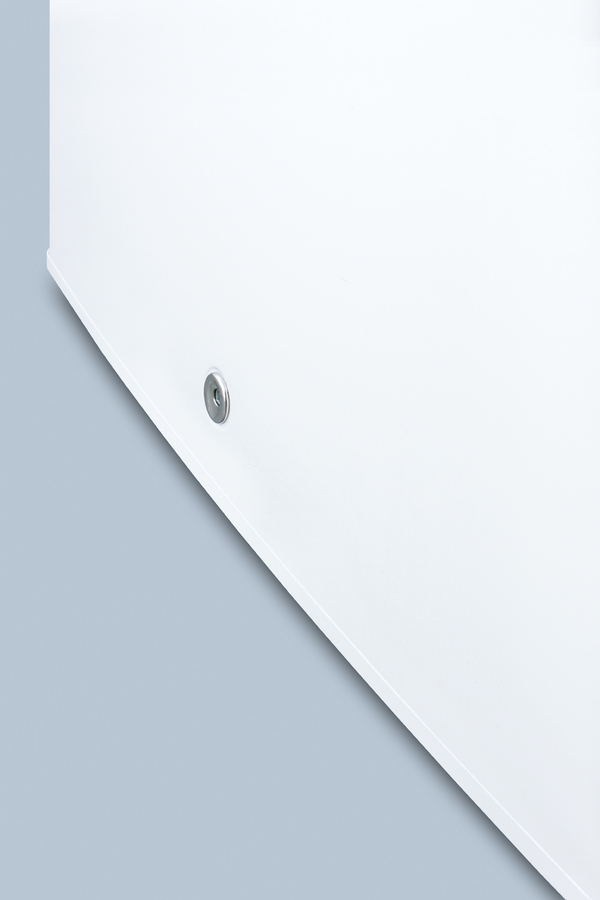

Factory installed lock

Keyed security for a secure interior

NIST calibrated thermometer

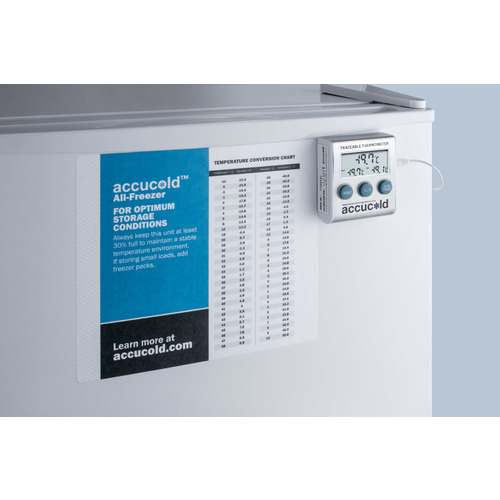

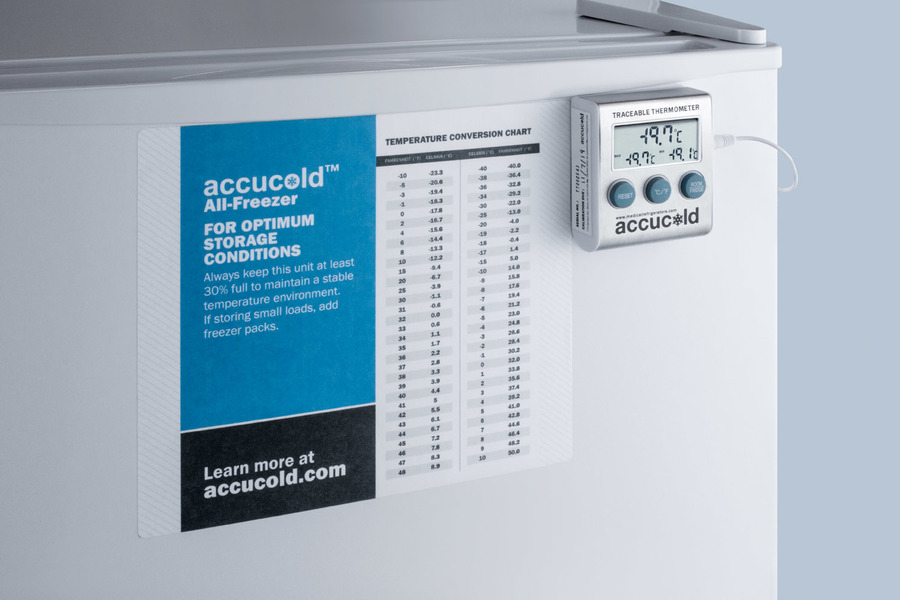

Thermometer provides continuous display of the current and high/low temperature to the nearest tenth of a degree, with a readout switchable from Celsius to Fahrenheit at the touch of a button

Buffered temperature probe

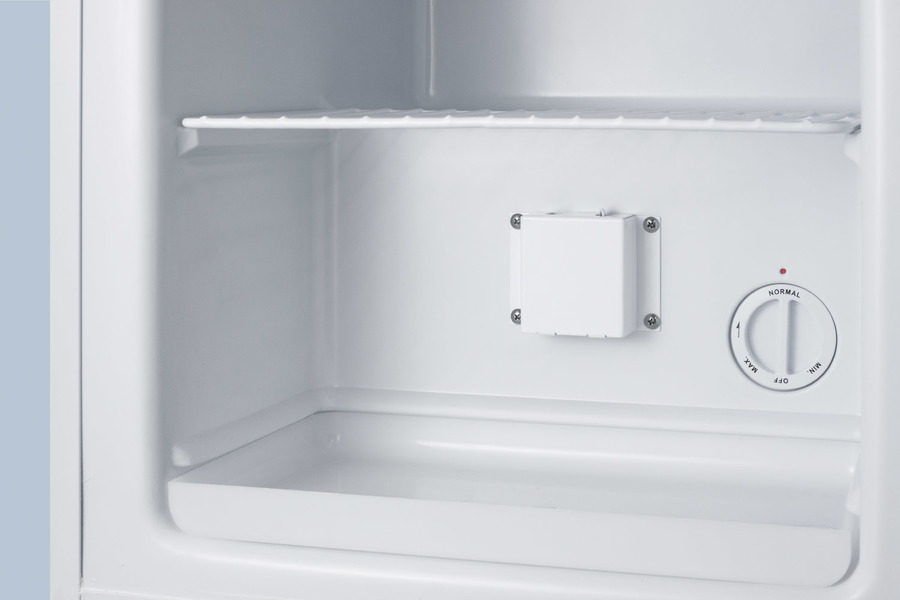

Thermometer probe is encased in a glycol-filled bottle to better simulate the temperature of stored contents instead of freezer air temperature

Manual defrost

Static cooling system for reduced temperature fluctuations

-20° capable

Low temperature capability ideal for certain sensitive items

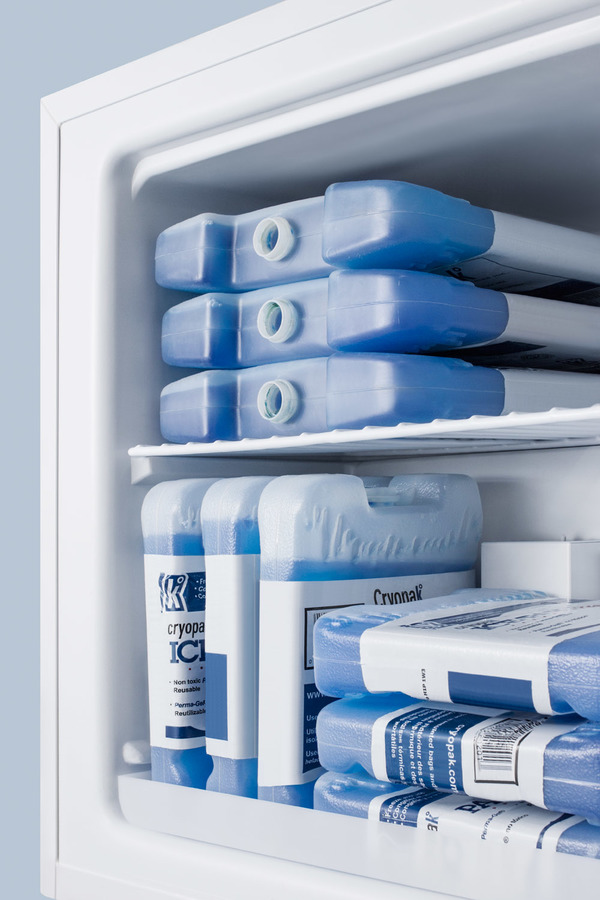

Removable shelf

Includes one wire shelf for easier storage

One-piece interior liner

Seamless interior for easier cleanup

Adjustable thermostat

Dial thermostat located inside for easy temperature management

Flat door liner

Designed to comply with CDC guidelines

Approved for use in the USA and Canada

ETL and ETL-C listed for North American sales

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

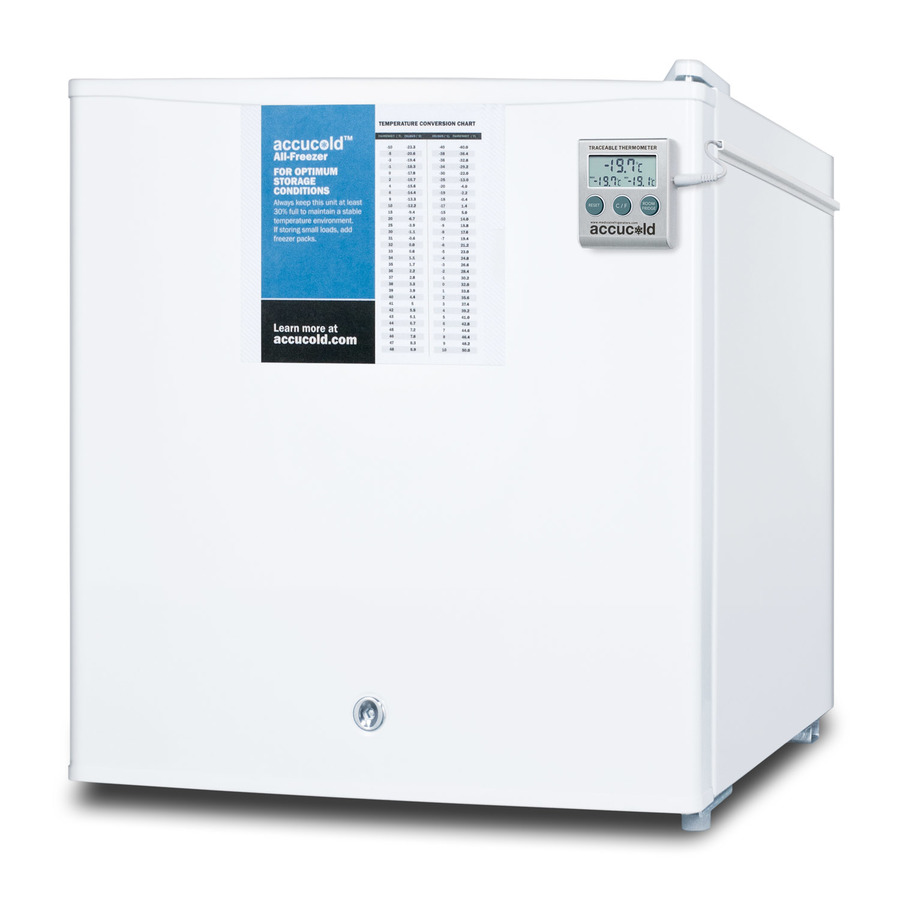

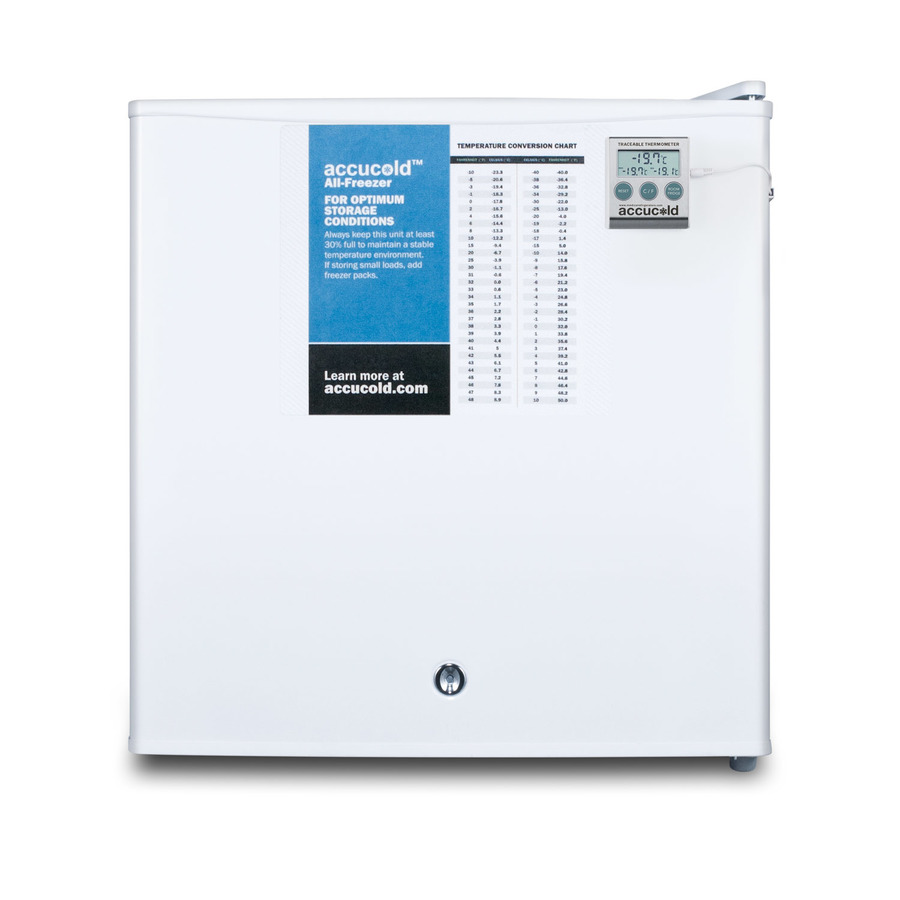

The FS24LPLUS2 is a compact all-freezer designed to fit easily on top of counters. It comes in a white exterior finish. The door includes a factory-installed lock and a thermometer calibrated to NIST standards in our ISO/IEC 17025:2017 laboratory. It displays the current, minimum, and maximum temperature to the nearest tenth degree viewable in Celsius or Fahrenheit. The buffered temperature probe is stored in a glycol-filled bottle to ensure the temperature reading best reflects the temperature of other stored freezer contents.

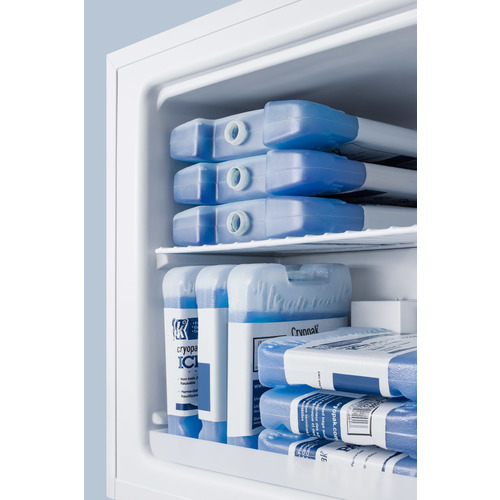

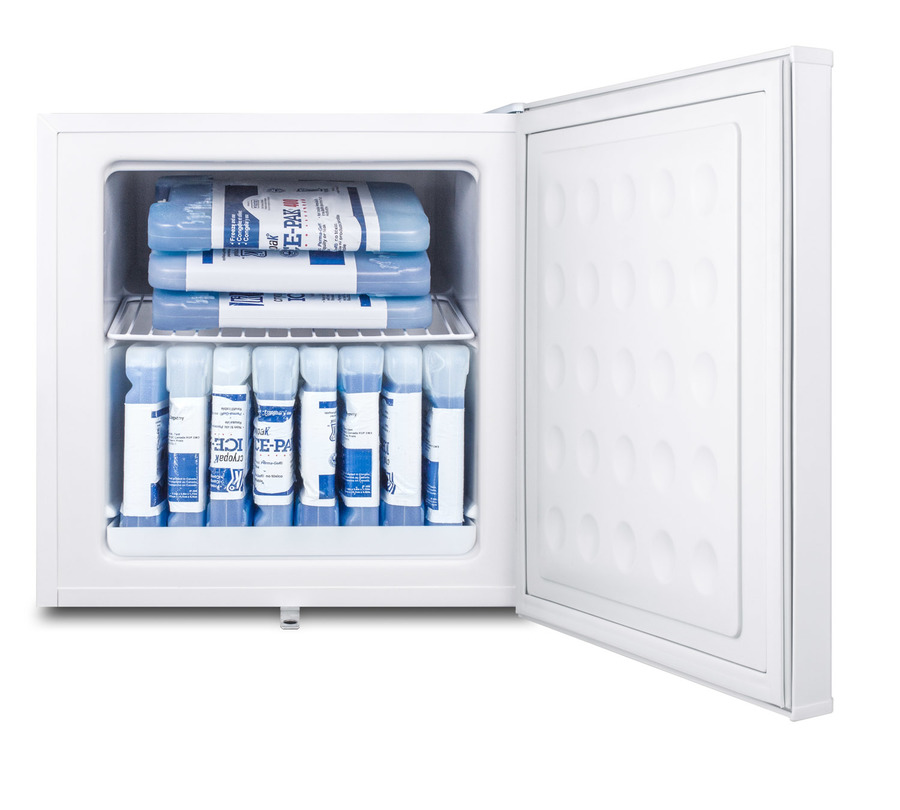

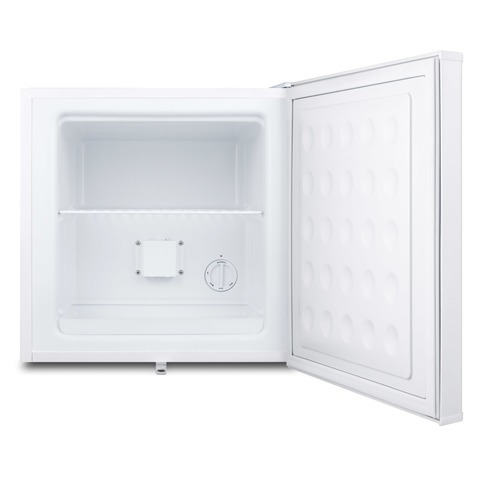

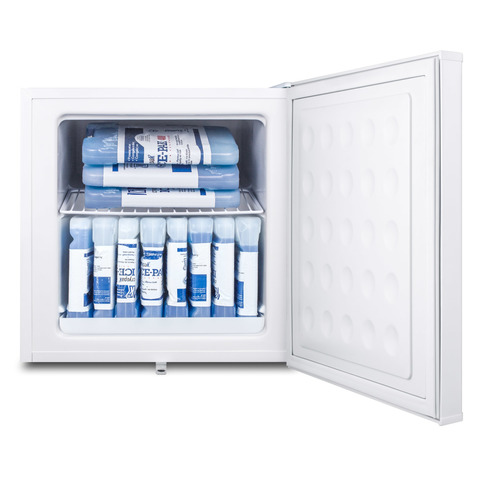

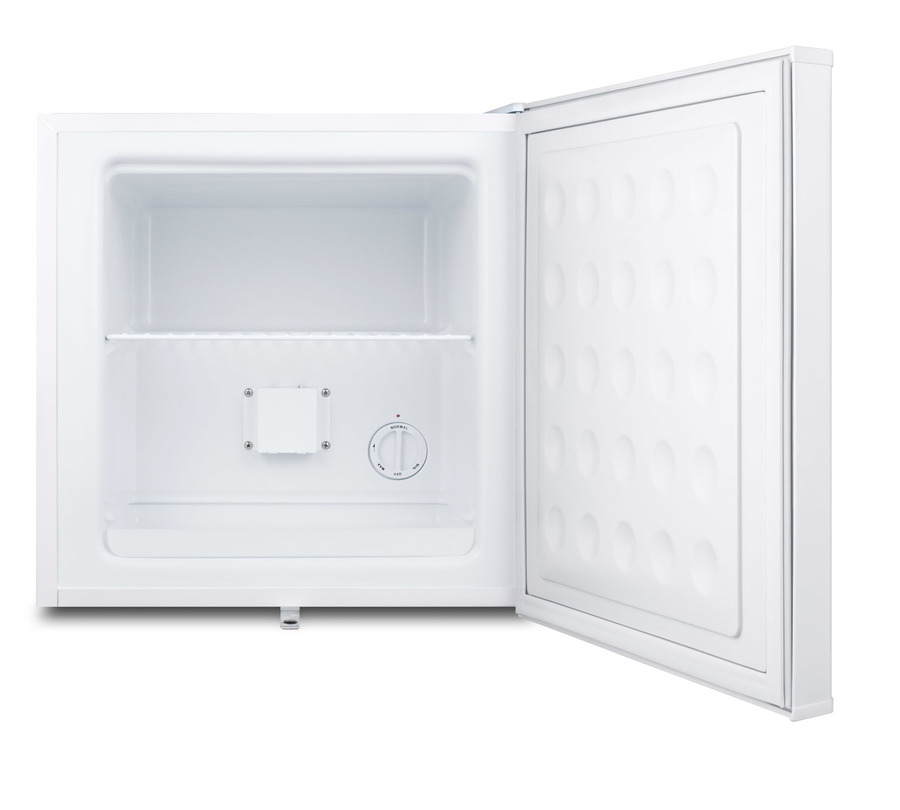

Inside, the FS24LPLUS2 offers a 1.4 cu.ft. capacity. Manual defrost utilizes static cooling to help improve temperature stability. A removable wire shelf offers storage convenience and the flat door liner conforms with the CDC's guidelines for vaccine storage. The seamless interior liner helps to simplify cleanup.

Accucold's PLUS2 series freezers are intended for a wide variety of basic storage only. Storage of high-value vaccines, life science materials, medical, or clinical biologicals require a product with design features including, but not limited to tighter temperature controls, monitoring, and/or back-up.

BROCHURE
FS24LPLUS2.pdf

MSDS INFORMATION
Propylene_Glycol_SDS.pdf

MSDS INFORMATION
R134a_AO.pdf

USE & CARE
GP-PLUS2-PRO-MED_Use___Care_01.2022.pdf

USE & CARE
PLUS2_PRO_MED_French_Manual_12-18.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
