Compact All-Freezer

SKU: FS24LPRO

Factory-installed probe hole accommodates user-provided monitoring equipment

Estimated Time to Ship:

3 to 5 days

How to Buy

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

20.0" H x 18.5" W x 17.63" D
(51cm H x 47cm W x 45cm D)

Overview
Nominal Height	20.0" (51 cm)
Height of Cabinet	19.63" (50 cm)
Height to Hinge Cap	20.0" (51 cm)
Nominal Width	19.0" (48 cm)
Width	18.5" (47 cm)
Nominal Depth	18.0" (46 cm)
Depth	17.63" (45 cm)
Depth with door at 90°	34.5" (88 cm)
Capacity	1.4 cu.ft. (40 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	35.0 lbs. (16 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101057309
Freezer
Door Swing	RHD
Reversible	Yes
Interior Height	14.38" (37 cm)
Interior Width	13.5" (34 cm)
Interior Depth	13.25" (34 cm)
Shelf Type	Wire
Shelf Qty	1
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.8 oz.
High Side PSI	110.0
Low Side PSI	70.0
Level Legs	2
Compressor Step Height	8.5" (22 cm)
Compressor Step Width	13.5" (34 cm)
Compressor Step Depth	6.0" (15 cm)

Exterior

TM1A - Factory-installed dry contacts with remote alarm Remote alarm contacts with continuous temperature display	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
FA Front - Fan assist Fan assisted cooling for enclosed use in cubbies or cabinets, front breathing	FA Rear - Fan assist Fan assisted cooling for enclosed use in cubbies or cabinets, rear breathing
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	LHD - Left hand door swing Door reversal to left hand swing
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Lock

KEYPAD - Battery-powered keypad door lock

AC Keypad - AC powered keypad lock

Handle

TBC Copper Towel Bar Handle

CP Full-Length Copper Pipe Handle

Compact dimensions

Ideal size for use on top of counters

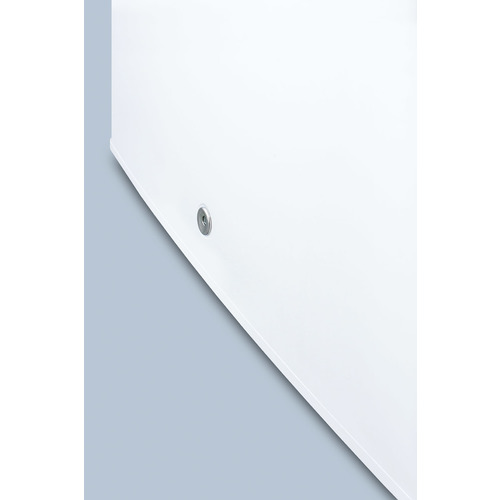

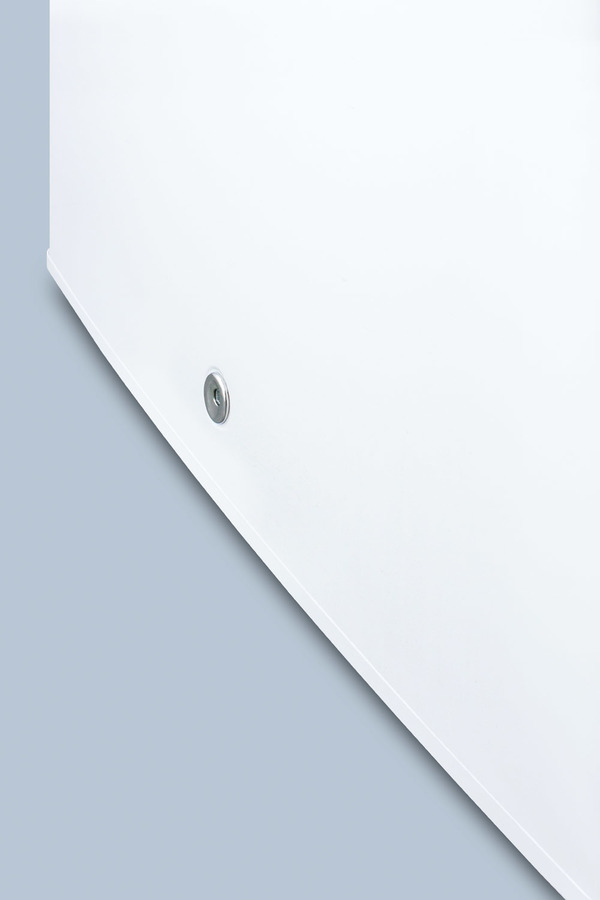

Factory installed lock

Keyed security for a secure interior

Manual defrost

Static cooling system for reduced temperature fluctuations

-20° capable

Low temperature capability ideal for certain sensitive items

Access port

Includes a factory installed probe hole for users to install their own monitoring equipment

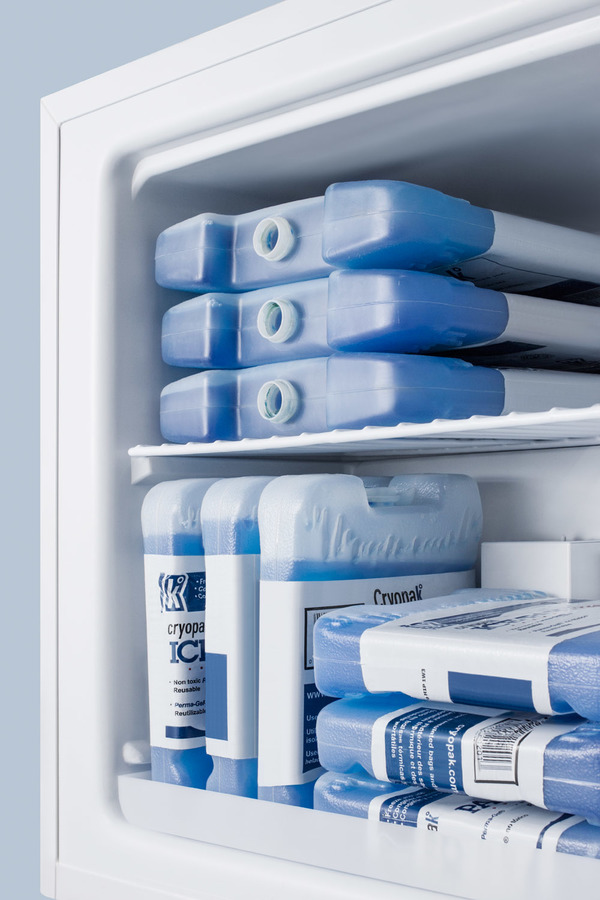

Removable shelf

Includes one wire shelf for easier storage

One-piece interior liner

Seamless interior for easier cleanup

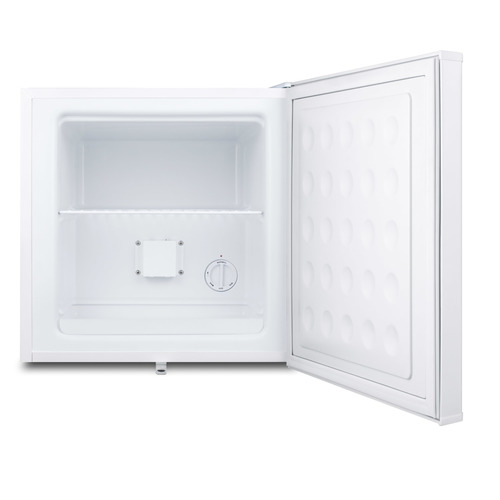

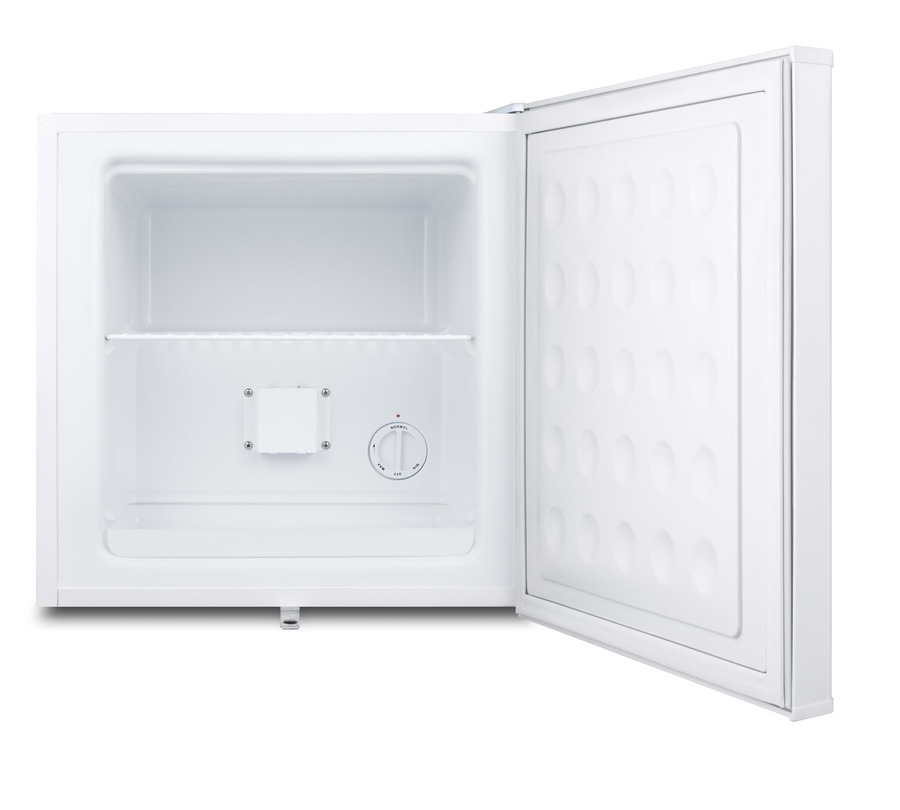

Adjustable thermostat

Dial thermostat located inside for easy temperature management

Flat door liner

Designed to comply with CDC guidelines

Foamed-in-place cabinet

Designed to ensure a sufficiently insulated interior

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Approved for use in the USA and Canada

ETL and ETL-C listed for North American sales

Reversible door

User-reversible door swing offers more flexibility

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold's PRO Series features all-refrigerators and all-freezers designed for reliable temperature stability in institutional settings.

The FS24LPRO is a compact all-freezer for use in hospitals, doctors' offices, and other facilities with specific temperature needs. We include a factory-installed lock for keyed security. A hospital grade cord with a 'green dot' plug offers added safety in high traffic areas. This unit has a digital thermostat mounted on top of the cabinet to allow users to modify the temperature without opening the door.

This manual defrost -20ºC capable unit features four removable interior drawers with clear fronts, ideal for keeping contents protected from ambient temperature when the door is opened. It has a flat door liner as recommended by the CDC and VFC. An access port is installed in the rear to allow users to install their own temperature monitoring equipment.

Additional options, including NIST calibrated temperature alarms and data loggers, can also be added. Contact our product specialists for more information.

BROCHURE
FS24LPRO.pdf

MSDS INFORMATION
R134a_AO.pdf

USE & CARE
GP-PLUS2-PRO-MED_Use___Care_01.2022.pdf

USE & CARE
PLUS2_PRO_MED_French_Manual_12-18.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
