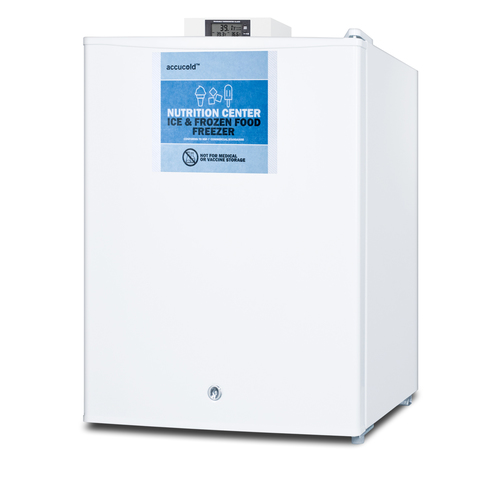

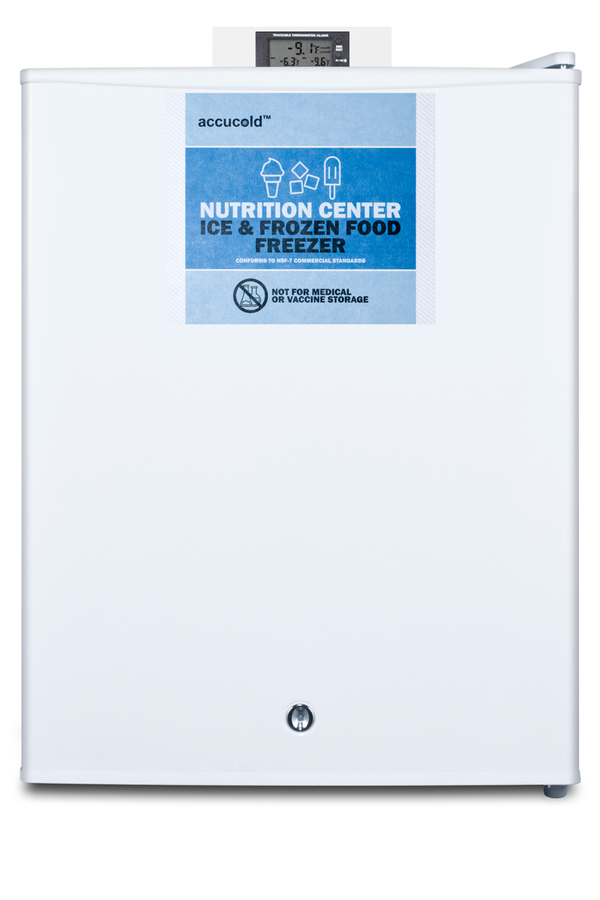

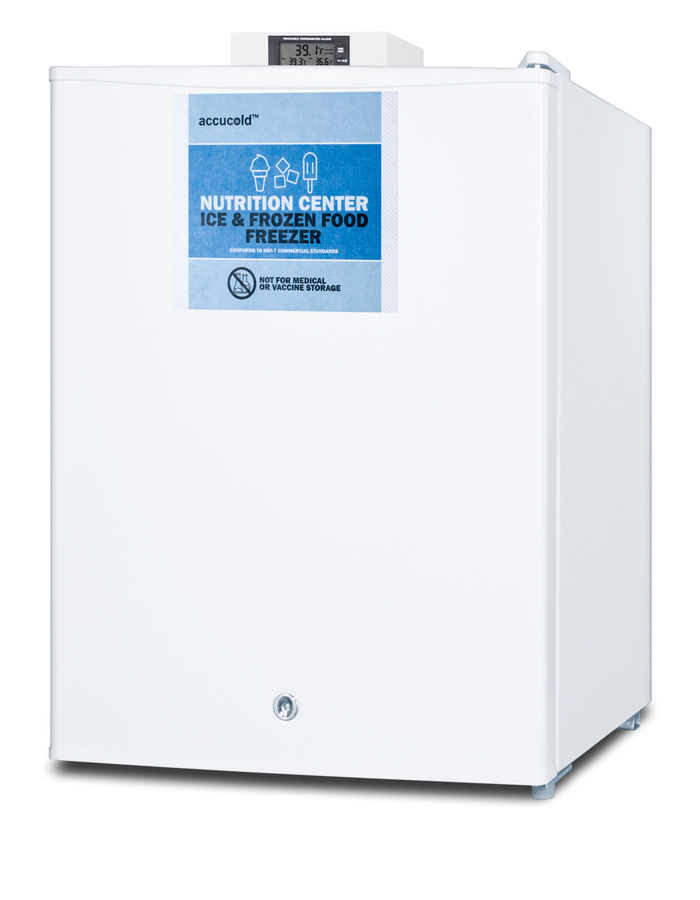

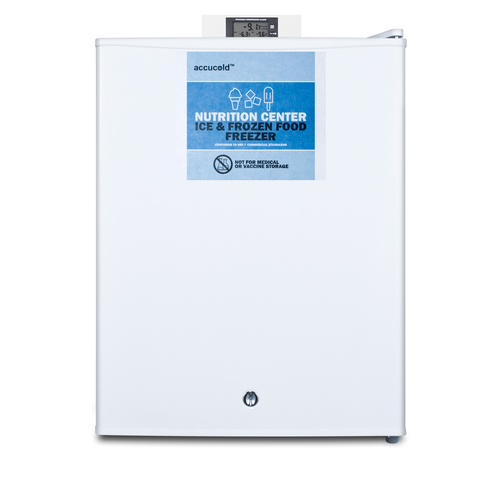

Compact All-Freezer

SKU: FS30L7NZ

Commercially approved to NSF standards, with a digital temperature display for added convenience

Estimated Time to Ship:

3 to 5 days

How to Buy

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

24.63" H x 18.5" W x 17.75" D
(63cm H x 47cm W x 45cm D)

Overview
Nominal Height	27.0" (69 cm)
Height of Cabinet	27.0" (69 cm)
Height to Hinge Cap	24.63" (63 cm)
Nominal Width	19.0" (48 cm)
Width	18.5" (47 cm)
Nominal Depth	18.0" (46 cm)
Depth	17.75" (45 cm)
Depth with door at 90°	34.5" (88 cm)
Capacity	1.8 cu.ft. (51 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	0.8
Voltage/Frequency	115 V AC/60 Hz
Weight	43.0 lbs. (20 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101061269
Freezer
Door Swing	RHD
Reversible	Yes
Interior Height	18.63" (47 cm)
Interior Width	13.38" (34 cm)
Interior Depth	13.0" (33 cm)
Shelf Type	Wire
Shelf Qty	2
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.8 oz.
Level Legs	2
Compressor Step Height	8.0" (20 cm)
Compressor Step Width	13.38" (34 cm)
Compressor Step Depth	5.75" (15 cm)

Exterior

DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)	LHD - Left hand door swing Door reversal to left hand swing
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option
DTMEDF - Digital thermostat with Fahrenheit readout Change thermostat to read in Fahrenheit (no charge)	DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Lock

AC Keypad - AC powered keypad lock

KEYPAD - Battery-powered keypad door lock

Handle

TBC Copper Towel Bar Handle

CP Full-Length Copper Pipe Handle

Commercially approved

ETL-S listed to NSF-7 commercial standards

NIST calibrated temperature display

Thermometer provides continuous display of the current and high/low temperature to the nearest tenth of a degree, with a readout switchable from Celsius to Fahrenheit at the touch of a button

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

Compact dimensions

Sized for easy use on top of counters

Versatile display

Temperature display can be switched from Celsius to Fahrenheit at the touch of a button

Manual defrost

Static cooling system for improved temperature stability

Adjustable thermostat

Dial thermostat located inside the unit

Factory installed lock

Keyed lock for a secure interior

Reversible door

User-reversible door swing allows for more flexibility in placing the unit

Removable shelves

Wire shelves can be removed to accommodate different sizes or for easy cleanup

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

One piece interior liner

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Foamed-in-place cabinet

Designed to ensure a sufficiently insulated interior

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold's Nutrition Center Series features commercially approved refrigerators and freezers specifically designed for the storage of sealed food and beverages in a variety of facilities, including break rooms, waiting areas, nurses' stations, and more.

The FS317NZ is a compact all-freezer sized for countertop use. It is ETL-S listed to NSF-7 standards for the storage of sealed food and beverages. The top cabinet includes a factory installed digital thermometer that provides a continuous external display of the current and minimum/maximum temperature to the nearest tenth of a degree, making it easier for staff to monitor and record the temperature as needed. This device includes a built-in audible alarm that will sound if the unit rises or falls out of the set temperature range. The temperature probe is encased in a glycol-filled bottle to best simulate the temperature of stored contents. All temperature display devices are calibrated to NIST standards in our ISO/IEC 17025:2017 laboratory and include a certificate of calibration.

Inside, the FS31L7NZ utilizes manual defrost operation. It includes adjustable wire shelves for flexible storage, with a flat door liner to maximize interior depth. The dial thermostat is located inside. A one-piece interior liner ensures easier cleanup.

The FS31L7NZ comes in a white exterior finish. The user-reversible door includes a front lock for added security. This unit includes a hospital grade cord with a 'green dot' plug that stays more securely in wall sockets, a key feature in busy institutional settings.

Designed specifically for institutional food and beverage storage, all Accucold's Nutrition Centers are commercially approved to NSF standards and comply with most JCAHO recommendations for safe storage. Additional sizes and variations are available.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

BROCHURE
FS30L7NZ.pdf

MSDS INFORMATION
R600a_AO.pdf

USE & CARE
FS30L_manual.pdf

USE & CARE
AL3_Alarm_Thermometer_Instructions.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
