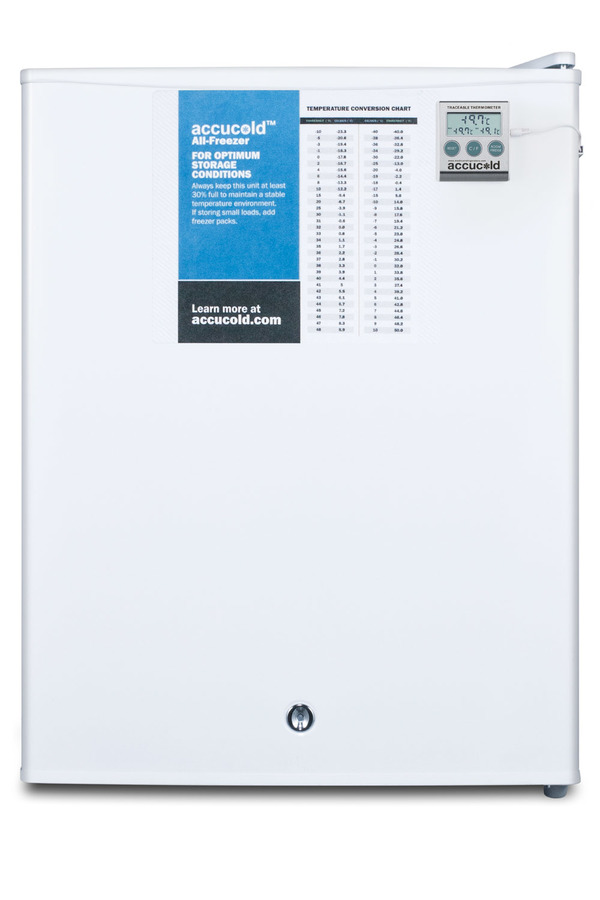

Compact All-Freezer

SKU: FS30LPLUS2

Includes a NIST calibrated thermometer with a current and high/low temperature readout

Estimated Time to Ship:

3 to 5 days

How to Buy

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

24.63" H x 18.5" W x 17.75" D
(63cm H x 47cm W x 45cm D)

Overview
Nominal Height	25.0" (64 cm)
Height of Cabinet	24.5" (62 cm)
Height to Hinge Cap	24.63" (63 cm)
Nominal Width	19.0" (48 cm)
Width	18.5" (47 cm)
Nominal Depth	18.0" (46 cm)
Depth	17.75" (45 cm)
Depth with door at 90°	34.5" (88 cm)
Capacity	1.8 cu.ft. (51 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	0.8
Voltage/Frequency	115 V AC/60 Hz
Weight	50.0 lbs. (23 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101057767
Freezer
Door Swing	RHD
Reversible	Factory Reversible
Interior Height	18.63" (47 cm)
Interior Width	13.38" (34 cm)
Interior Depth	13.0" (33 cm)
Shelf Type	Wire
Shelf Qty	2
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.8 oz.
Level Legs	2
Compressor Step Height	8.0" (20 cm)
Compressor Step Width	13.38" (34 cm)
Compressor Step Depth	5.75" (15 cm)

Exterior

TM1A - Factory-installed dry contacts with remote alarm Remote alarm contacts with continuous temperature display	SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing Door reversal to left hand swing	Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Lock

KEYPAD - Battery-powered keypad door lock

AC Keypad - AC powered keypad lock

Handle

TBC Copper Towel Bar Handle

CP Full-Length Copper Pipe Handle

Compact dimensions

Sized for easy use on top of counters

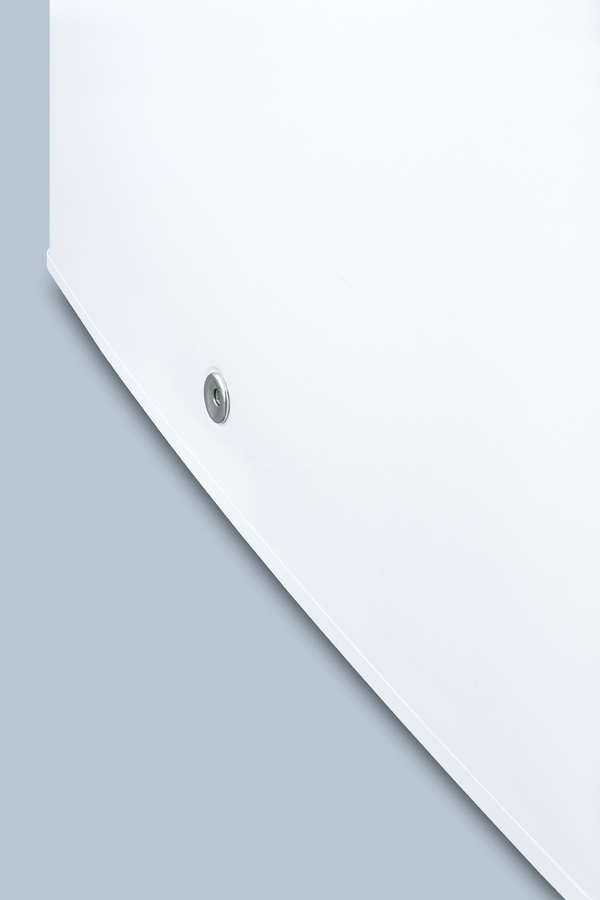

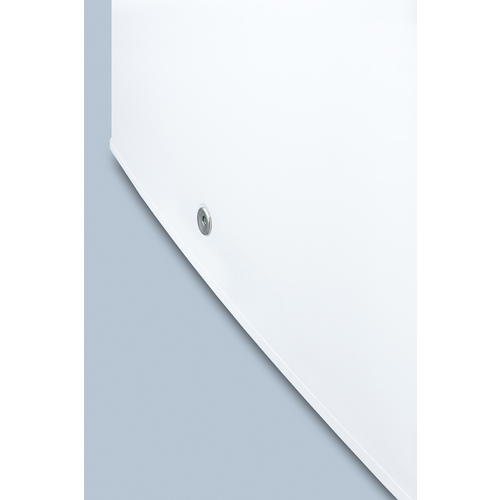

Factory installed lock

Keyed lock for a secure interior

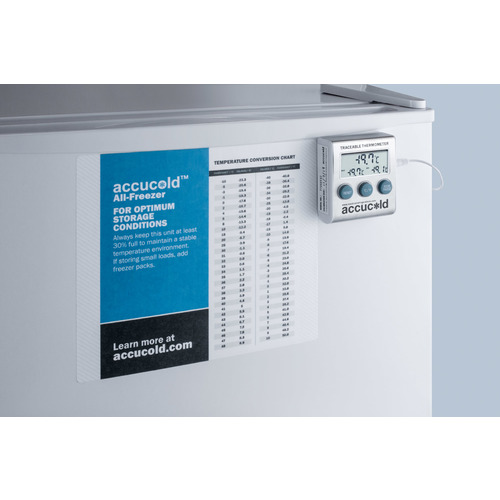

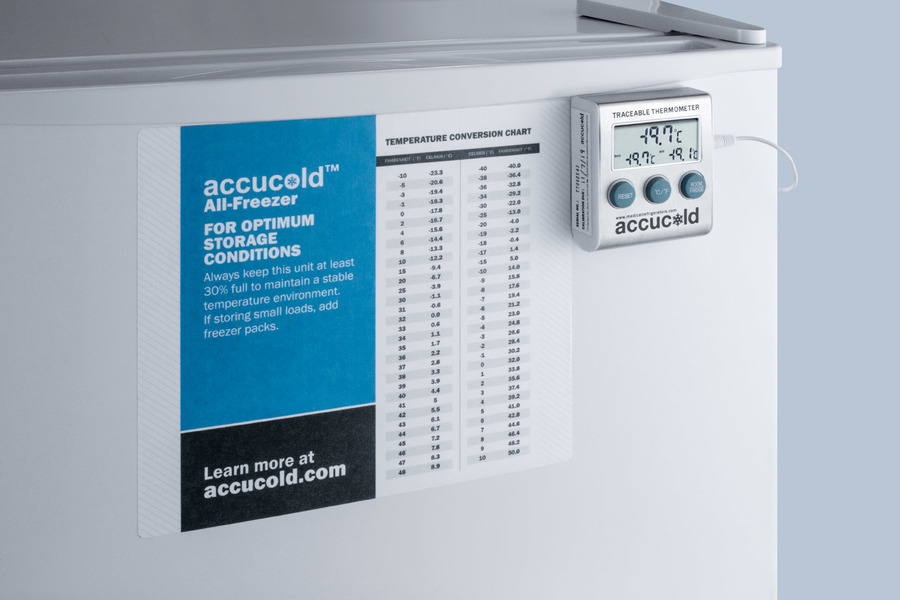

NIST calibrated thermometer

Thermometer provides continuous display of the current and high/low temperature to the nearest tenth of a degree, with a readout switchable from Celsius to Fahrenheit at the touch of a button

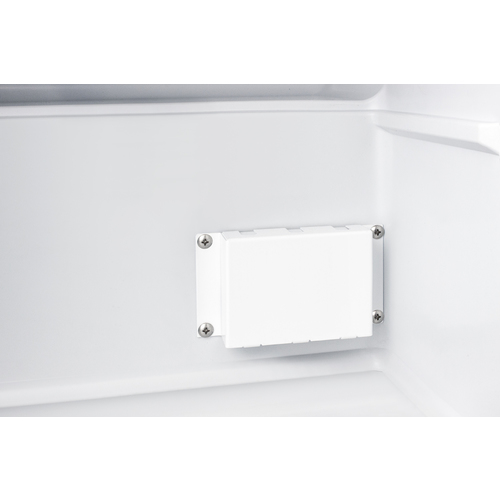

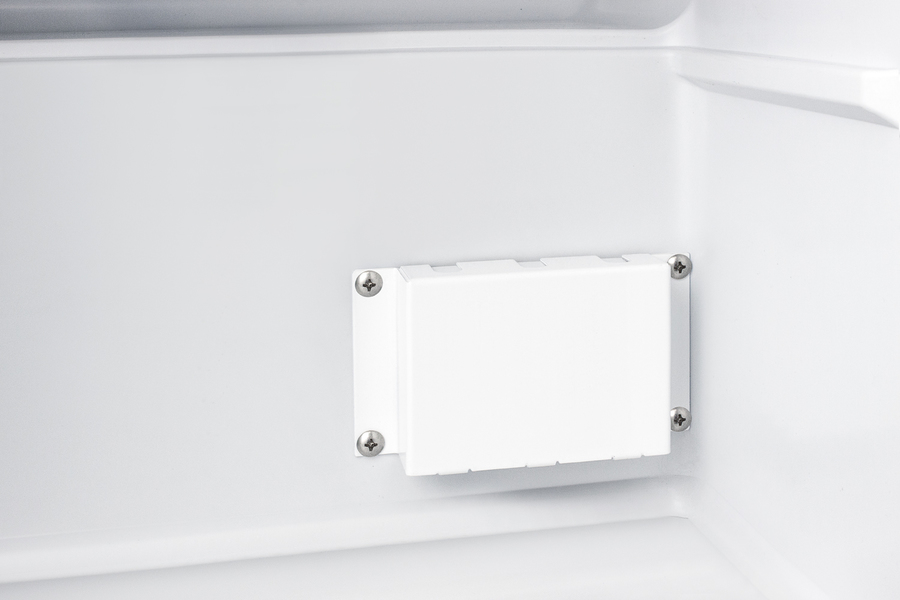

Buffered temperature probe

Thermometer probe is encased in a glycol-filled bottle to better simulate the temperature of stored contents instead of refrigerator air temperature

Manual defrost

Static cooling system for improved temperature stability

-20ºC capable

Low temperature capability ideal for certain sensitive items

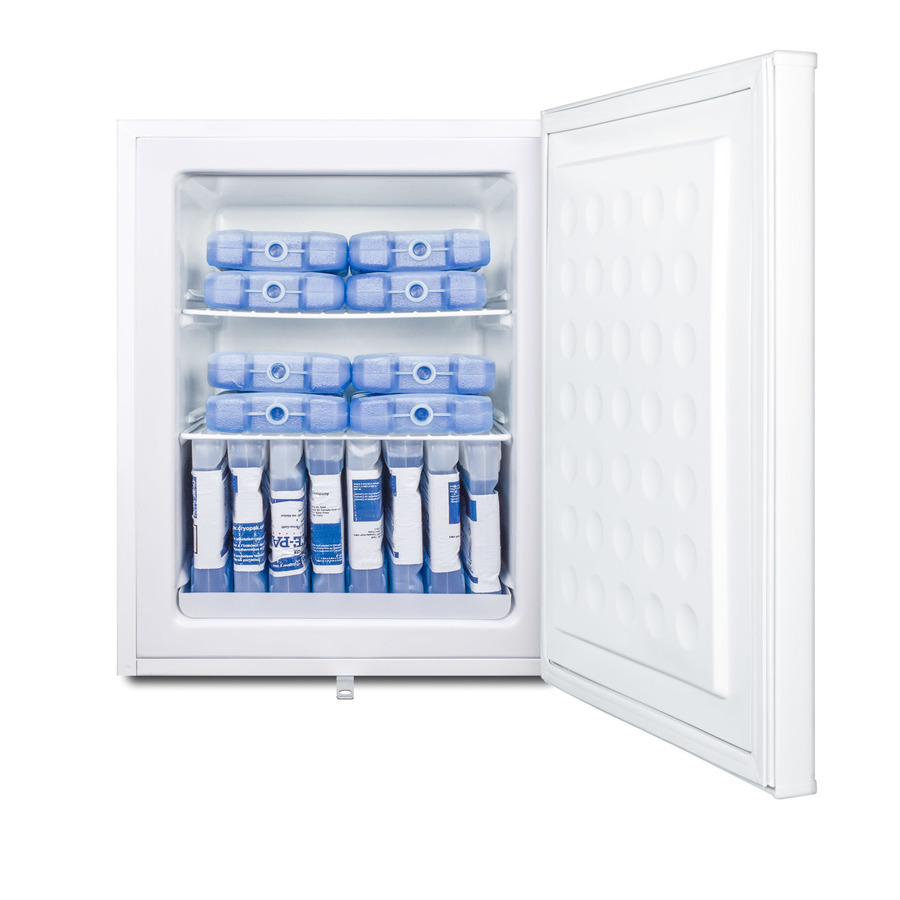

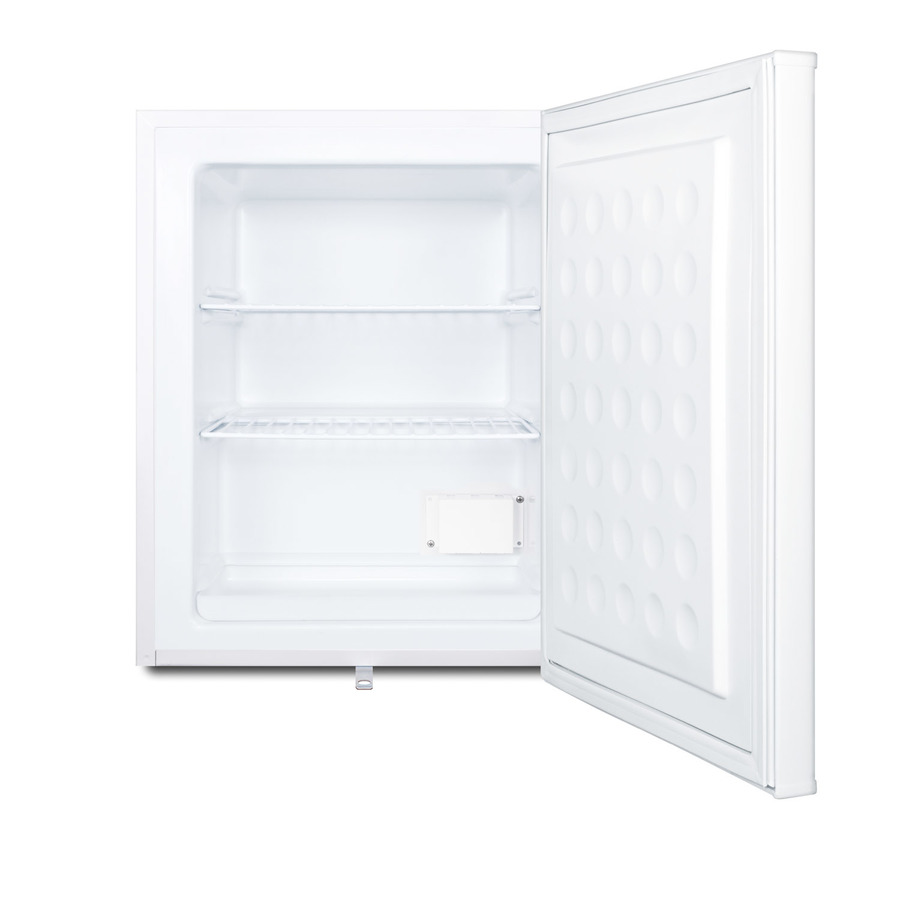

Wire shelving

Convenient storage with a wire design that helps ensure even temperature distribution

One piece interior liner

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Adjustable thermostat

Dial thermostat located inside the unit

Fully finished cabinet

Allows the unit to be used freestanding

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Foamed-in-place cabinet

Designed to ensure a sufficiently insulated interior

Approved for use in the USA and Canada

ETL and ETL-C listed for North American sales

Factory reversible door

Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

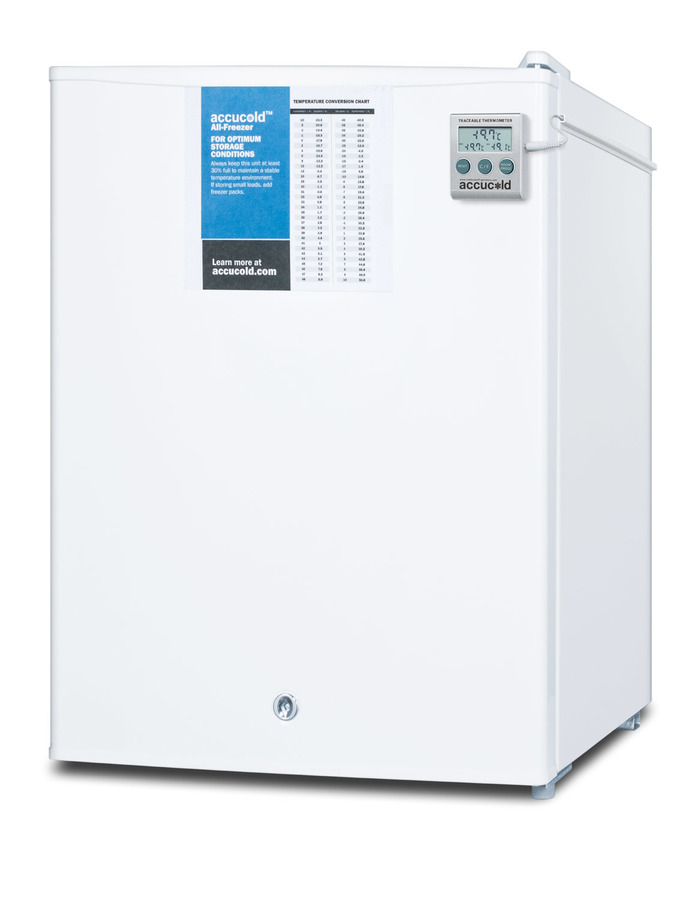

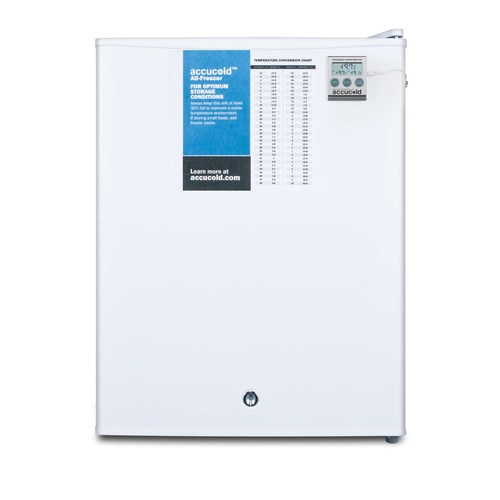

The FS30LPLUS2 is a compact 1.8 cu.ft. all-freezer designed for countertop use. It comes in a white exterior. The door includes a factory-installed lock and a thermometer calibrated to NIST standards in our ISO/IEC 17025:2017 laboratory. It displays the current, minimum, and maximum temperature to the nearest tenth degree viewable in Celsius or Fahrenheit. The buffered temperature probe is stored in a glycol-filled bottle to ensure the temperature reading best reflects the temperature of other stored freezer contents. This freezer is manual defrost and operates at an average temperature of -20ºC.

With reliable construction and a convenient size, the FS30LPLUS2 is the ideal freezer for storing select items in institutional facilities. This unit can also be ordered with more advanced medical features, including a digital thermostat, self-closing door, temperature alarm, and more.

Note: Accucold's PLUS2 series freezers are intended for a wide variety of basic storage only. Storage of high-value vaccines, life science materials, medical, or clinical biologicals require a product with design features including, but not limited to tighter temperature controls, monitoring, and/or back-up.

BROCHURE w/ DRAWINGS
FS30LPLUS2.pdf

TECHNICAL DRAWING (.dwg)
FS30L_FREEZERA-C2000.dwg

MSDS INFORMATION
Propylene_Glycol_SDS.pdf

MSDS INFORMATION
R600a_AO.pdf

USE & CARE
GP-PLUS2-PRO-MED_Use___Care_01.2022.pdf

USE & CARE
PLUS2_PRO_MED_French_Manual_12-18.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
