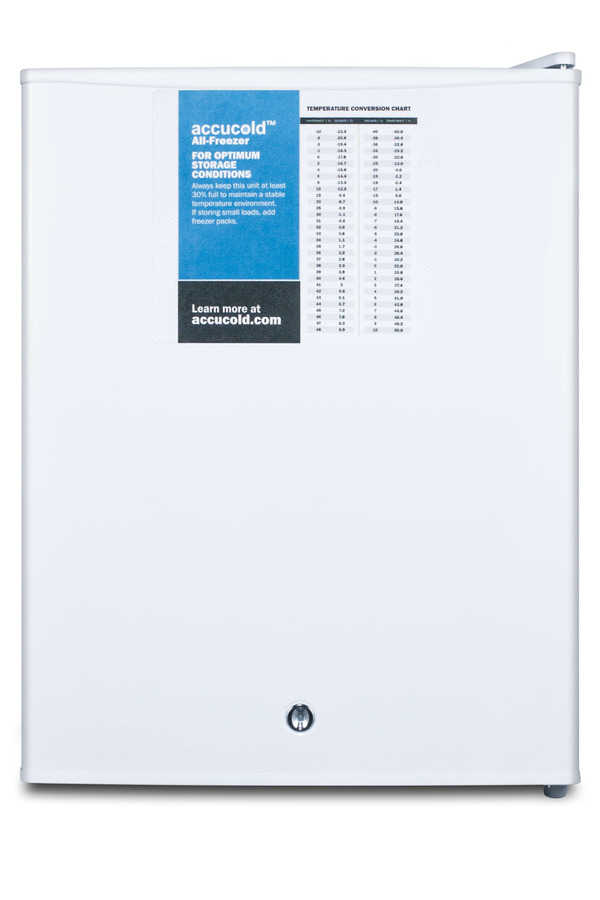

Compact All-Freezer

SKU: FS30LPRO

Factory-installed probe hole accommodates user-provided monitoring equipment

Estimated Time to Ship:

3 to 5 days

How to Buy

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

24.63" H x 18.5" W x 17.75" D
(63cm H x 47cm W x 45cm D)

Overview
Nominal Height	25.0" (64 cm)
Height of Cabinet	24.5" (62 cm)
Height to Hinge Cap	24.63" (63 cm)
Nominal Width	19.0" (48 cm)
Width	18.5" (47 cm)
Nominal Depth	18.0" (46 cm)
Depth	17.75" (45 cm)
Depth with door at 90°	34.5" (88 cm)
Capacity	1.8 cu.ft. (51 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	0.8
Voltage/Frequency	115 V AC/60 Hz
Weight	50.0 lbs. (23 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101057316
Freezer
Door Swing	RHD
Reversible	Yes
Interior Height	18.63" (47 cm)
Interior Width	13.38" (34 cm)
Interior Depth	13.0" (33 cm)
Shelf Type	Wire
Shelf Qty	2
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.8 oz.
Level Legs	2
Compressor Step Height	8.0" (20 cm)
Compressor Step Width	13.38" (34 cm)
Compressor Step Depth	5.75" (15 cm)

Exterior

TM1A - Factory-installed dry contacts with remote alarm Remote alarm contacts with continuous temperature display	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing Door reversal to left hand swing	SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Lock

AC Keypad - AC powered keypad lock

KEYPAD - Battery-powered keypad door lock

Handle

TBC Copper Towel Bar Handle

CP Full-Length Copper Pipe Handle

Compact dimensions

Sized for easy use on top of counters

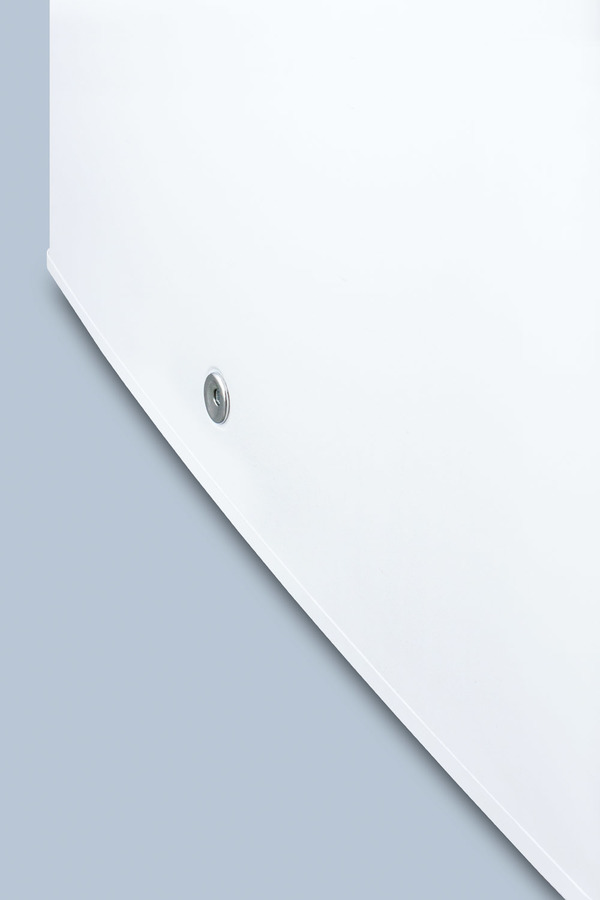

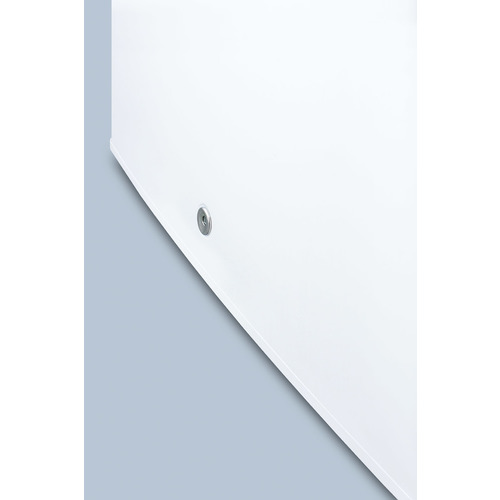

Factory installed lock

Keyed lock for a secure interior

Manual defrost

Static cooling system for improved temperature stability

-20ºC capable

Low temperature capability ideal for certain sensitive items

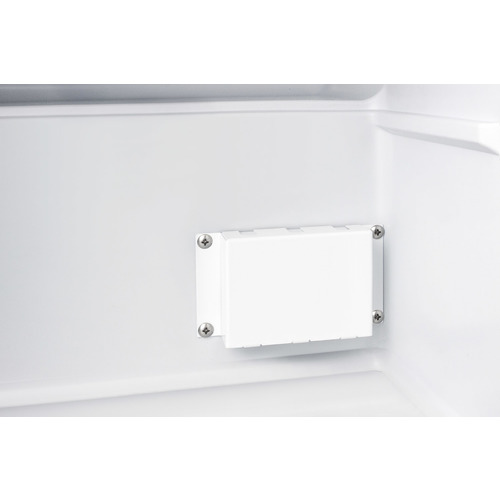

Access port

Includes a factory installed probe hole for users to install their own monitoring equipment

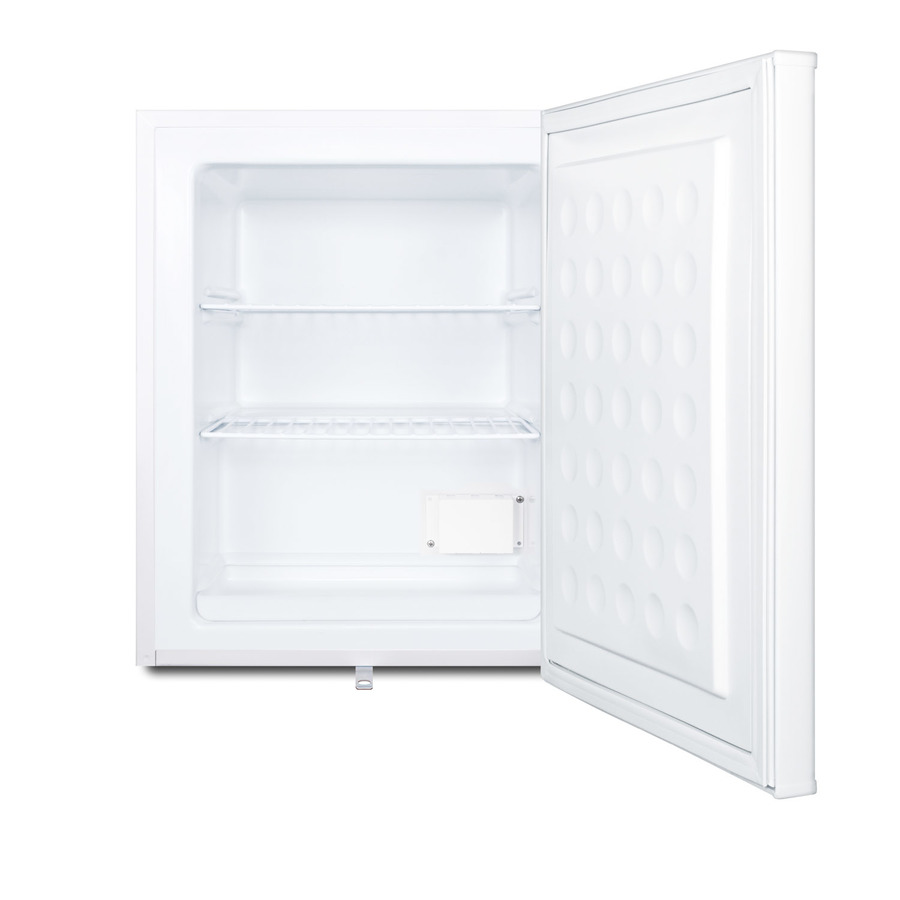

Removable shelves

Wire shelves can be removed to accommodate different sizes or for easy cleanup

One piece interior liner

Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Adjustable thermostat

Dial thermostat located inside the unit

Foamed-in-place cabinet

Designed to ensure a sufficiently insulated interior

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Approved for use in the USA and Canada

ETL and ETL-C listed for North American sales

Fully finished cabinet

Allows the unit to be used freestanding

Factory reversible door

Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold's PRO Series features all-refrigerators and all-freezers designed for reliable temperature stability in institutional settings.

The FS30LPRO is a compact all-freezer for use in hospitals, doctors' offices, and other facilities with specific temperature needs. We include a factory-installed lock for keyed security. A hospital grade cord with a 'green dot' plug offers added safety in high traffic areas. This unit has a digital thermostat mounted on top of the cabinet to allow users to modify the temperature without opening the door.

This manual defrost -20ºC capable unit features four removable interior drawers with clear fronts, ideal for keeping contents protected from ambient temperature when the door is opened. It has a flat door liner as recommended by the CDC and VFC. An access port is installed in the rear to allow users to install their own temperature monitoring equipment.

The FS30LPRO can be paired with a matching all-refrigerator (model FF28LWHPRO). Additional options, including NIST calibrated temperature alarms and data loggers, can also be added. Contact our product specialists for more information.

Note: This product is intended for a wide variety of basic storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals require a product offering tighter temperature control and/or alarms, monitoring, and backup. For more information, browse Accucold's purpose-built line or contact our product specialists at 1-888-4-MED-LAB.

BROCHURE w/ DRAWINGS
FS30LPRO.pdf

TECHNICAL DRAWING (.dwg)
FS30L_FREEZERA-C2000.dwg

MSDS INFORMATION
Propylene_Glycol_SDS.pdf

MSDS INFORMATION
R600a_AO.pdf

USE & CARE
GP-PLUS2-PRO-MED_Use___Care_01.2022.pdf

USE & CARE
PLUS2_PRO_MED_French_Manual_12-18.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
