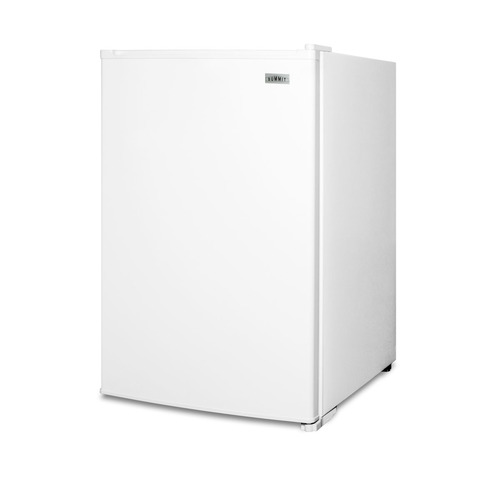

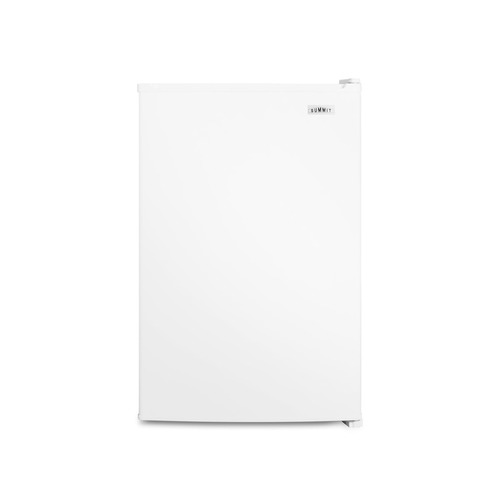

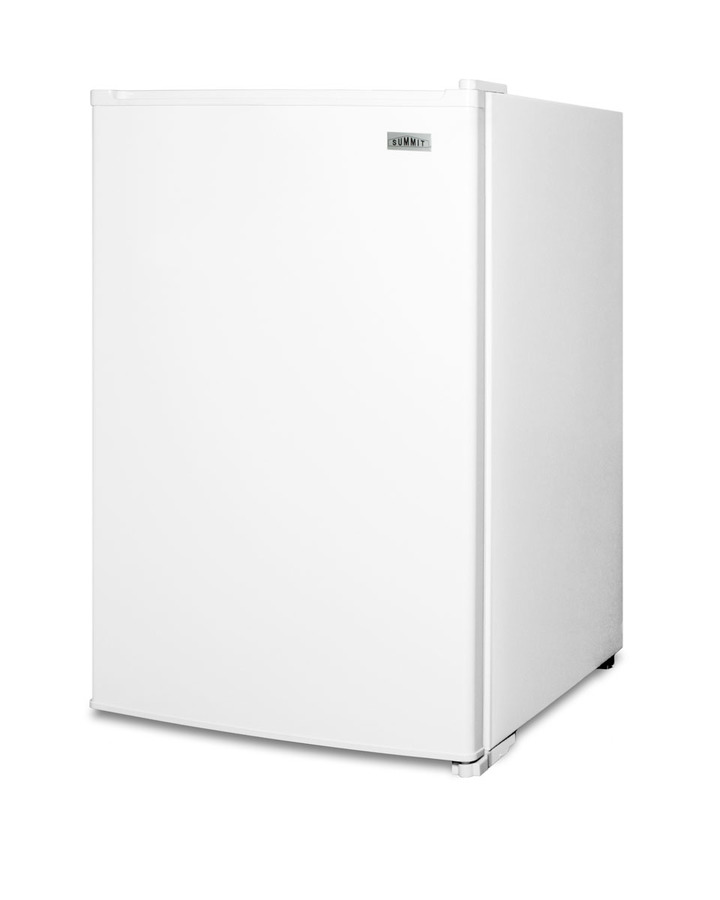

22" Wide All-Freezer

SKU: FS605

Made in North America with a full 5 cu.ft. of storage capacity, more than virtually any freezer of its size

Estimated Time to Ship:

Next day shipping

How to Buy

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

33.63" H x 21.38" W x 25.75" D
(85cm H x 54cm W x 65cm D)

Overview
Nominal Height	34.0" (86 cm)
Height of Cabinet	33.13" (84 cm)
Height to Hinge Cap	33.63" (85 cm)
Nominal Width	22.0" (56 cm)
Width	21.38" (54 cm)
Nominal Depth	26.0" (66 cm)
Depth	25.75" (65 cm)
Depth with door at 90°	44.5" (113 cm)
Capacity	5.04 cu.ft. (143 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Energy Usage/Year	301.0kWh/year
Amps	1.4
Voltage/Frequency	115 V AC/60 Hz
Weight	90.0 lbs. (41 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101085975
Freezer
Door Swing	RHD
Reversible	No
Interior Height	29.5" (75 cm)
Interior Width	18.63" (47 cm)
Interior Depth	19.0" (48 cm)
Shelf Type	Wire
Shelf Qty	2
Full Door Shelves	3
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	1.94 oz.
Compressor Step Height	7.5" (19 cm)
Compressor Step Width	18.63" (47 cm)
Compressor Step Depth	4.0" (10 cm)
Sound Level	32.8 dB

Exterior

HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Lock

AC Keypad - AC powered keypad lock Keypad door lock powered by appliance power cord for keyless security	KEYPAD - Battery-powered keypad door lock Battery-powered keypad door lock installed for keyless security
L-SideLock Add a single keyed lock located on the door's side (NOTE: side lock adds 1" to overall unit width and comes in white)	L-TopLock Add a single keyed lock located on top of the unit

Handle

TBC Copper Towel Bar Handle

CP Full-Length Copper Pipe Handle

Upright all-freezer

Made in North America and designed for residential applications

Full 5 cu.ft. capacity

Generously sized interior offers more storage space than any freezer in this size class

Slim counter height dimensions

Just 22 inches wide for easy placement in any small location, including laundry rooms, offices, second kitchens, & more

Manual defrost

Static cooling system for efficiency and improved performance

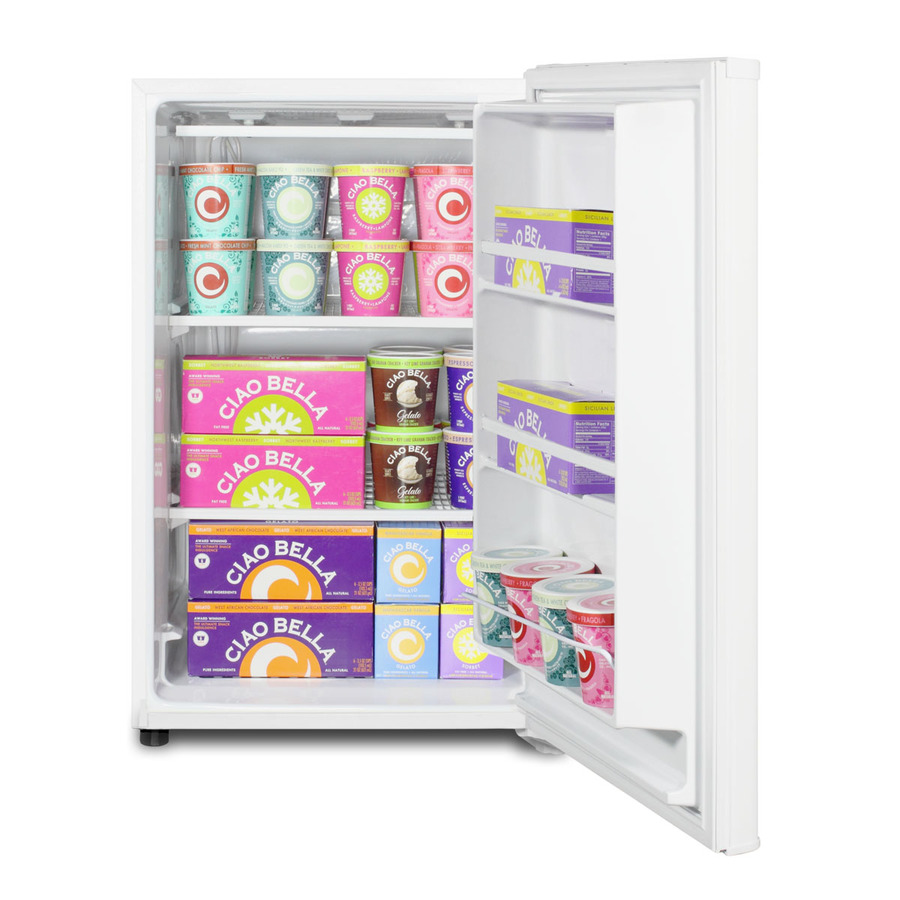

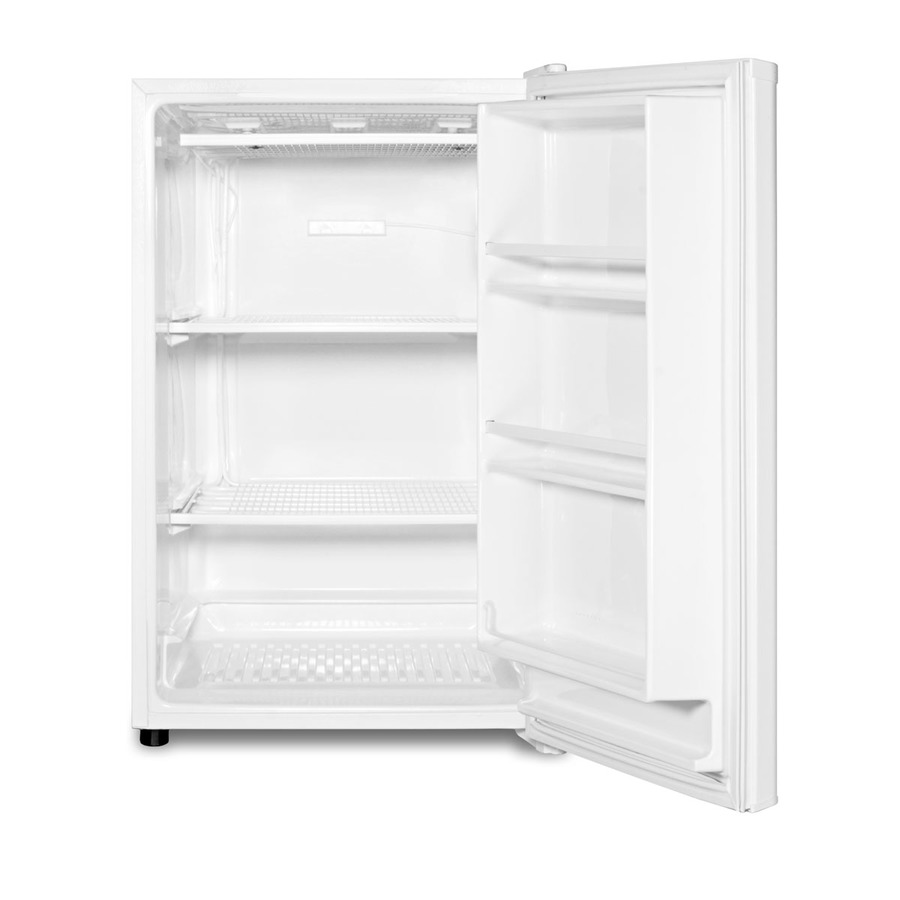

Fixed wire shelves

Two interior shelves with built-in cooling coils to ensure proper cold storage for your items

Door shelves

Three racks for added storage options

Dial thermostat

Simple and intuitive analog controls located inside for easy temperature management

Quiet operation

Runs at under 33 dB for a quiet performance in any setting

Fully finished white cabinet

Allows the unit to be used freestanding

Leveling legs

Front adjustable feet let you ensure a clean fit on uneven surfaces

Right hand door swing

Note: this door is not reversible

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's selection of North American refrigeration includes the largest capacity all-freezer in a counter height size.

Model FS605 is a freestanding residential upright freezer with a full 5 cu.ft. interior capacity. Two fixed wire shelves feature built-in cooling coils to ensure stored items are stored under the right temperature conditions. Three door racks offer additional storage convenience. This unit utilizes a static manual defrost system and unobtrusive technology with our simple and intuitive dial temperature controls.

The FS605 comes in a textured white finish and can be ordered with a stainless steel door (see model FS605SSVH). This unit has a non-reversible right hand door swing.

With its generous storage capacity and easy-fitting size, the FS605 is the perfect solution for adding extra frozen storage to shared spaces, laundry rooms, second kitchens, offices, and other settings.

BROCHURE w/ DRAWINGS
FS605.pdf

TECHNICAL DRAWING (.dwg)
FS605_FREEZERS__A-C_2000_.dwg

REVIT MODEL
Qf_Summit_FS605_22_inches_Wide_All-Freezer.rfa

USE & CARE
FS605_Use_and_Care_03.2022.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
