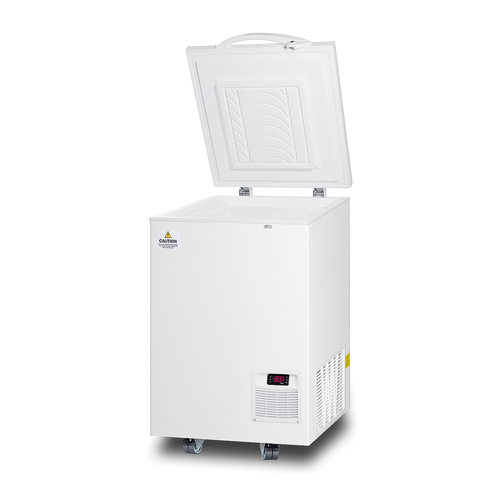

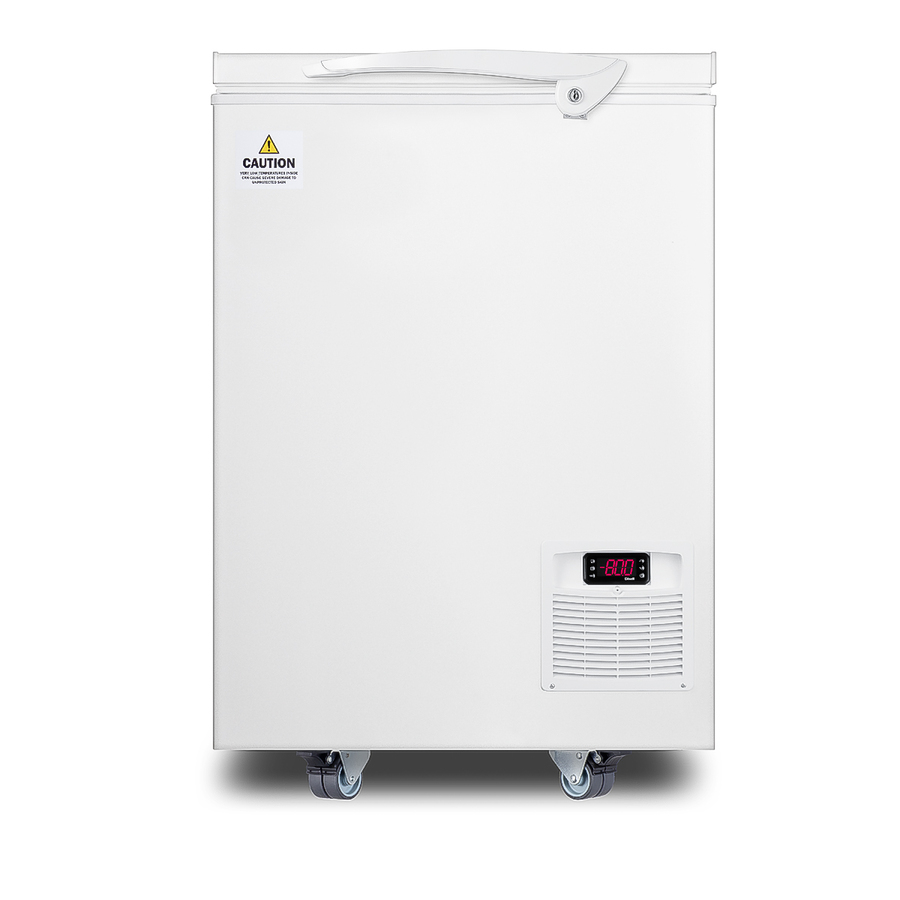

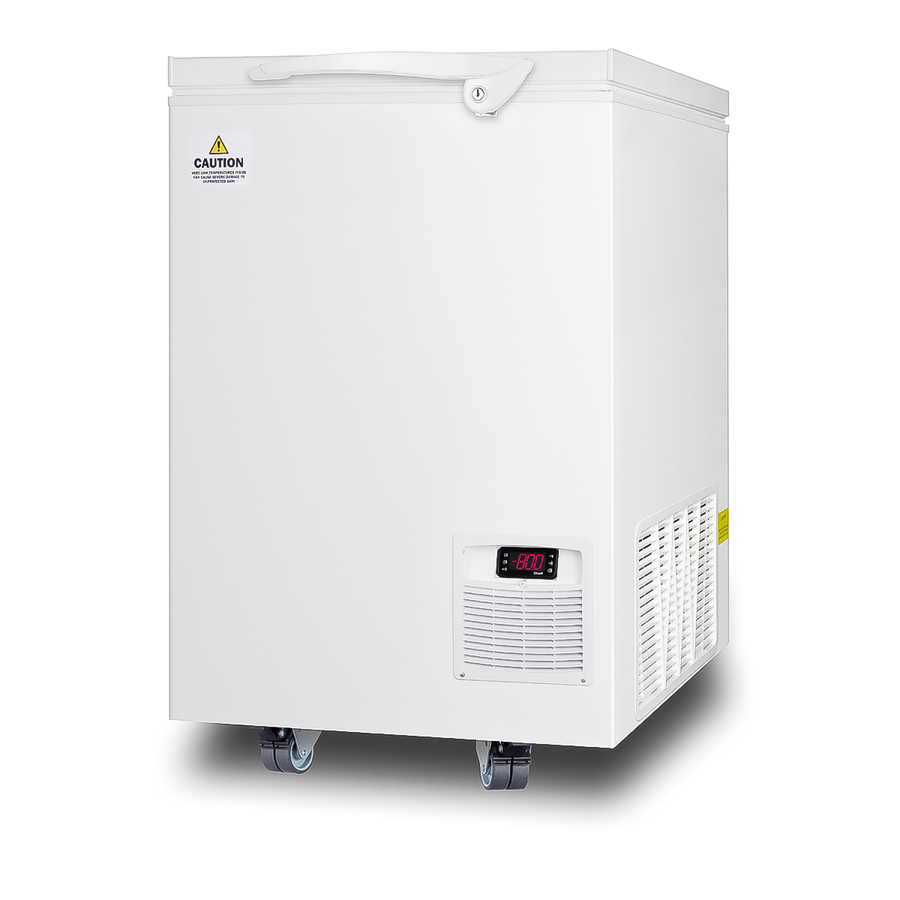

3 Cu.Ft. -85ºC Ultra Low Chest Freezer

SKU: LAB8

-85ºC operation allows for the storage of biological samples, chemicals, select vaccines and antibiotics, and other specialized materials with strict low temperature requirements

Estimated Time to Ship:

Next day shipping

How to Buy

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

36.25" H x 23.75" W x 28.0" D
(92cm H x 60cm W x 71cm D)

Overview
Nominal Height	37.0" (94 cm)
Height of Cabinet	36.25" (92 cm)
Nominal Width	24.0" (61 cm)
Width	23.75" (60 cm)
Nominal Depth	28.0" (71 cm)
Depth	28.0" (71 cm)
Depth with Handle	30.0" (76 cm)
Capacity	3.08 cu.ft. (87 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	UL-S
Amps	6.0
Voltage/Frequency	115 V AC/60 Hz
Weight	124.0 lbs. (56 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101102863
Freezer
Door Swing	Lift-Up
Interior Height	26.25" (67 cm)
Interior Width	15.5" (39 cm)
Interior Depth	17.5" (44 cm)
Thermostat Type	Digital
High Side PSI	400.0
Low Side PSI	174.0
Wheels	4
Compressor Step Height	9.75" (25 cm)
Compressor Step Width	7.75" (20 cm)
Compressor Step Depth	17.5" (44 cm)
Temperature Range	-50 to -85ºC

Ultra Low Temperature -85ºC Chest Freezer

Designed for highly specialized cold storage storage applications of biological samples, DNA/RNA material, chemicals, select vaccines and antibiotics, and other substances with strict low temperature requirements

Advanced design

Interior walls feature more than 8 layers of D-shaped cooling pipes to ensure increased contact with the freezer walls in order to ensure maximum insulation and product efficiency

Manufactured by Elcold for Accucold

Designed and constructed in Denmark

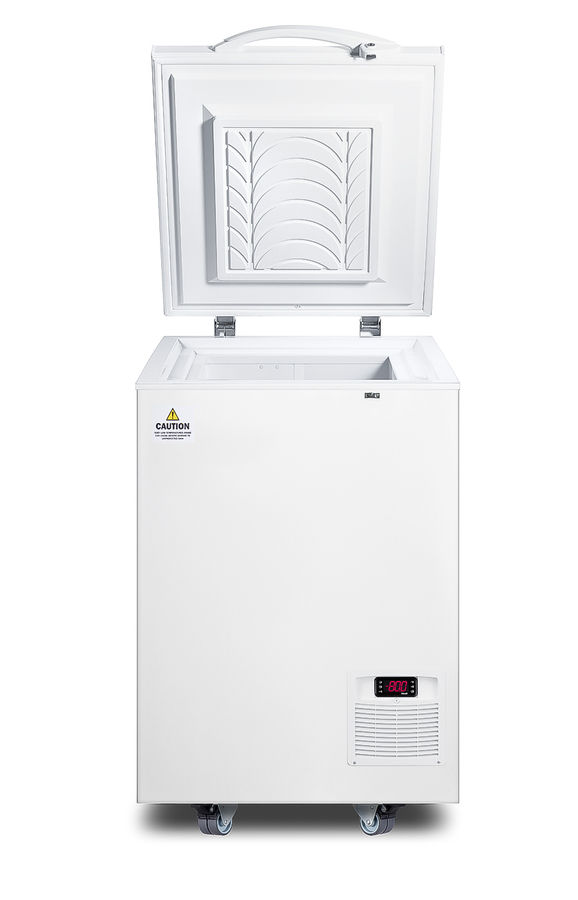

Inner lids

Includes two removable inner lids for added protection from ambient air when opening the outer lid

Extra thick insulation

4 1/2" thick walls for added efficiency and stable cooling

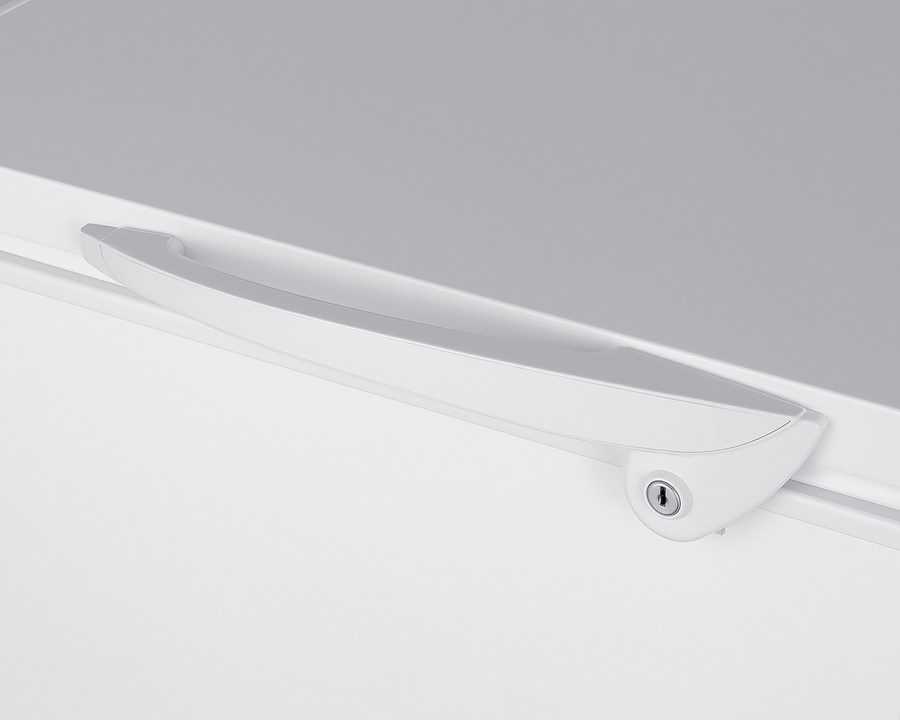

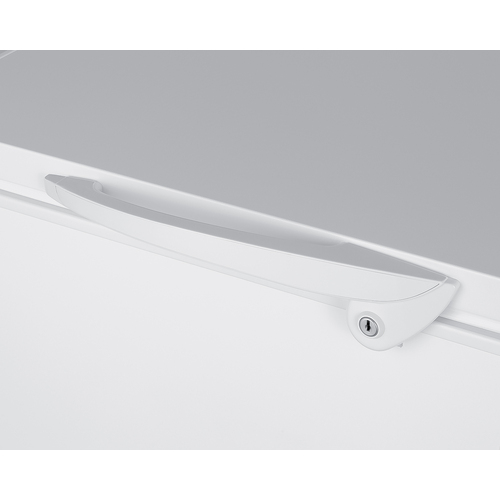

Factory installed lock

Exterior lock on the handle for reliable security (2 keys included)

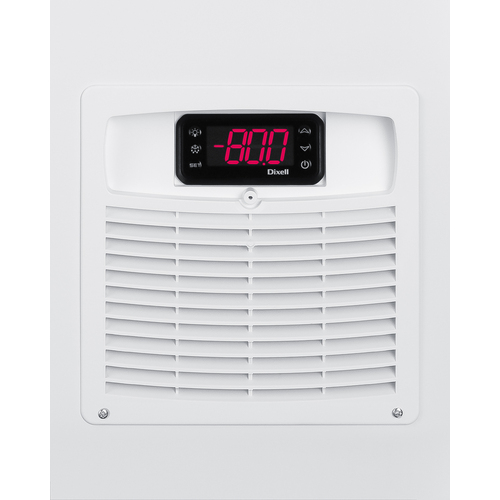

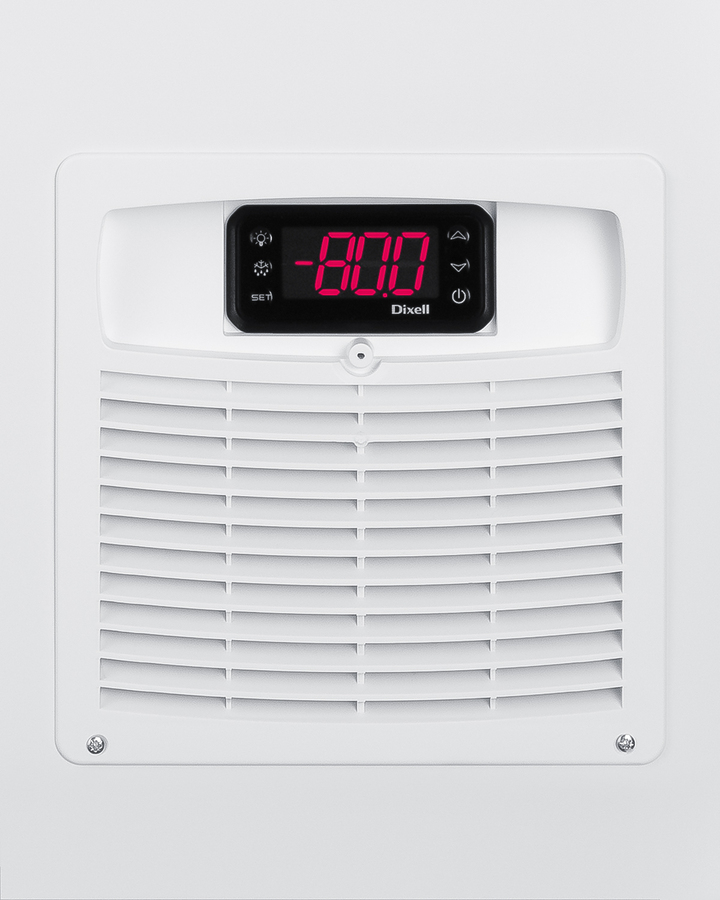

Digital thermostat

Electronic microprocessor controls for precise temperature management, with temperature readout and controls externally located for added convenience

ºC/ºF Readout

Temperature display can be alternated between Celsius or Fahrenheit to best suit your preference

High/low temperature alarm

Audible alarm warns if the interior temperature goes out of the set range

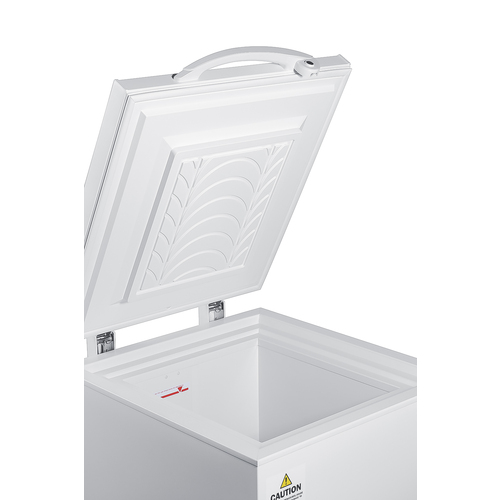

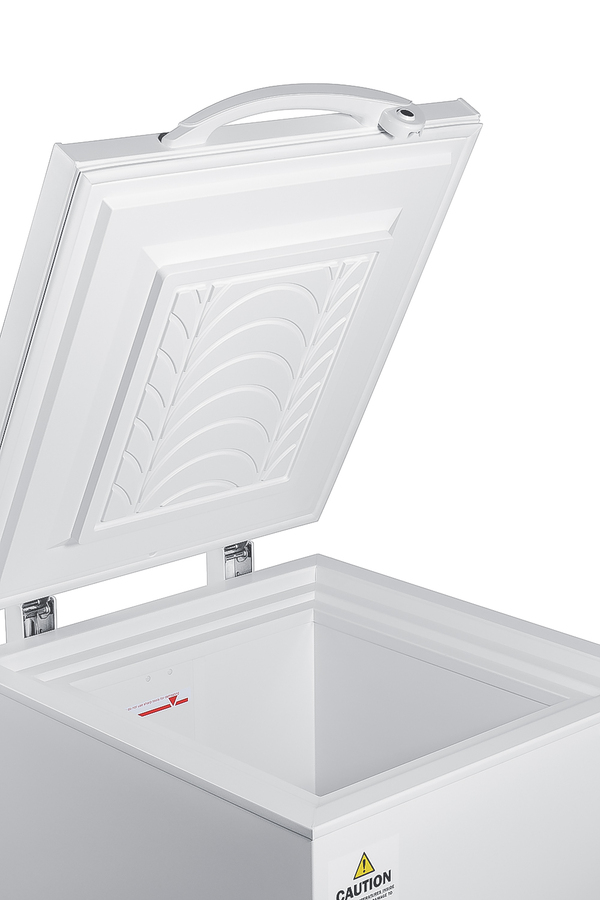

Counterbalanced hinges

Easy and safe loading and unloading with a lid that remains open when lifted past 45º angles

Caster set

Four wheels (front two locking) to allow easier mobility when cleaning or moving the unit

Manual defrost

Static cooling for a stable interior

Defrost drain

Front-located drain helps to make the defrosting process more convenient

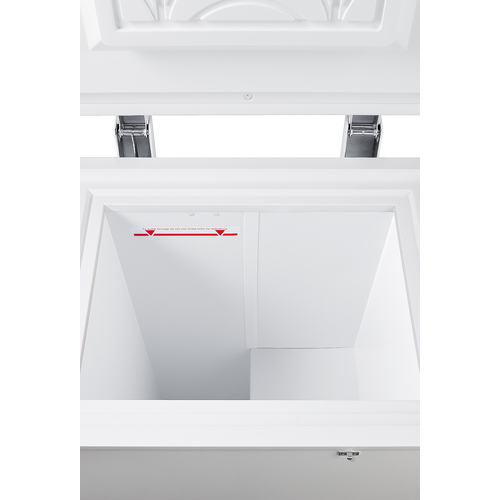

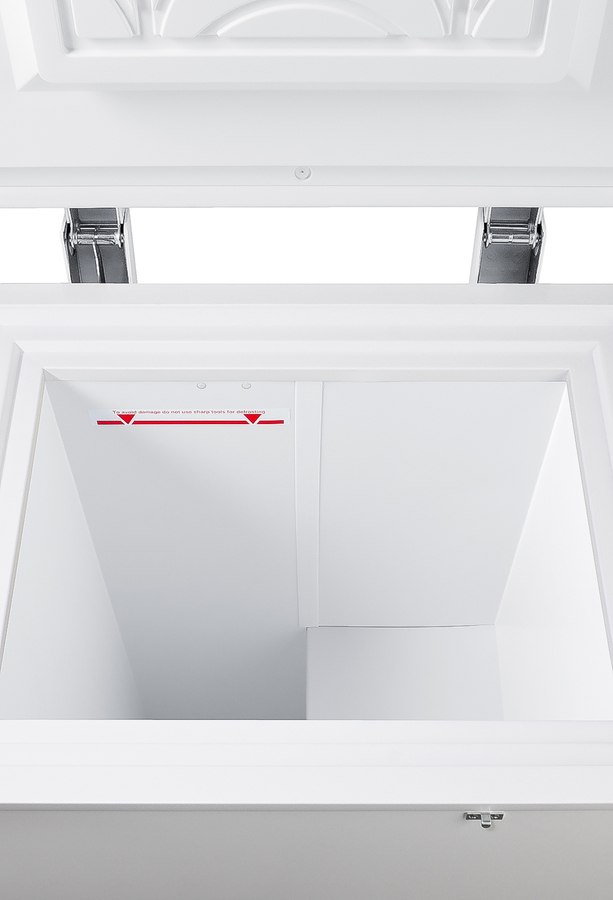

Steel interior

Durable construction in a white finish for easy visibility

Power-out alarm

9V battery-powered audible alarm mounted in the rear sounds in the event of power failure

Hermetically sealed compressor

Ensures lasting durability and reduced maintenance in busy facilities

Approved for use in USA and Canada

UL and UL-C listed

Approved to ANSI/NSF-7

UL-S listed to the National Sanitation Foundation standard

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold introduces a new series of ultra low temperature chest freezers designed for reliable storage at -85ºC for laboratory, life science, and other institutional settings.

Manufactured for Accucold in Denmark by ELCOLD, model LAB8 offers 3.08 cu.ft. of storage. Extra thick 4 1/2" insulation and static manual defrost operation help to hold ultra low temperatures suitable for maintaining the integrity of biological samples, industrial materials, laboratory specimens, select vaccines, and other materials with highly specific cold storage requirements. Two inner lids offer added protection by shielding contents when the outer lid is opened. The digital microprocessor controls are mounted in the front for convenient access. This unit has a temperature range that can be set between -50 and -85ºC, with a display viewable in Celsius or Fahrenheit. The thermostat's high/low temperature alarm warns if the interior goes out of the set range. There is also an audible 9V battery-powered alarm in the rear of the unit that will sound in the event of power failure.

We include a set of casters (two locking) for easy installation to ensure smooth mobility. The easy-grip handle is equipped with a factory-installed keyed lock for added security. We also offer this unit with a set of 6 vertical stainless steel box racks (see model LAB8R6).

The LAB8 is UL listed for use in the US and Canada, and also meets ANSI/NSF-7. For additional low temperature choices, browse the complete Accucold lineup.

BROCHURE w/ DRAWINGS
LAB8.pdf

TECHNICAL DRAWING (.dwg)
LAB8.dwg

ASSEMBLY DRAWING
LAB8-Assembly.pdf

REVIT MODEL
QF_Summit_LAB8_Chest_Freezer.rfa

USE & CARE
ELCOLD_LAB_Ultra_Low_Freezers_Use_and_Care.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
