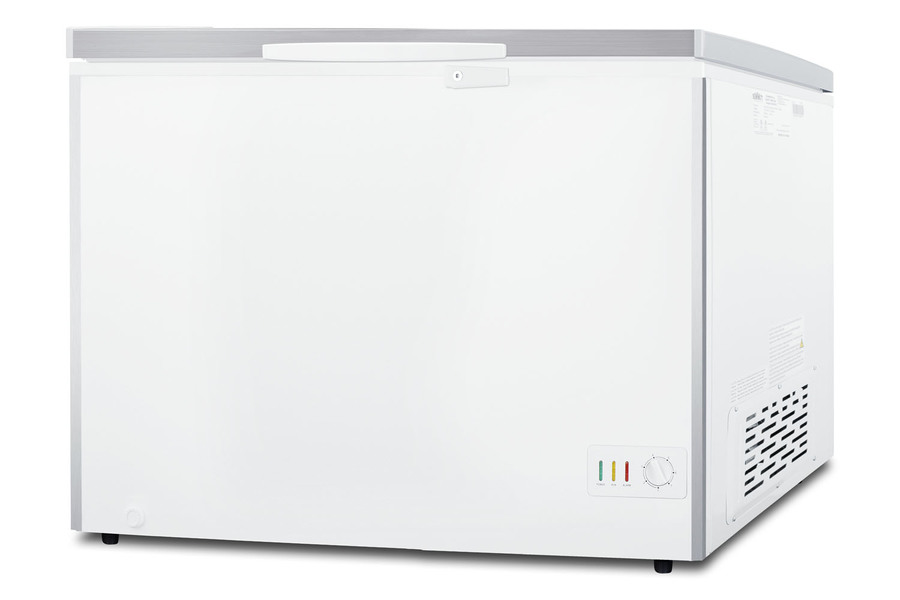

10 Cu.Ft. Chest Freezer

SKU: SCFM103SL

Durable construction to meet NSF-7 commercial standards

Out of Stock; ETA:

UNAVILABLE UNTIL FURTHER NOTICE

How to Buy

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

33.25" H x 44.0" W x 25.5" D
(84cm H x 112cm W x 65cm D)

Overview
Nominal Height	34.0" (86 cm)
Height of Cabinet	33.25" (84 cm)
Nominal Width	44.0" (112 cm)
Width	44.0" (112 cm)
Nominal Depth	26.0" (66 cm)
Depth	25.5" (65 cm)
Depth with Handle	27.25" (69 cm)
Capacity	10.0 cu.ft. (283 L)
Defrost Type	Manual
Door	Stainless Look
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	2.47
Voltage/Frequency	115 V AC/60 Hz
Weight	120.0 lbs. (54 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101087023
Freezer
Door Swing	Lift-Up
Interior Height	26.0" (66 cm)
Interior Width	38.0" (97 cm)
Interior Depth	18.0" (46 cm)
Thermostat Type	Dial
Interior Light	Yes
Refrigerant Type	R600a
Refrigerant Amount	2.2 oz.
High Side PSI	300.0
Low Side PSI	130.0
Wheels	4
Compressor Step Height	8.75" (22 cm)
Compressor Step Width	7.75" (20 cm)
Compressor Step Depth	18.0" (46 cm)
Temperature Range	-10 to -26ºC

Exterior

DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations

Large capacity

10 cu.ft. of interior storage

Commercially approved

ETL-S listed to ANSI-NSF Standard 7 for commercial use

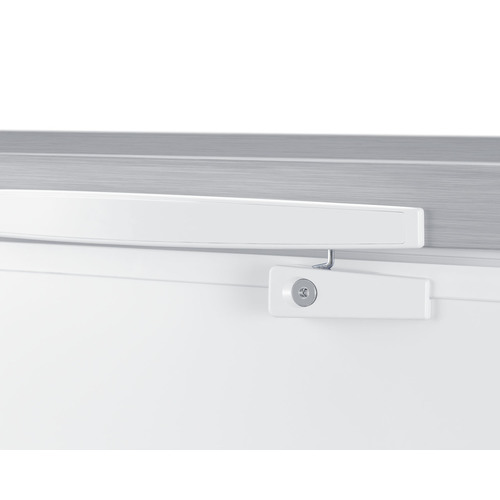

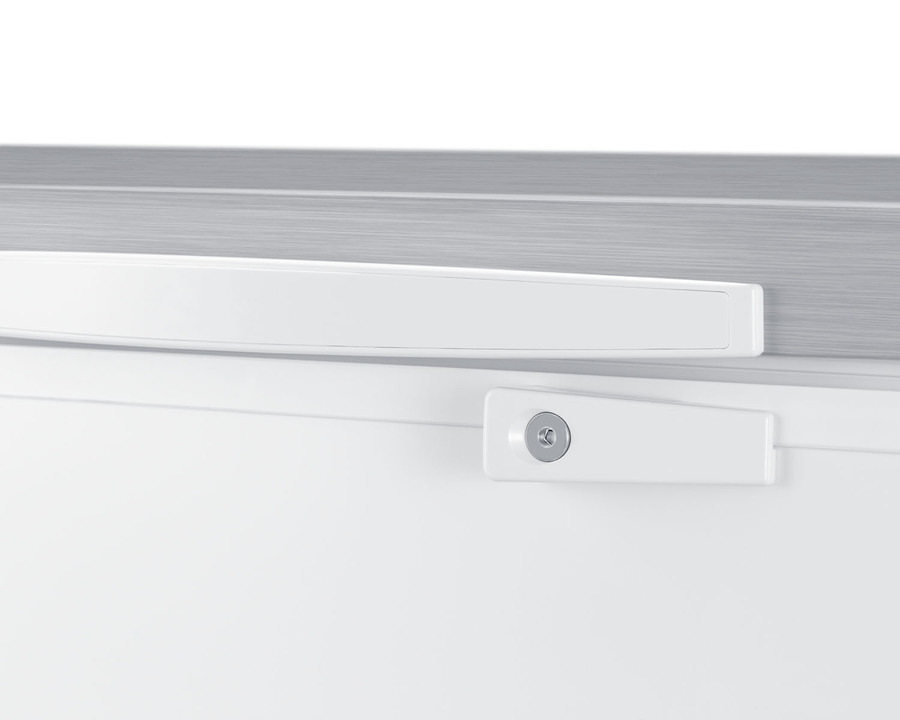

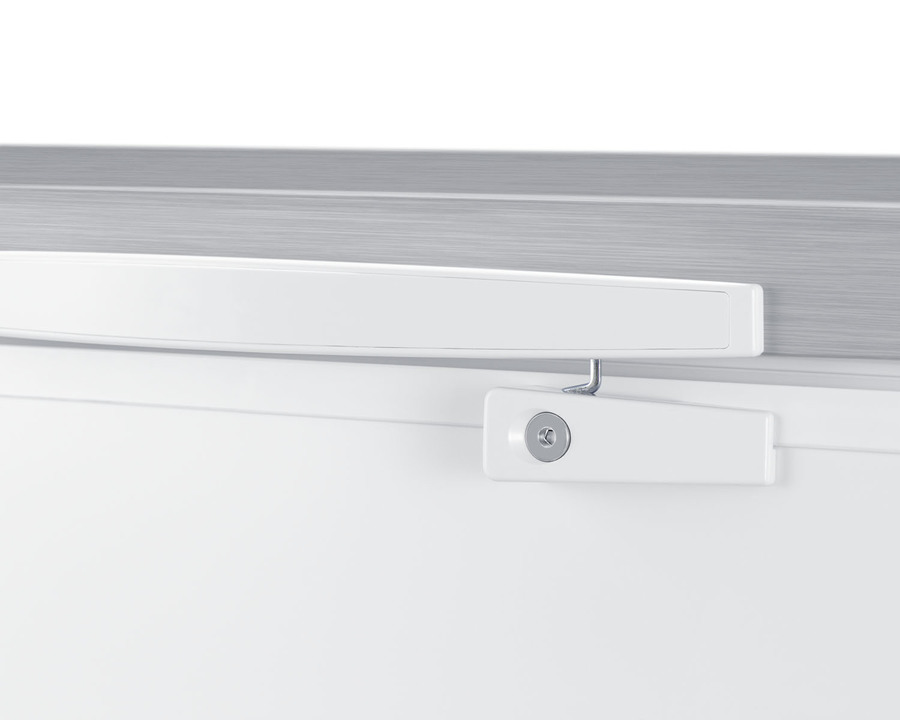

Lock included

Ships with a keyed lock and two keys for optional installation on the lid

Manual defrost operation

Static cooling system with a front drain for easier defrosting as needed

Counterbalanced hinges

The lid will remain open once lifted for easier loading

Stainless steel look

Lid comes in a silver finish for a professional look

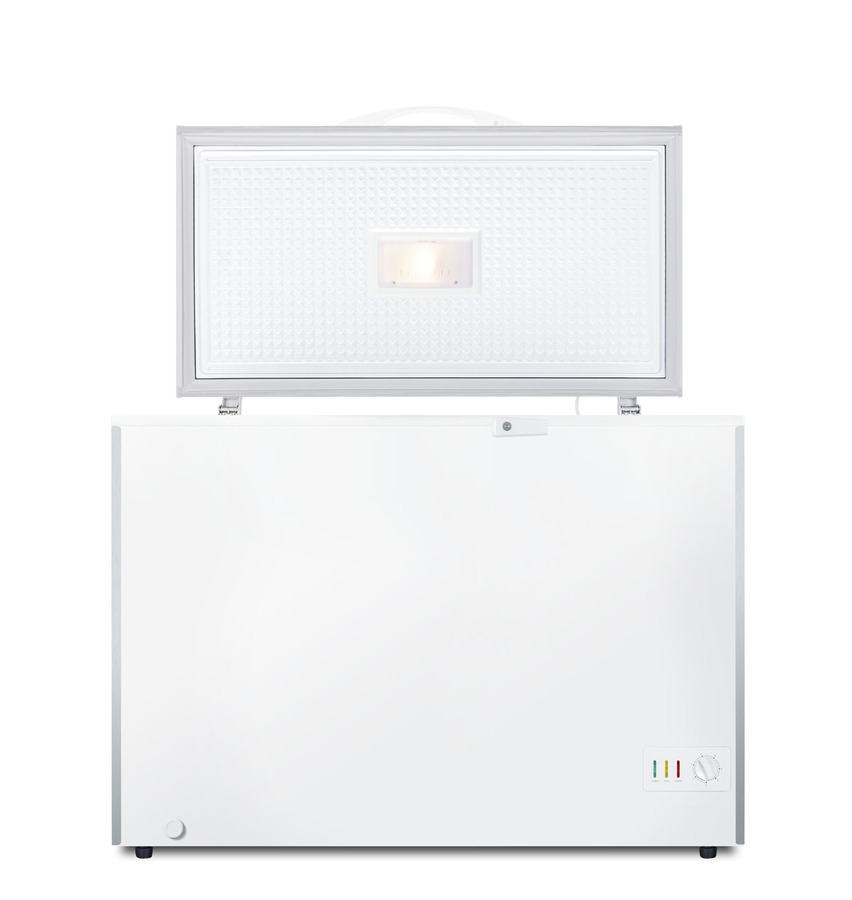

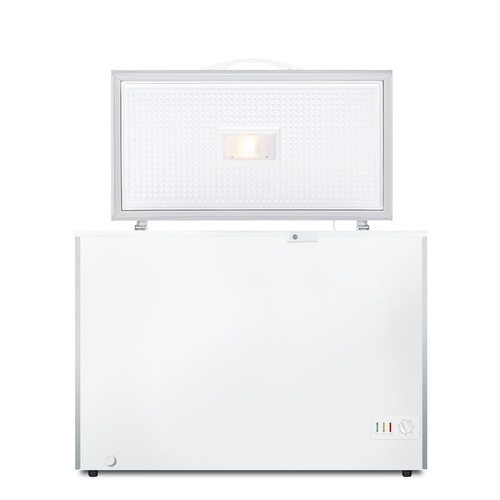

Interior light

LED light on the lid's interior for easy visibility when loading

Thick insulation

3 1/2" thick walls ensure proper insulation for reliable storage

Stainless steel front corner protectors

Factory-installed external "bumpers" to help protect the corners in busy high traffic environments

Hammered aluminum interior

Solid construction for durable storage in busy settings

Easy-grip handle

External handle for easy opening (ships unsassembled)

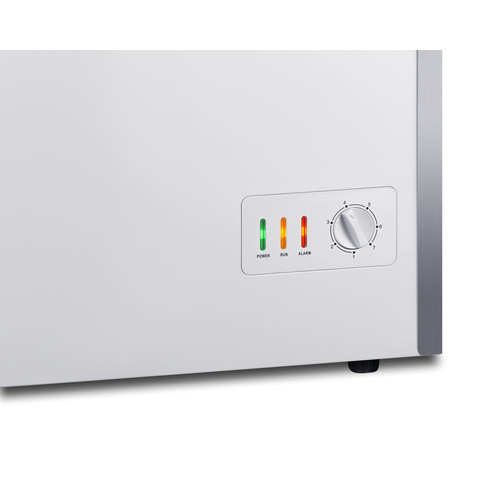

Adjustable thermostat

Dial thermostat ensures intuitive temperature management

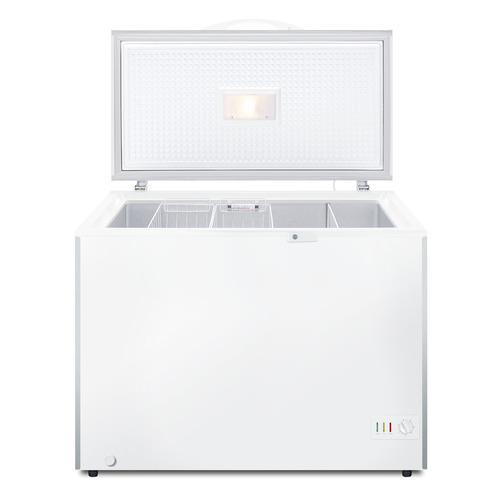

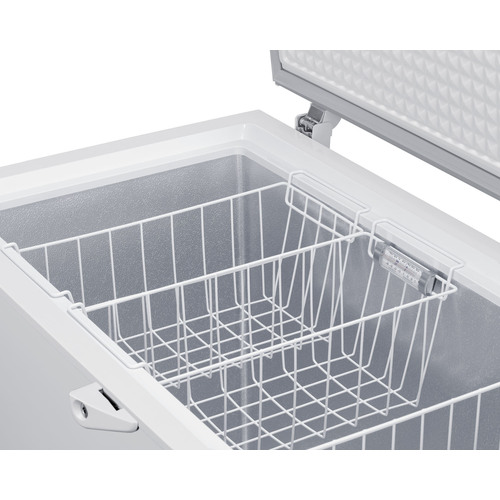

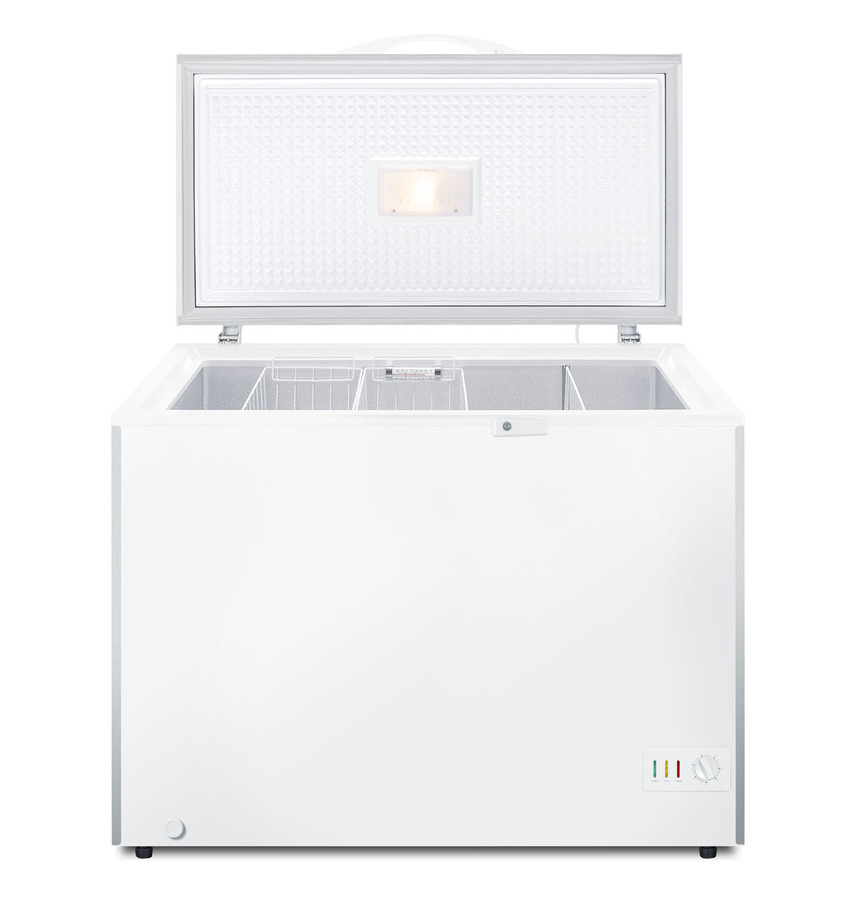

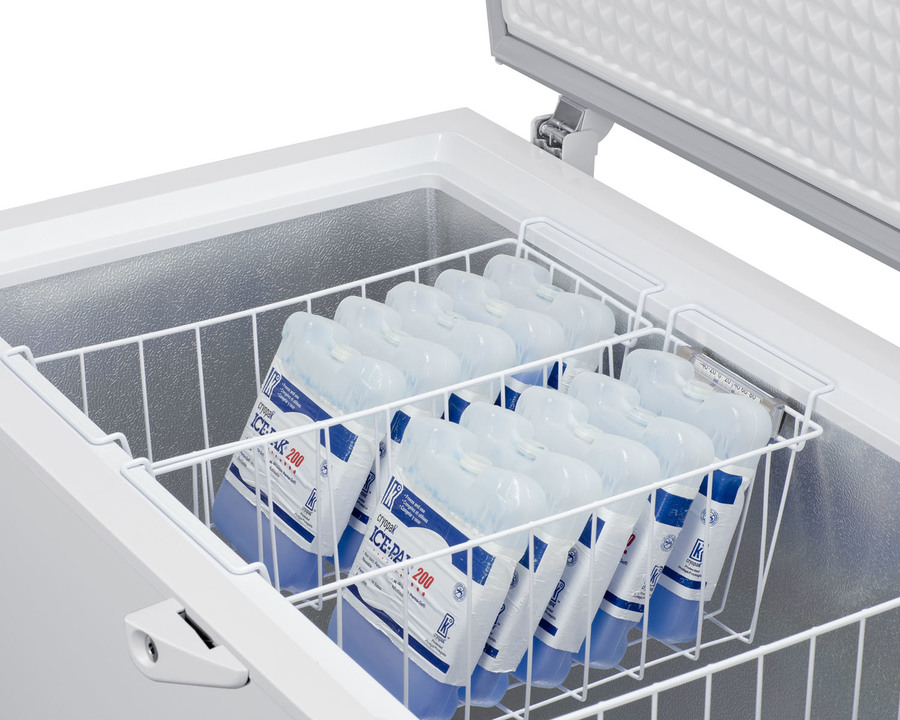

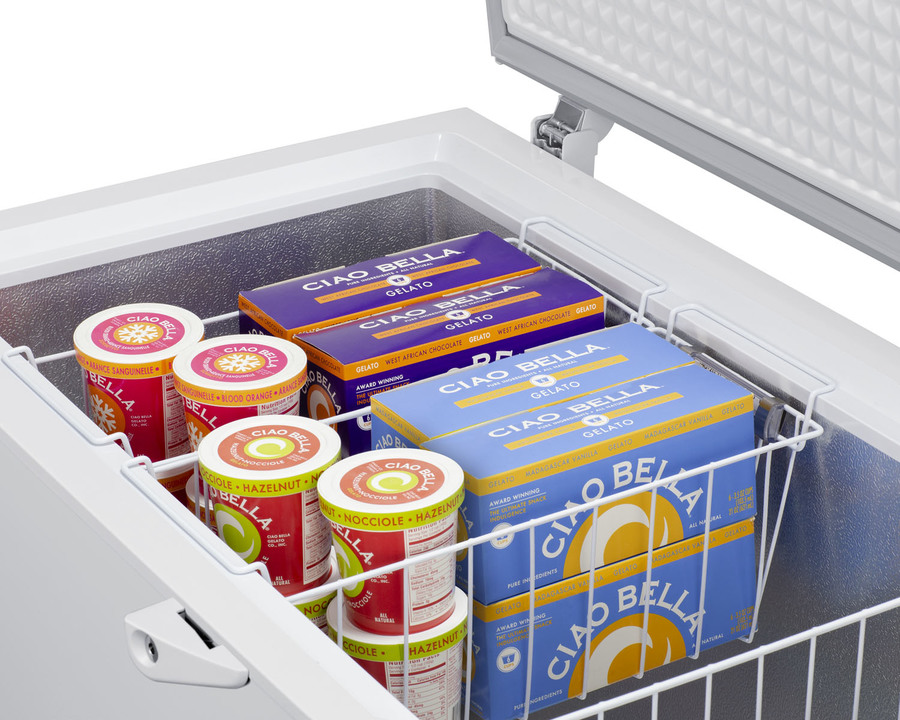

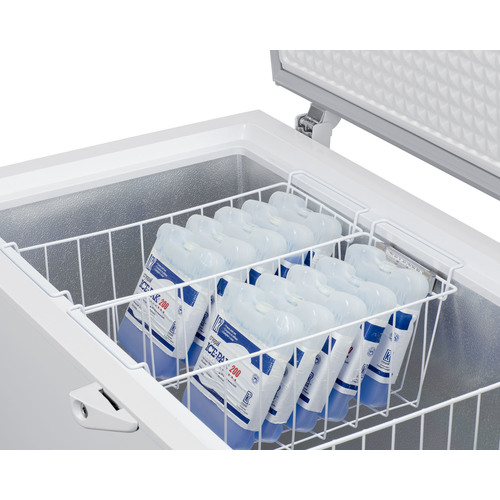

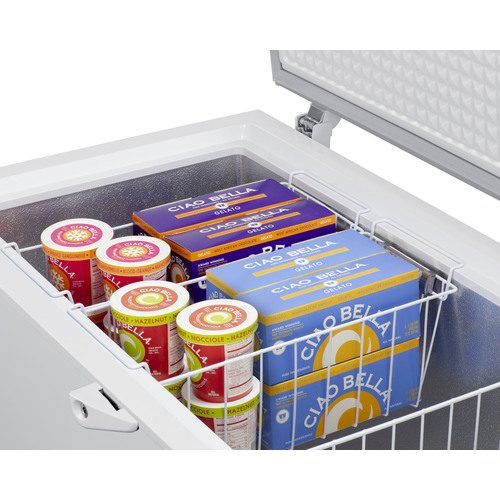

Storage baskets

Two removable wire baskets included

Removable divider

Slide-out wire divider lets you separate storage being kept on the right side of the freezer

Visual temperature alarm

Located in the front control area, the alarm light displays if the interior temperature rises above -11ºC

Removable thermometer

Portable thermometer latches onto a basket for a quick temperature reference

White exterior

Clean white finish fits well in any establishment

Right angle plug

6' long cord features a space-saving right angle plug design to not protrude when plugged into an outlet

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT COMMERCIAL offers a quality selection of manual defrost chest freezers designed for a variety of storage applications in commercial establishments.

The SCFM103SL is ETL-S listed to NSF-7 standards for commercial use. The large interior offers 10 cu.ft. of storage capacity. The lid offers the look of stainless steel, with counterbalanced hinges to help stay open when loading the interior. We include a handle and keyed lock with two keys for optional user installation. This freezer features two pre-installed stainless steel corner protectors to help shield the unit's sides in busy environments.

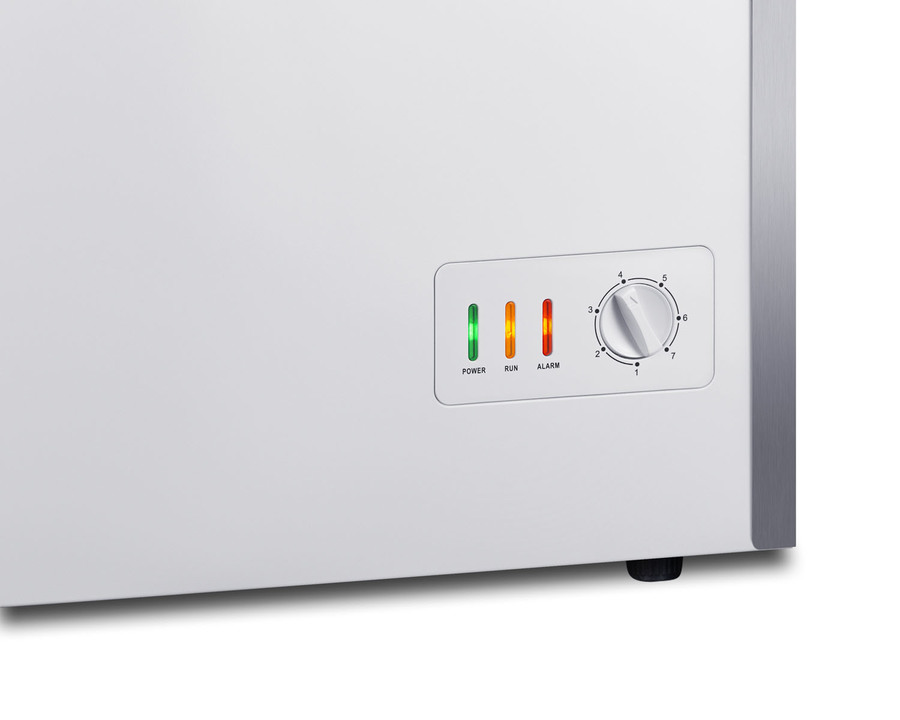

Inside, the SCFM103SL features a hammered aluminum interior for lasting durability in commercial settings. The lid includes an LED light for better visibility. Two sliding wire baskets offer easy storage and a divider lets you separate items stored on the right side. This unit utilizes static manual defrost cooling, with a defrost drain located in the front. The cord features a right angle plug for an easier fit into your outlet. The dial thermostat is located in the front corner, with a power indicator and an alarm light that will illuminate if the unit is operating warmer than -11ºC (12.2ºF). We include a removable thermometer that conveniently hooks onto a basket for a quick temperature reference.

In addition to this unit, SUMMIT COMMERICAL offers additional sizes of commercially listed manual defrost freezers, as well as frost-free choices and low temperature freezers all approved to NSF commercial standards. Browse our full lineup to find the right storage solution for your needs.

BROCHURE w/ DRAWINGS
SCFM103SL.pdf

TECHNICAL DRAWING (.dwg)
SCFM103__FREEZER__A-C_.dwg

USE & CARE
SCFM133_SCFM183_SCFM203_Use_and_Care_09.2021.pdf

SUPPORT
SCFM_Series_Instructions_for_Installation_of_Lock_Handle_and_Casters.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
