22" Wide Beverage Center

SKU: SCR1006

Unique size offers generous storage in a slim footprint

Estimated Time to Ship:

Next day shipping

How to Buy

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

48.5" H x 21.25" W x 22.5" D
(123cm H x 54cm W x 57cm D)

Overview
Nominal Height	48.0" (122 cm)
Height of Cabinet	48.0" (122 cm)
Height to Hinge Cap	48.5" (123 cm)
Nominal Width	22.0" (56 cm)
Width	21.25" (54 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.5" (57 cm)
Depth with Handle	24.5" (62 cm)
Depth with door at 90°	42.0" (107 cm)
Capacity	9.0 cu.ft. (255 L)
Defrost Type	Automatic
Door	Glass
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	2.0
Voltage/Frequency	115 V AC/60 Hz
Weight	115.0 lbs. (52 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101054957
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Shelf Type	Wire
Shelf Qty	5
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	1.24oz.
High Side PSI	270.0
Low Side PSI	103.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	34°F to 43°F
Dimensions
Interior Height	42.0" (107 cm)
Interior Width	18.0" (46 cm)
Interior Depth	16.25" (41 cm)
Compressor Step Height	8.0" (20 cm)
Compressor Step Width	18.0" (46 cm)
Compressor Step Depth	4.0" (10 cm)

Exterior

PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)	LHD - Left hand door swing Door reversal to left hand swing
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Door

T4F Door Tint Neutral door tint in light smoke finish for moderate energy savings	T3F Door Tint Reflective door tint in light blue finish for medium energy savings
T2F Door Tint Tinted door in reflective deep blue finish with high energy savings	T1SF Door Tint Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models

Commercially listed

ETL-S listed to NSF standards for commercial use

Digital thermostat

Electronic controls allow precise temperature management; Digital readout can be viewed in Celsius or Fahrenheit

Automatic defrost

Reduced maintenance with auto defrost system

Factory installed lock

Keyed lock offers added security, with two keys included

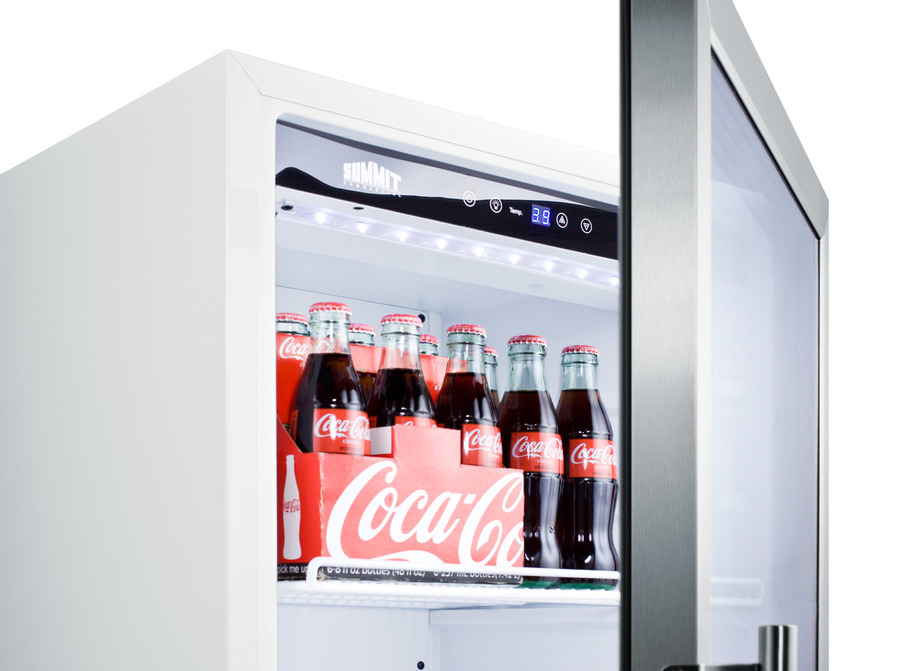

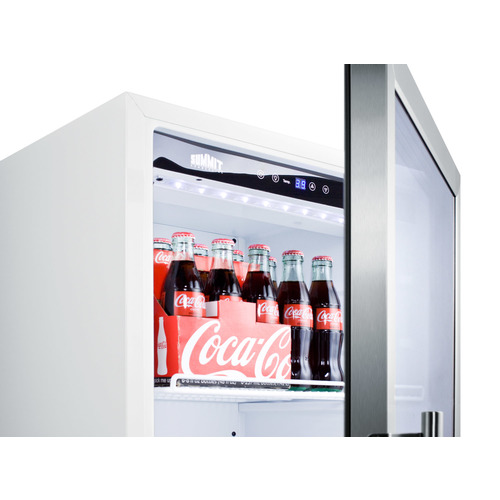

LED lighting

Provides an attractive display of stored contents

Double pane tempered glass door

Heat-safe design offers full display, with a stainless steel trim for an added touch of style

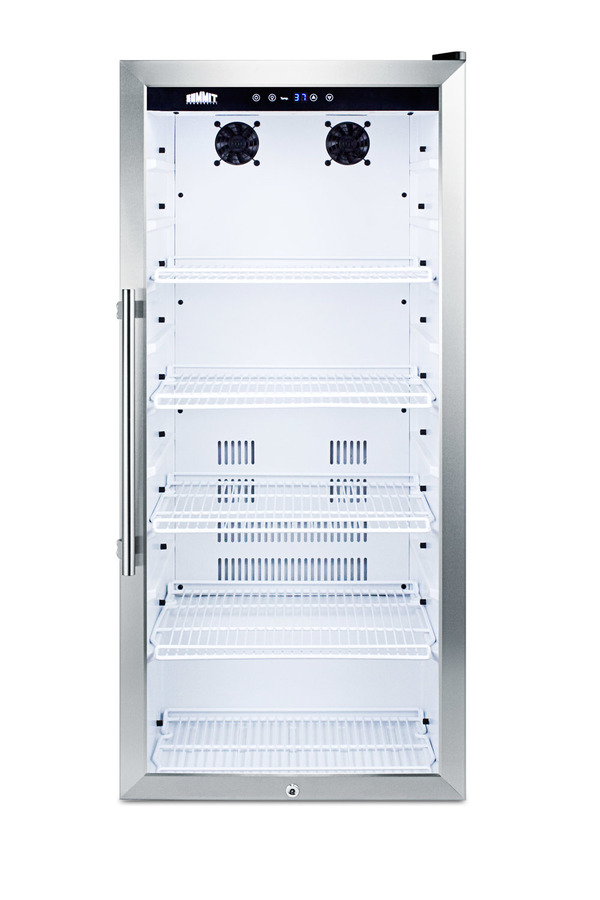

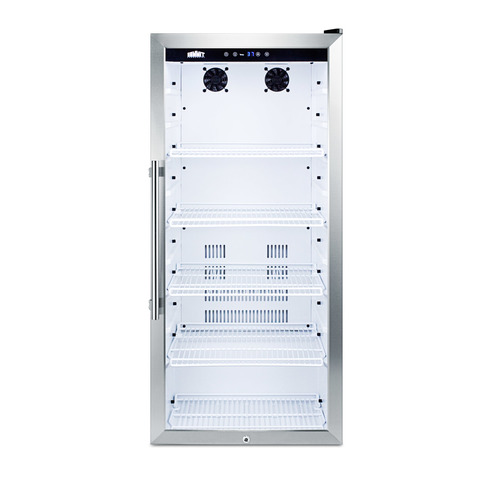

Fan-forced cooling

Internal fan ensures evenly cooled interior

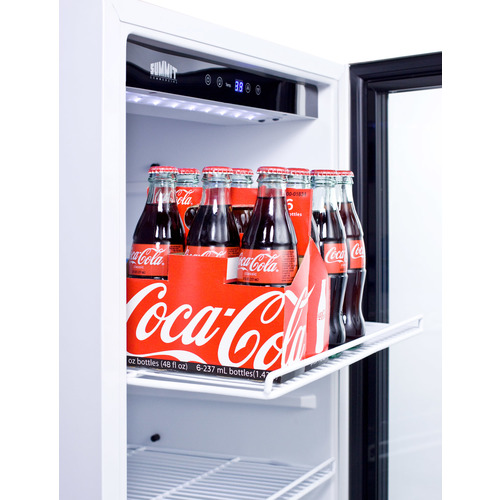

Adjustable shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Professional handle

Sturdy chrome handles add a professional look

Reversible door

User reversible door swing

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Commercial offers a quality line of slim-fitting beverage merchandisers designed for long-lasting use in busy commercial settings.

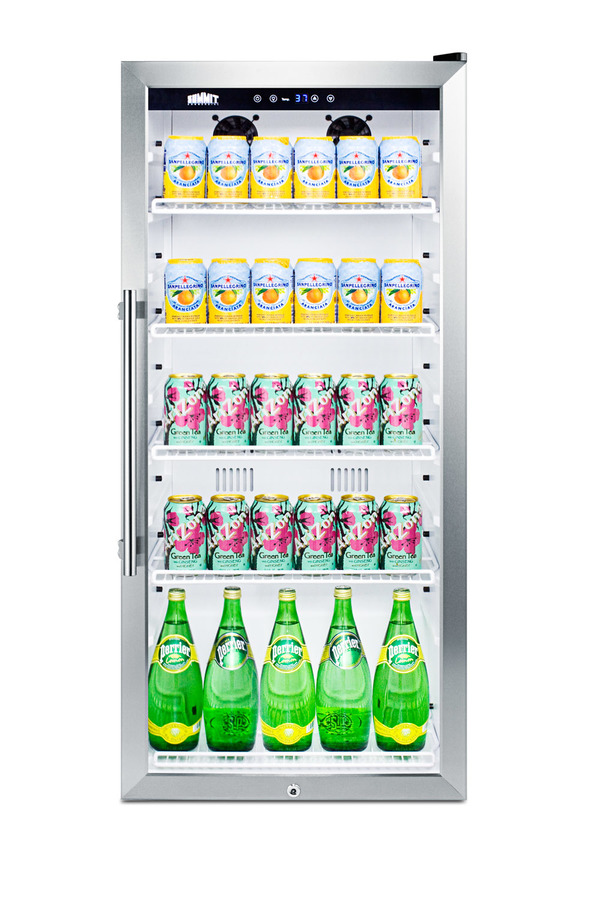

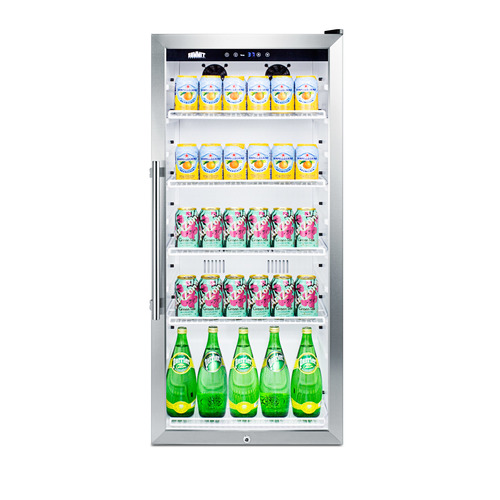

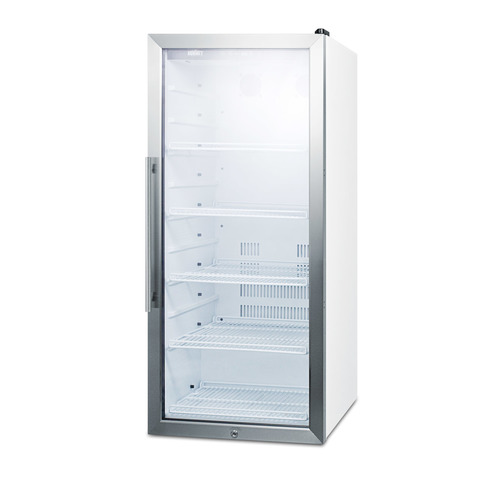

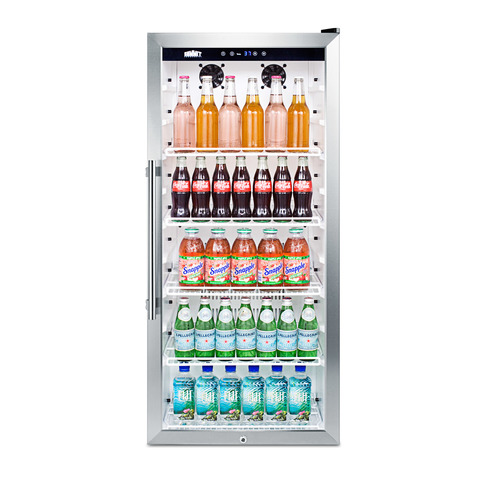

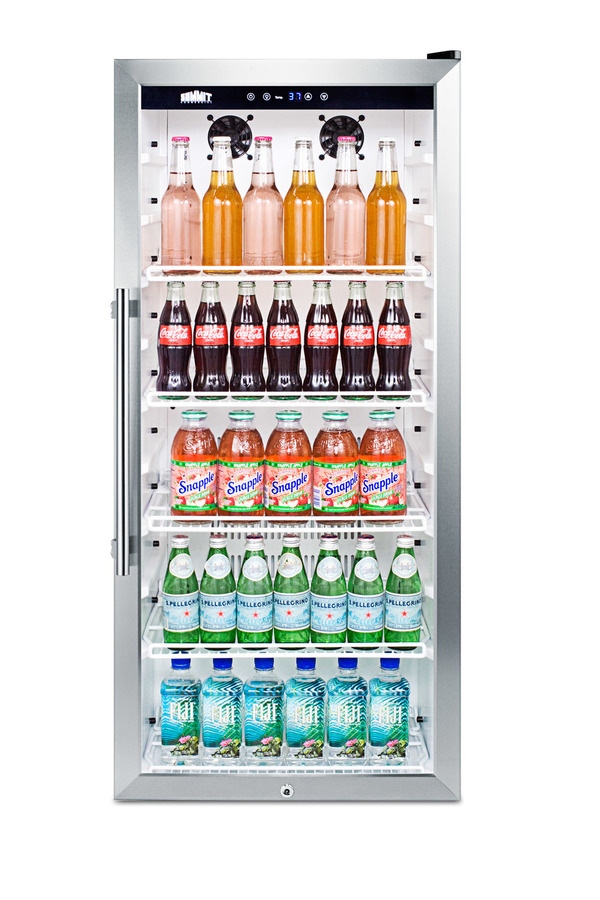

Sized with a unique 21  1/4" W x 22 1/2" D footprint, the SCR1006 offers a full 9 cu.ft. storage capacity with a full display from top to bottom. The user-reversible double pane tempered glass door includes a factory installed lock and attractive stainless steel trim. This unit has a finished white cabinet for freestanding use.

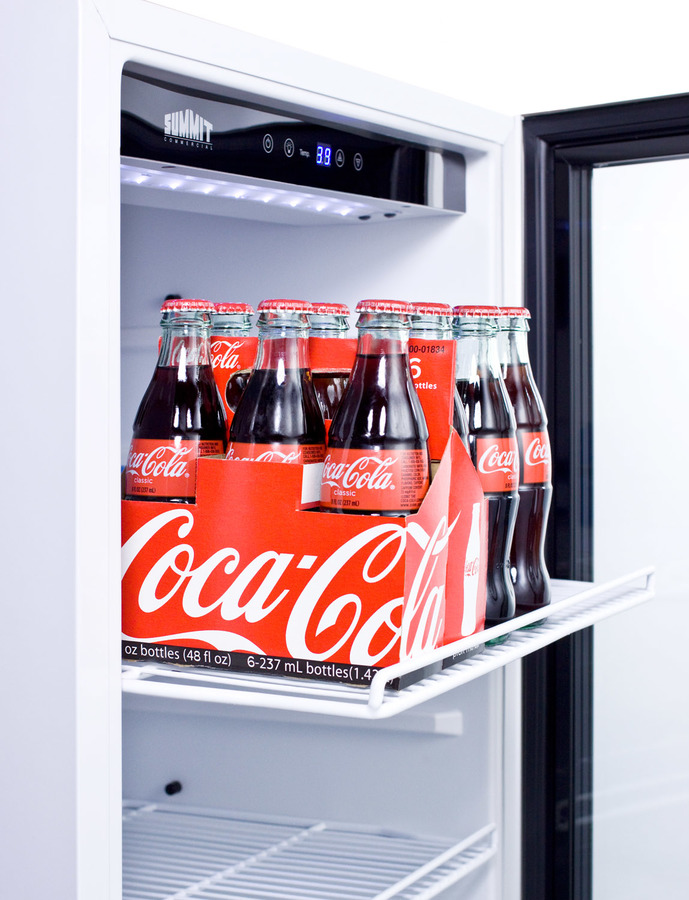

Inside, the SCR1006 utilizes automatic defrost for easy maintenance, with fan-forced cooling that ensures the temperature is evenly distributed from top to bottom. A digital thermostat allows for precise temperature control and offers a readout in Celsius or Fahrenheit. Interior LED lighting keeps all items in view and includes an on/off button on the exterior control panel for added convenience. Five adjustable wire shelves allow users to store a variety of bottles and cans, with nine glide positions to adjust the size as needed.

With its slim dimensions and user-friendly, features, the SCR1006 is a great choice for commercial establishments looking to maximize sales of stored beverages. This unit is ETL-S listed to NSF-7 commercial standards.

NOTE: This unit replaces SCR1005.

BROCHURE w/ DRAWINGS
SCR1006.pdf

TECHNICAL DRAWING (.dwg)
SCR1005BEVERAGEREFRIGERATORA-C2000.dwg

REVIT MODEL
QF_Summit_SCR1006_Commercial_Glass_Door_Beverage_Merchandiser.rfa

USE & CARE
SCR1006_Manual_4-2-2019.pdf

MSDS INFORMATION
MSDS_R600a_C.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
