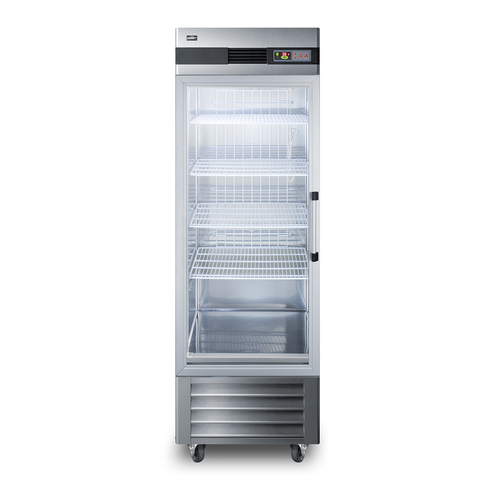

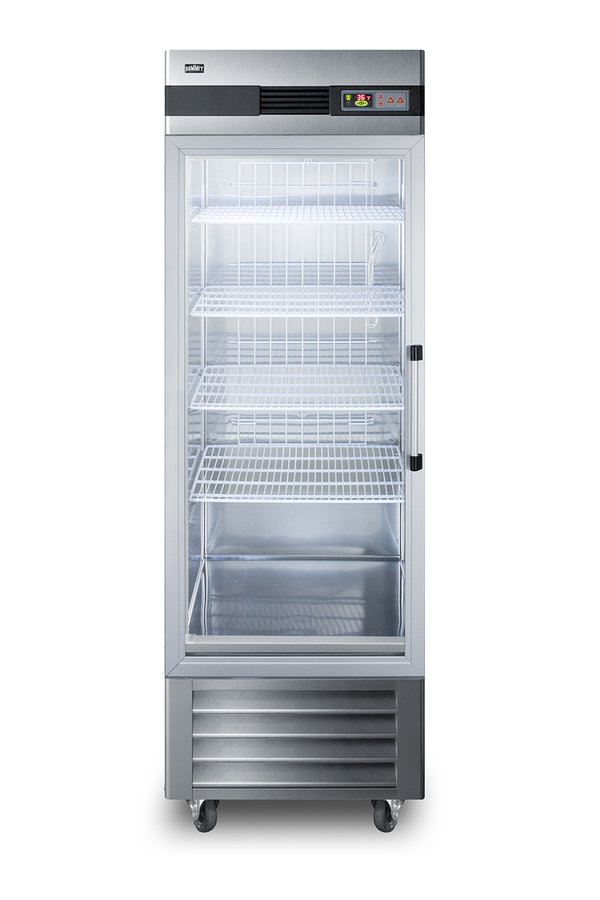

23 Cu.Ft. Reach-In Refrigerator
1 to 2 days
(213cm H x 70cm W x 79cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 84.0" (213 cm) |
| Height of Cabinet | 83.75" (213 cm) |
| Nominal Width | 28.0" (71 cm) |
| Width | 27.5" (70 cm) |
| Nominal Depth | 31.0" (79 cm) |
| Depth | 31.0" (79 cm) |
| Depth with Handle | 32.75" (83 cm) |
| Depth with door at 90° | 56.5" (144 cm) |
| Capacity | 23.0 cu.ft. (651 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Stainless Steel |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | ETL-S |
| Amps | 7.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 282.0 lbs. (128 kg) |
| Parts & Labor Warranty | 2 Years |
| Compressor Warranty | 5 Years |
| UPC | 761101066776 |
|
Refrigerator Features
|
|
| Door Swing | LHD |
| Reversible | No |
| Shelf Type | Wire |
| Shelf Qty | 4 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R290 |
| Refrigerant Amount | 2.5oz. |
| High Side PSI | 290.0 |
| Low Side PSI | 155.0 |
| Wheel Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 33 to 41ºF |
| Sound Level | 34.6 dB |
|
Dimensions
|
|
| Interior Height | 51.5" (131 cm) |
| Interior Width | 23.5" (60 cm) |
| Interior Depth | 27.0" (69 cm) |
AVAILABLE UPGRADES
| Exterior | |||
|---|---|---|---|
|
FEATURES
Interior and exterior are entirely constructed from stainless steel for lasting durability and easy cleanup

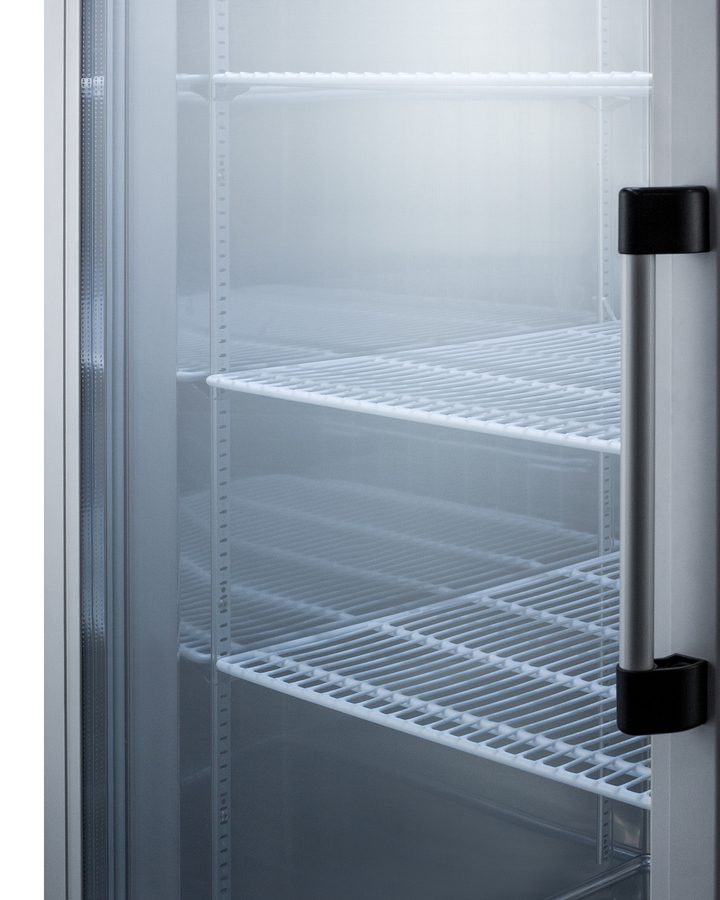

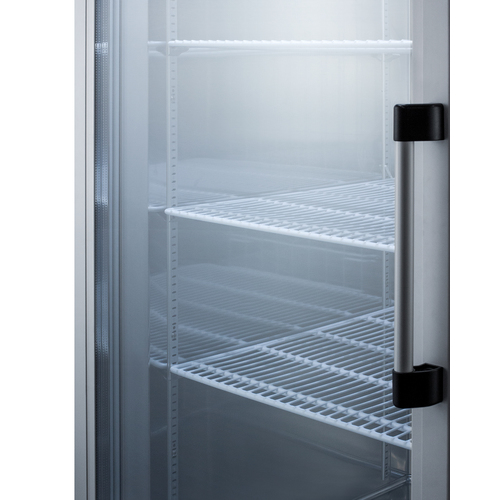

Full display of the interior, with an anti-condensate door frame heater to ensure a clear view

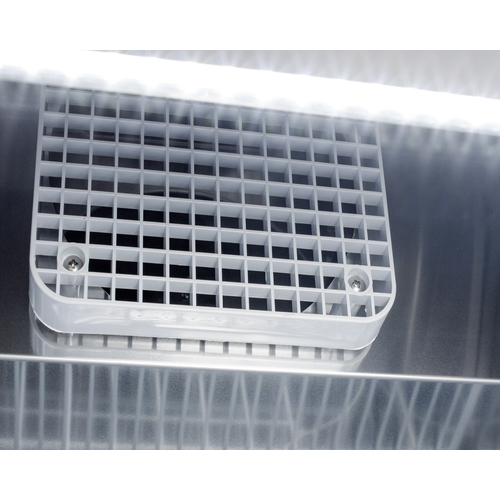

Top-mounted commercial fan ensures rapid temperature recovery
Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
Closes to save energy but will remain open when the door is opened at a 90º angle for easier loading
Alarm will beep 3 times if the door is left open for 30 seconds, 5 times at 60 seconds, and will sound continuously if the door is open for more than 5 minutes
Visual and audible alarms alert if the interior temperature rises or falls out of set range
Ships with a set of casters (2 locking) for easy mobility as needed

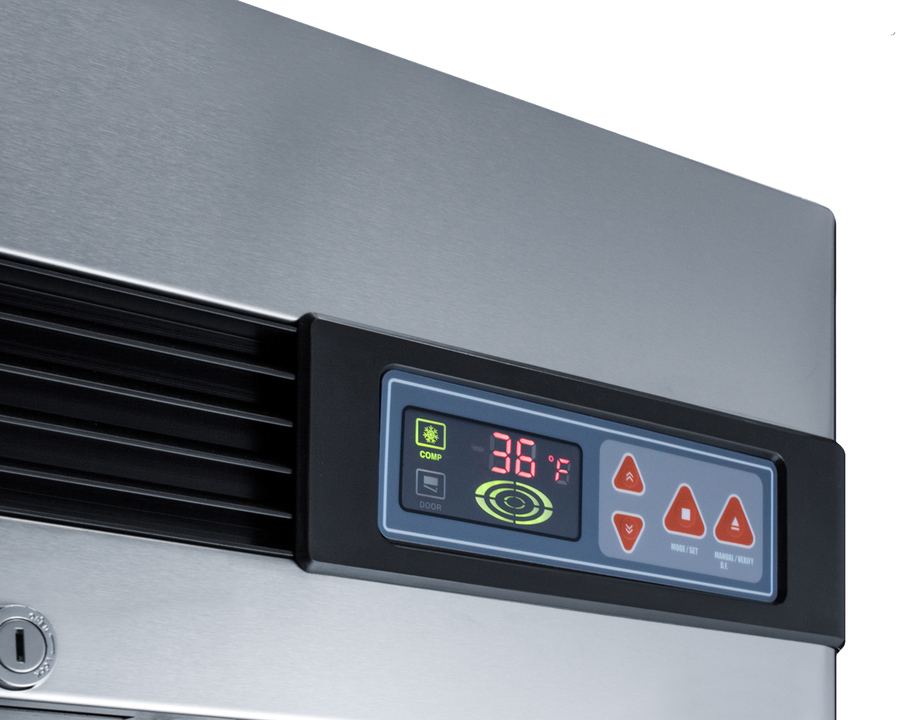

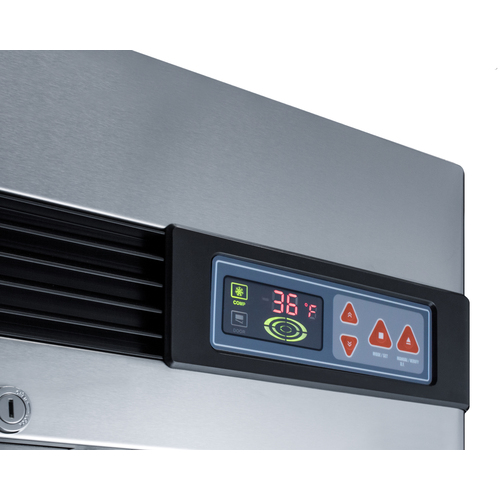

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
Control panel provides a readout of the low and high temperatures in 15 minute increments
Keyed lock conveniently located towards the top of the door for added security (2 keys included)

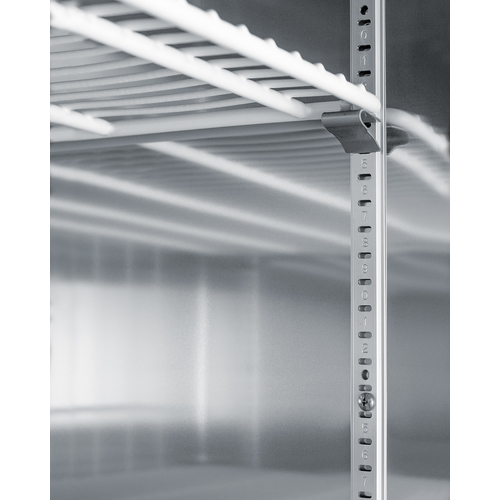

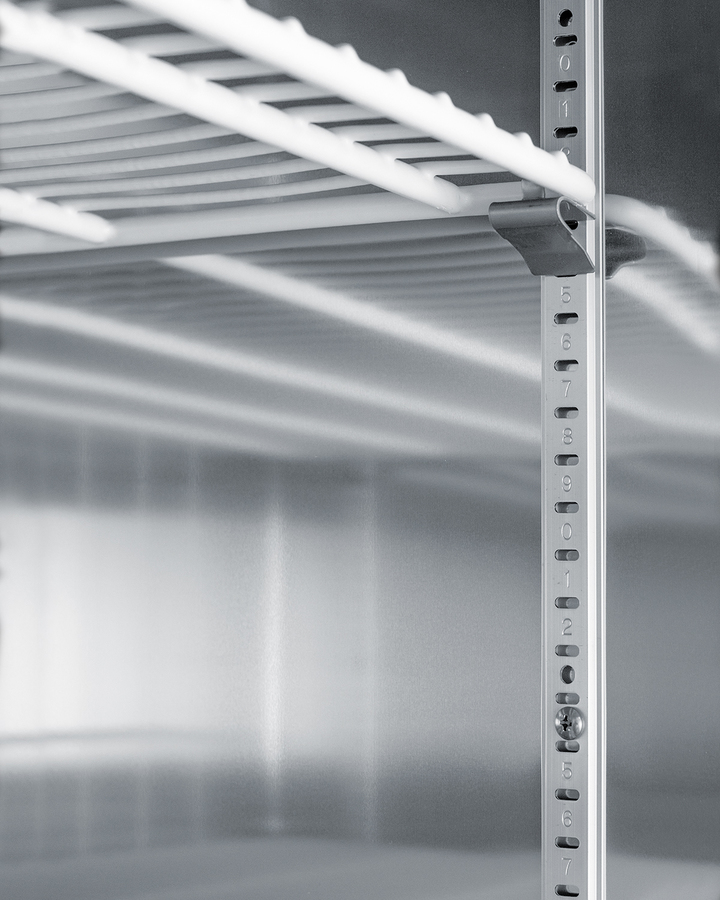

Multiple shelf positions spaced at 1/2" to allow flexible adjusting to support smaller items
Energy efficient LED lighting with internal on/off switch

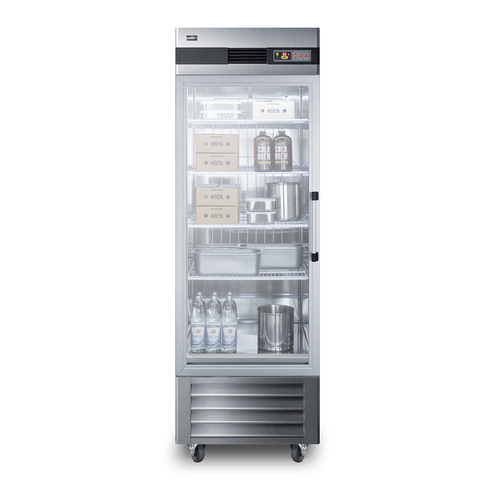

23 cubic feet of storage space inside
Space-saving design that ensures easier cleanup
Quality door gaskets ensure a tight seal for energy savings and improved performance
In order to prevent dust from impeding performance, this unit is equipped with audible and visual alarm that reminds you to clean the condenser every 6 months
For the same unit with the door opening from the other side, see the SCR23SSG
Pair with SCFF237 for a matching set in complete stainless steel
Commercial construction meeting UL commercial listing standards
Using environmentally friendly hydrocarbons refrigerants for a greener footprint
2 years parts and labor/5 years compressor
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

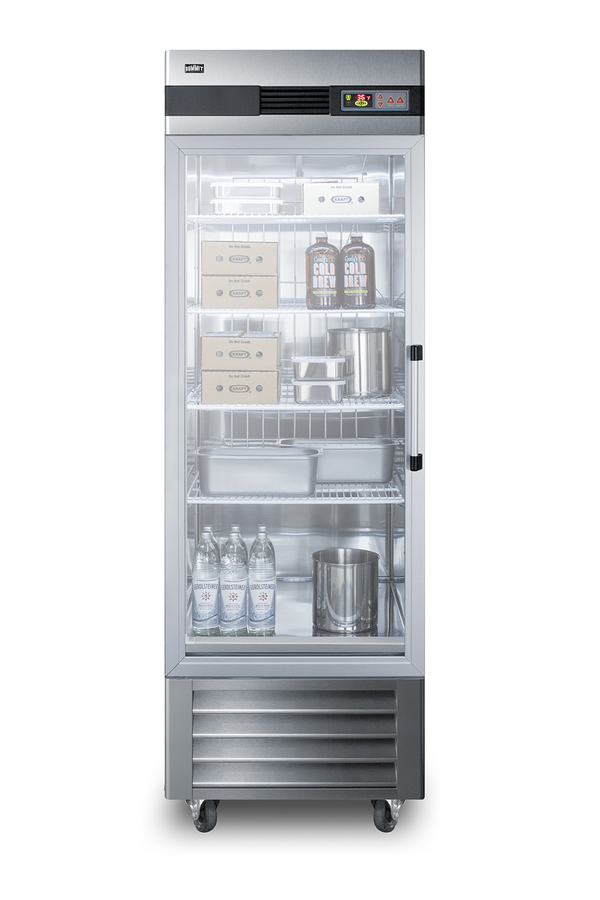

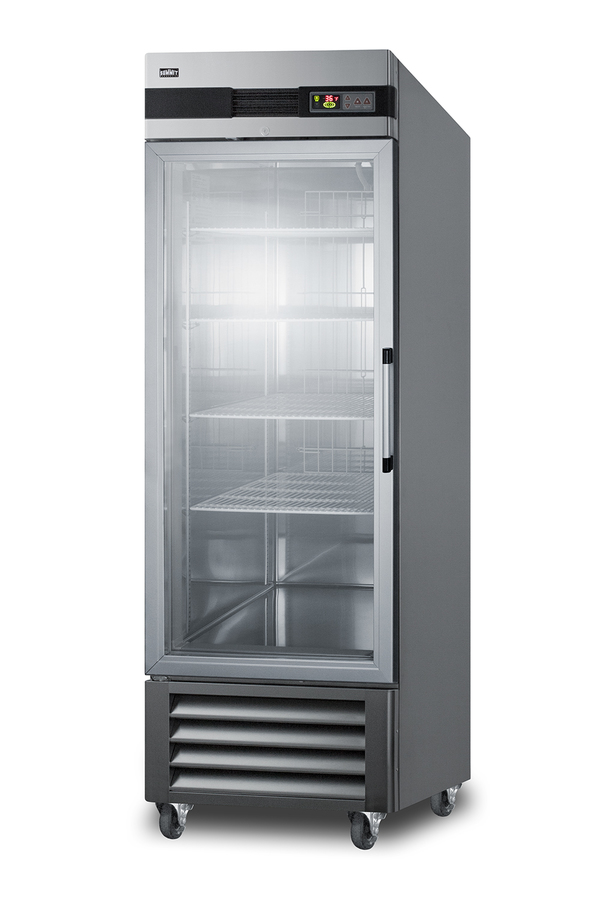

Summit Commercial's line of reach-in refrigeration features durable construction built to NSF-7 commercial standards. Made in South Korea, the SCR23SSGLH is a commercial all-refrigerator with a complete stainless steel cabinet and double pane tempered glass door for a full product display. The door is self-closing design to help protect stored contents in busy commercial settings where customers may not take the time to make sure the door is closed. It will remain open when pushed to 90º, making it easier to load and unload the unit. The sealed back design helps to simplify cleanup. This unit features a factory-installed lock located towards the top of the door for convenient security. We include a set of locking casters for optional installation. The door has a left hand swing. For the same unit with the door opening from the other side, see the SCR23SSG. The SCR23SSGLH features a large 23 cu.ft. interior constructed from stainless steel for easy cleanup and lasting durability. The cantilevered shelving system allows you to adjust the four vinyl-coated shelves to virtually any position, making it easy to accommodate any sized item. This unit is designed to fit common commercial baking trays. The LED lighting offers an energy efficient display when the door is opened. It utilizes adjustable cycle defrost operation to avoid temperature spikes, with a top-mounted forced air cooling system to ensure rapid temperature recovery. To ensure optimum storage conditions, the SCR23SSGLH is equipped with a microprocessor temperature controller that makes it easy for staff to adjust the temperature. The large digital LED readout displays the current and high/low temperatures in Celsius or Fahrenheit. An audible and visual temperature alarm sounds if the unit rises or falls above a user-set rage. Additional alarms include a power failure alert, door open alarm, and a condenser cleaning reminder. Designed with hydrocarbon refrigerant, the SCR23SSGLH provides an energy efficient solution to large capacity storage. It is ETL-S listed to NSF-7 commercial standards. For a matching solid door frost-free freezer, see the SCFF237.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
