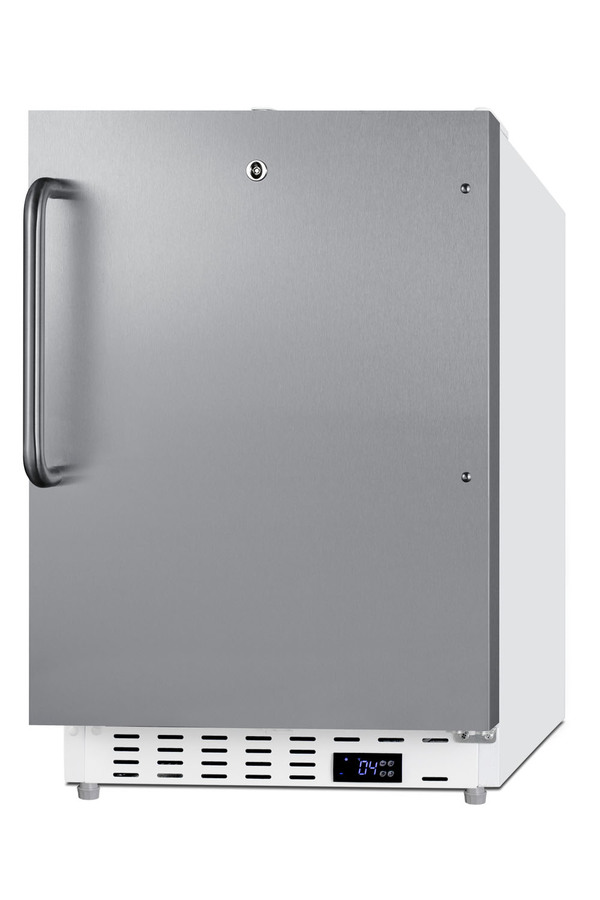

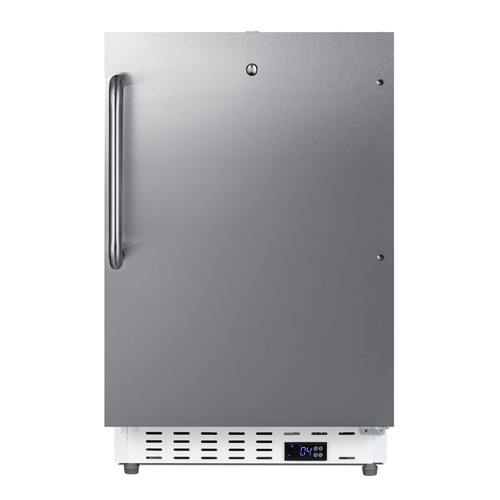

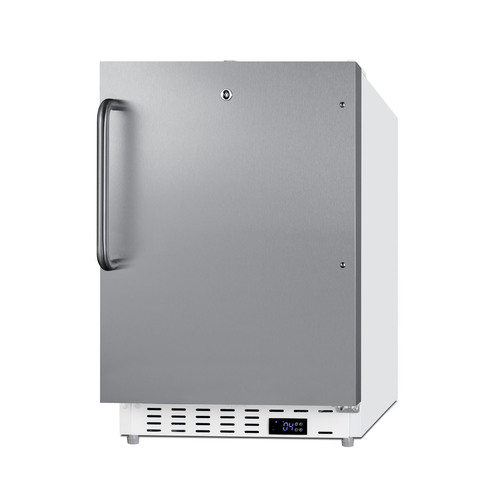

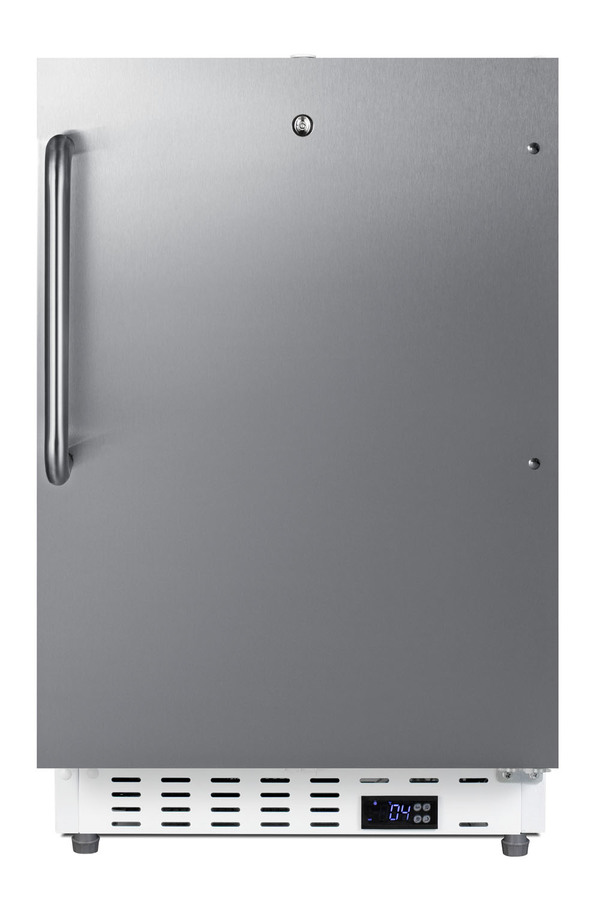

21" Wide Built-In Commercial All-Refrigerator, ADA Compliant
3 to 5 days
(81cm H x 51cm W x 57cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 21.0" (53 cm) |
| Width | 20.25" (51 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 3.32 cu.ft. (94 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 69.0 lbs. (31 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101086132 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wire |
| Shelf Qty | 4 |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Temperature Range | 2 to 8°C |
|
Dimensions
|
|
| Interior Height | 23.5" (60 cm) |
| Interior Width | 16.25" (41 cm) |
| Interior Depth | 17.0" (43 cm) |
| Compressor Step Height | 6.25" (16 cm) |
| Compressor Step Width | 16.25" (41 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
AVAILABLE UPGRADES
| Exterior | |
|---|---|
|
|
| Handle | |
|
FEATURES
ETL-S listed to ANSI-NSF Standard 7 for commercial use
32" height allows easy installation under lower ADA compliant counters
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Curved handle in brushed stainless steel offer an easier grip and attractive style
Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

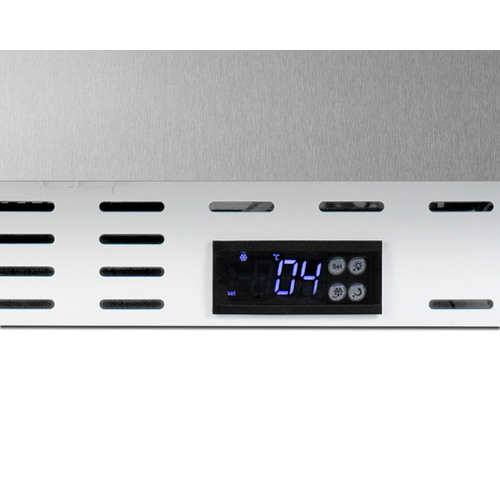

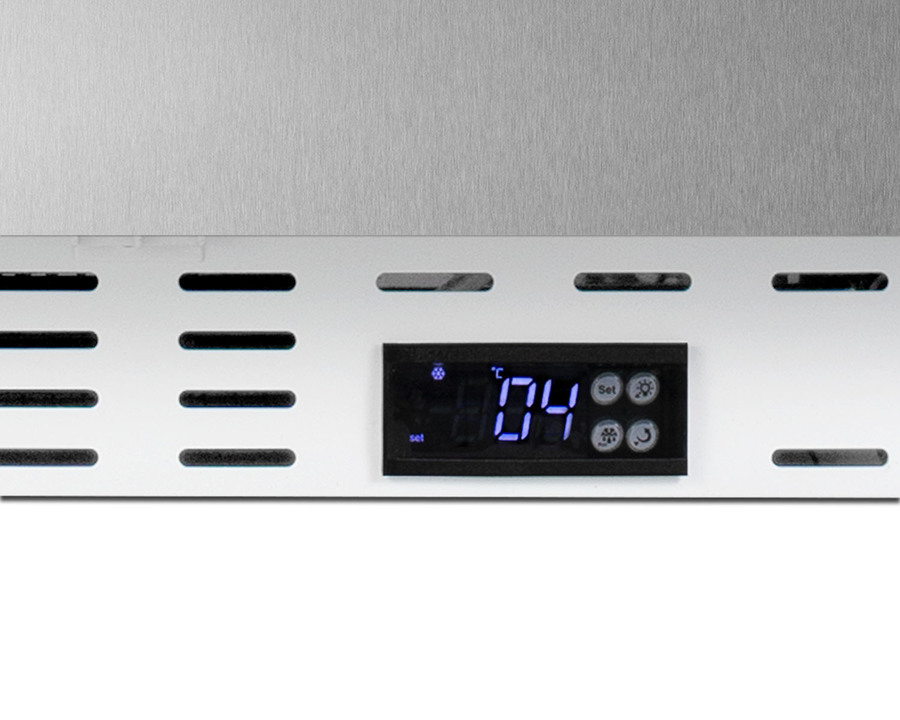

Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

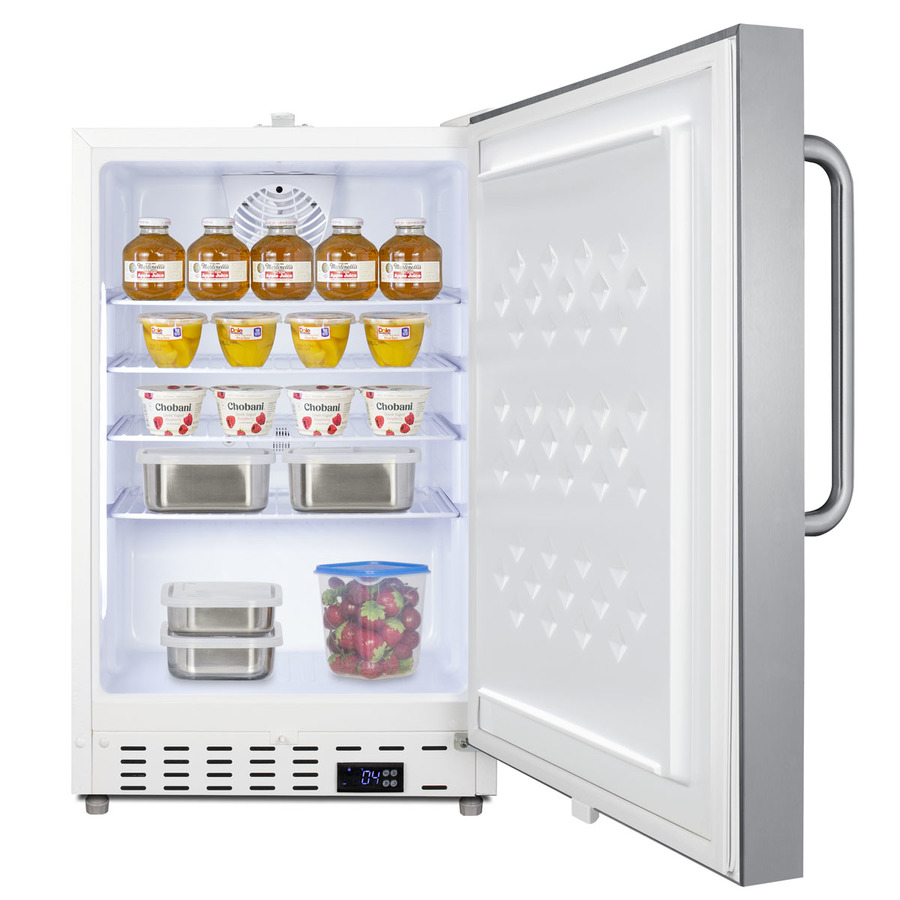

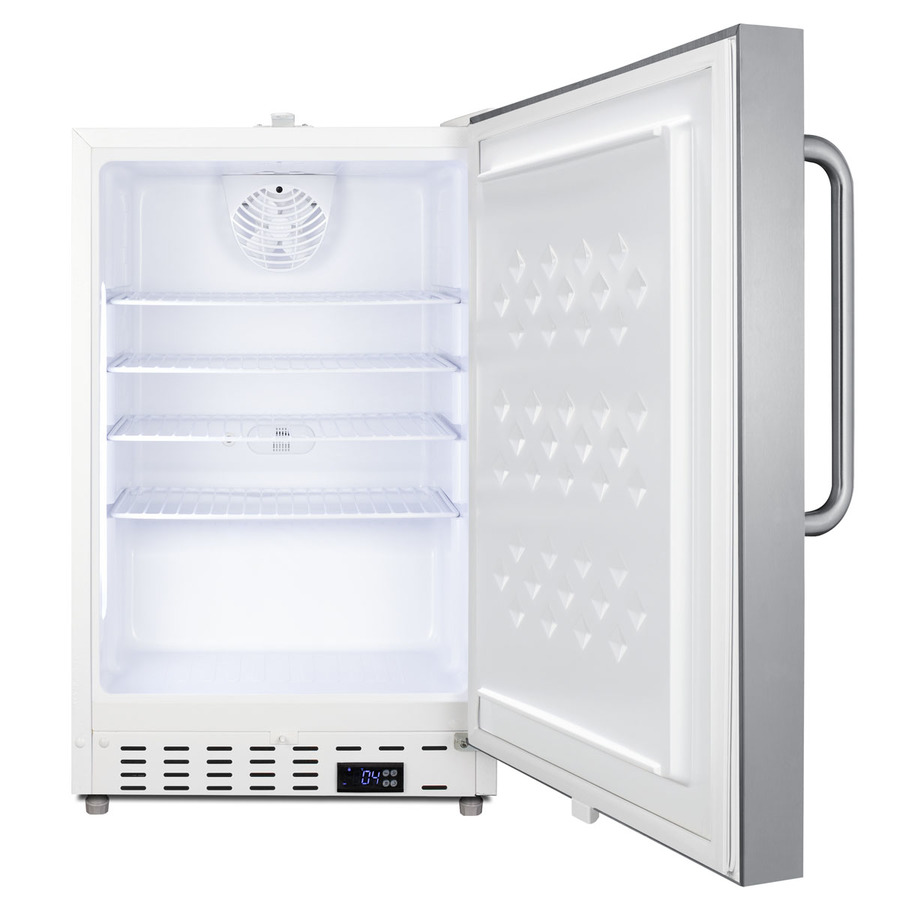

Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior
Improved insulation for an efficient performance
User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
Audible alarm will sound if the door is left ajar for over a minute
Secure three-pronged cord offers a tighter fit in wall sockets
Reduced user maintenance with an auto defrost system
Allows for the interior to accept deeper trays

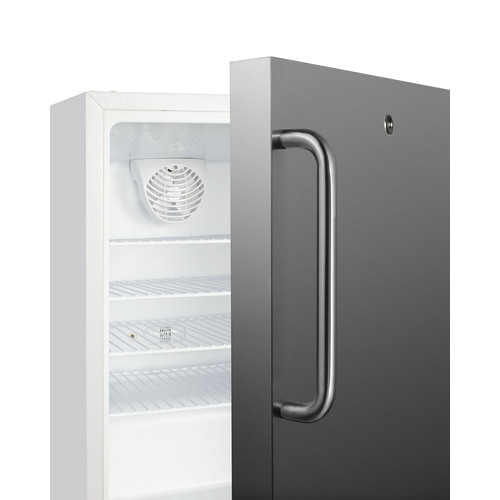

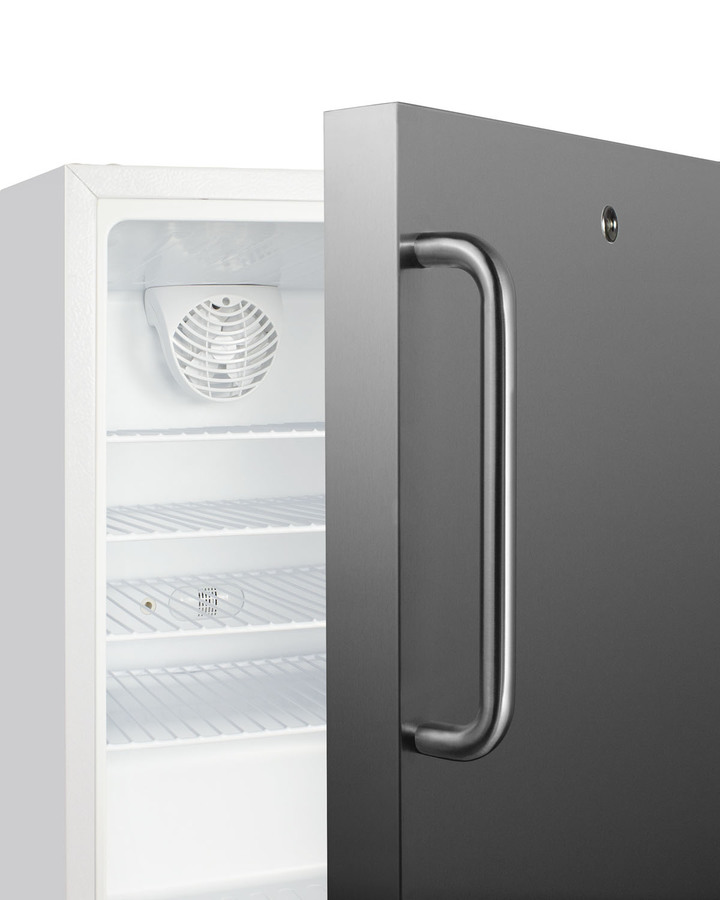

Fan-forced cooling ensures the unit is evenly cooled from top to bottom
User-reversible stainless steel door for added flexibility to best accommodate your setting
Space-saving design that offers easier cleanability
Front-located LED light ensures entire interior is lit when door opens
Quality door gaskets ensure a tight seal for energy savings and improved performance
This unit can be paired with the SCF505SSTBADA all-freezer for a complete set
Allows the unit to be freestanding
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit Commercial manufactures a variety of refrigerator and freezer choices for smaller foodservice spaces, with slim-fitting options for undercounter use. Model SCR504SSTBADA is a commercial all-refrigerator sized at just under 21" wide and 32" high for installation under lower ADA compliant counters. Its front-breathing design and fully finished cabinet allow built-in or freestanding use for versatile placement. This model has a textured white cabinet and 304 grade stainless steel wrapped reversible door with a pro style towel bar handle. A factory-installed lock is located towards the top of the door, ensuring more comfortable access behind the bar. Easy digital controls are located in the kickplate. The temperature can be managed in Fahrenheit or Celsius. Inside, this refrigerator includes adjustable wire shelves, automatic LED lighting, and an internal fan to help ensure even cooling throughout the 3.32 cu.ft. interior. Audible open door and high/low temperature alarms help ensure stored contents are properly cooled. These alarms can also be disabled if preferred. The SCR504SSTBADA is ETL-S listed to NSF-7 commercial standards and features hydrocarbon refrigerant for a greener cooling system that meets CARB regulations. To create a matching set, pair with the SCF505SSTBADA all-freezer. Additional commercial refrigeration choices are available in more sizes and sizes. Browse the full Summit lineup for shallow depth back bar coolers, commercial wine cellars, icemakers, reach-in refrigeration, and much more.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
