24" Wide Built-In Commercial Beverage Refrigerator With Top Drawer

SKU: SCR615TDCSS

Commercially approved with versatile top drawer for bar essentials or wine storage

Estimated Time to Ship:

3 to 5 days

How to Buy

Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

34.0" H x 23.63" W x 23.5" D
(86cm H x 60cm W x 60cm D)

Overview
Nominal Height	34.0" (86 cm)
Height of Cabinet	34.0" (86 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.0" (64 cm)
Depth with door at 90°	45.75" (116 cm)
Capacity	4.76 cu.ft. (135 L)
Defrost Type	Automatic
Door	Glass/SS
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	119.0 lbs. (54 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101079080
Refrigerator Features
Sabbath Mode	Yes
Door Swing	RHD
Reversible	Yes
Shelf Type	Chrome
Shelf Qty	2
Wine Bottle Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.38oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	2
Interior Light	Yes
Interior Drawers	Yes
Interior Drawers Qty	1
Temperature Range	36°F to 43°F
Sound Level	35.2 dB
Drawer Dimensions
Interior Height 1	9.0" (23 cm)
Interior Width 1	19.38" (49 cm)
Interior Depth 1	17.38" (44 cm)
Dimensions
Interior Height	17.63" (45 cm)
Interior Width	19.38" (49 cm)
Interior Depth	17.38" (44 cm)
Compressor Step Height	3.75" (10 cm)
Compressor Step Width	19.38" (49 cm)
Compressor Step Depth	4.63" (12 cm)

Door

T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings	T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint Reflective door tint in light blue finish for medium energy savings	T2 Door Tint Tinted door in reflective deep blue finish with high energy savings
T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings

Exterior

PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)	LHD - Left hand door swing Door reversal to left hand swing

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

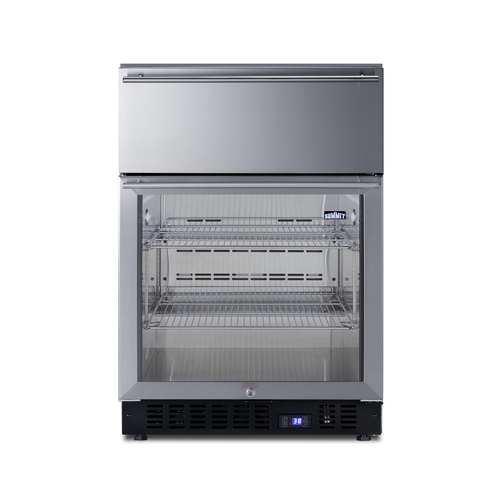

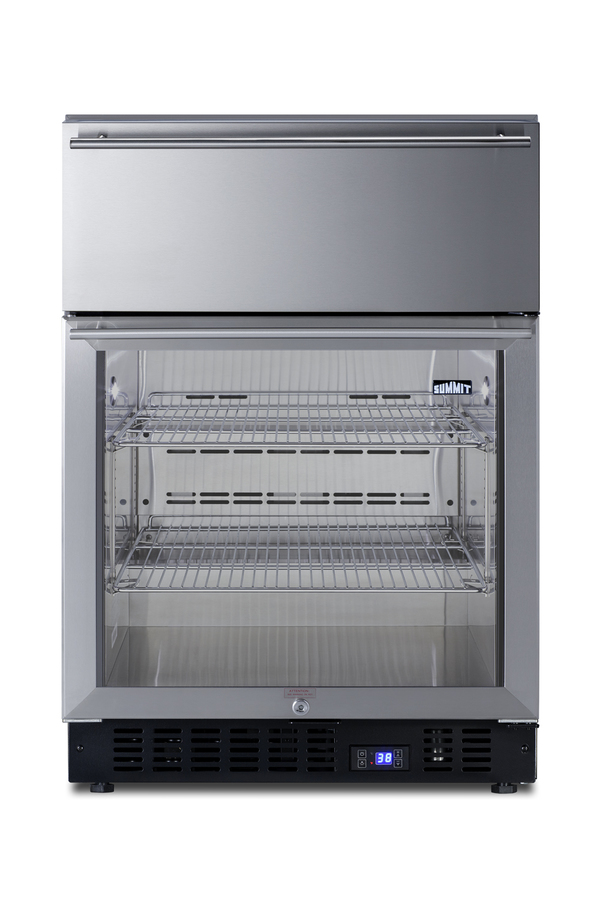

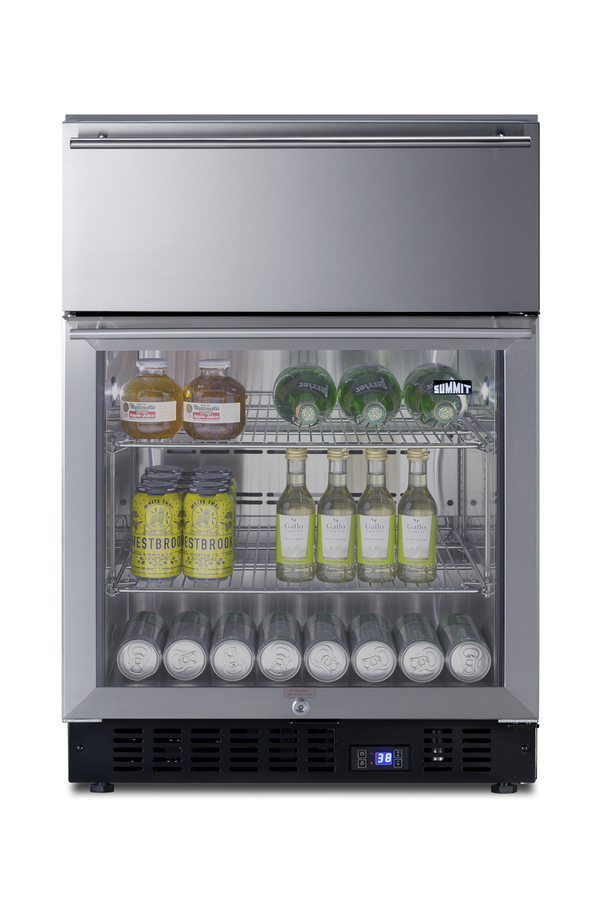

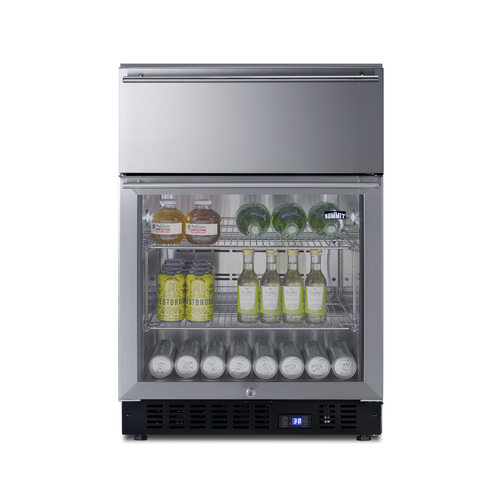

Combination drawer/door design

Includes an upper slide-out refrigerator drawer and lower front-opening beverage center behind a reversible glass door

Built-in capable

Make the best use of space by installing this unit under the counter and flush with other cabinetry

Double pane tempered glass door

Stainless steel trimmed glass door offers a full display of stored items

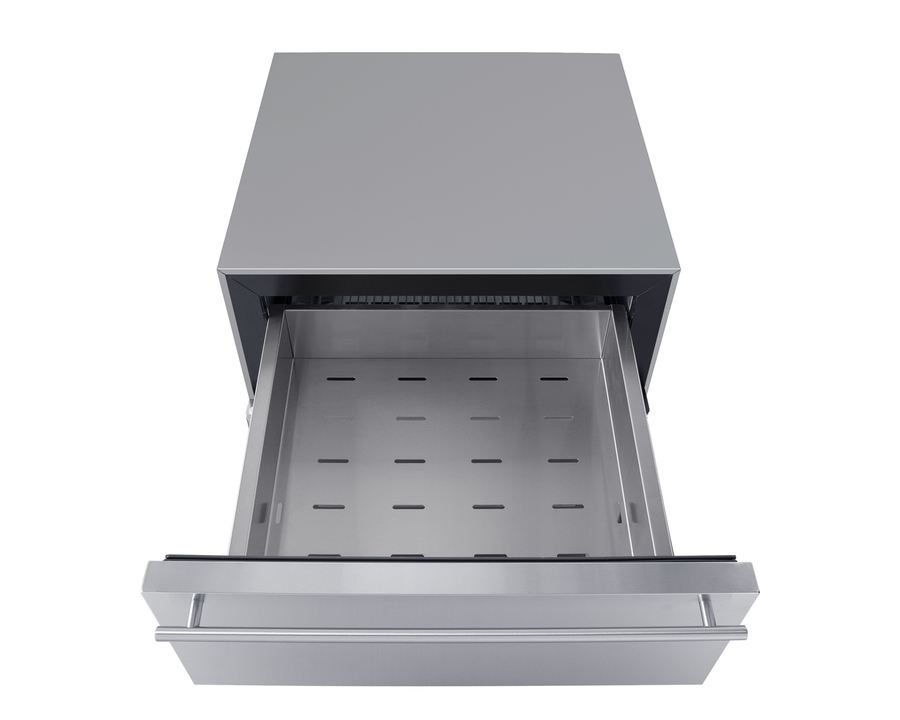

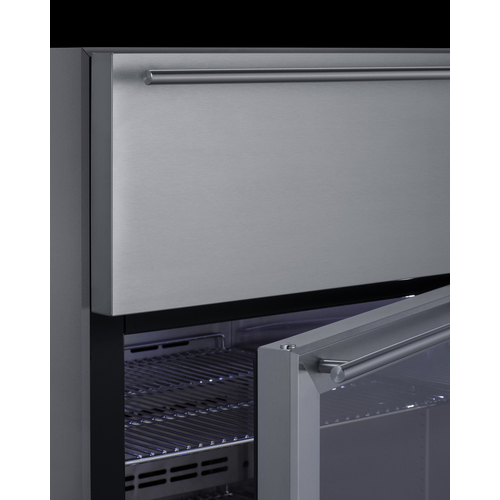

Top drawer

Pull-out top drawer provides additional refrigerated space as needed

Stainless steel interior

Upper drawer and lower interior walls are constructed from stainless steel for added strength and easy cleanup

Factory installed lock

Keyed lock for a secure interior on the lower door (2 keys included)

Digital thermostat

Electronic controls located in the kickplate ensure easy temperature management, with an external readout of Celsius or Fahrenheit

Automatic defrost

Reduced user maintenance with automatic defrost

Reversible door

User-reversible door swing allows for more flexibility in placing the unit

LED lighting

Four LED lights in a gentle white hue illuminate the interior for an attractive presentation

Cantilevered chrome shelves

Two chrome shelves accommodate a variety of sizes with cantilevered clips to adjust to virtually any position

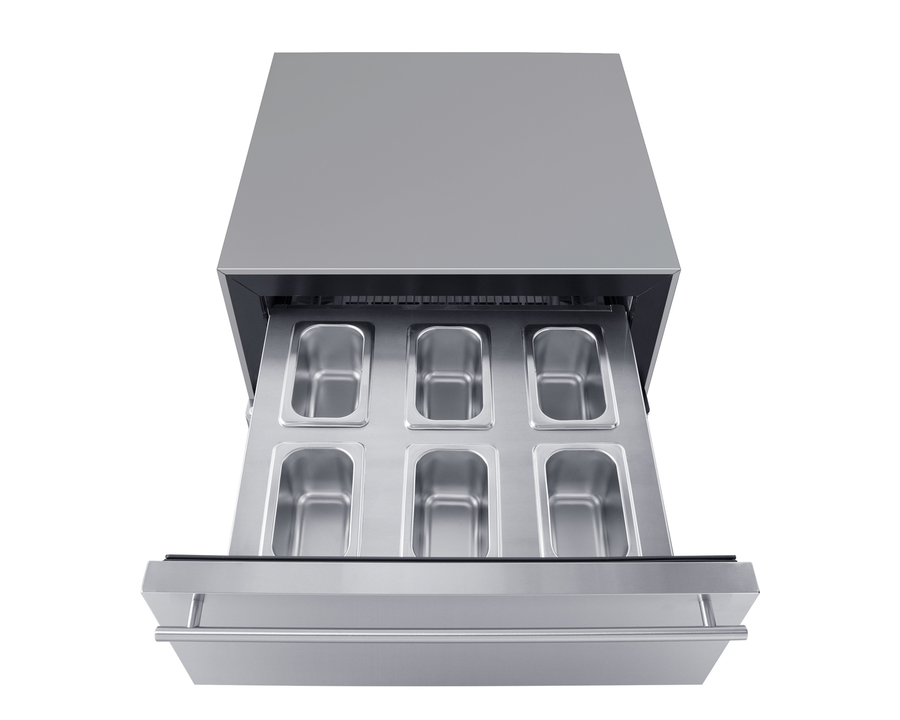

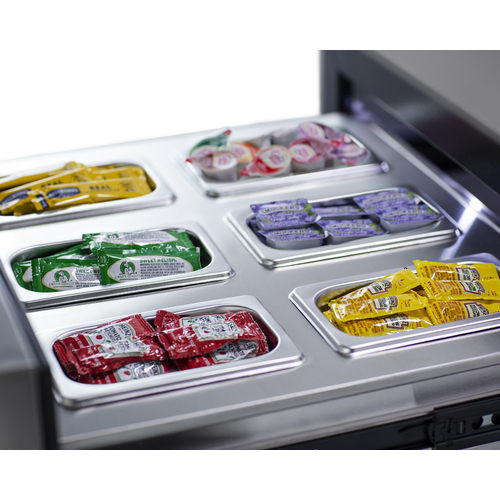

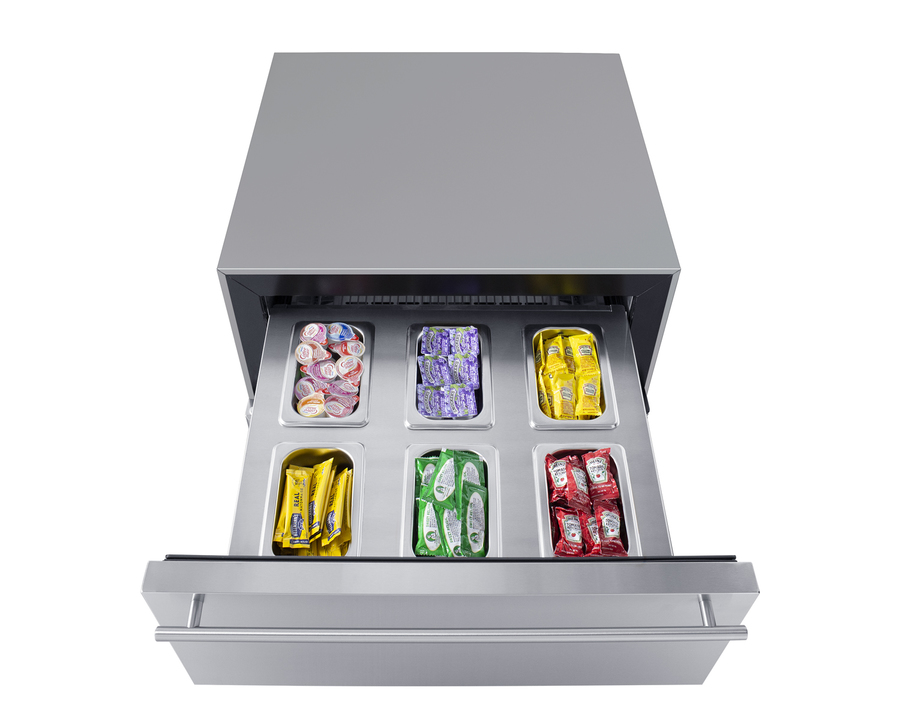

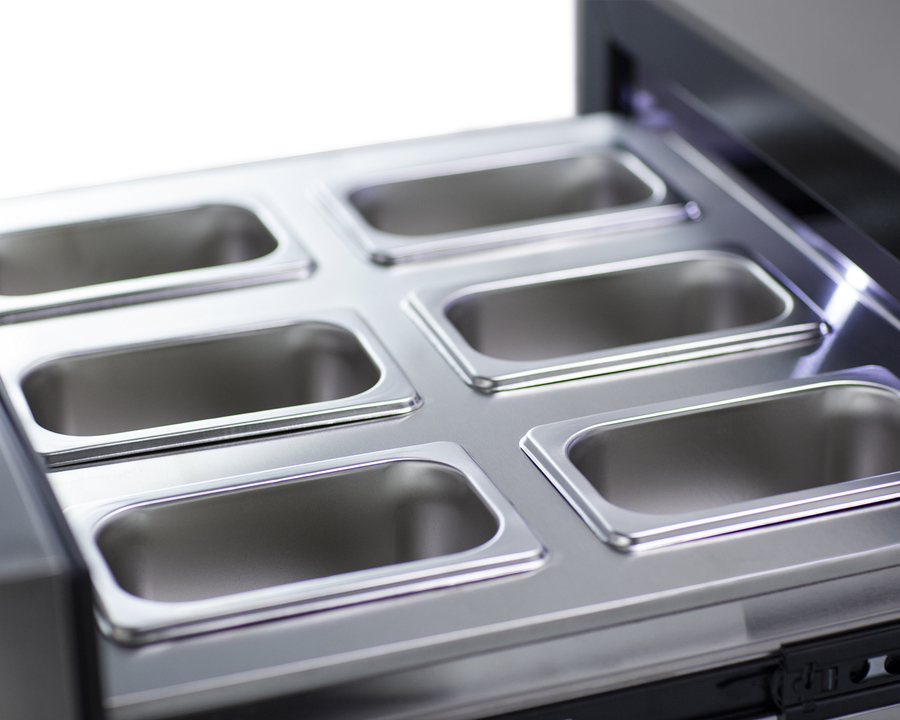

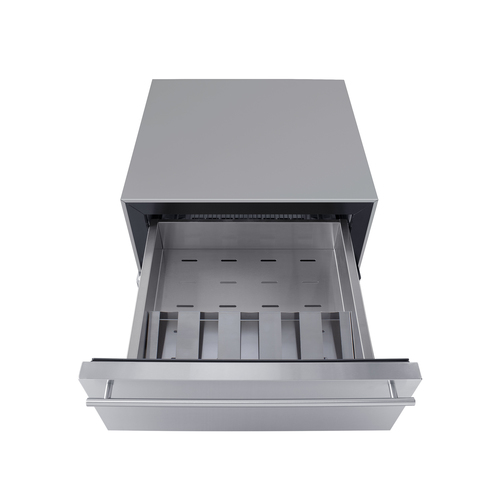

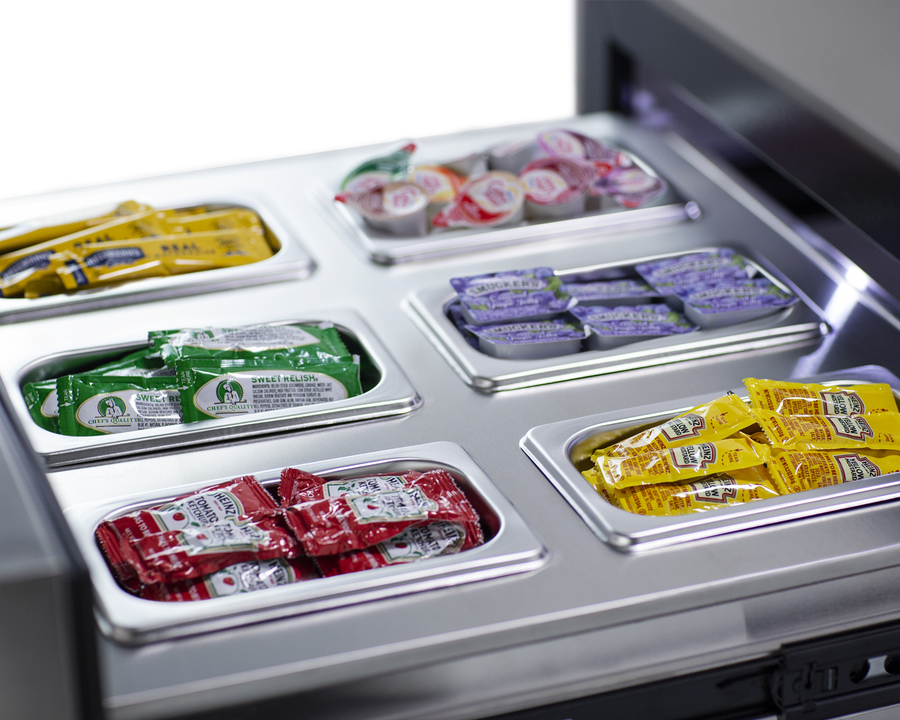

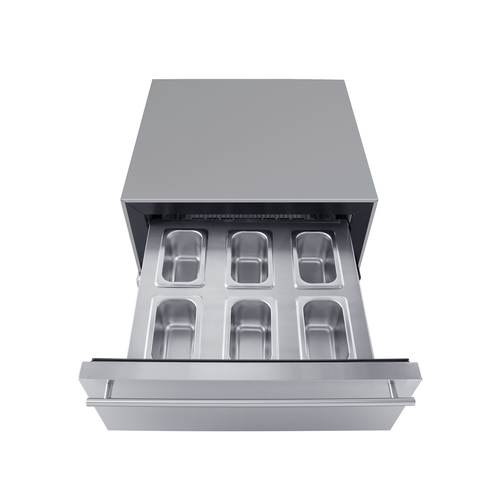

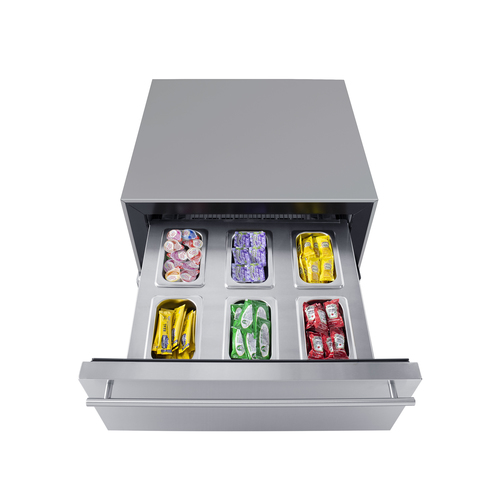

6 commercial steam table/hotel pans included

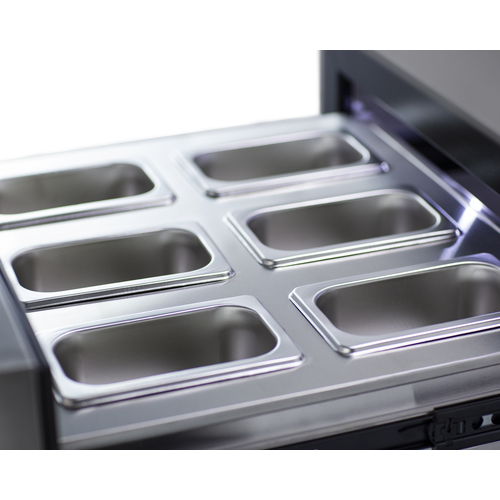

Upper drawer ships with a removable stainless steel tray with 6 cutouts for small steam pans (included) for easy and organized storage of condiments, sealed garnishes, and other popular bar items

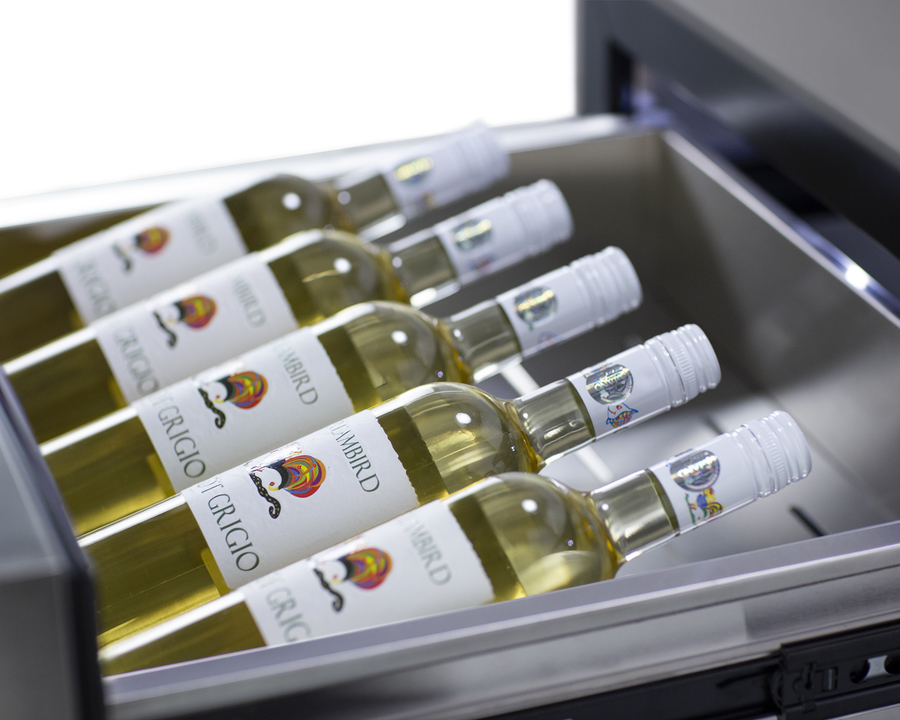

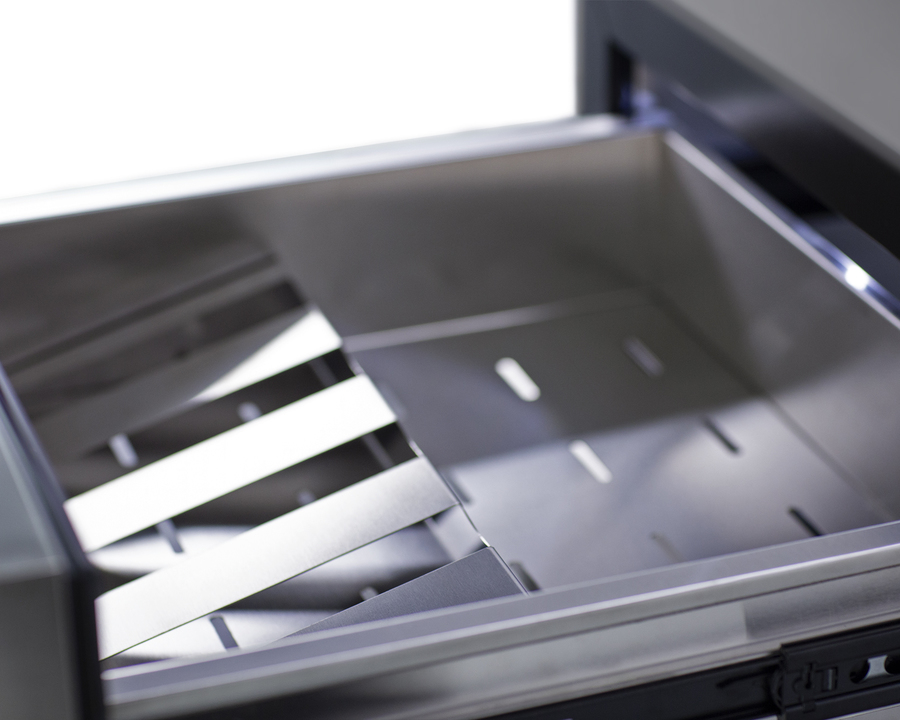

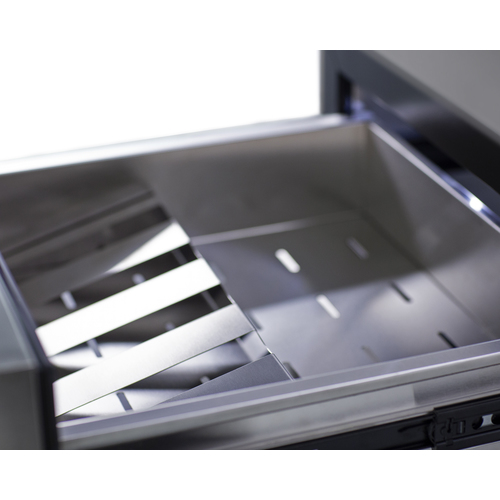

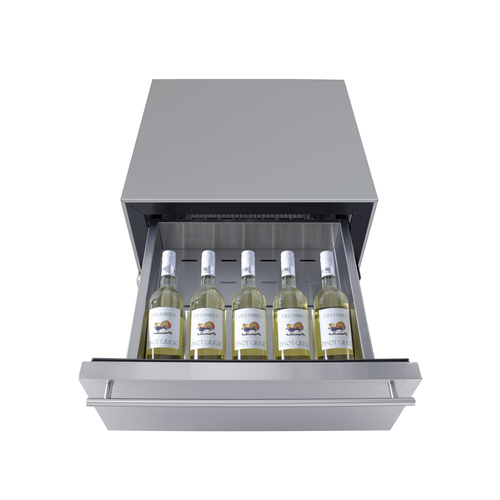

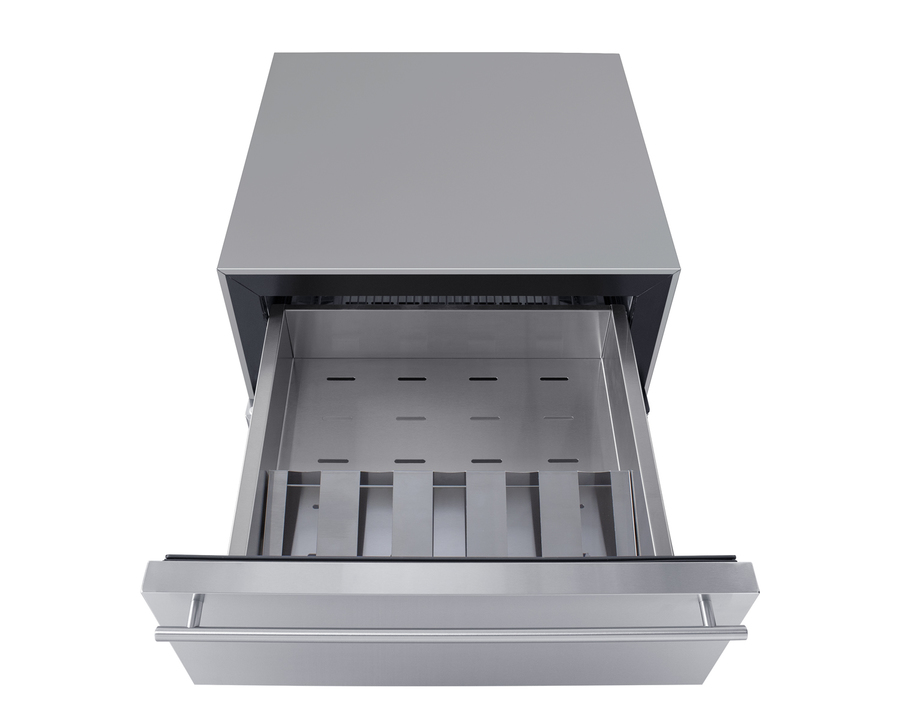

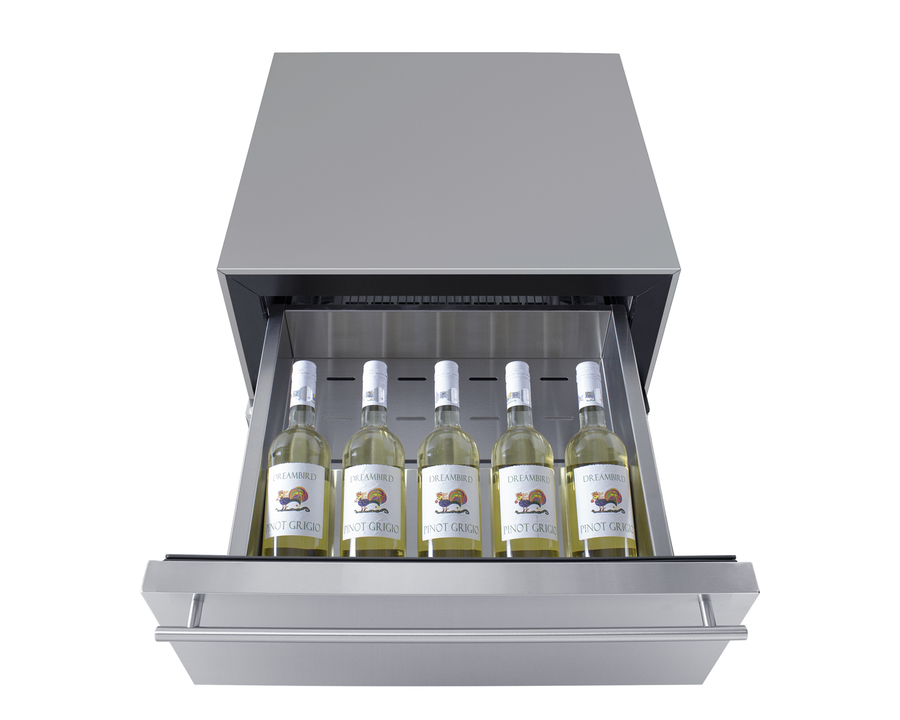

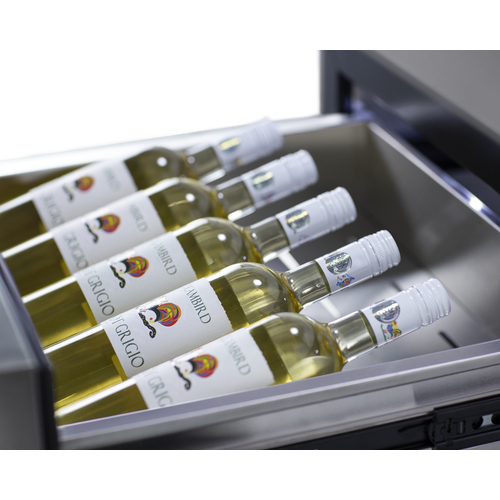

Removable wine shelf

Stainless steel rack can be used in the drawer to keep up to 5 bottles stored at an angle, perfect for keeping open wine or liqueurs in easy reach. The rack can be temporarily screwed in place with included hardware for added stability

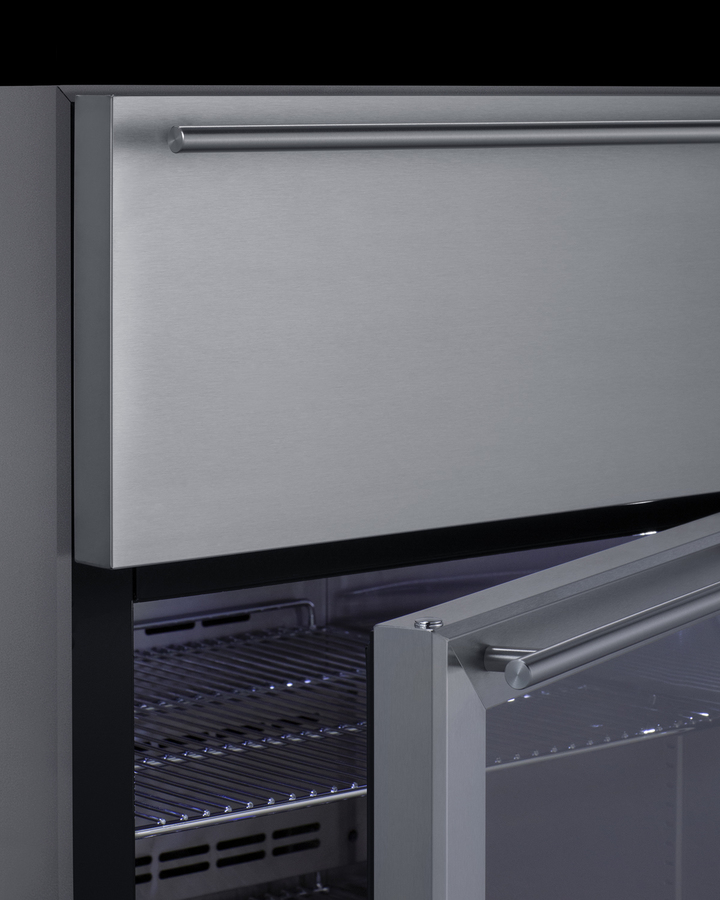

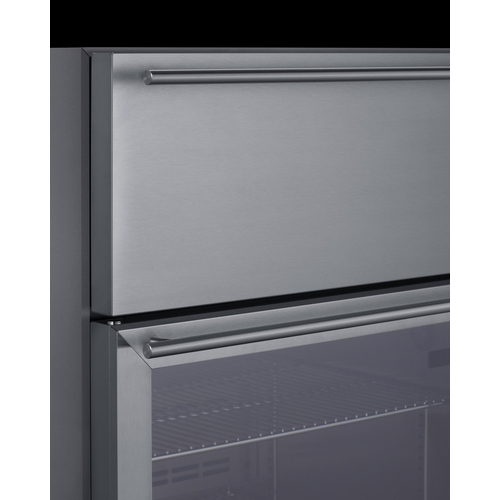

Professional handles

Sleek stainless steel handles mounted horizontally add an elegant touch to any setting

Temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Open door/drawer alarm

Audible alarm will sound if the top drawer or lower door is left ajar for longer than one minute

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Sabbath Mode

Optional setting lets you disable certain electrical functions during periods of religious observance

Perforated interior

Interior walls are perforated ensuring proper ventilation within the unit

Fan-forced cooling

Internal fan ensures the interior is evenly cooled from top to bottom

Sealed back

Space-saving design that offers easier cleanability

Fully finished stainless steel cabinet

Allows the unit to be used freestanding

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Commercial manufactures unique refrigeration solutions for convenient storage and display in foodservice applications.

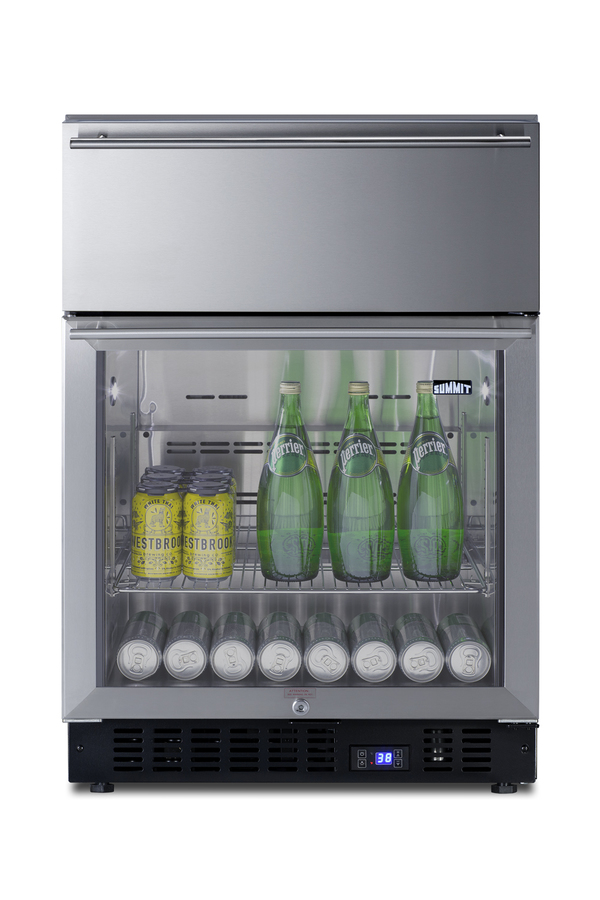

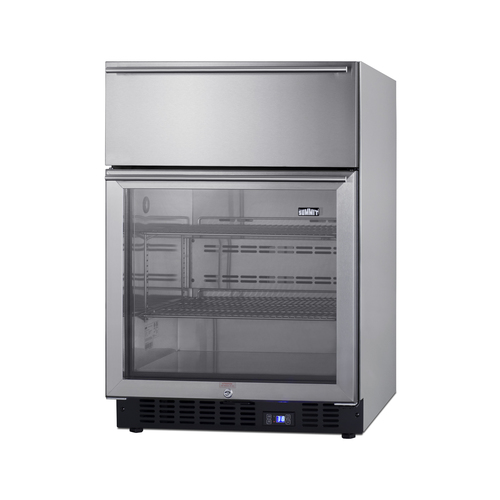

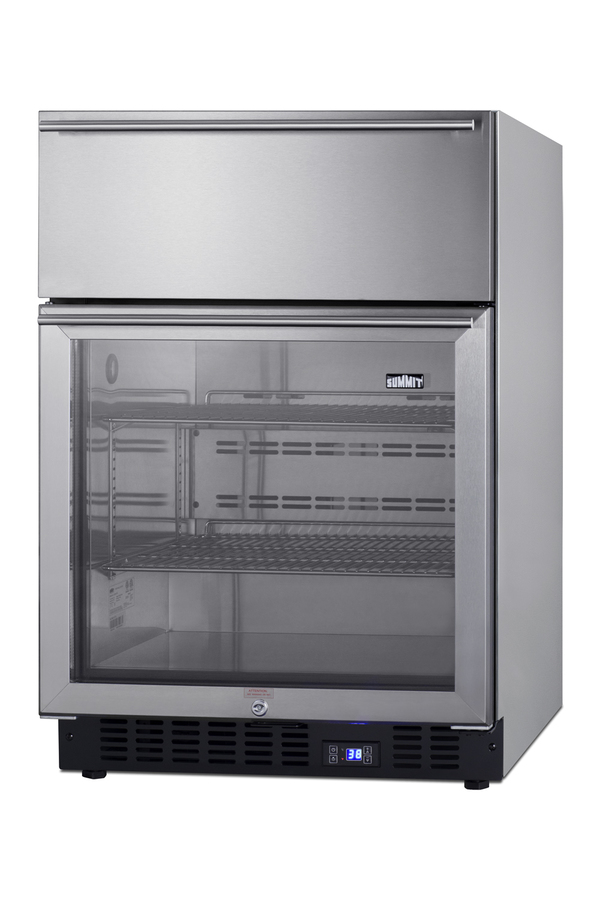

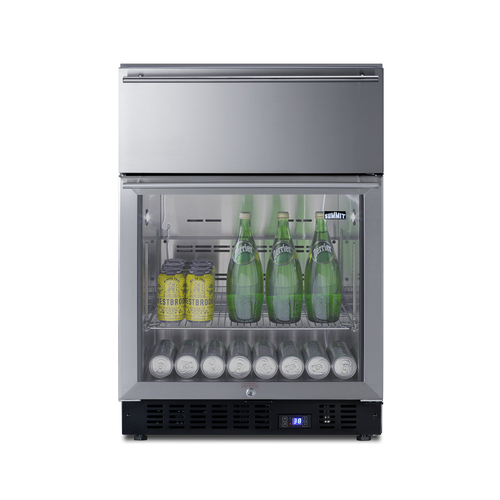

The SCR615TDCSS is an undercounter beverage center designed to optimize back bar storage, with a combination slide-out refrigerated storage drawer and standard front-opening compartment for an easy display of stored items. This unit is ETL-S listed to NSF-7 for use in commercial settings. It features a front-breathing design that allows built-in installation, while the fully finished stainless steel cabinet also enables freestanding use. Matching stainless steel handles offer a professional look.

The upper drawer compartment offers over 1 cu.ft. of refrigerated storage with a durable stainless steel exterior and interior. We include a removable stainless steel tray insert with 6 commercial steam table/hotel pans, ideal for making condiments and other refrigerated bar essentials easily accessible to busy foodservice staff. A removable wine rack is also included to stand bottles up at a slight angle once opened. The rack can be temporarily fixed into place with supplied hardware for added stability. The drawer ceiling includes white LED lighting to keep items in an attractive, energy efficient display.

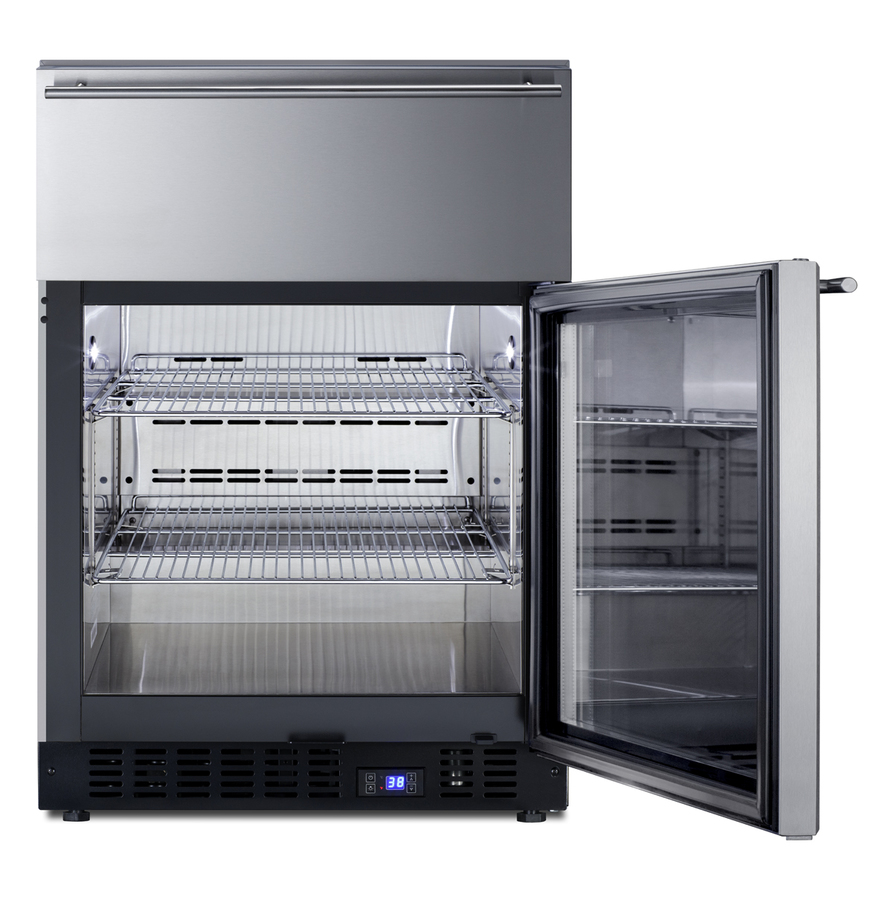

The SCR615TDCSS's lower compartment is designed with a traditional front-opening user-reversible door constructed from stainless steel trim and double pane tempered glass. Four white LED lights illuminate the stainless steel interior to keep beverages and other items in full view. Cantilevered shelving allows you to adjust the two chrome shelves to virtually any position to accommodate a variety of sizes. This compartment includes a factory-installed lock.

For easy temperature management, the SCR615TDCSS is equipped with a digital thermostat with settings viewable in Celsius or Fahrenheit. Internal fan-forced cooling helps to ensure even temperature distribution throughout the 4.76 cu.ft. stainless steel interior, with no-frost operation to help minimize user maintenance. Additional features include a high/low temperature alarm, open door/drawer alarm, Sabbath mode setting for optional observance, and temperature memory function to recover settings in the event of a power loss.

With its durable construction and unique storage options, the SCR615TDCSS makes a versatile addition for any bar, coffee shop, or similar commercial environment.

BROCHURE w/ DRAWINGS
SCR615TDCSS.pdf

TECHNICAL DRAWING (.dwg)
SCR615TD_BEVERAGE_CENTER__A-C_2018_.dwg

USE & CARE
SCR615TD_Use_and_Care.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
