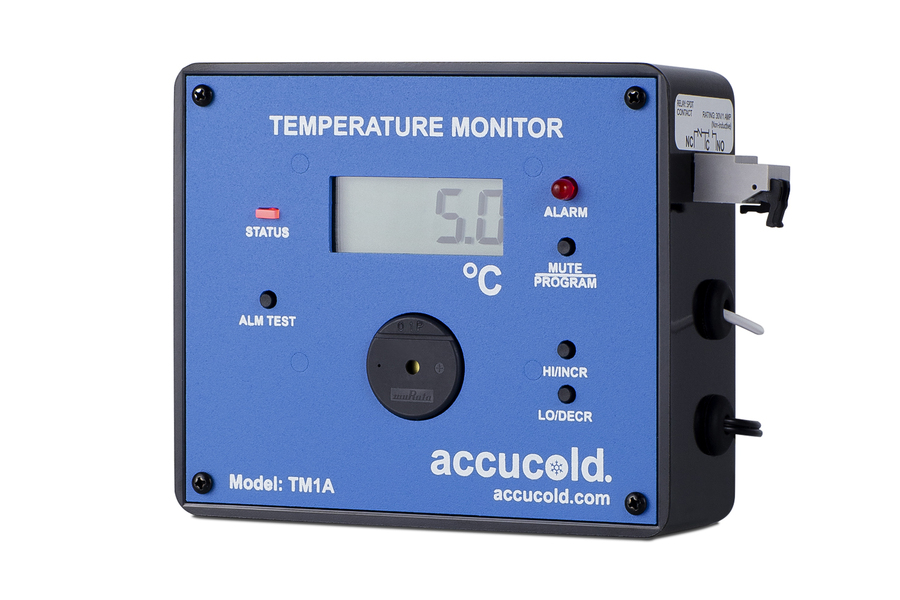

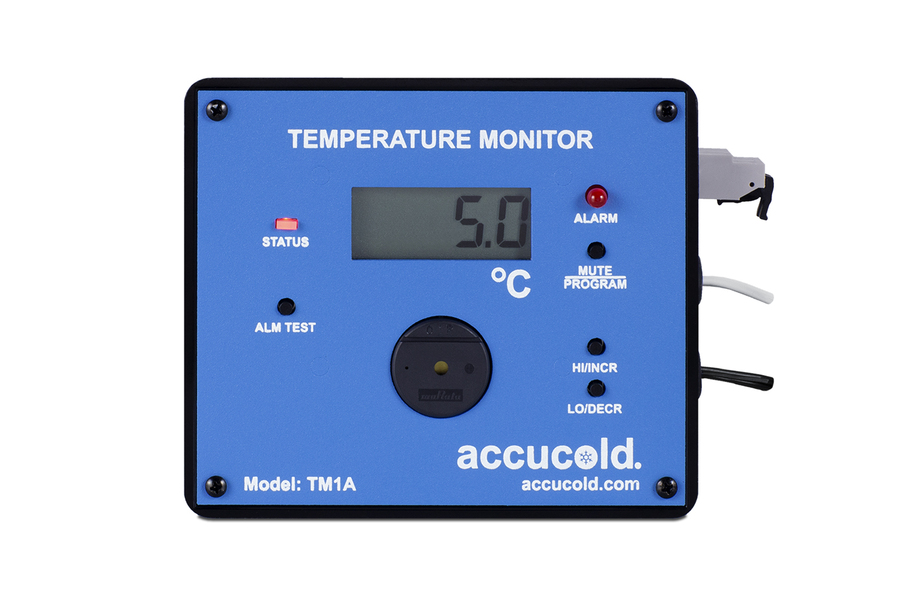

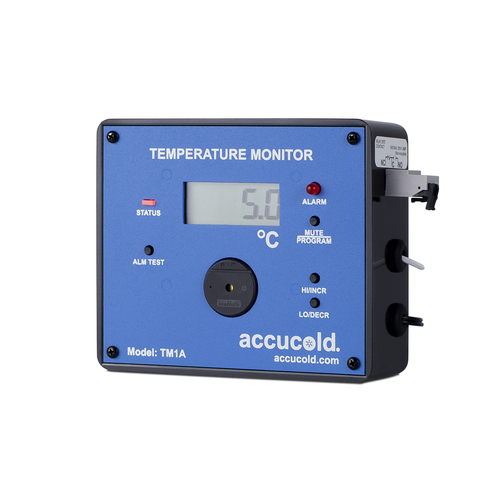

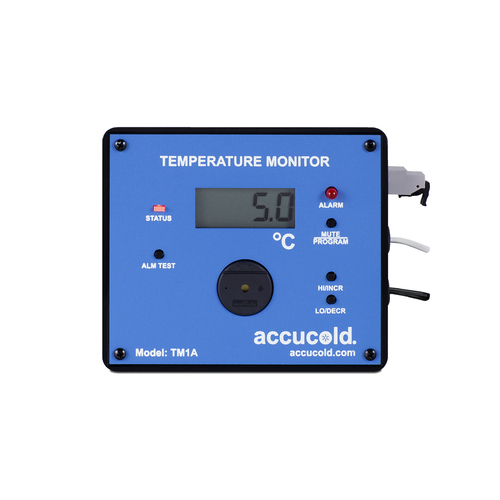

Remote Alarm Contacts

SKU: TM1AKIT
Continuous temperature monitoring with remote contacts for connection to a facility's automation system
Estimated Time to Ship:

Next day shipping; multi-piece orders may extend lead time. Call 718-893-3900 ext. 507 to discuss

4.25" H x 5.0" W x 1.75" D
(11cm H x 13cm W x 4cm D)

Overview
Nominal Height 4.25" (11 cm)
Height of Cabinet 4.25" (11 cm)
Nominal Width 5.0" (13 cm)
Width 5.0" (13 cm)
Nominal Depth 2.0" (5 cm)
Depth 1.75" (4 cm)
Cabinet Blue
Other Energy Info 12VDC Power Supply
Weight 1.0 lbs. (0 kg)
Parts & Labor Warranty 1 Year
UPC 761101103501

Remote alarm contacts

Includes contacts to forward alarms to external remote system

Compatible on any Accucold or Summit model

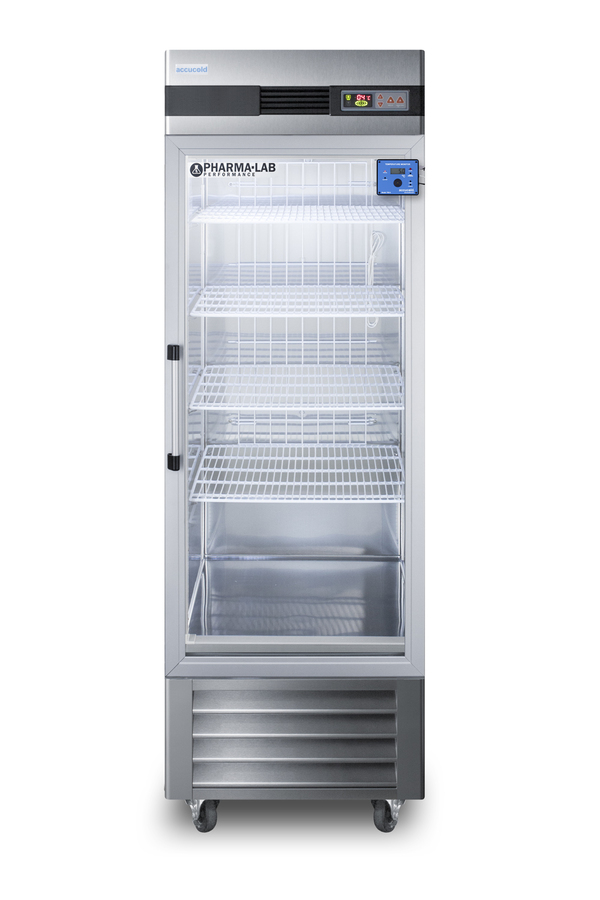

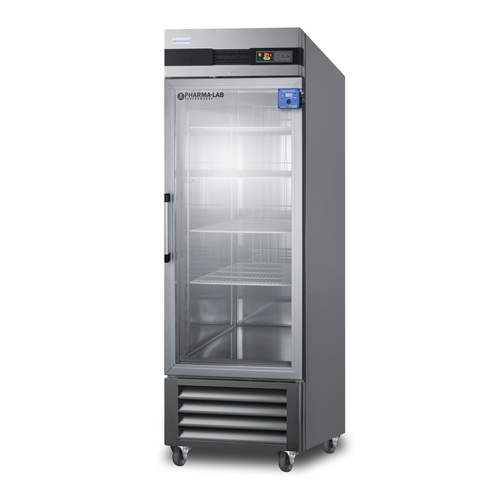

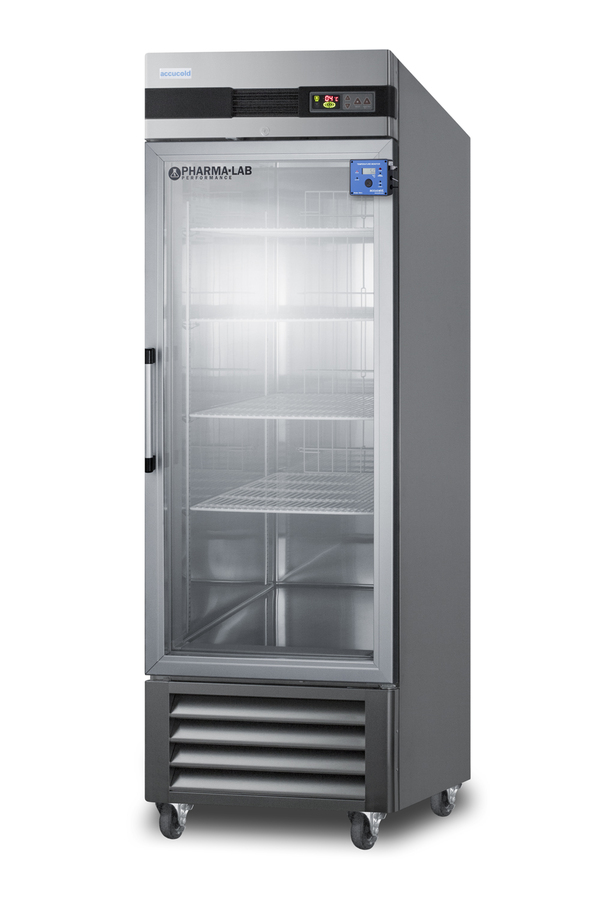

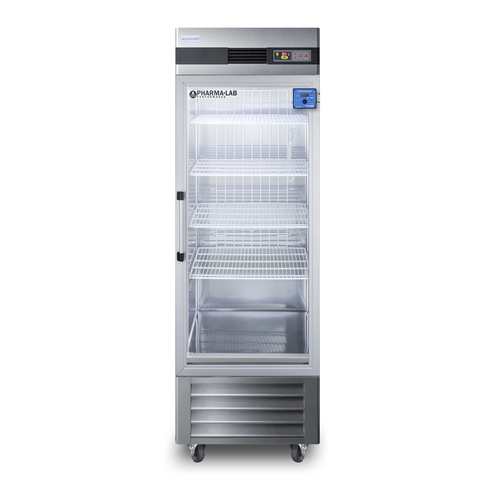

Can be installed on virtually any brand of refrigerator or freezer. To have this factory-installed on an Accucold or Summit unit, add upgrade "TM1" when ordering.

Temperature alarm

Audible alarm will sound and indicator light will flash if temperature rises or falls below the specified approved range

Alarm delay

Allows you to delay alarm activation by a user-set time interval to avoid unnecessary alerts

Mute function

Selectable alarm mute period to best meet your needs

+/-1ºC accuracy

Reliable temperature monitoring when used within a temperature range of -100 to +100ºC

Protected temperature sensor

Temperature sensor is enclosed inside glycol-filled bottle to protect it from being affected by rapid temperature changes that may occur when the unit's door is opened

Extended sensor cable

10' long Teflon sensor cable for the temperature probe allows you to set the probe in your preferred location

Large simultaneous temperature display

LCD screen keeps the current, minimum, and maximum temperatures in view at all times, with a readout to the nearest tenth of a degree

User-set parameters

High/low settings can be programmed and updated as needed

Power supply included

120V power adapter with 10' long cord and 2-prong plug

Battery backup

Built-in battery ensures a continuous temperature display in case of power outage (note: battery ships disabled and must be activated upon receipt of equipment. See the user manual for instructions)

Easy installation

Velcro strips included to help position and stabilize the logger on any surface

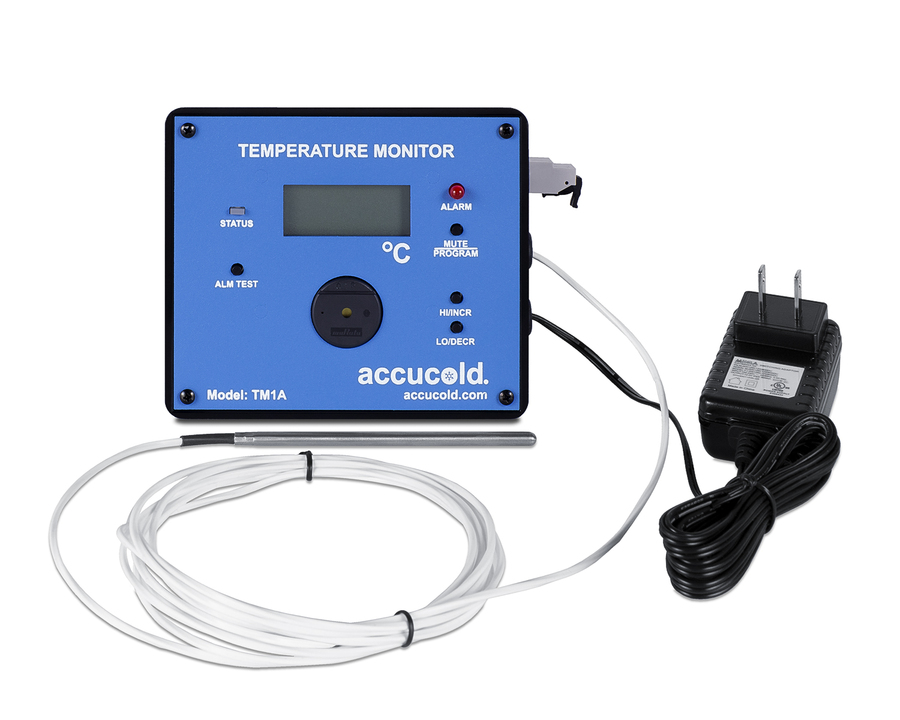

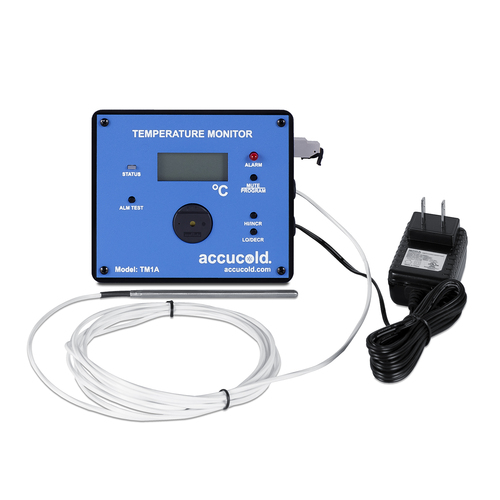

NOTE: The TM1AKIT is for aftermarket installation. It ships in a single box with the following items included: TM1A temperature monitor, 115V power adapter with a 10' long cord and 2-prong plug, an external temperature sensor encased in a bottle filled with glycol, and adhesive strips for installation. If you want this unit installed on an Accucold or Summit refrigerator, order the TM1A option with your unit. Contact your sales representative for details and pricing on pre-installation.

Accucold's TM1AKIT allows you to connect your refrigeration equipment to your facility's remote monitoring system while providing a continuous temperature readout of the current and high/low temperatures in an easy-to-read LCD display. It operates with a +/-1ºC accuracy when measuring in a range of -100ºC to +100ºC. The temperature probe is encased in a glycol-filled bottle to protect it from rapid changes when the door is opened, better simulating the temperature of stored contents instead of air temperature. It has a 10' long Teflon cable to allow for easy installation inside your refrigerator. Users can program the audible and visual high/low alarm set points and initial alarm delay time. Parameters are stored in non-volatile memory and are maintained even when power is removed.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
