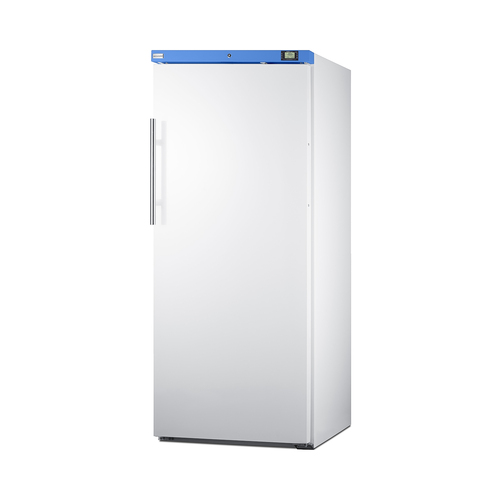

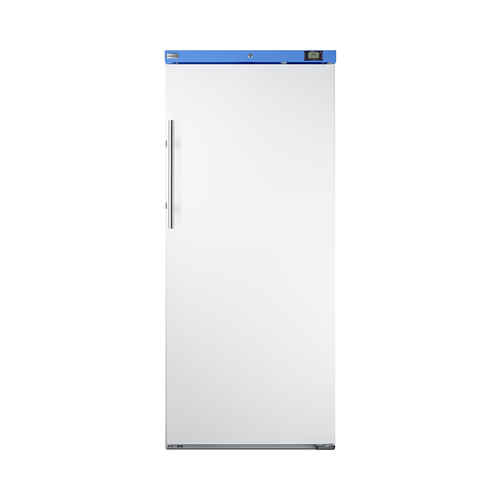

18 cu.ft. Upright Manual Defrost Freezer

SKU: UFM19W
Manual defrost operation creates a more stable environment for the storage of enzymes, reagents, samples, and other laboratory/clinical materials
Out of Stock; ETA:

12/27/2024

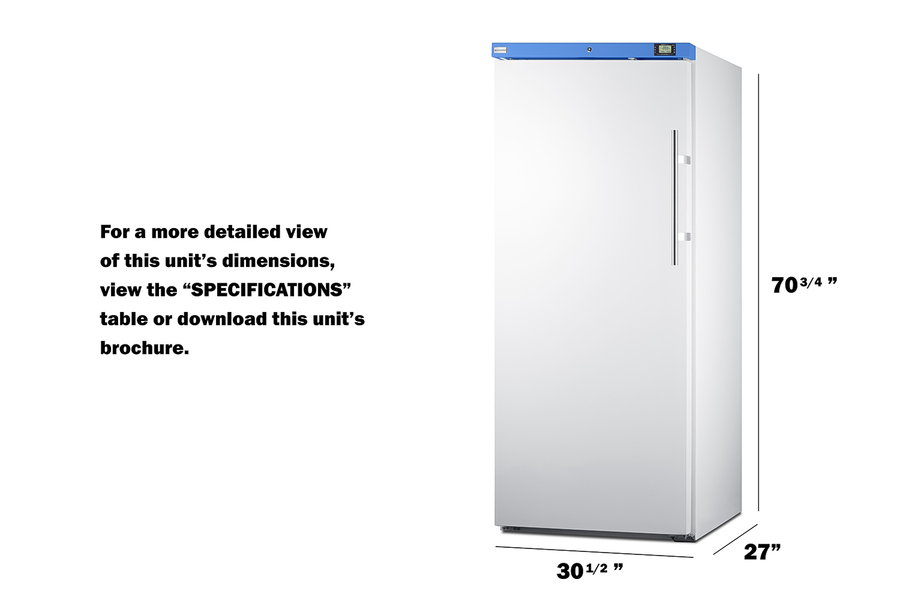

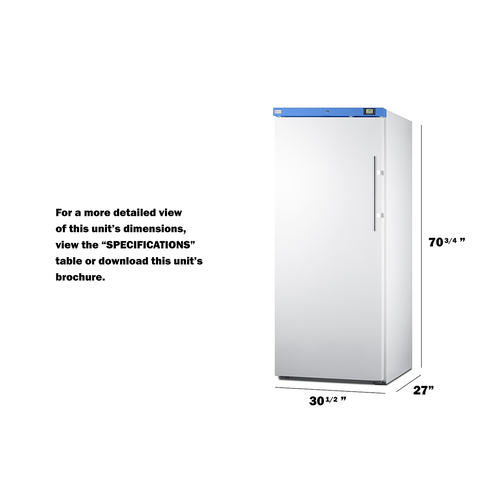

72.0" H x 30.5" W x 27.63" D
(183cm H x 77cm W x 70cm D)

Overview
Nominal Height 72.0" (183 cm)
Height of Cabinet 72.0" (183 cm)
Nominal Width 31.0" (79 cm)
Width 30.5" (77 cm)
Nominal Depth 28.0" (71 cm)
Depth 27.63" (70 cm)
Depth with Handle 30.25" (77 cm)
Depth with door at 90° 55.38" (141 cm)
Capacity 18.3 cu.ft. (518 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 2.7
Voltage/Frequency 115 V AC/60 Hz
Weight 215.0 lbs. (98 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101077307
Freezer
Door Swing RHD
Reversible Yes
Interior Height 64.0" (163 cm)
Interior Width 25.0" (64 cm)
Interior Depth 20.88" (53 cm)
Shelf Type Wire
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Dial
Interior Light Yes
Refrigerant Type R290
Refrigerant Amount 3.88 oz.
High Side PSI 280.0
Low Side PSI 145.0
Level Legs 2
Compressor Step Height 9.38" (24 cm)
Compressor Step Width 25.0" (64 cm)
Compressor Step Depth 7.25" (18 cm)
Temperature Range -18 to -24ºC (Preset to -20ºC)

Exterior
LHD - Left hand door swing
Door reversal to left hand swing

Upright manual defrost all-freezer

General purpose freezer designed for the storage of samples, enzymes, reagents, and other laboratory and clinical materials that require a more stable interior than traditional automatic defrost

Large capacity

Over 18 cu.ft. of storage inside

Manual defrost operation

Static cooling system with no fans or warming cycles

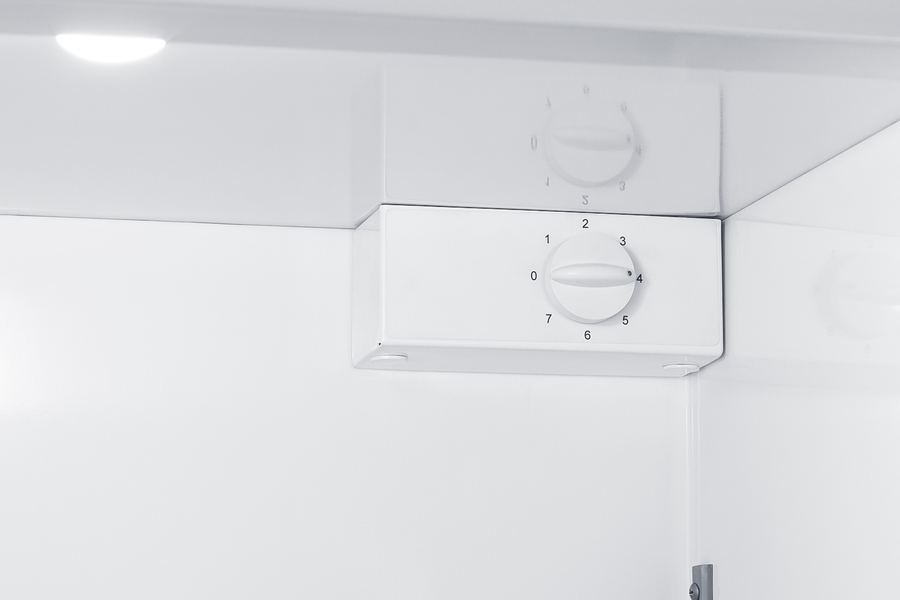

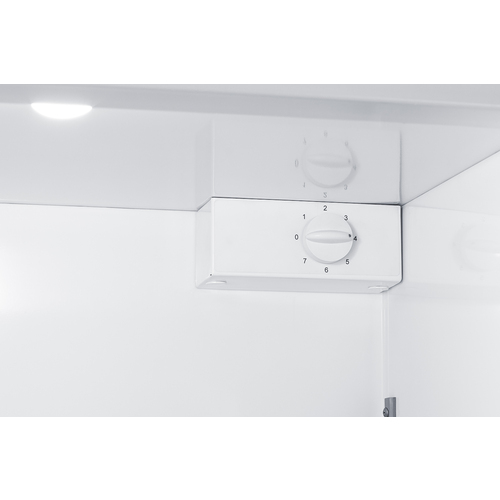

Dial thermostat

Intuitive and reliable mechanical thermostat located inside the unit to prevent unnecessary adjustments

-20ºC operation

Preset to -20ºC with a temperature range of -18 to -24ºC

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

External temperature readout

Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

Buffered temperature probe

Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents

Access port

3/8" probe hole with cover is pre-installed in unit's side to allow easy installation of user-provided monitoring equipment

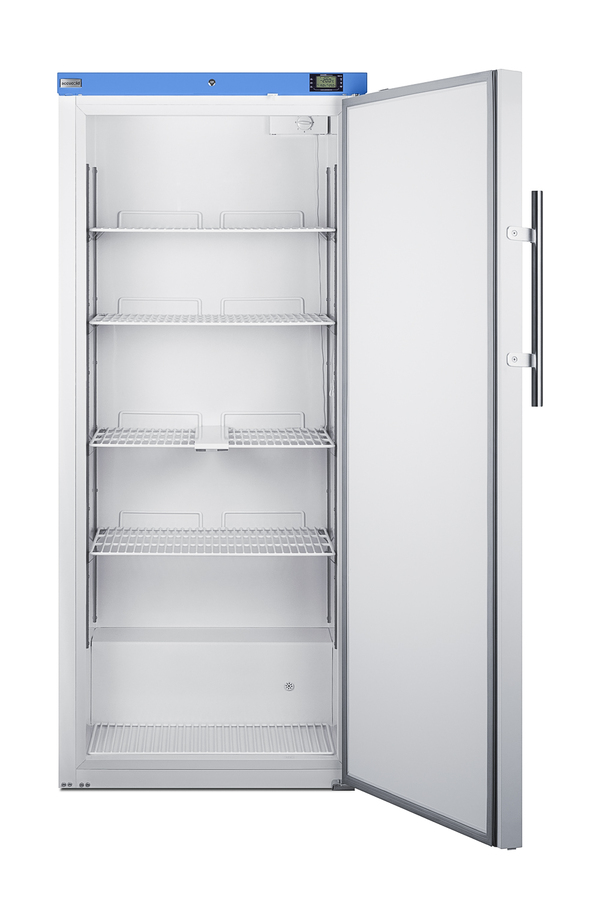

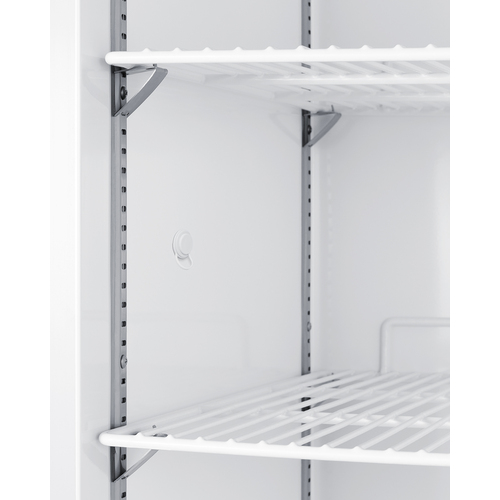

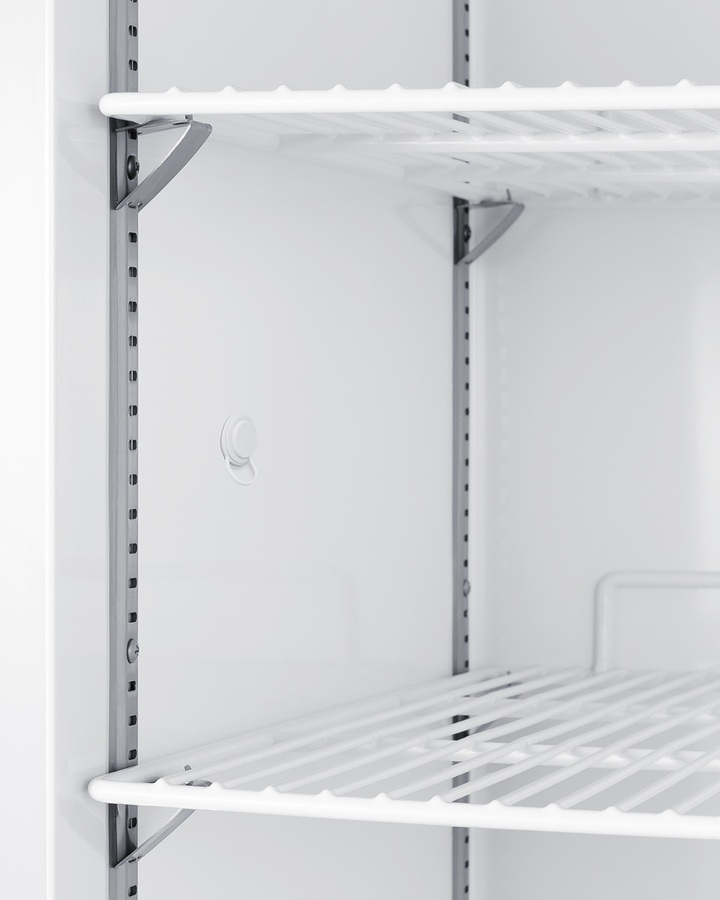

Cantilevered shelving

Tight pilaster spacing throughout the interior allows you to adjust the shelf positions to meet your exact storage needs

Fixed center shelf

Center shelf is fixed in place in order to provide the optimum position for the TMD to provide the most accurate temperature readings

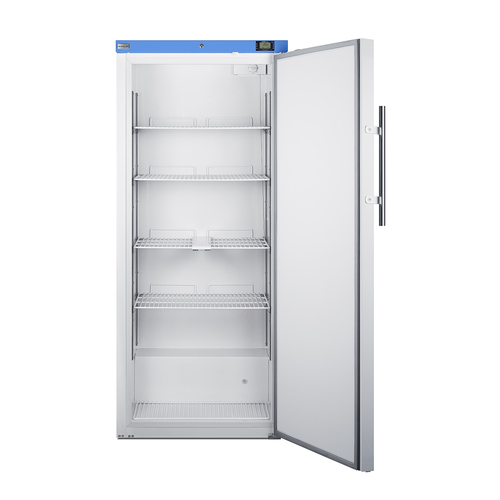

Epoxy-coated wire shelves

Four heavy duty shelves included

Factory-installed lock

Conveniently located towards the top of the door for easier user access (2 keys included)

Flat door liner

No door storage to allow for the interior to accommodate deeper trays

Reversible door

User-reversible door swing for added flexibility to best accommodate your setting

LED lighting

Automatic interior lighting for an efficient presentation

9' long cord with hospital grade plug

Extra long power cord with hospital grade 'green dot' plug for a more secure connection

External handle

Easy-grip handle in brushed aluminum

Leveling legs

Adjustable front legs allow you to ensure a straight fit, even on uneven surfaces

Advanced vacuum seal insulation

Vacuum seal gasket design ensures no cold air escapes (NOTE: seal activates when door is closed, so you must allow a few minutes to pass before re-opening)

Matching refrigerator

Pair with model URM19W to create a complete set

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Accucold's general purpose storage line includes upright manual defrost freezers designed for the storage of certain enzymes, reagents, samples, and other materials used in laboratory and clinical settings that require -20ºC temperatures with more stability than traditional no-frost equipment.

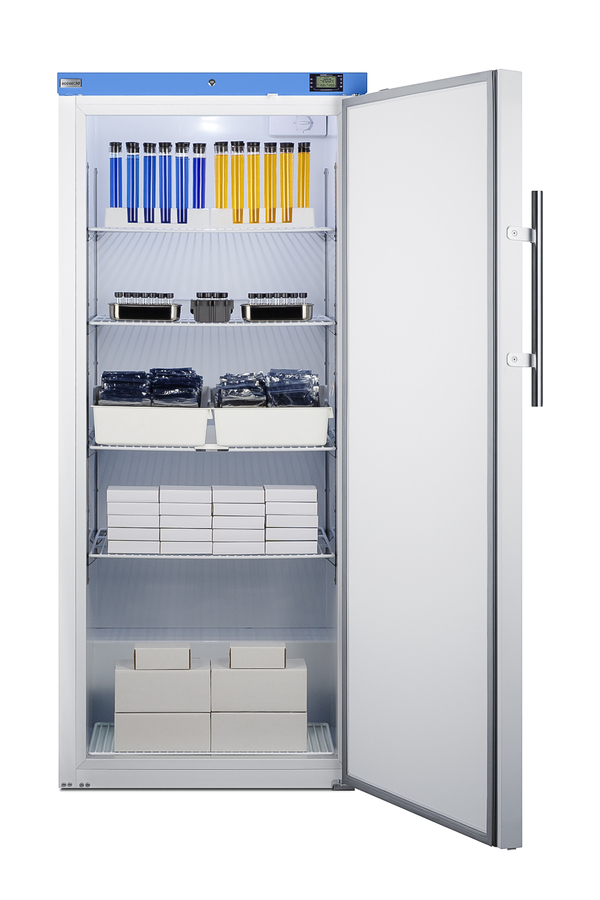

Model UFM19W is a front-opening freezer with an 18.3 cu.ft. interior storage capacity. Manual defrost operation ensures a more stable interior with none of the warming cycles that can compromise temperature in traditional frost-free cooling systems. The dial thermostat is located inside to prevent accidental temperature adjustments, with a thermometer/alarm mounted externally to ensure a readout of the current and high/low interior temperature is visible without opening the door. The temperature probe is encased in glass beads and positioned in a fixed shelf in the center of the unit to best simulate the temperature of stored items. We include an additional probe hole to accommodate additional monitoring equipment. Cantilevered shelving provides more flexibility in storage, with tight spacing between the pilasters so you can adjust as needed. This unit has a flat door liner to accommodate deeper trays. An automatic LED light makes it easy to see the full interior.

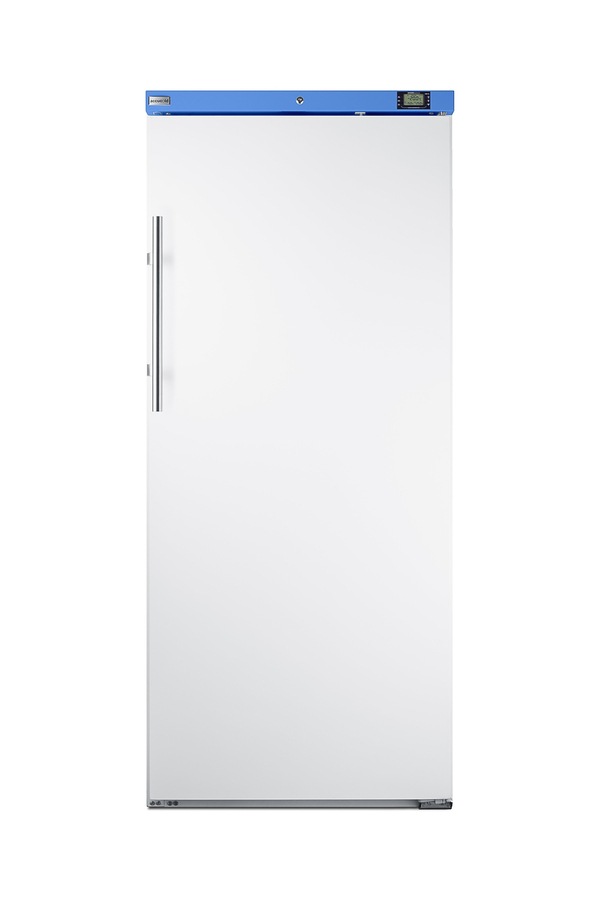

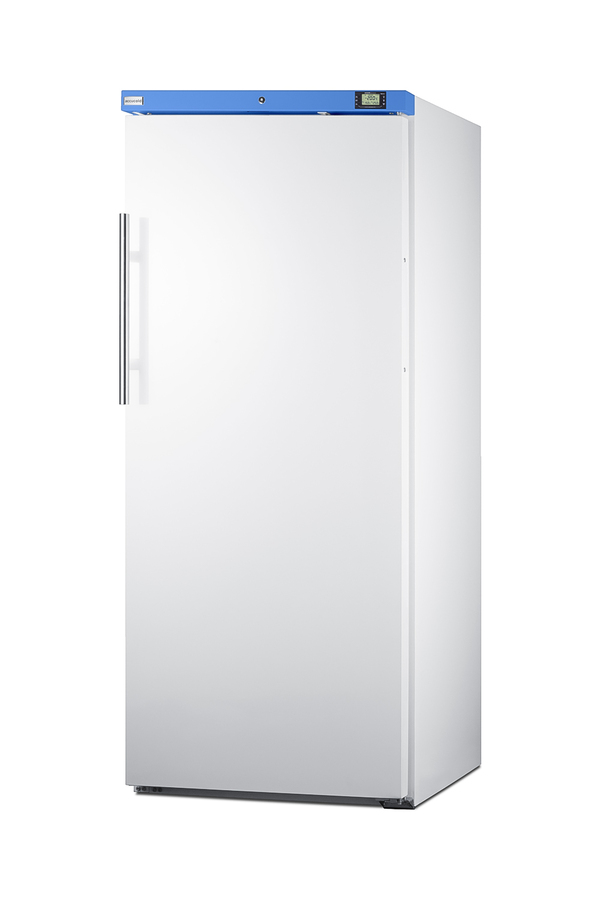

This freezer comes in a white exterior finish with a blue accent on the front. The keyed lock is conveniently located towards the top of the unit for easier user access. The reversible door includes an easy-grip handle in a brushed aluminum finish. This unit includes a 9'5" long power cord with a hospital grade 'green dot' plug for a more secure connection, ideal for high traffic environments. The cooling system utilizes hydrocarbon refrigerant for a greener footprint. For advanced insulation, the door features a vacuum seal that keeps all cold air inside.

The UFM19W meets NSF-7 commercial standards and is ETL listed for the U.S. and Canada. It matches refrigerator model URM19W. It can be customized with additional features to best meet your storage needs, including digital data loggers (DDLs). For more information, contact our product specialists at 718-893-3900.

In addition to this freezer, Accucold manufactures frost-free choices for vaccine and laboratory storage, as well as purpose-built refrigeration lines approved to the NSF/ANSI 456 Vaccine Storage Standard.

Download
BROCHURE w/ DRAWINGS
UFM19W.pdf
Download
TECHNICAL DRAWING (.dwg)
UFM19W.dwg
Download
ASSEMBLY DRAWING
UFM19W-Assembly.pdf
Download
MSDS INFORMATION
MSDS-R290-Propane_UFM19.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
