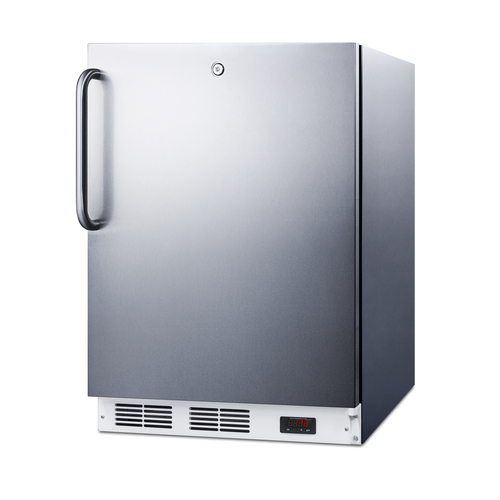

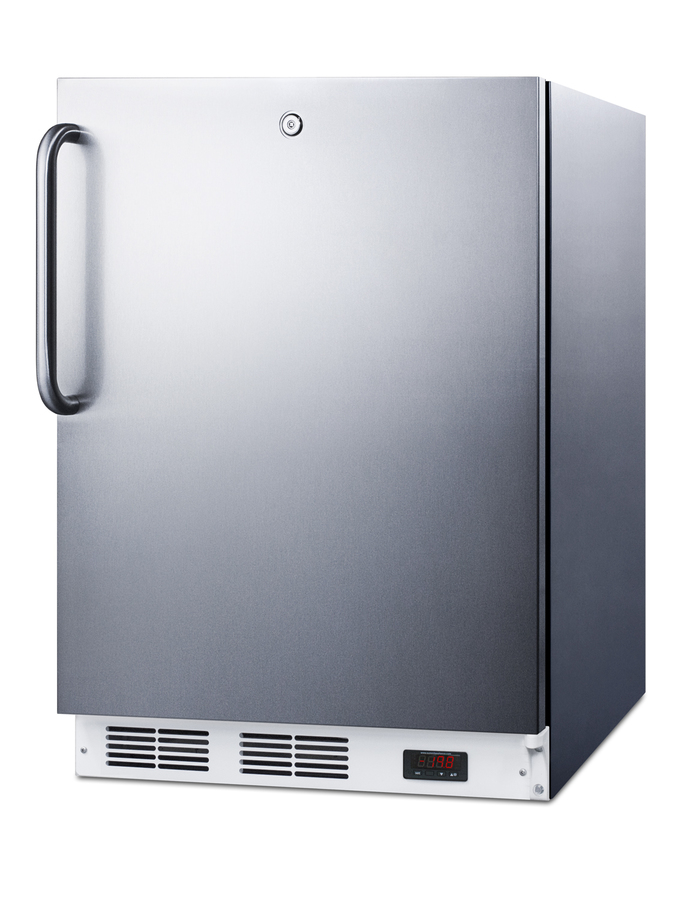

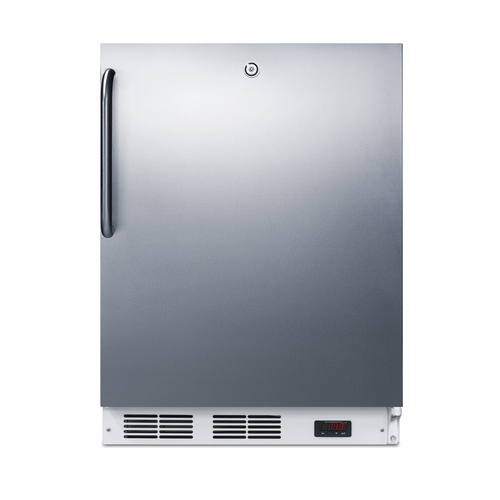

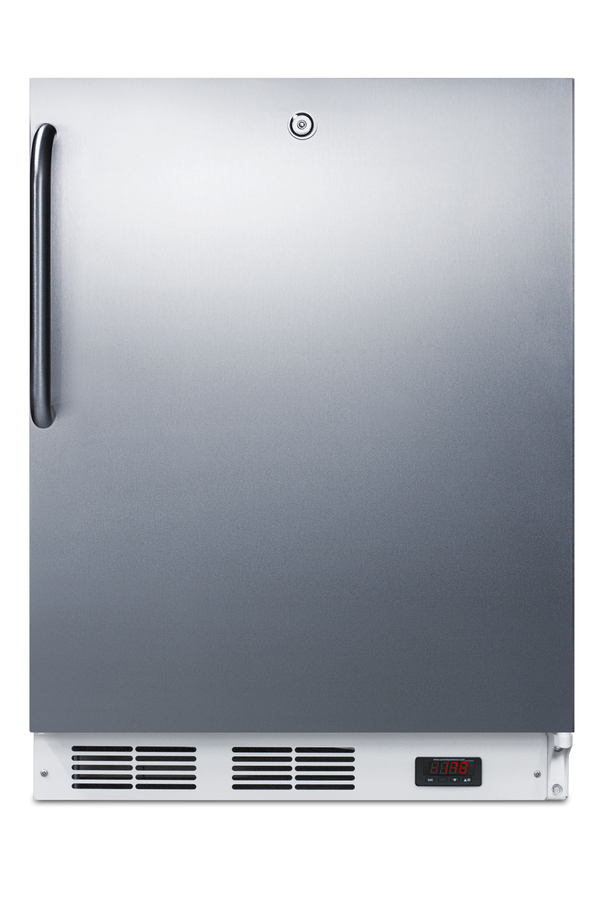

24" Wide Built-In All-Freezer, ADA Compliant
3 to 5 days
(82cm H x 60cm W x 60cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.75" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.5" (65 cm) |
| Depth with door at 90° | 45.25" (115 cm) |
| Capacity | 3.5 cu.ft. (99 L) |
| Defrost Type | Manual |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | ETL-S |
| Amps | 1.3 |
| Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101043296 |
|
Freezer
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Interior Height | 24.25" (62 cm) |
| Interior Width | 17.75" (45 cm) |
| Interior Depth | 16.5" (42 cm) |
| Thermostat Type | Digital |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 2.7 oz. |
| High Side PSI | 235.0 |
| Low Side PSI | 70.0 |
| Level Legs | 4 |
| Interior Drawers | Yes |
| Drawers Qty | 3 |
| Compressor Step Height | 6.0" (15 cm) |
| Compressor Step Width | 17.75" (45 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Temperature Range | -12ºC to -25ºC |
AVAILABLE UPGRADES
| Exterior | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
|||||||||
| Lock | |||||||||
|
|||||||||
| Handle | |||||||||
|
|||||||||
| Door | |||||||||
|
FEATURES
ETL-S listed to NSF-7 Standards for use in commercial establishments
32 inch height is designed to fit under ADA compliant counters
Keyed lock for a secure interior
Make the best use of space by installing your appliance under the counter and flush with other cabinetry
Allows the unit to be used freestanding
Durable elegance built to last
A curved handle in brushed stainless steel provides generous room for a comfortable grip
Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials
Static cooling system for improved temperature stability

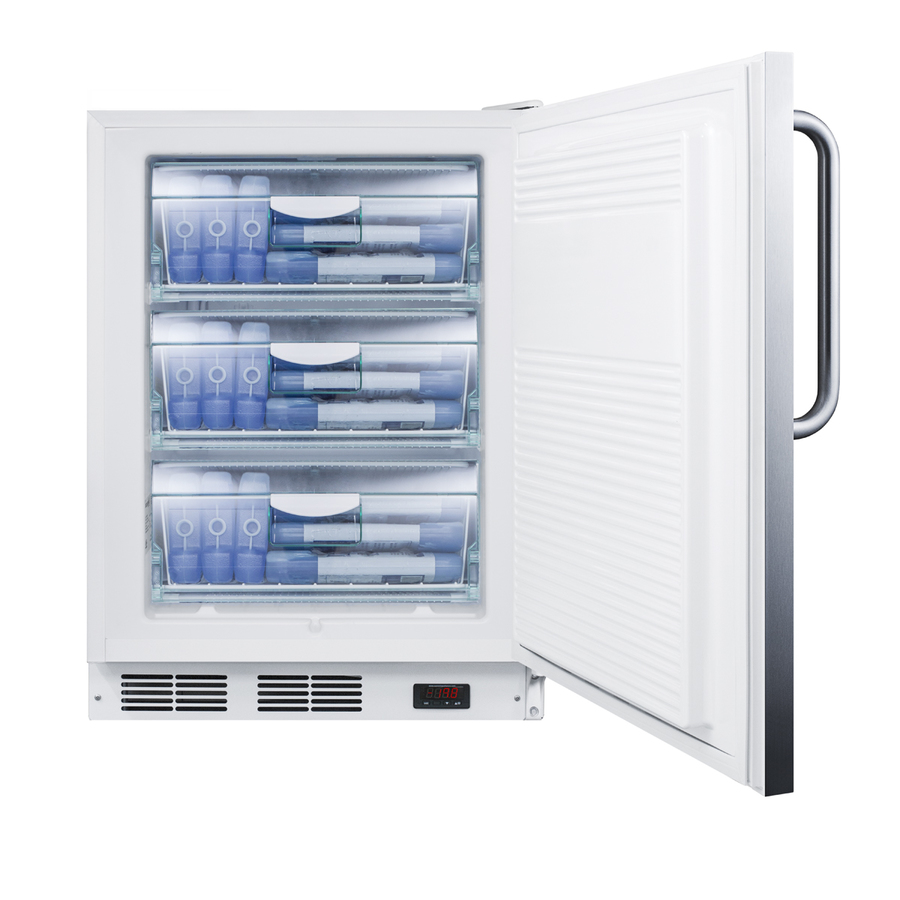

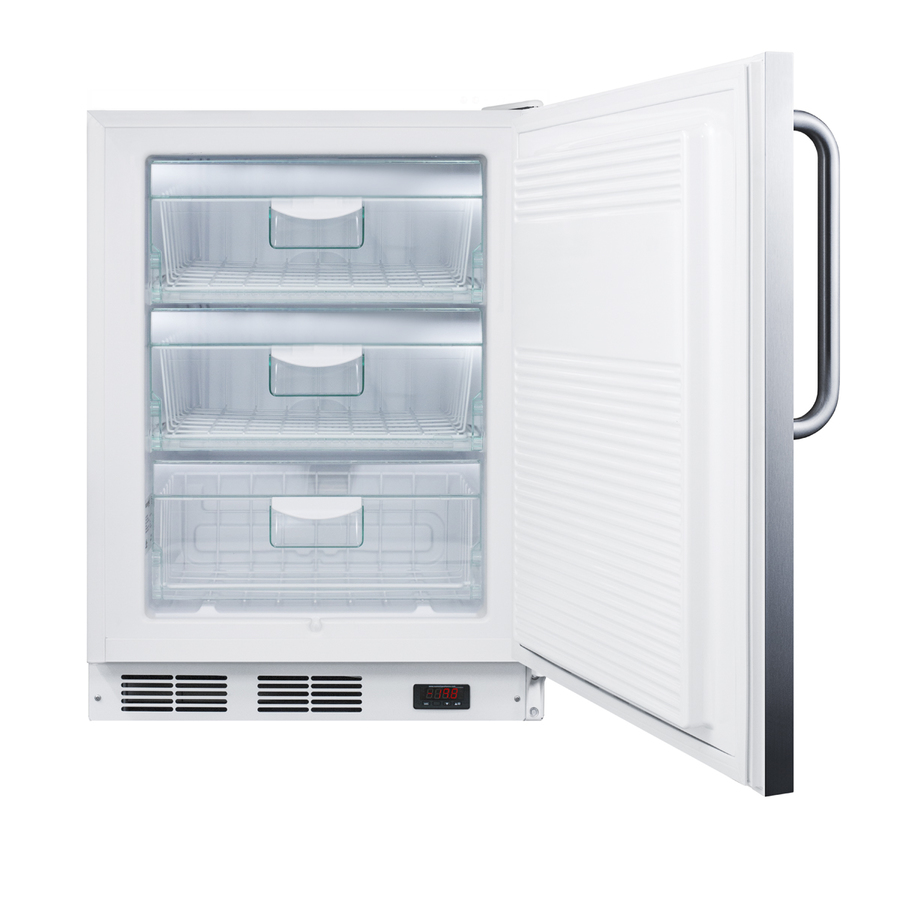

Conveniently organize your items while keeping the temperature stable when the door is opened
Electronic controls located in the front kickplate for easy and intuitive temperature management
Simple cleanup with a seamless liner that won't hold a mess in hidden crevices
Environmentally friendly design without ozone-damaging chemicals
DESCRIPTION
Accucold VT65M7BIADA series features commercially listed all-freezers designed for low temperature storage and sized for use under lower ADA compliant counters. The 32" high VT65ML7CSSADA can be used built-in or freestanding in any 24” space, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keeps items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup. This medical unit features a stainless steel wrapped cabinet and door. A curved towel bar handle completes the look and a factory installed lock offers added security. This unit is ETL-S listed to NSF-7 commercial standards. NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
