24" Wide Built-In All-Freezer

SKU: VT65MLBI

-25°C storage with extra thick insulation and slide-out drawers that help protect stored contents

Estimated Time to Ship:

3 to 5 days

How to Buy

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

33.5" H x 23.63" W x 23.5" D
(85cm H x 60cm W x 60cm D)

Overview
Nominal Height	34.0" (86 cm)
Height of Cabinet	33.5" (85 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.13" (64 cm)
Depth with door at 90°	46.13" (117 cm)
Capacity	3.5 cu.ft. (99 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	1.3
Weight	105.0 lbs. (48 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101027876
Freezer
Door Swing	RHD
Reversible	Yes
Height Adjustable	1
Interior Height	24.25" (62 cm)
Interior Width	17.75" (45 cm)
Interior Depth	16.5" (42 cm)
Thermostat Type	Dial
Fan Type	Exterior
Refrigerant Type	R134a
Refrigerant Amount	2.7 oz.
High Side PSI	235.0
Low Side PSI	70.0
Level Legs	4
Interior Drawers	Yes
Drawers Qty	3
Compressor Step Height	6.0" (15 cm)
Compressor Step Width	17.75" (45 cm)
Compressor Step Depth	6.0" (15 cm)
Temperature Range	-12ºC to -25ºC

Exterior

HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	SSK - Stainless steel kickplate Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)	LHD - Left hand door swing Door reversal to left hand swing
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	SS Hinges Stainless steel top and bottom hinges
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	Legs to raise unit height 6" high leveling legs
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Lock

AC Keypad - AC powered keypad lock

KEYPAD - Battery-powered keypad door lock

Handle

TBC Copper Towel Bar Handle

CP Full-Length Copper Pipe Handle

Door

STO-Step-To-Open Door Pedal

Slim undercounter dimensions

Less than 24 inches wide to fit tight spaces

Fully finished white cabinet

Allows the unit to be used freestanding

Height Adjustable

Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinets

Factory installed lock

Keep contents secure with a key lock on the door

-25º C capable

Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials

Manual defrost

No temperature fluctuations with an energy efficient manual defrost system

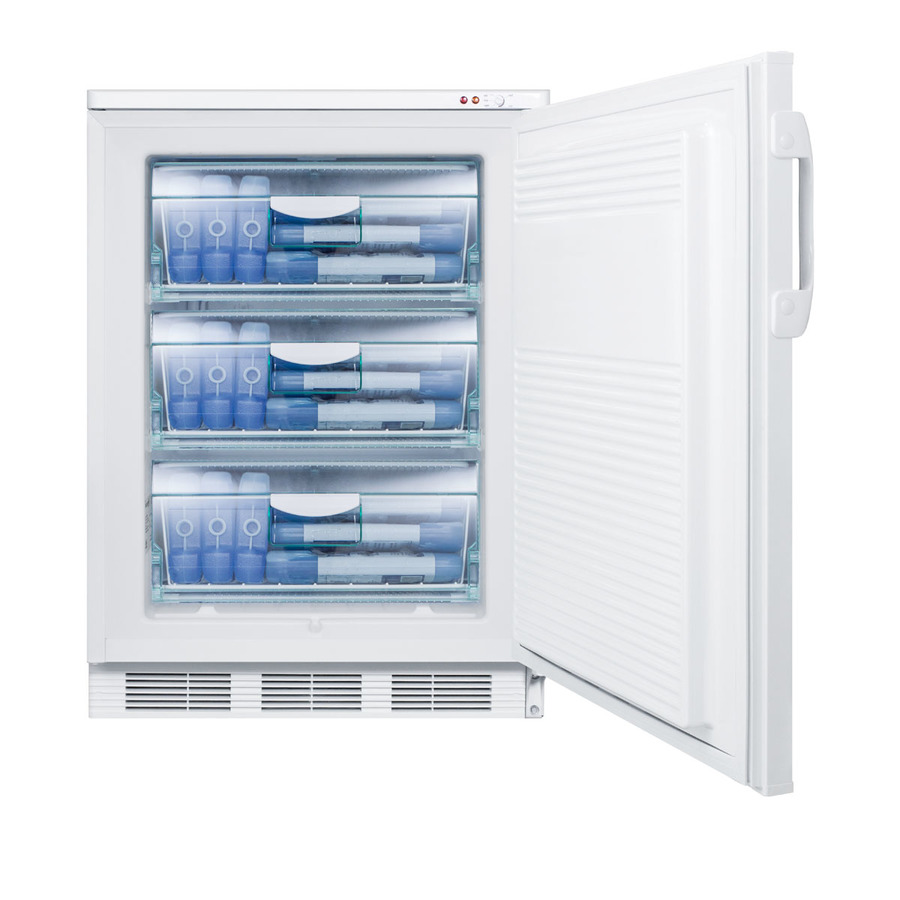

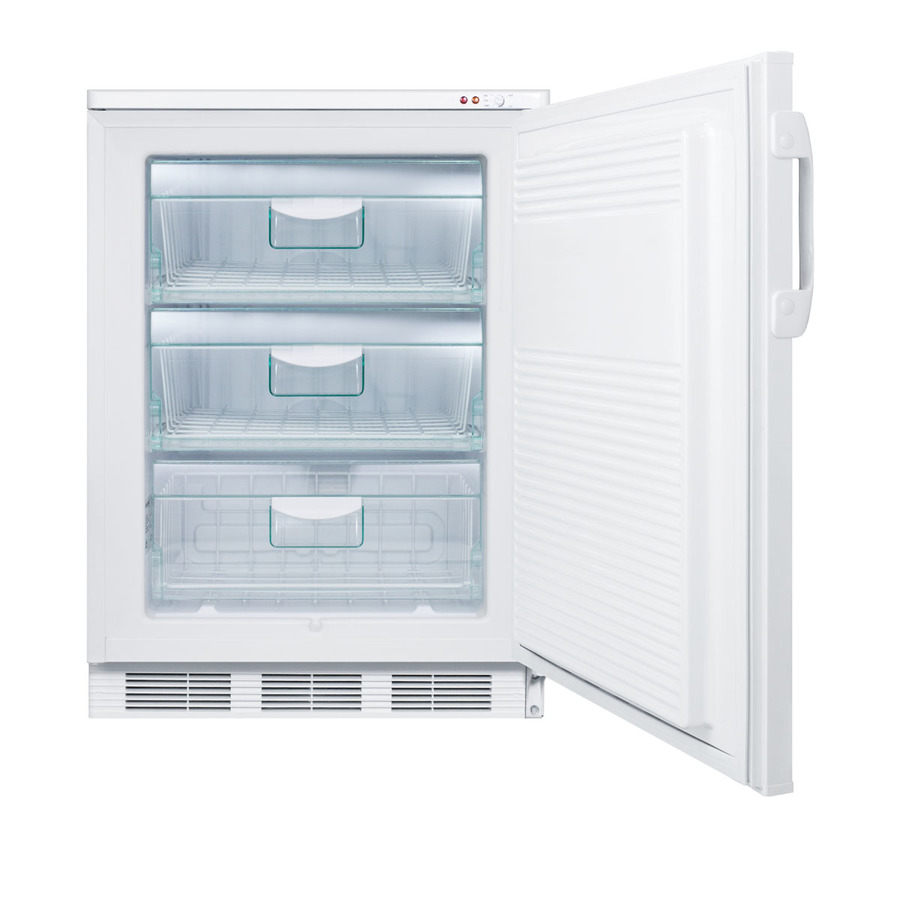

Three removable storage baskets

Conveniently organize your items while keeping the temperature stable when the door is opened

No internal fans

Static cooling system

Adjustable thermostat

Manage the interior temperature with ease and accuracy

One piece interior liner

Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Reversible door

Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

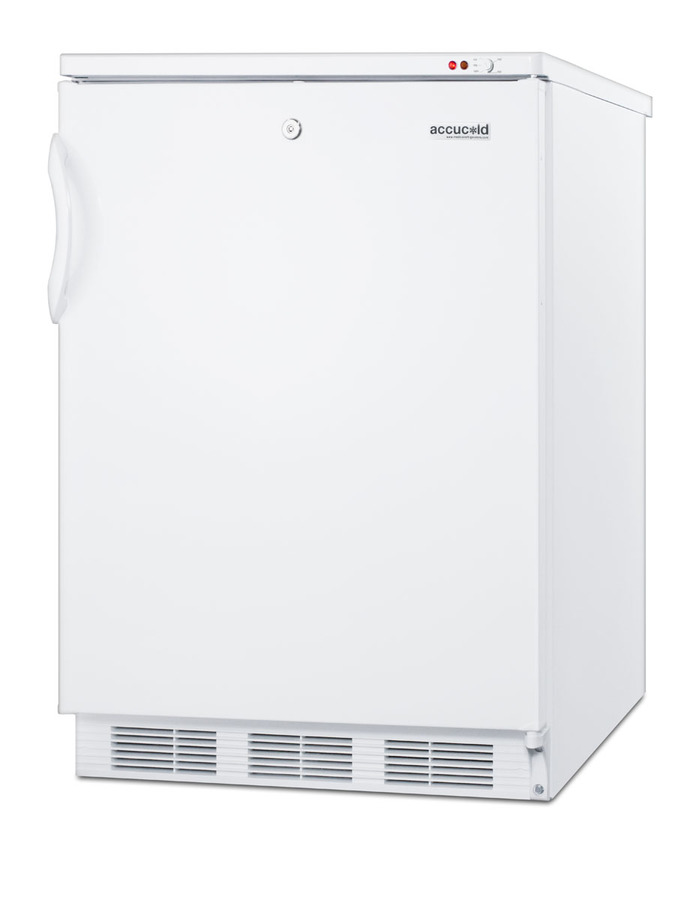

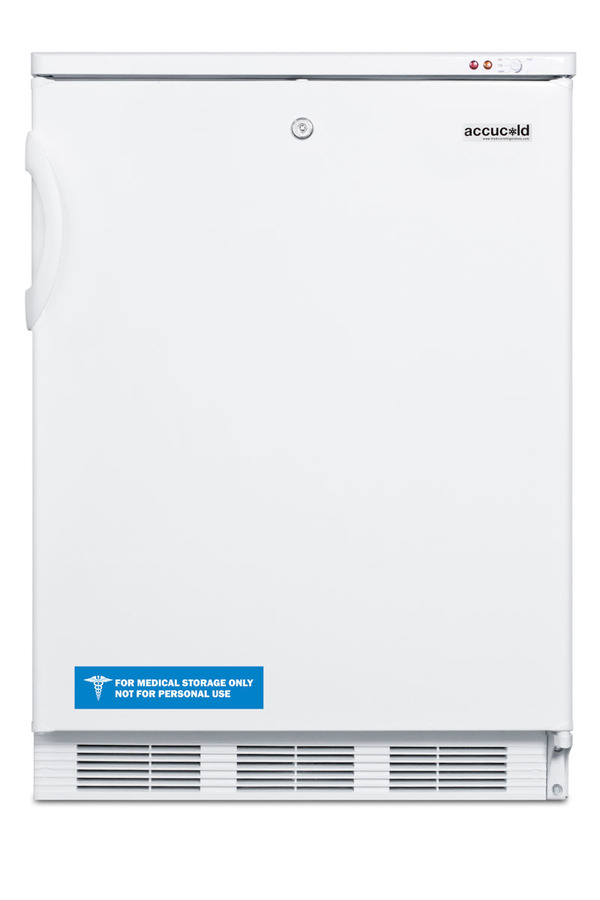

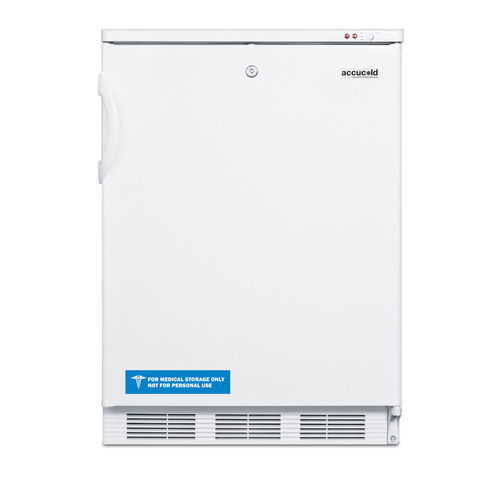

Accucold VT65MBI medical all-freezers offer low temperature storage in a perfectly sized footprint designed for built-in installation under counters.

The 24” wide VT65MLBI can be used built-in or freestanding, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keeps items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup.

This medical unit has a white cabinet and reversible door, with a factory installed lock for added security.

NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.

BROCHURE w/ DRAWINGS
VT65MLBI.pdf

REVIT MODEL
QF_Summit_VT65ML_Freestanding_Medical_All_Freezer.rfa

USE & CARE
VT65M_VT65ML_manual_incl_ADA_BI_ALF_Engl_French.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
