24" Wide Built-In All-Freezer, ADA Compliant

SKU: VT65MLBIMEDADA

-25°C storage with extra thick insulation and slide-out drawers that help protect stored contents

Estimated Time to Ship:

3 to 5 days

How to Buy

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

32.25" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	24.25" (62 cm)
Depth with door at 90°	45.13" (115 cm)
Capacity	3.2 cu.ft. (91 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	105.0 lbs. (48 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101044705
Freezer
Door Swing	RHD
Reversible	Factory Reversible
Interior Height	24.25" (62 cm)
Interior Width	17.75" (45 cm)
Interior Depth	16.5" (42 cm)
Thermostat Type	Digital
Fan Type	Exterior
Refrigerant Type	R134a
Refrigerant Amount	2.7 oz.
High Side PSI	235.0
Low Side PSI	70.0
Interior Drawers	Yes
Drawers Qty	3
Compressor Step Height	6.5" (17 cm)
Compressor Step Width	17.5" (44 cm)
Compressor Step Depth	5.5" (14 cm)
Temperature Range	-12ºC to -25ºC

Exterior

TM1A - Factory-installed dry contacts with remote alarm Remote alarm contacts with continuous temperature display	SSK - Stainless steel kickplate Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)	LHD - Left hand door swing Door reversal to left hand swing
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Lock

AC Keypad - AC powered keypad lock

KEYPAD - Battery-powered keypad door lock

Handle

TBC Copper Towel Bar Handle

CP Full-Length Copper Pipe Handle

Door

STO-Step-To-Open Door Pedal

ADA compliant

32" high to fit under lower ADA compliant counters

Built-in capable

Make the best use of space by installing your appliance under the counter

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Factory installed lock

Keyed lock for secure interior

-25ºC capable

Low temperature capability ideal for certain sensitive items

High temperature alarm

Warns of temperature fluctuations and includes an external temperature readout on the door

Manual defrost

Efficient performance with reliable temperature stability

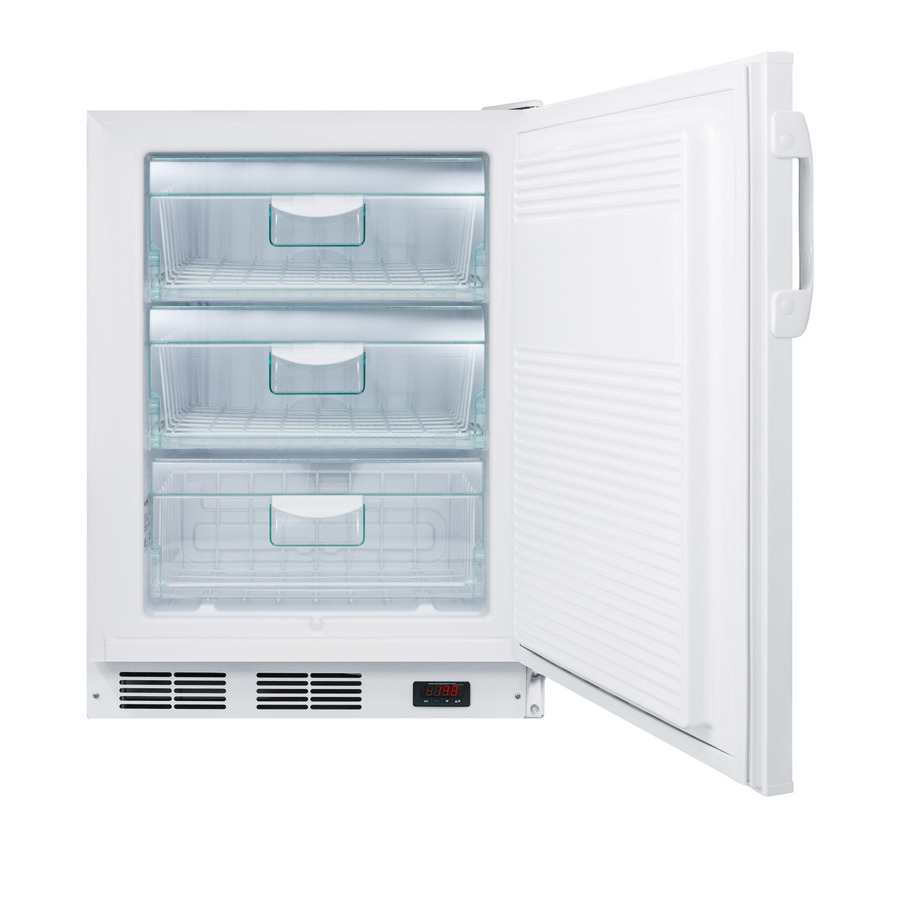

Three removable storage baskets

Conveniently organize your items while keeping the temperature stable when the door is opened

Access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

Adjustable thermostat

Manage the temperature with ease and accuracy

Fully finished white cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design without ozone-damaging chemicals

Accucold by Summit Appliance's MED series all-freezers come fully featured for stabilized temperature performance for use in medical, scientific, pharmaceutical, and laboratory institutions.

The VT65MLBIMEDADA has a 24" footprint, with a 32" height that allows it to fit under lower ADA compliant counters. Designed for built-in installation, it can also function freestanding. It comes in a white finish and includes a front-mounted lock for added security.

The manual defrost VT65MLBIMEDADA operates several degrees colder than most freezers for safe long-term storage of food, vaccines, or pharmaceuticals. Temperatures can reach and maintain -25º C. Three removable pull-out basket drawers provide convenient storage solutions, while extra thick insulation limits energy waste and keeps the cold inside.

We include an audible NIST calibrated temperature alarm complete with an external display of the current and high/low temperature mounted on the door. A green dot hospital grade plug is installed for added safety in high traffic areas. An access port allows users to connect their own monitoring equipment.

With its slim size and reliable construction, the VT65MLBIMEDADA works well in any setting in need trusted storage. Additionally, we offer a variety of options to customize this unit, including USB data loggers, digital thermostats, self-closing doors, and more.

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.

BROCHURE
VT65MLBIMEDADA.pdf

USE & CARE
MED_PLUS_manual_Engl_French_rvsd_071916.pdf

USE & CARE
VT65M_VT65ML_manual_incl_ADA_BI_ALF_Engl_French.pdf

MSDS INFORMATION
Propylene_Glycol_SDS.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
