24" Wide Built-In All-Freezer, ADA Compliant
3 to 5 days
(82cm H x 60cm W x 60cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 24.25" (62 cm) |
| Depth with door at 90° | 45.13" (115 cm) |
| Capacity | 3.2 cu.ft. (91 L) |
| Defrost Type | Manual |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101058030 |
|
Freezer
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Interior Height | 24.25" (62 cm) |
| Interior Width | 17.75" (45 cm) |
| Interior Depth | 16.5" (42 cm) |
| Shelf Type | Glass |
| Thermostat Type | Digital |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 2.7 oz. |
| High Side PSI | 235.0 |
| Low Side PSI | 70.0 |
| Interior Drawers | Yes |
| Drawers Qty | 3 |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 17.5" (44 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
| Temperature Range | -12ºC to -25ºC |
AVAILABLE UPGRADES
| Exterior | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
|||||||||
| Lock | |||||||||
|
|||||||||
| Door | |||||||||
|
FEATURES
32" high to fit under lower ADA compliant counters
Make the best use of space by installing your appliance under the counter
Keyed lock for secure interior
Thermometer provides continuous display of the current and high/low temperature to the nearest tenth of a degree, with a readout switchable from Celsius to Fahrenheit at the touch of a button
Thermometer probe is encased in a glycol-filled bottle to better simulate the temperature of stored contents instead of freezer air temperature
Clear baskets for convenient and separated storage
Low temperature capability ideal for certain sensitive items
Electronic controls located in the front kickplate for easy and intuitive temperature management
Quality door gaskets ensure a tight seal for energy savings and improved performance
Designed to ensure a sufficiently insulated interior
ETL and ETL-C listed for North American sales
Pair with FF6LBIPLUS2ADA for a complete ADA compliant undercounter set
Allows the unit to be used freestanding
Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
Environmentally friendly design without ozone-damaging chemicals
DESCRIPTION

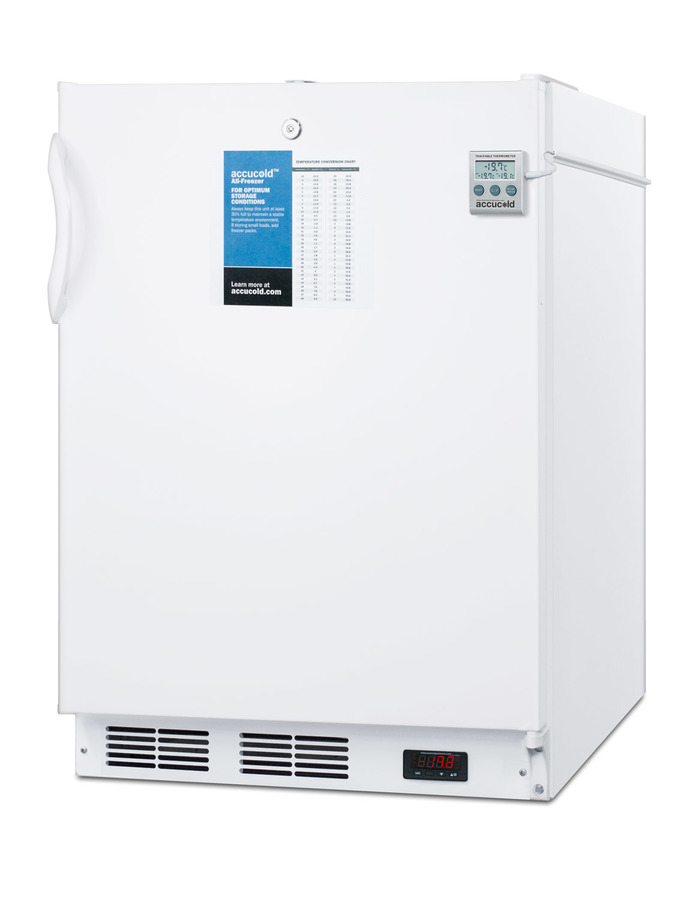

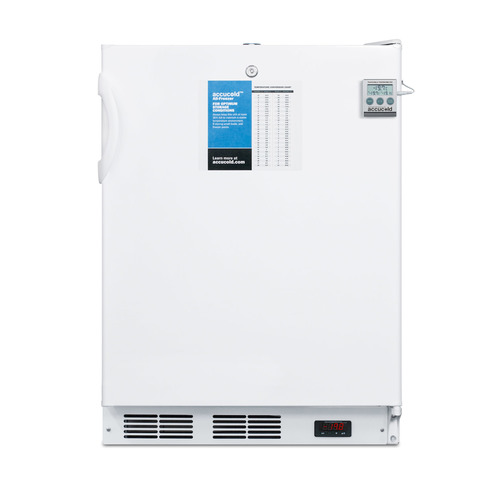

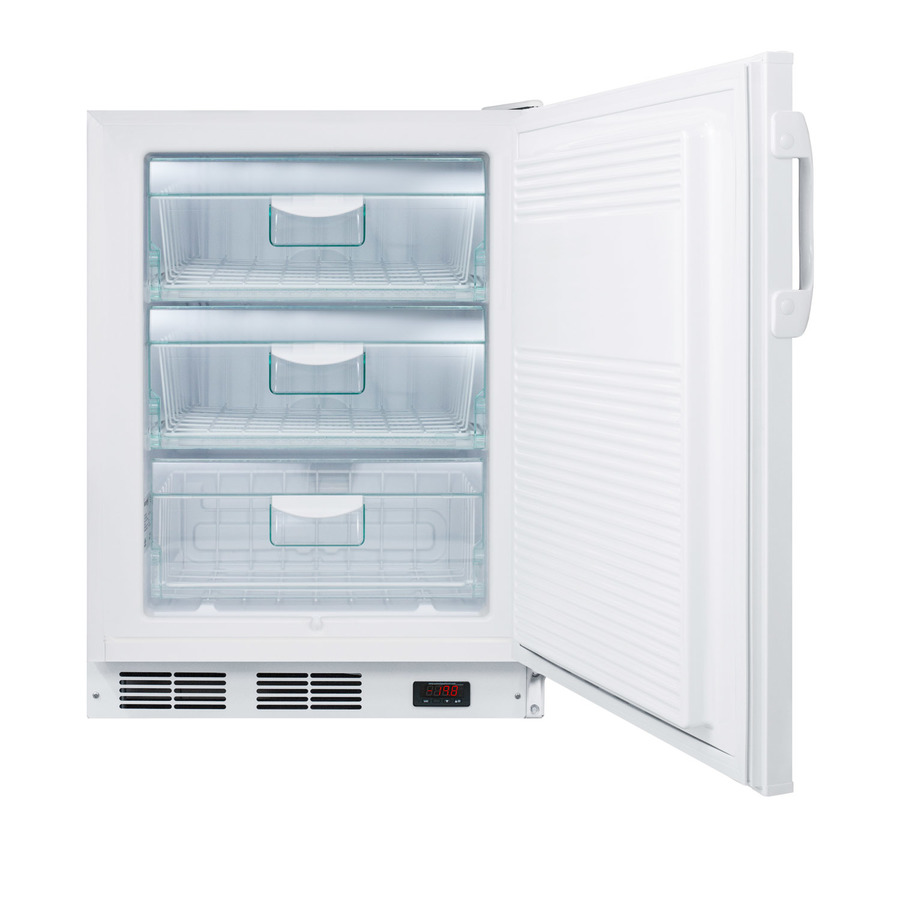

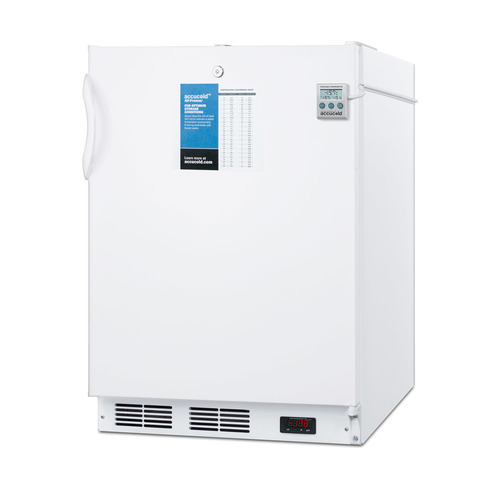

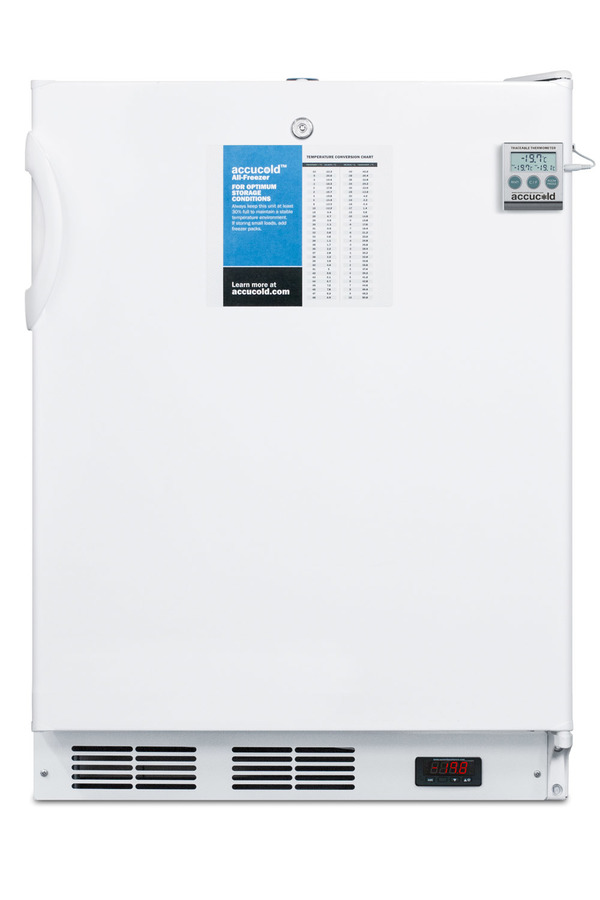

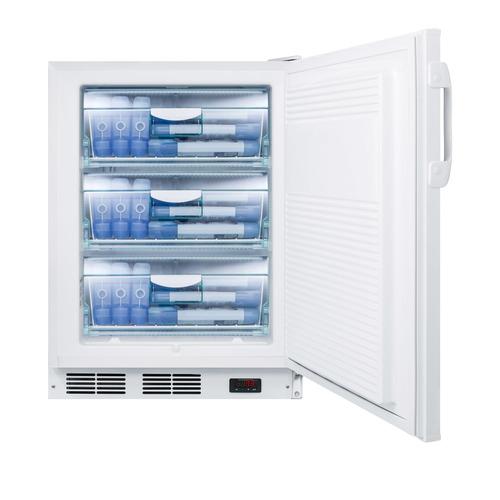

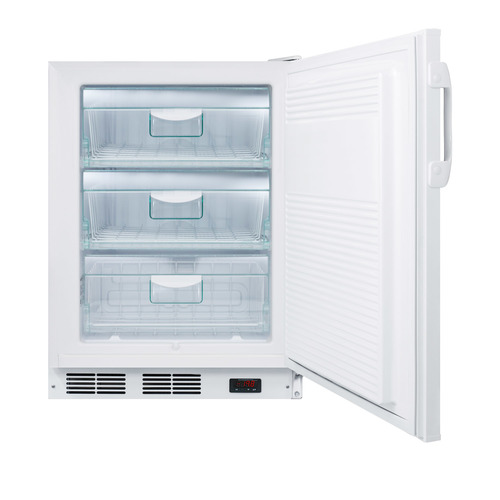

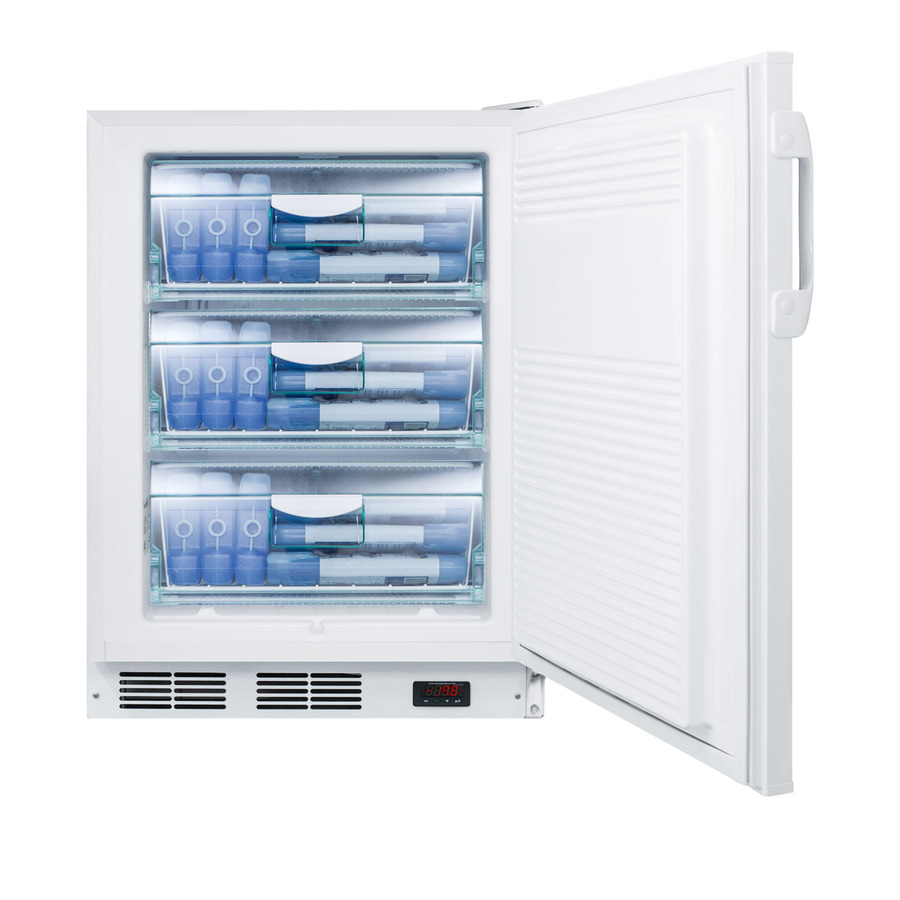

The VT65MLBIPLUS2ADA is a 24” wide all-freezer designed for built-in use under ADA compliant counters, with a factory installed lock for added security and a digital thermostat for easy temperature control. This manual defrost unit can hold temperatures as low as -25ºC, ideal for many vaccines and laboratory items. The door includes a thermometer calibrated to NIST standards in our ISO/IEC 17025:2017 laboratory. It displays the current, minimum, and maximum temperature to the nearest tenth degree viewable in Celsius or Fahrenheit. The buffered temperature probe is stored in a glycol-filled bottle to ensure the temperature reading best reflects the temperature of other stored freezer contents. The interior features three removable storage baskets with clear plastic fronts for easy storage that stays cold, even when the door is opened. This freezer can be paired with the auto defrost FF6LBIPLUS2ADA all-refrigerator for a complete matching set. Accucold's PLUS2 series freezers are intended for a wide variety of basic storage only. Storage of high-value vaccines, life science materials, medical, or clinical biologicals require a product with design features including, but not limited to tighter temperature controls, monitoring, and/or back-up.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
