24" Wide Built-In All-Freezer, ADA Compliant
3 to 5 days
(82cm H x 60cm W x 60cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.13" (64 cm) |
| Depth with door at 90° | 46.0" (117 cm) |
| Capacity | 3.5 cu.ft. (99 L) |
| Defrost Type | Manual |
| Door | Stainless Steel |
| Cabinet | White |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101043494 |
|
Freezer
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Height Adjustable | 1 |
| Interior Height | 24.25" (62 cm) |
| Interior Width | 17.75" (45 cm) |
| Interior Depth | 16.5" (42 cm) |
| Thermostat Type | Digital |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 2.7 oz. |
| High Side PSI | 235.0 |
| Low Side PSI | 70.0 |
| Level Legs | 4 |
| Interior Drawers | Yes |
| Drawers Qty | 3 |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 17.5" (44 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
| Temperature Range | -12ºC to -25ºC |
AVAILABLE UPGRADES
| Exterior | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
|||||||||
| Lock | |||||||||
|
|||||||||
| Handle | |||||||||
|
|||||||||
| Door | |||||||||
|
FEATURES
32" height allows the unit to be installed under lower ADA compliant counters
Less than 24 inches wide to fit tight spaces
Make the best use of space by installing your appliance under the counter and flush with other cabinets
Allows the unit to be used freestanding
Keep contents secure with a key lock on the door
Durable design with lasting elegance
A curved stainless steel handle provides generous room for a comfortable grip
Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials
No temperature fluctuations with an energy efficient manual defrost system
Static cooling system
Conveniently organize your items while keeping the temperature stable when the door is opened
Electronic controls located in the front kickplate for easy and intuitive temperature management
Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Environmentally friendly design without ozone-damaging chemicals
DESCRIPTION

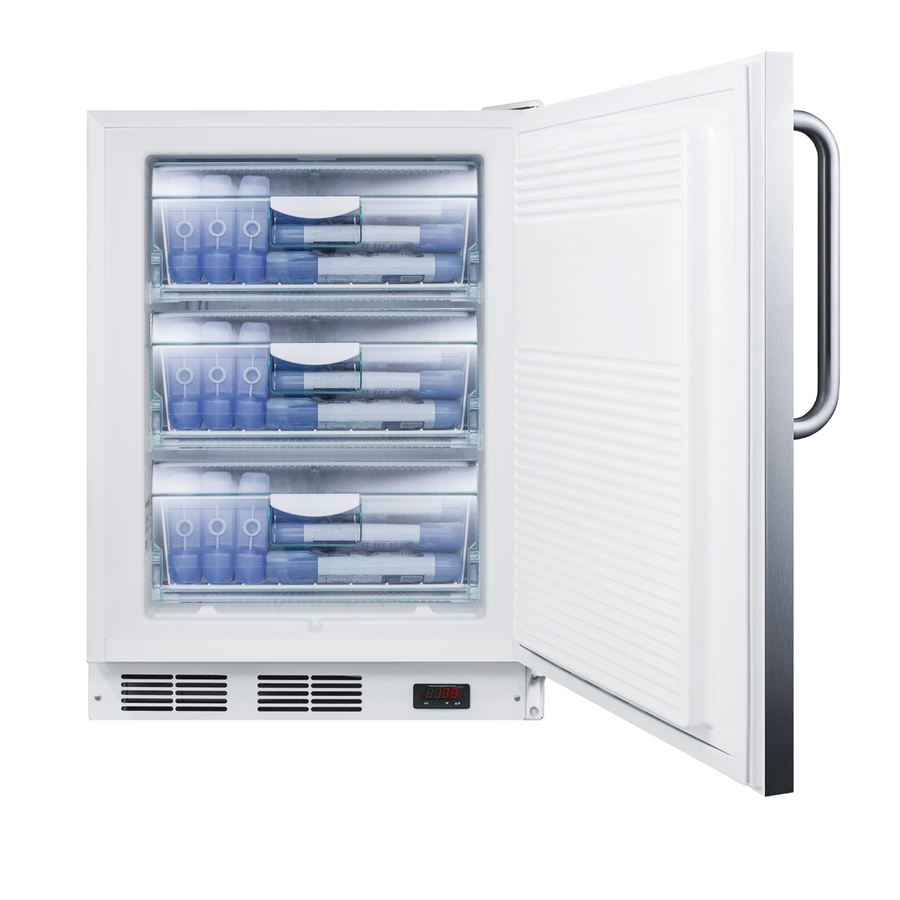

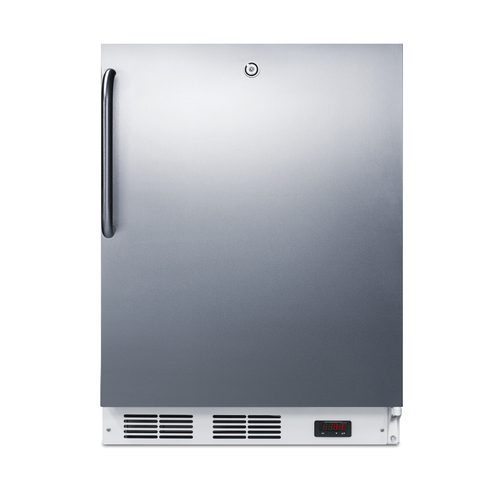

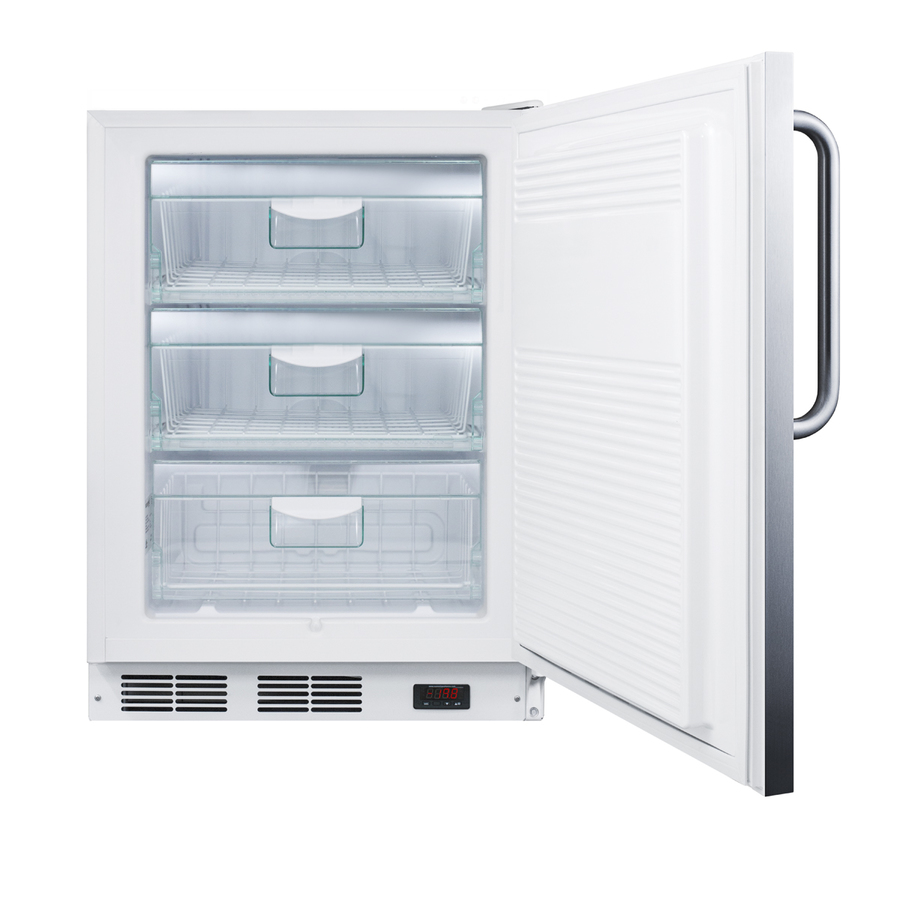

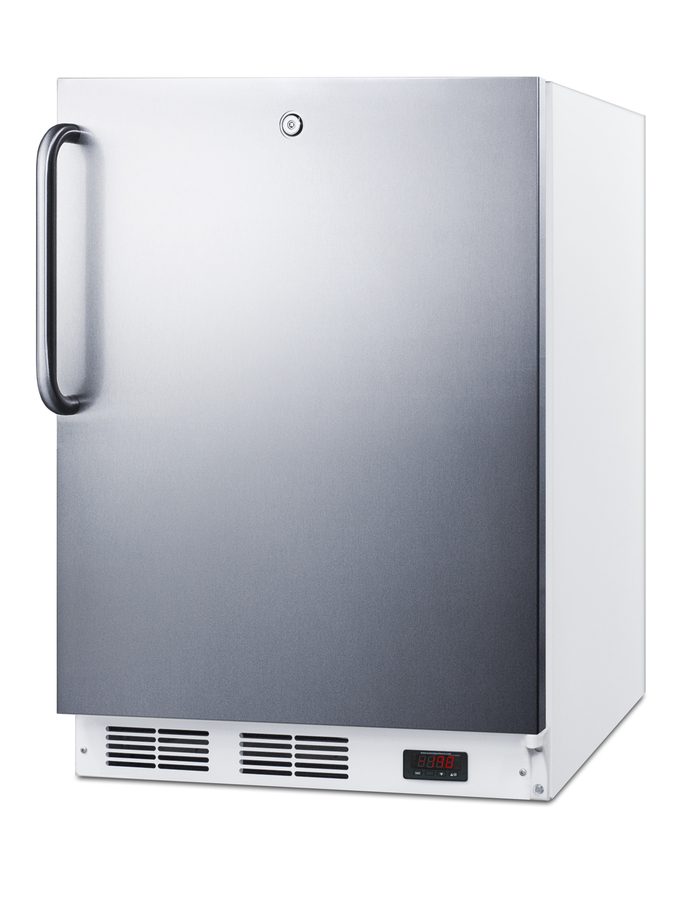

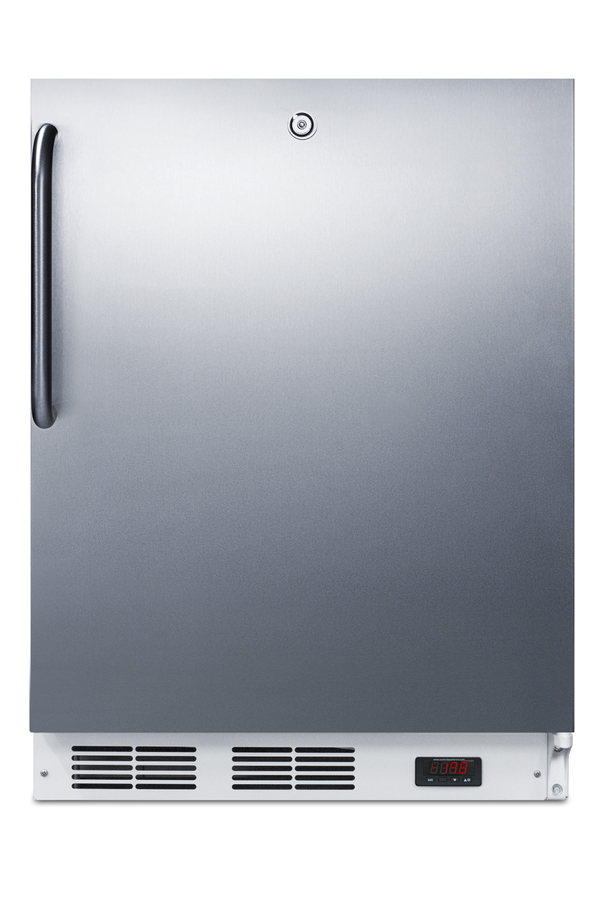

Accucold VT65MBIADA medical all-freezers offer low temperature storage in a perfectly sized footprint designed for built-in installation under lower ADA compliant counters. The 32” high VT65MLBISSTBADA can be used built-in or freestanding in any 24” space, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keeps items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup. This medical unit has a white cabinet with a stainless steel wrapped door. A curved towel bar style handle in brushed stainless steel completes the look and a factory installed lock offers added security. NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
