24" Wide Built-In All-Freezer

SKU: VT65MLBIVAC
-25°C storage with extra thick insulation and slide-out drawers that help protect stored contents
Estimated Time to Ship:

5 to 7 days

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.
33.5" H x 23.63" W x 23.63" D
(85cm H x 60cm W x 60cm D)

Overview
Nominal Height 34.0" (86 cm)
Height of Cabinet 33.5" (85 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.63" (60 cm)
Depth with Handle 25.13" (64 cm)
Depth with door at 90° 46.13" (117 cm)
Capacity 3.2 cu.ft. (91 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Weight 105.0 lbs. (48 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101043500
Freezer
Door Swing RHD
Reversible Factory Reversible
Height Adjustable 1
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Level Legs 4
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.0" (15 cm)
Compressor Step Width 17.75" (45 cm)
Compressor Step Depth 6.0" (15 cm)
Temperature Range -12ºC to -25ºC

Exterior
TM1A - Factory-installed dry contacts with remote alarm
Remote alarm contacts with continuous temperature display
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
LHD - Left hand door swing
Door reversal to left hand swing
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Legs to raise unit height
6" high leveling legs
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
Handle
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
Door
STO-Step-To-Open Door Pedal
Step-to-open door pedal allows hands-free access to open the door 90 degrees

Slim undercounter dimensions

24" footprint is ideal for use under the counter

Built-in capable

Front-breathing design allows built-in installation under counters

-25º C/-13º F capable

Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials

Digital thermostat

Electronic controls for more precise temperature management, with temperature readout and controls externally located for added convenience

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

NIST calibrated temperature display

Alarm includes NIST calibrated display of the current interior and high/low temperature to the nearest tenth of a degree

Self-closing door

Door closes automatically when opened at angles less than 90º

3/8" access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

Hospital grade cord and plug

Secure three-pronged cord for added unit safety

Factory installed lock

Keyed lock offers added security

Manual defrost

Static cooling system for reduced temperature fluctuations

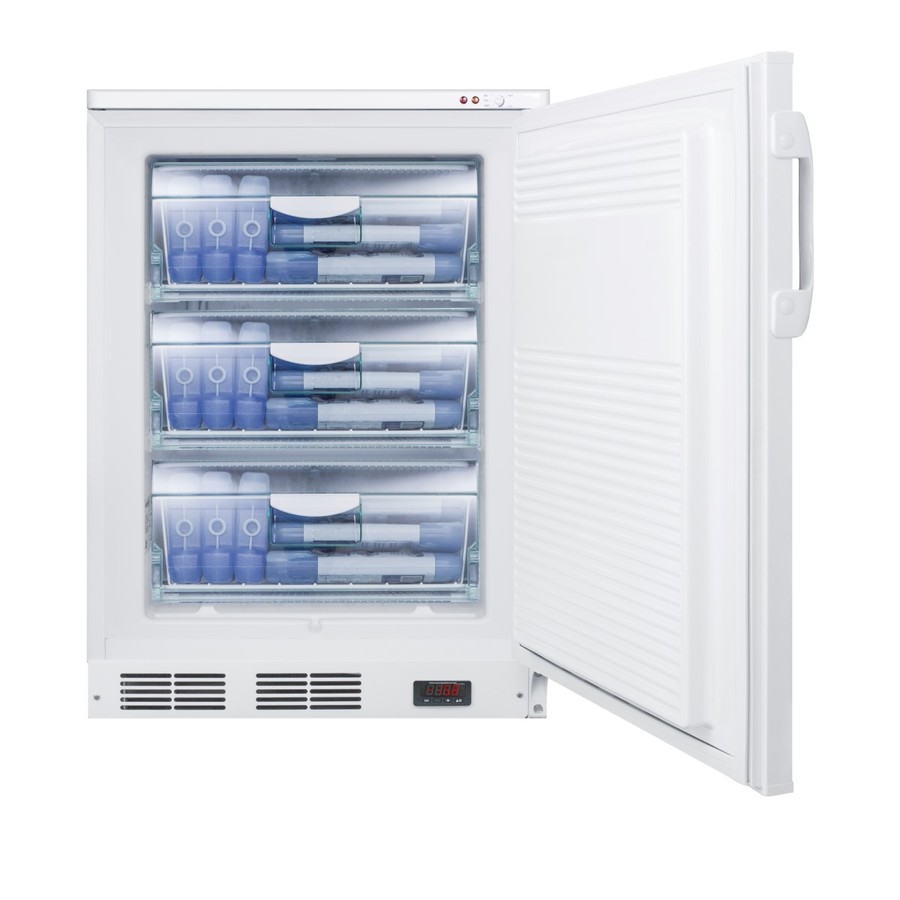

Three slide-out drawers

Slide-out wire baskets with plastic fronts offer convenient storage solutions while protecting stored items when the door is open

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Fully finished white cabinet

Allows the unit to be used freestanding

Height Adjustable

Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high

Factory reversible door

Standard unit ships RHD but can be ordered LHD

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

The Accucold® VAC Series freezers are specially designed to store sensitive medical and pharmaceutical materials under the proper conditions, with innovative construction for temperature stability and user-friendly features for added convenience.

Made in Europe, the VT65MLBIVAC is a front-breathing all-freezer designed for built-in installation under counters, with a fully finished cabinet that also allows freestanding use. The 3.2 cu.ft. interior offers static cooling for stable results. Four slide-out storage baskets with clear plastic fronts ensure that stored items are not exposed unnecessarily to room temperature. This unit has a flat door liner as recommended by the CDC.

For optimum temperature assurance, the VT65MLBIVAC includes a digital thermostat and a high/low temperature alarm with a NIST calibrated temperature display to the nearest tenth of a degree. A hospital grade cord includes a 'green dot' plug for added safety in high traffic settings, while the self-closing door ensures stored items aren't accidentally exposed to room temperature. This model comes in a white finish and includes a factory installed lock. A pre-installed probe hole/access port allows users to install additional monitoring equipment.

The VT65MLBIVAC can be paired with the FF7LBIVAC all-refrigerator for a matching set. For this unit in a 32" ADA compliant height, see the VT65MLBIVACADA. All models can be ordered with more advanced medical features, including a power-out alarm, temperature logger, and more.

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.

Download
BROCHURE w/ DRAWINGS
VT65MLBIVAC.pdf
Download
MSDS INFORMATION
Propylene_Glycol_SDS.pdf

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
