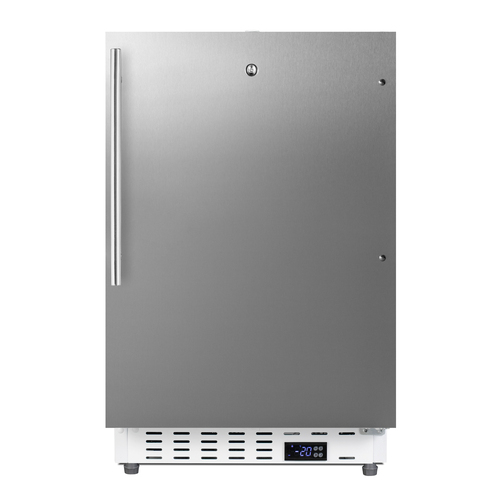

20" Wide Built-In Healthcare All-Freezer, ADA Compliant
2 to 4 days
(81cm H x 53cm W x 57cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 21.0" (53 cm) |
| Width | 20.88" (53 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 24.0" (61 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 2.47 cu.ft. (70 L) |
| Defrost Type | Manual |
| Door | Stainless Steel |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 85.0 lbs. (39 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101151281 |
|
Freezer
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Interior Height | 23.75" (60 cm) |
| Interior Width | 14.5" (37 cm) |
| Interior Depth | 17.0" (43 cm) |
| Shelf Type | Drawers |
| Shelf Qty | 3 |
| Thermostat Type | Digital |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.34 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 2 |
| Interior Drawers | Yes |
| Drawers Qty | 3 |
| Compressor Step Height | 5.75" (15 cm) |
| Compressor Step Width | 14.5" (37 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Temperature Range | -25° to -15°C |
AVAILABLE UPGRADES
| Exterior | ||
|---|---|---|
|
||
| Handle | ||
|
||
| Lock | ||
|
FEATURES
Slim-fitting all-freezer for general healthcare applications at an ADA-compliant height
32" height allows easy installation under lower ADA compliant counters
Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Durable and stylish design with lasting elegance

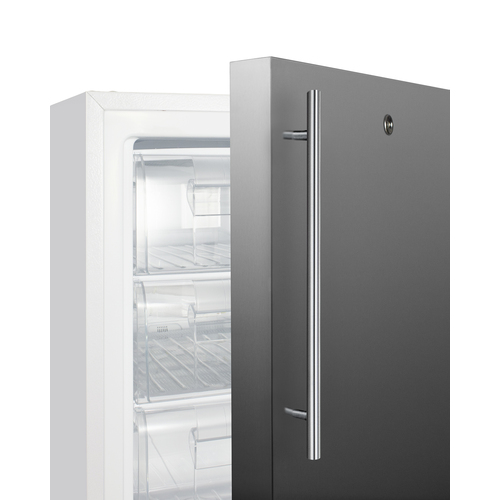

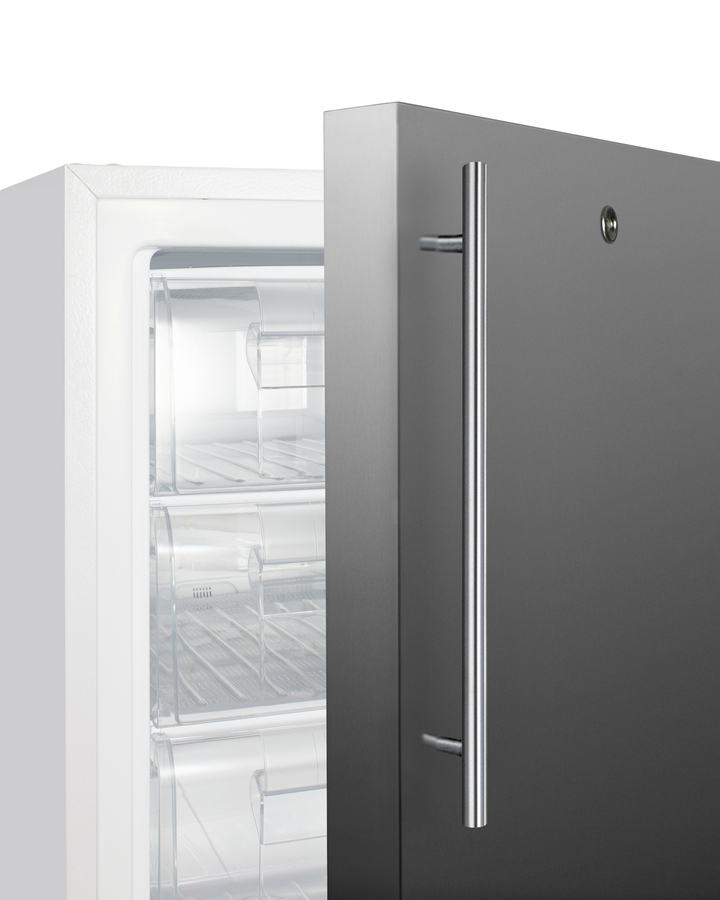

Thin (14mm diameter) stainless steel handle mounted vertically for a sleek look that matches many popular styles of cabinetry
Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

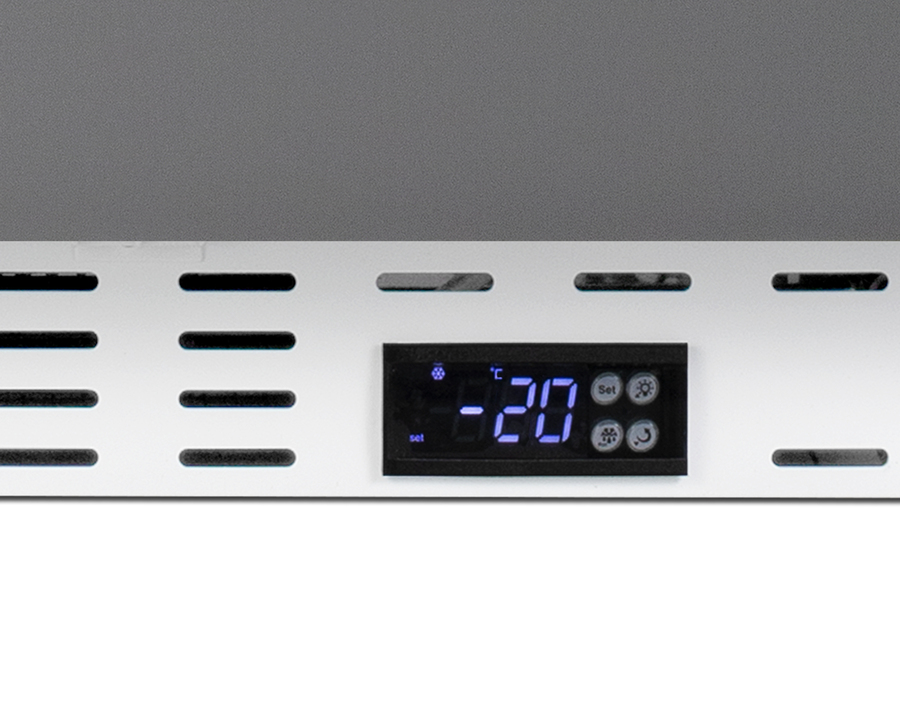

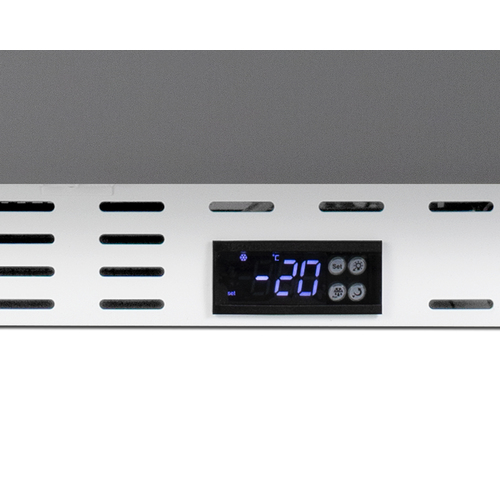

Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

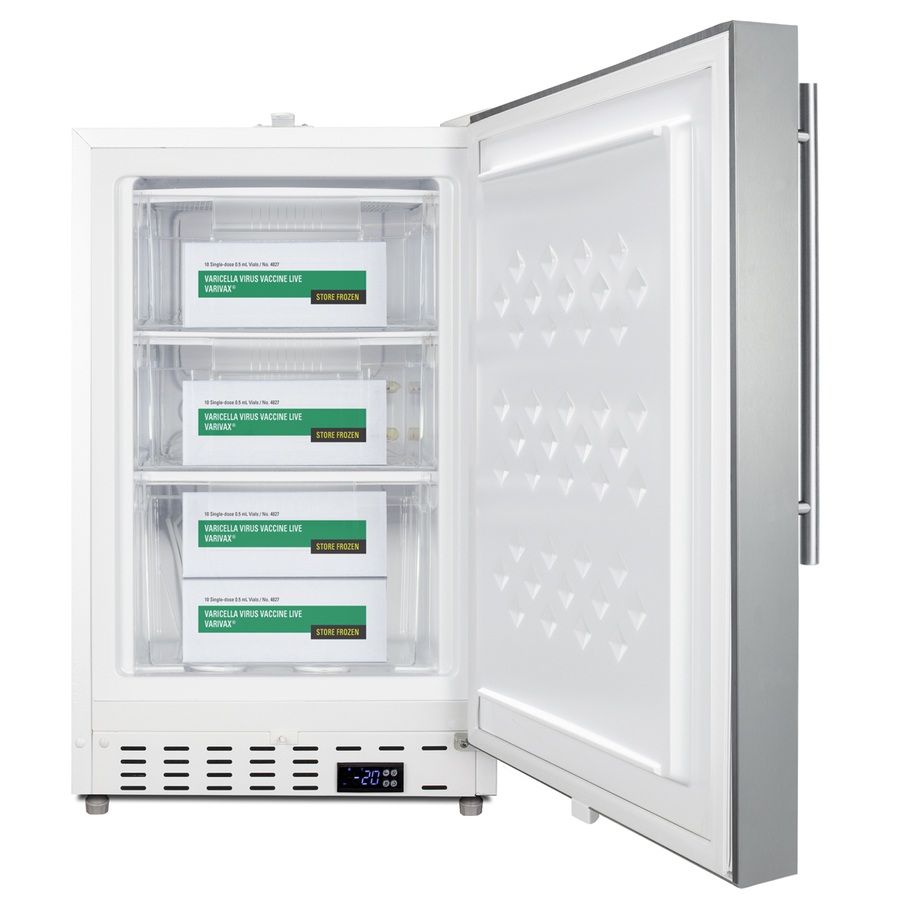

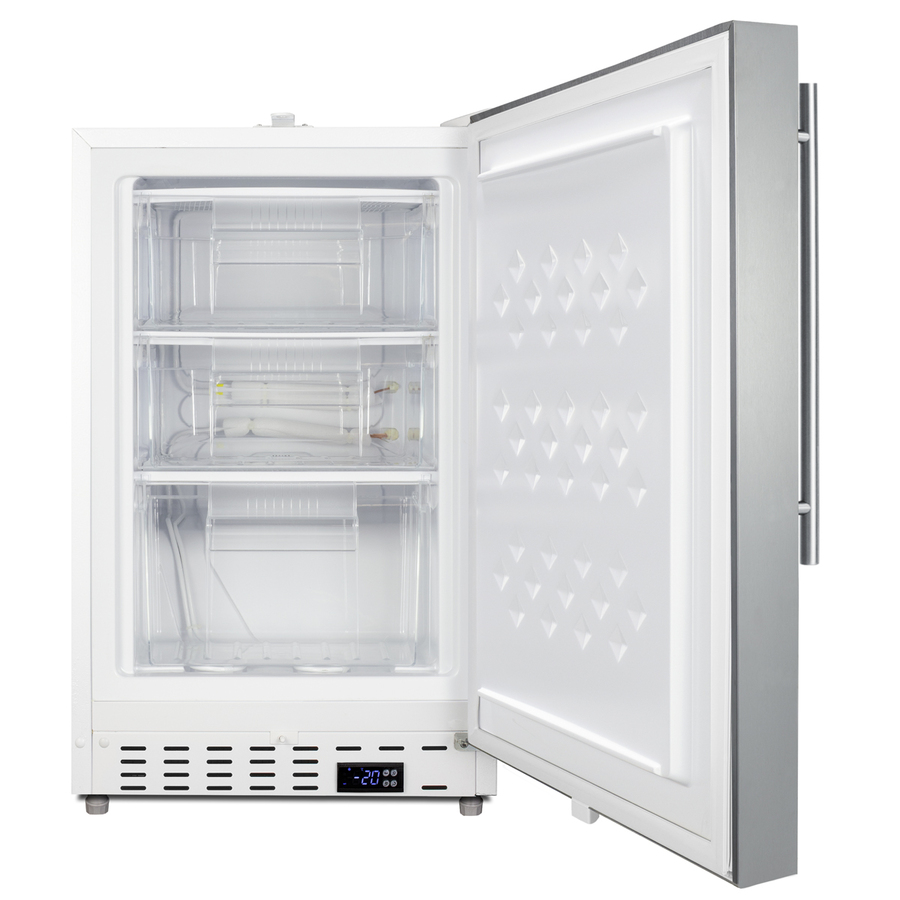

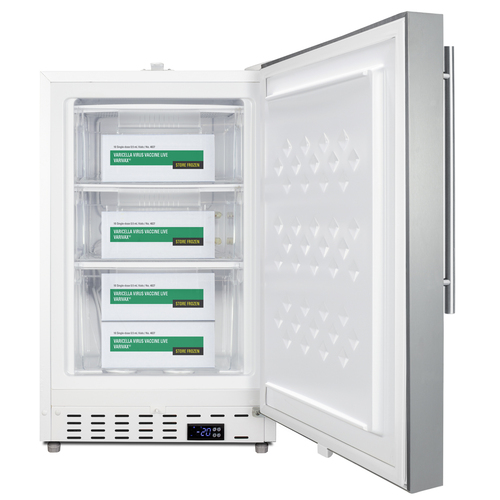

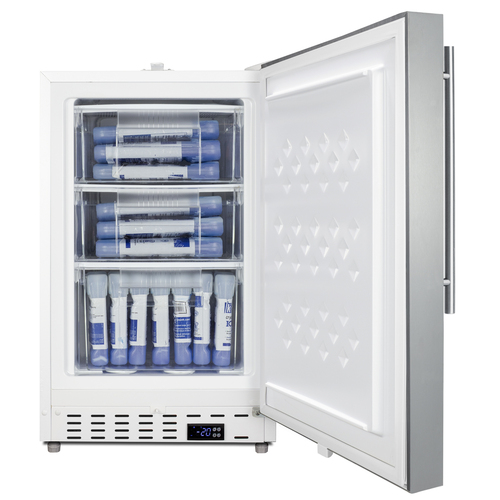

Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
User-reversible door swing for added flexibility to best accommodate your setting
User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
Audible alarm will sound if the door is left ajar for over a minute
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
More temperature stability with an energy efficient manual defrost system
Temperature remains more stable with a static cooling system
Quality door gaskets ensure a tight seal for energy savings and improved performance

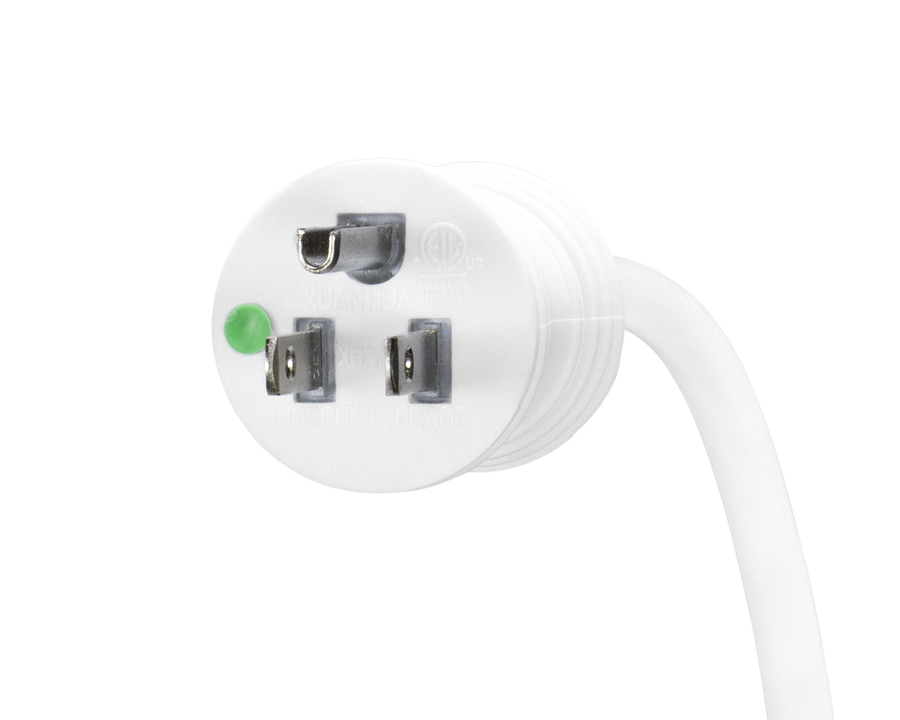

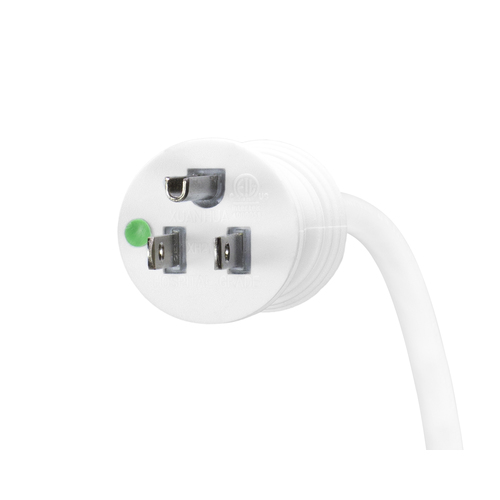

Secure three-pronged cord for added unit safety
Allows the unit to be freestanding
Space-saving design that offers easier cleanability
This unit can be paired with the ADA404REFSSHV all-refrigerator for a complete set
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Accucold offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA-compliant counters. These freezers have advanced features for safely storing select healthcare materials with strict storage conditions. The ADA305AFSSHV is sized at 32" high for use in ADA compliant settings. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door features a sleek, vertically-mounted handlebar that matches many popular cabinetry styles and a top-mounted lock for added security and convenient access. A digital thermostat is located in the kickplate for easy temperature management with a readout in Fahrenheit or Celsius. This unit has a hospital-grade cord with a green dot plug for safety in high-traffic areas. Plus, powerful magnetic gaskets ensure a tight seal. Inside, the ADA305AFSSHV can reach temperatures as low as -25°C. Static manual defrost operation provides efficient cooling inside the 2.47 cu.ft. interior. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low-temperature alarms provide added security should the temperature exceed the set point, while the open-door alarm sounds if the door is ajar beyond one minute for added peace of mind. These alarms can be turned off depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment. Sized at just under 20" wide, the ADA305AFSSHV makes an ideal choice for various healthcare facilities in need of a dependable freezer capable of -20ºC/-25ºC operation. For a complete set, pair this unit with the matching ADA404REFSSHV all-refrigerator.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
