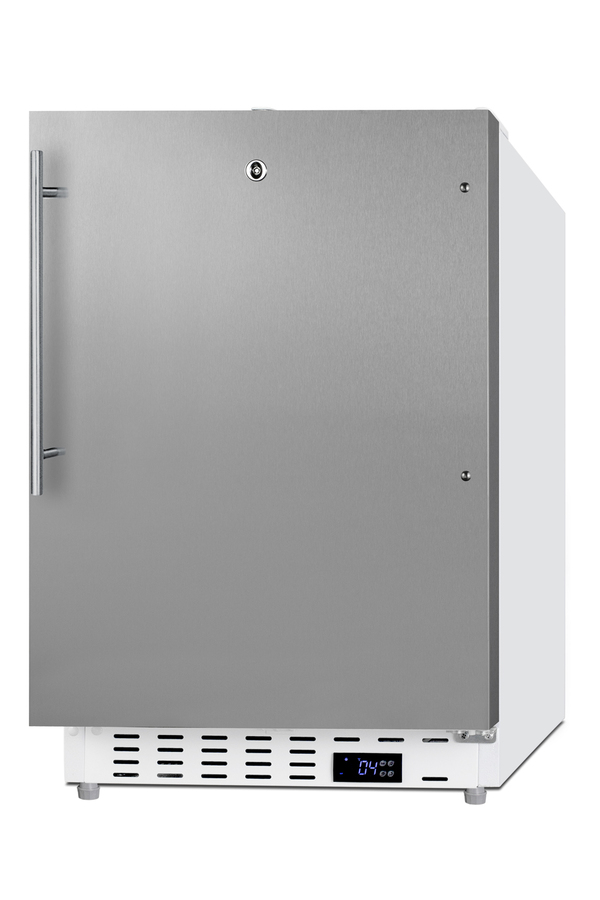

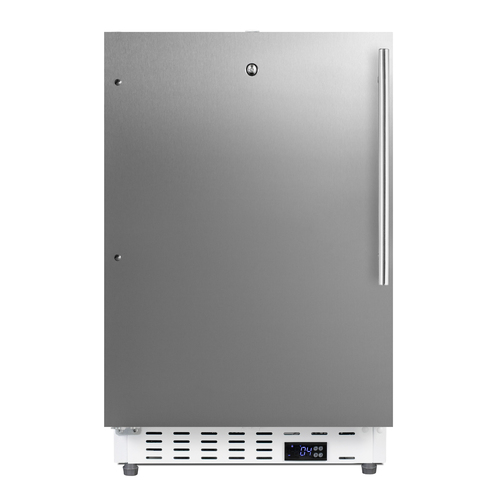

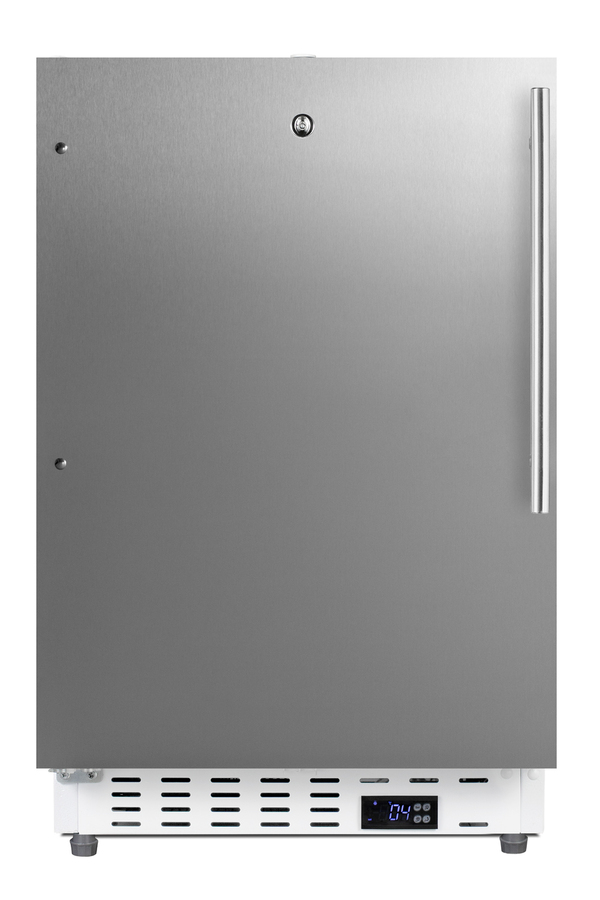

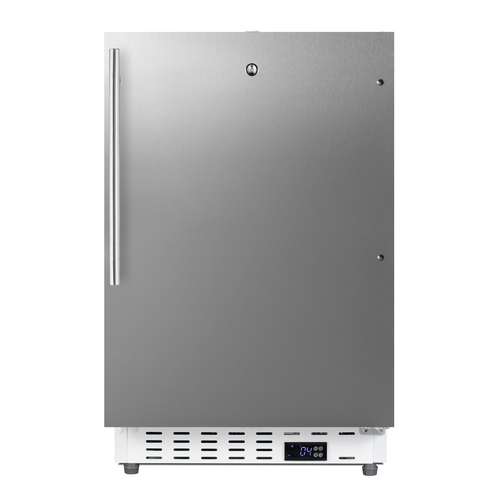

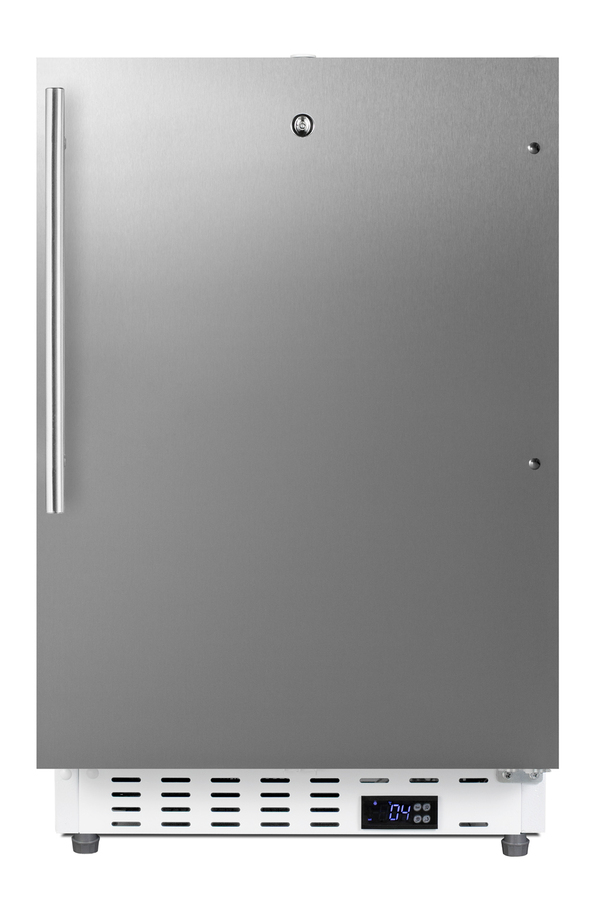

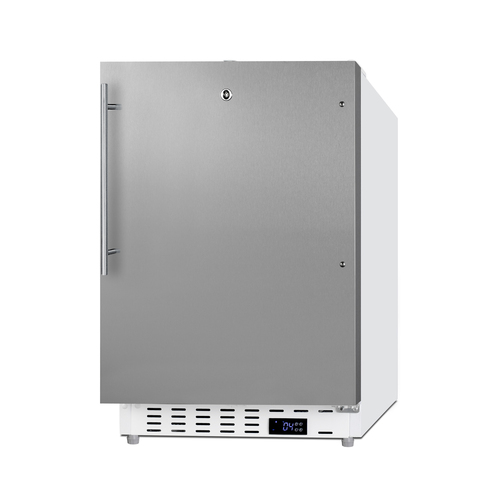

20" Wide Built-In Healthcare All-Refrigerator, ADA Compliant
2 to 4 days
(81cm H x 53cm W x 58cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 21.0" (53 cm) |
| Width | 20.88" (53 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 23.0" (58 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 3.32 cu.ft. (94 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 75.0 lbs. (34 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101151304 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | No |
| Shelf Type | Wire |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 2 to 8°C |
|
Dimensions
|
|
| Interior Height | 23.5" (60 cm) |
| Interior Width | 16.25" (41 cm) |
| Interior Depth | 17.0" (43 cm) |
| Compressor Step Height | 6.25" (16 cm) |
| Compressor Step Width | 16.25" (41 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
AVAILABLE UPGRADES
| Lock | ||||
|---|---|---|---|---|
|
||||
| Exterior | ||||
|
FEATURES
Slim-fitting all-refrigerator for general healthcare applications at an ADA-compliant height
Front-breathing design lets you make the best use of space by installing your appliance under the counter
32" height allows easy installation under lower ADA compliant counters
Durable and stylish design with lasting elegance
Thin (14mm diameter) stainless steel handle mounted vertically for a sleek look that matches many popular styles of cabinetry
Designed to safely store select pharmaceuticals and other materials with strict temperature requirements
Reduced user maintenance with an auto defrost system
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

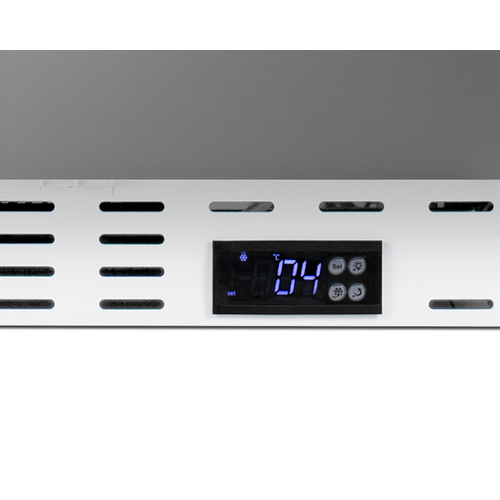

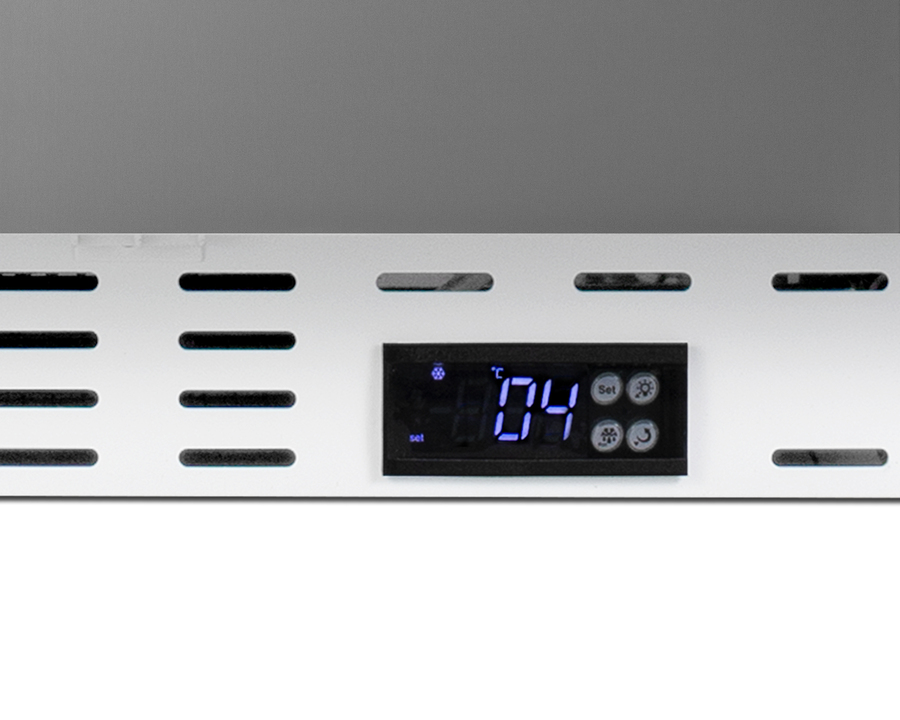

Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

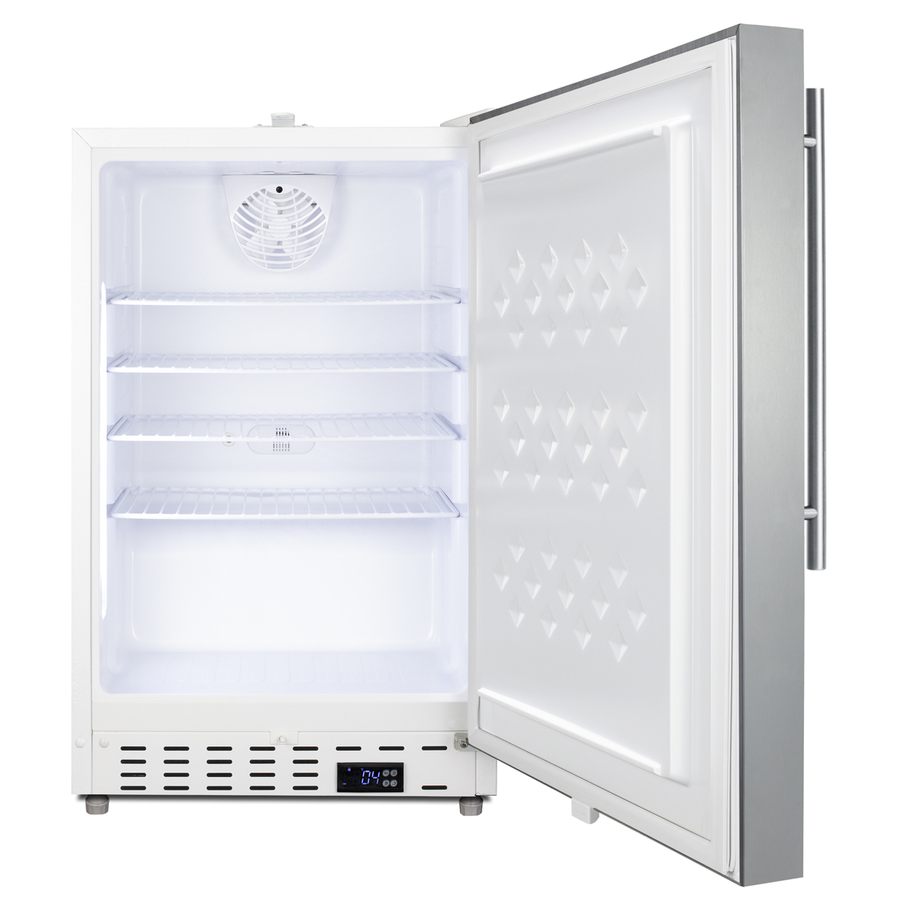

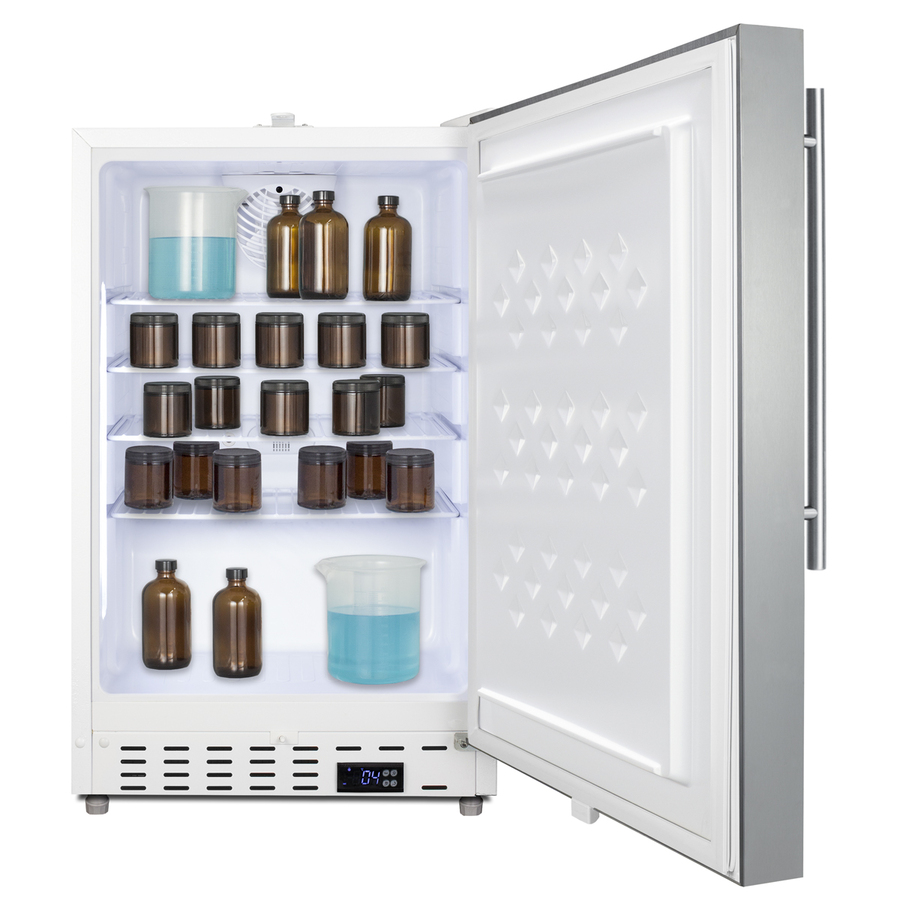

Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior
User-reversible door swing for added flexibility to best accommodate your setting
User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
Audible alarm will sound if the door is left ajar for over a minute
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

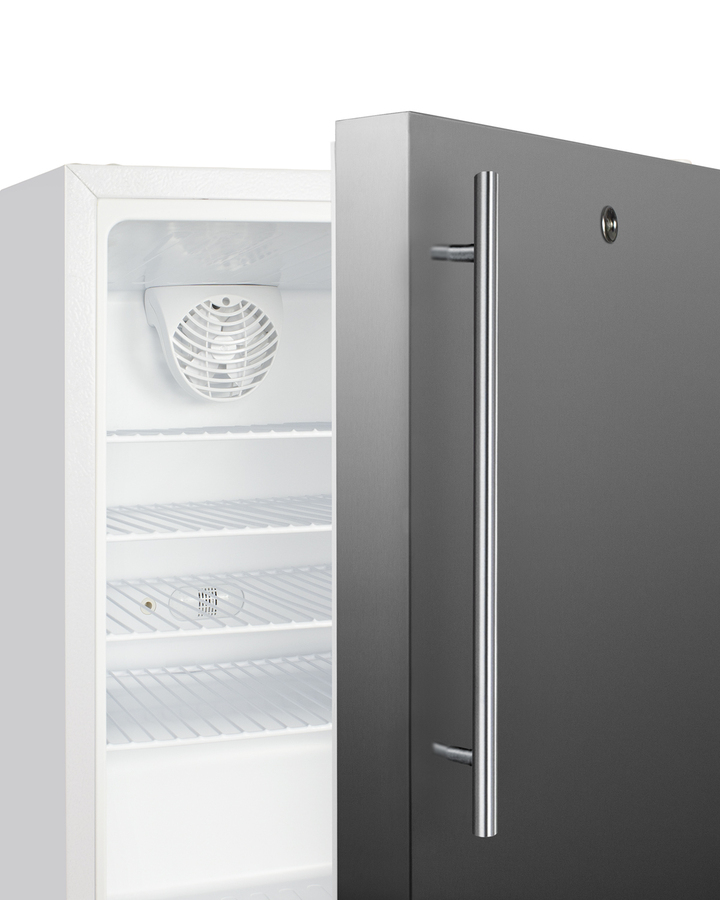

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

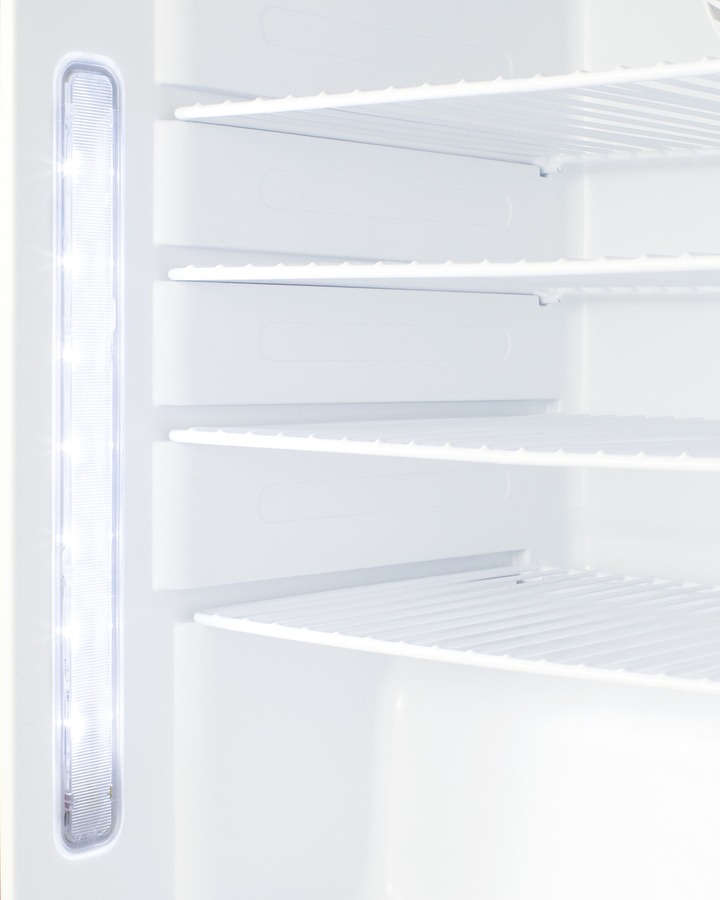

Front-located LED light ensures entire interior is lit when door opens
Quality door gaskets ensure a tight seal for energy savings and improved performance
Secure three-pronged cord for added unit safety
Space-saving design that offers easier cleanability
Allows the unit to be freestanding
This unit can be paired with the ADA305AFSSHV all-freezer for a complete set
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

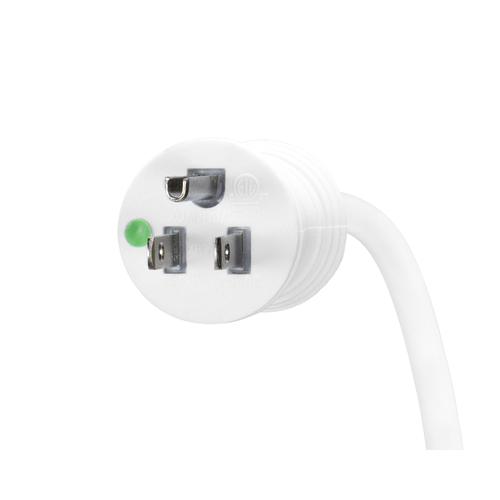

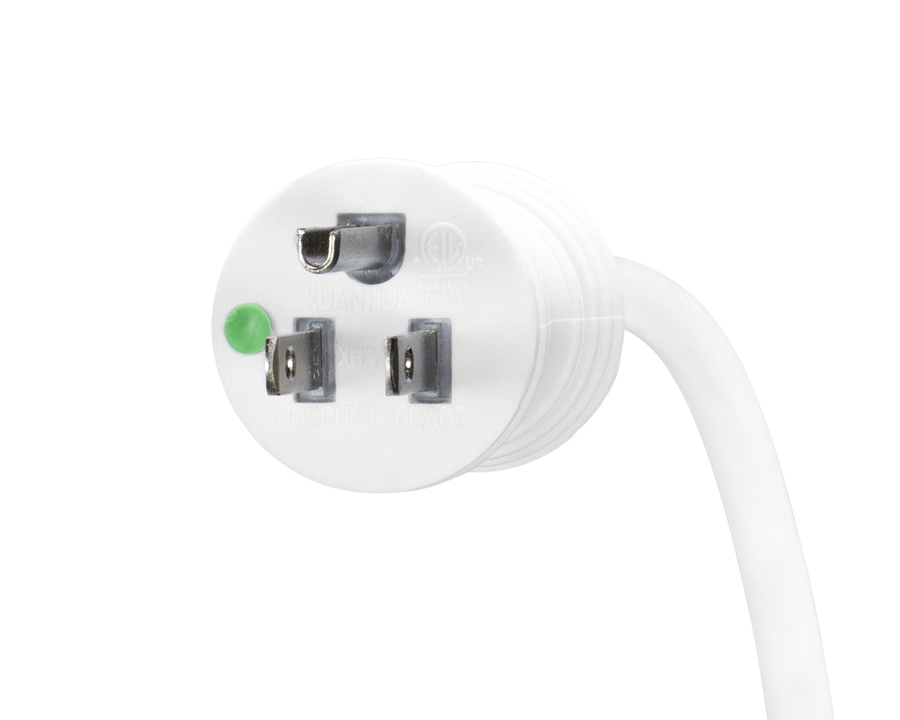

Accucold offers a quality selection of 20" wide built-in undercounter all-refrigerators designed for installation under lower ADA-compliant counters. These refrigerators have advanced features for user convenience. The ADA404REFSSHV is 32" high for use in ADA compliant settings. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible stainless steel door features a sleek, vertically-mounted handlebar that matches many popular cabinetry styles and a top-mounted lock for added security and convenient access. A digital thermostat is located in the kickplate for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital-grade cord with a green dot plug for added safety in high-traffic areas. Powerful magnetic gaskets ensure a tight seal. Inside, the ADA404REFSSHV is designed to operate between +2°C and +8°C as recommended for storing select pharmaceuticals and other medical supplies. An LED light located on the front left side of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help promote even cooling throughout the 3.32 cu.ft. interior. Adjustable wire shelves allow you to rearrange the interior to suit your storage needs best. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low-temperature alarms provide added security should the temperature exceed the set point. The open door alarm sounds if the door is ajar for more than a minute for added peace of mind. These alarms can be turned off depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment. Sized at just under 21" wide, the ADA404REFSSHV makes an ideal choice for various healthcare facilities. For a complete set, pair this unit with the matching ADA303REFSSHV all-freezer.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
