24" Wide Built-In All-Refrigerator, ADA Compliant
3 to 5 days
(82cm H x 60cm W x 60cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 24.0" (61 cm) |
| Depth with door at 90° | 45.13" (115 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101072487 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Wire |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 2 to 8ºC / 36 to 46ºF |
|
Dimensions
|
|
| Interior Height | 26.25" (67 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 17.75" (45 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
AVAILABLE UPGRADES
| Exterior | |||||||||
|---|---|---|---|---|---|---|---|---|---|
|
|||||||||
| Interior | |||||||||
|
|||||||||
| Lock | |||||||||
|
|||||||||
| Handle | |||||||||
|
|||||||||
| Door | |||||||||
|
FEATURES
32" high to fit under lower ADA compliant counters
Make the best use of space by installing your appliance under the counter
ETL-S listed to NSF standards for commercial use
Thermometer provides continuous display of the current and high/low temperature to the nearest tenth of a degree, with a readout switchable from Celsius to Fahrenheit at the touch of a button

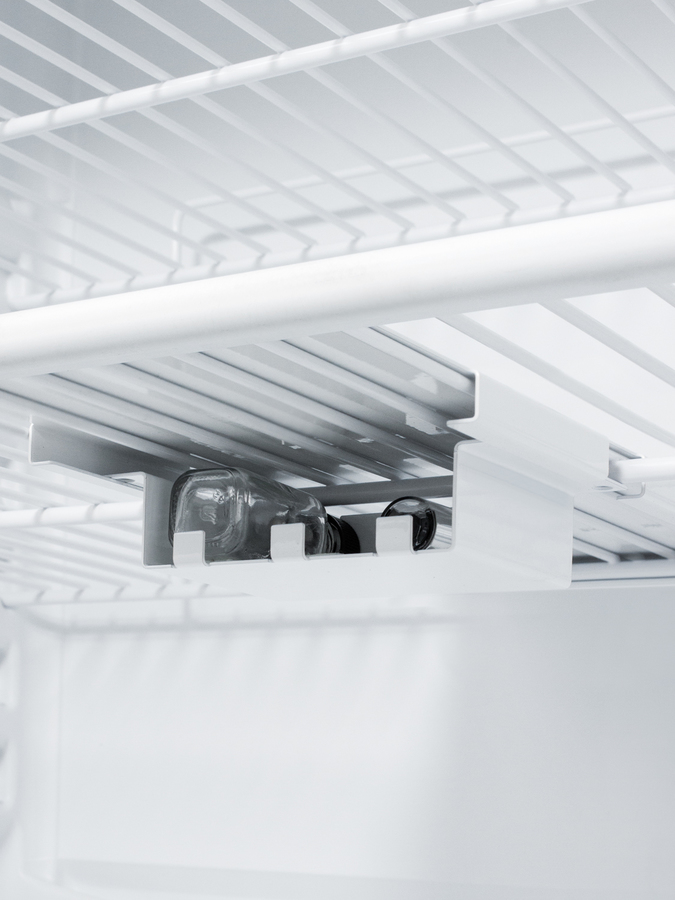

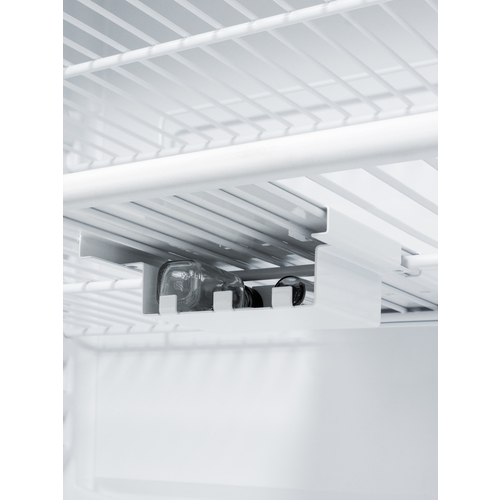

Thermometer probe is encased in a glycol-filled bottle to better simulate the temperature of stored contents instead of refrigerator air temperature
Electronic controls ensure easy and intuitive temperature management
Keyed security on the refrigerator door

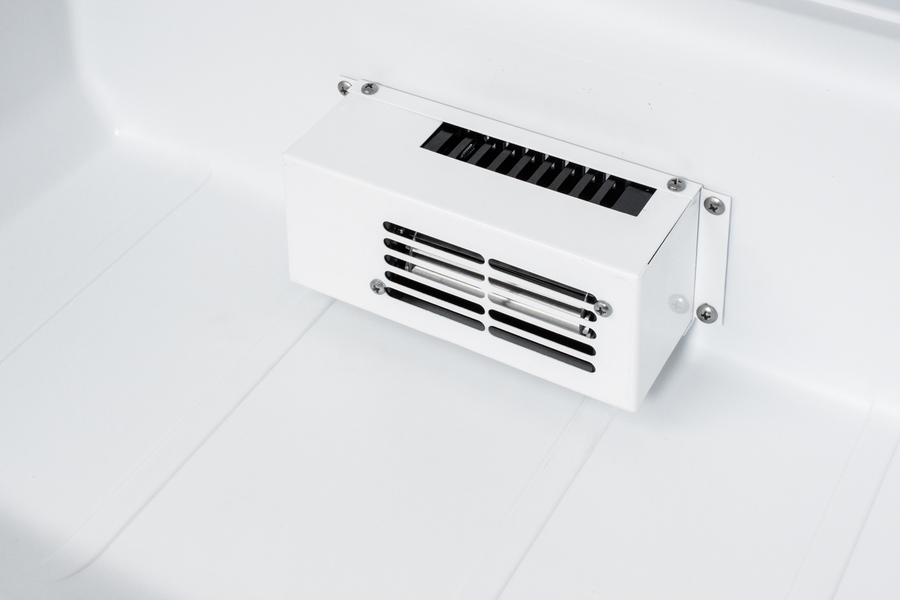

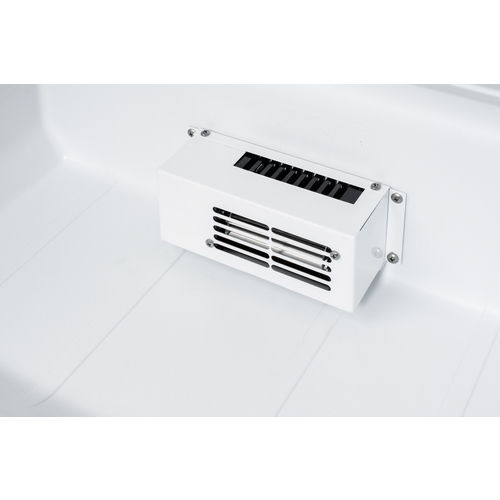

Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Reduced maintenance with auto defrost system

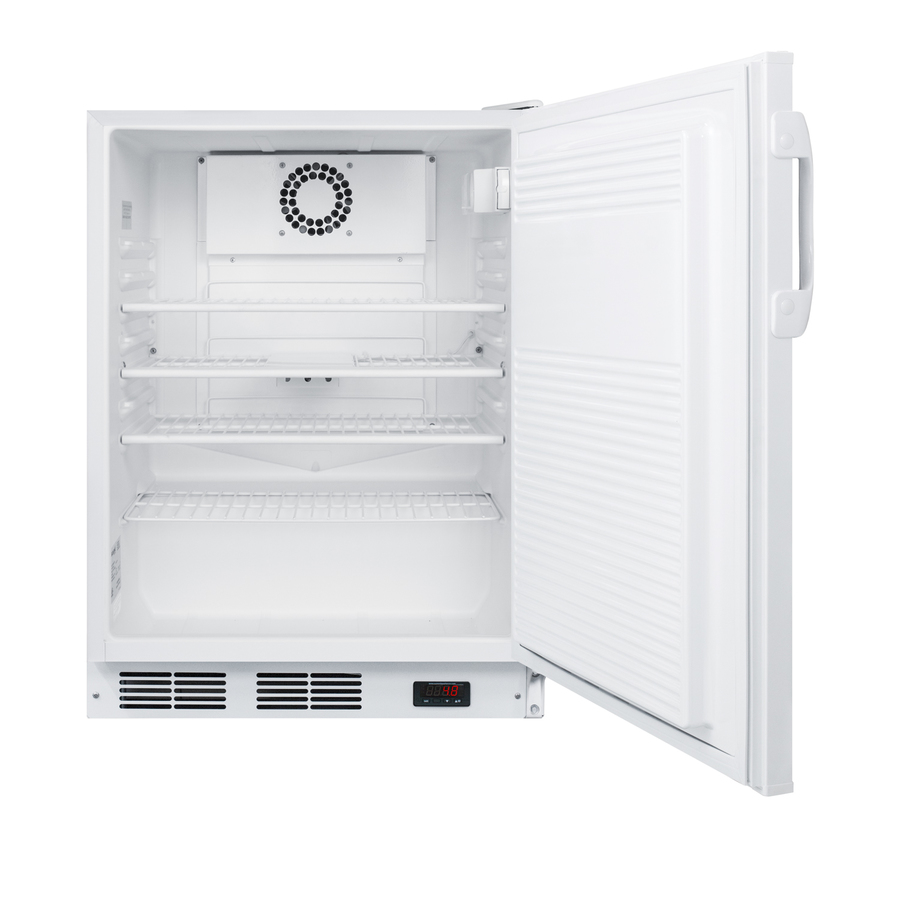

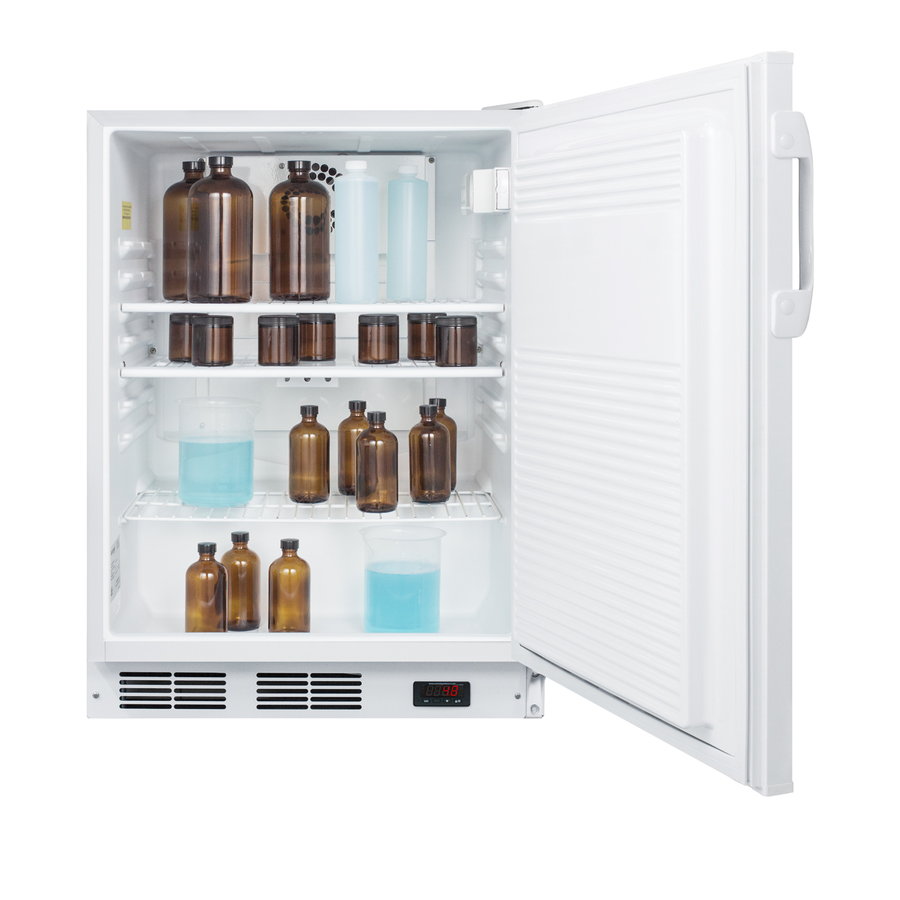

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

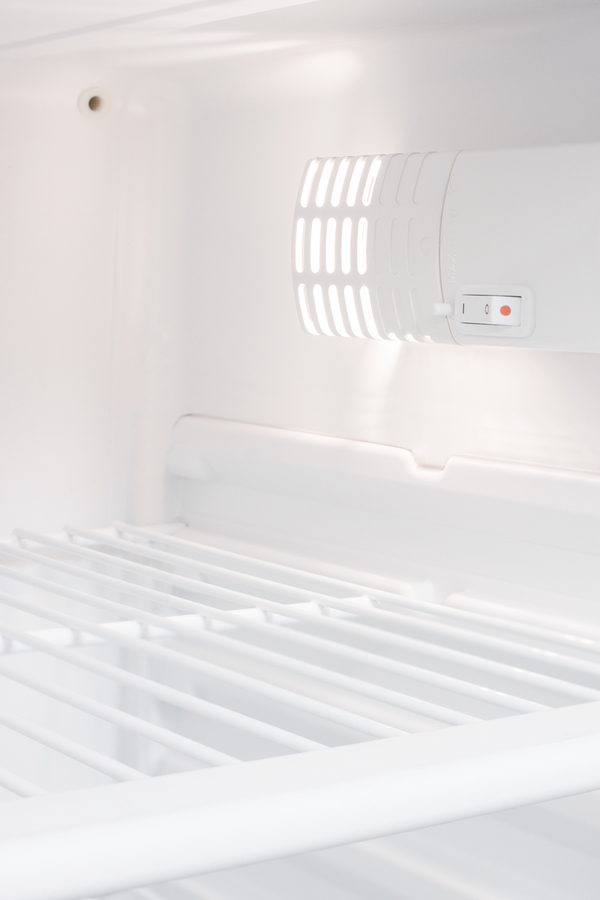

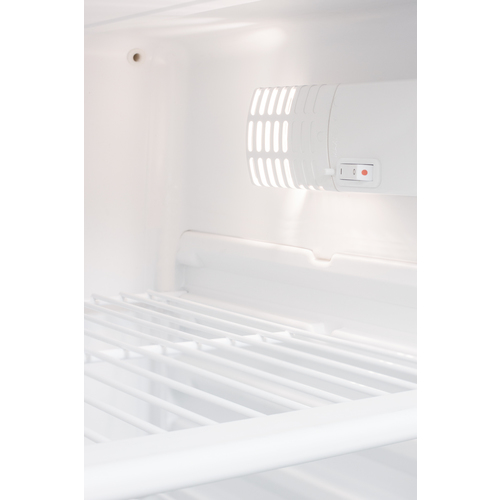

Turn the light on and off with a convenient rocker switch
Easy to clean, with more depth for storage
Quality door gaskets ensure a tight seal for energy savings and improved performance
Designed to ensure a sufficiently insulated interior
ETL and ETL-C listed for North American sales
Allows the unit to be used freestanding
Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION

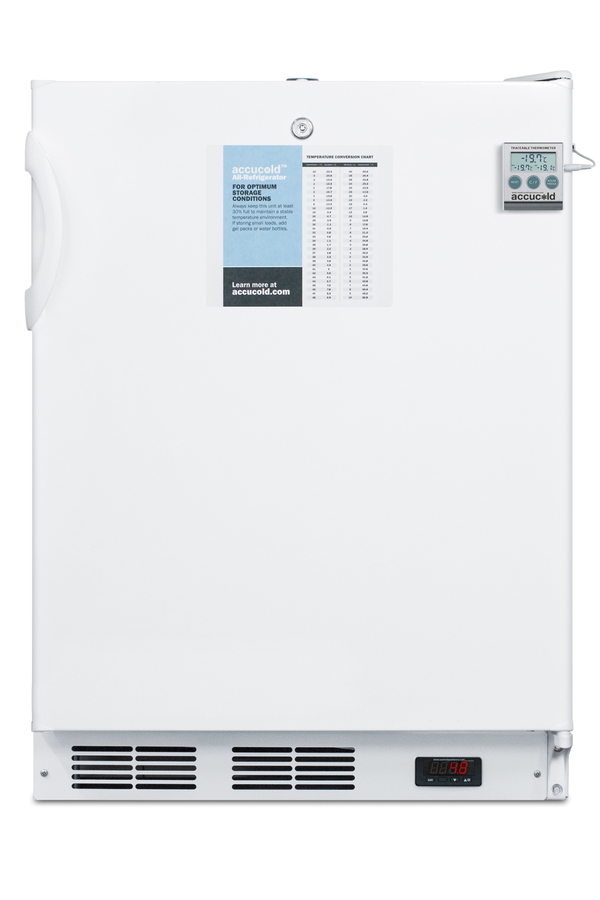

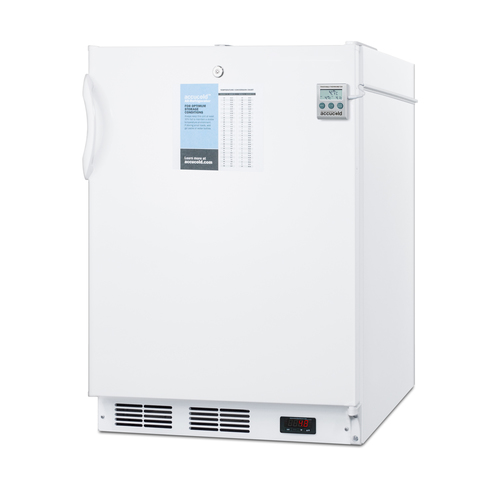

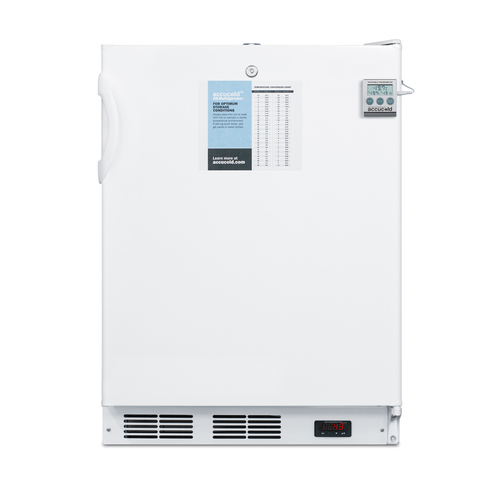

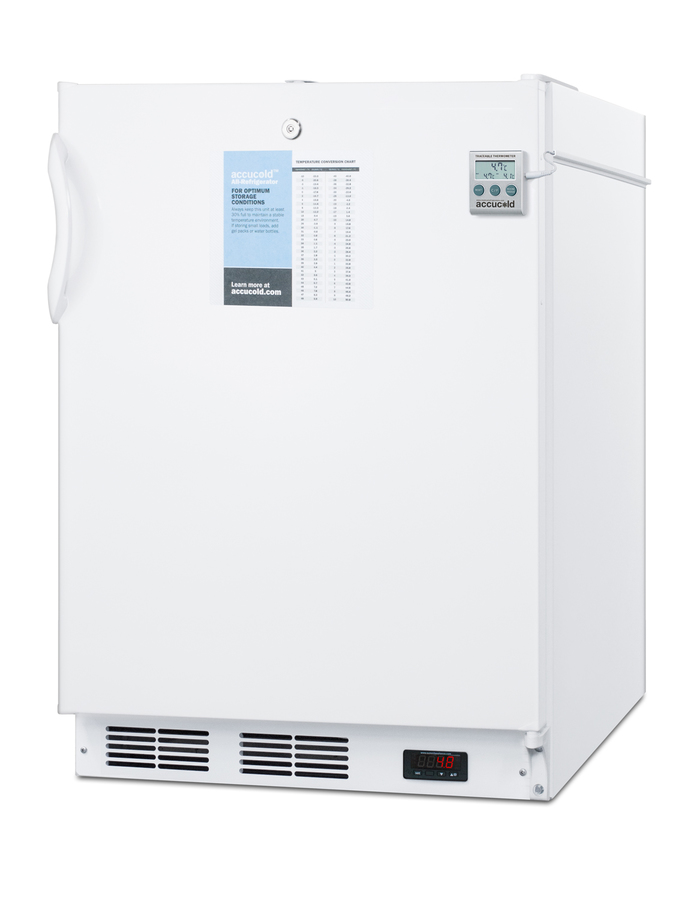

The FF7LWBIPLUS2ADA is a commercially approved all-refrigerator sized at 32" high and just under 24" wide. Made in Europe, it comes in a white exterior finish with a keyed lock located towards the top of the door for convenient security. The front-breathing system allows built-in installation under lower ADA compliant counters, while the fully finished cabinet also enables freestanding use. A digital thermostat is located in the kickplate for easy and precise temperature management. The unit uses automatic defrost operation and includes an internal fan for stabilized cooling. Adjustable wire shelves offer flexible storage inside the 5.5 cu.ft. interior, with a flat door liners as recommended by the CDC. The FF7LWBIPLUS2ADA includes a thermometer calibrated to NIST standards in our ISO/IEC 17025:2017 laboratory. It displays the current, minimum, and maximum temperature to the nearest tenth degree viewable in Celsius or Fahrenheit. The buffered temperature probe is stored in a glycol-filled bottle to ensure the temperature reading best reflects the temperature of other stored refrigerator contents. The FF7LWBIPLUS2ADA is ETL-S listed to NSF-7 commercial standards. It can be further customized with a variety of options, including data loggers, alarms, and more. Contact our sales team for more information. Accucold's PLUS2 series refrigerators are intended for a wide variety of basic storage only. Storage of high-value vaccines, life science materials, medical, or clinical biologicals require a product with design features including, but not limited to tighter temperature controls, monitoring, and/or back-up. *NOTE: This unit's thermostat is pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order.
This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or info@accucold.com
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
