24" Wide Built-In All-Refrigerator

SKU: FF7LWBIVAC
Specially designed to store vaccines with more temperature stability
Estimated Time to Ship:

5 to 7 days

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.
33.75" H x 23.63" W x 23.75" D
(86cm H x 60cm W x 60cm D)

Overview
Nominal Height 34.0" (86 cm)
Height of Cabinet 33.75" (86 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.75" (60 cm)
Depth with Handle 25.63" (65 cm)
Depth with door at 90° 46.25" (117 cm)
Capacity 2.6 cu.ft. (74 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 2 Years
Compressor Warranty 5 Years
UPC 761101072555
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Height Adjustable 1
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 4
Interior Drawers Yes
Interior Drawers Qty 3
Temperature Range 2º to 8ºC
Dimensions
Interior Height 22.5" (57 cm)
Interior Width 17.25" (44 cm)
Interior Depth 15.0" (38 cm)

Exterior
TM1A - Factory-installed dry contacts with remote alarm
Remote alarm contacts with continuous temperature display
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
Handle
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
Door
STO-Step-To-Open Door Pedal
Step-to-open door pedal allows hands-free access to open the door 90 degrees

Improved temperature stability

Interior is designed to operate within 2ºC of set temperature performance

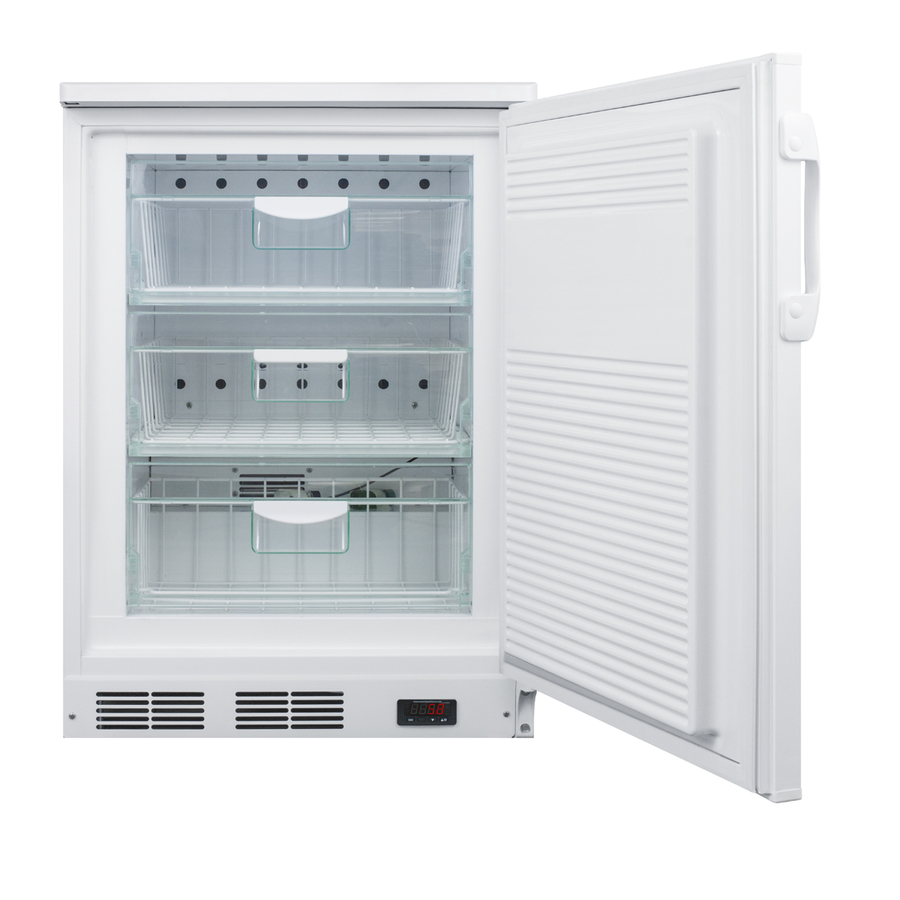

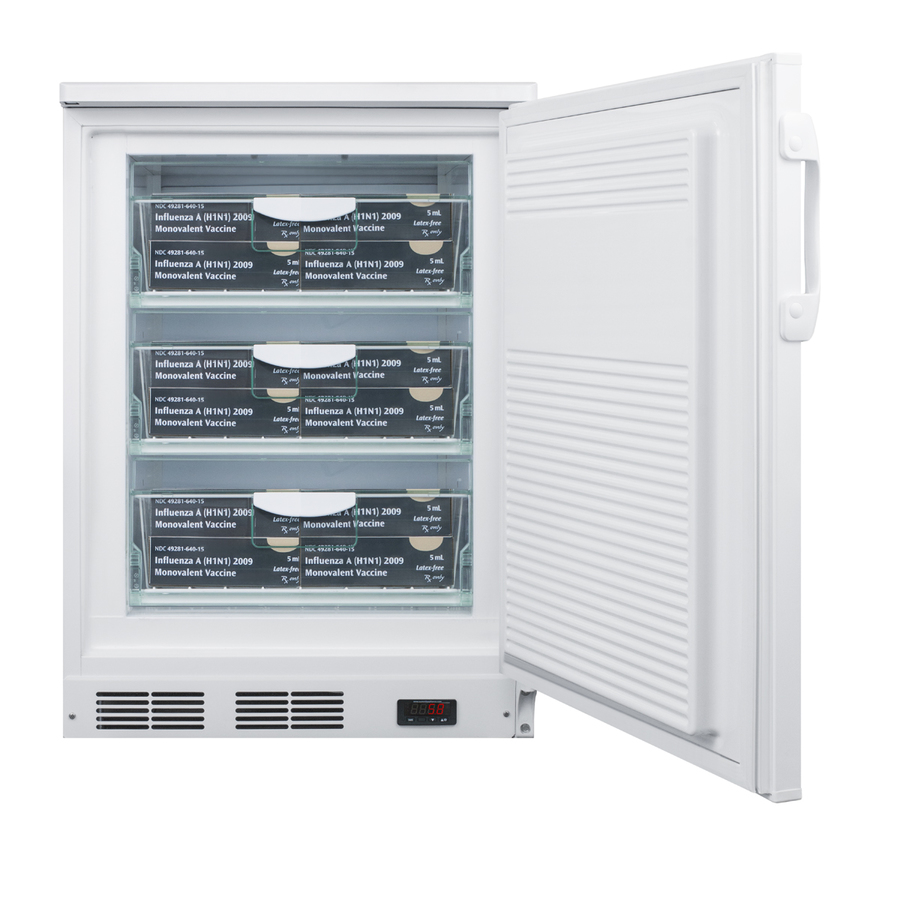

Interior basket drawers

Three slide-out wire baskets with plastic fronts offer convenient storage solutions while protecting stored items when the door is open

Digital thermostat

Electronic controls ensure precise and intuitive temperature management

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

NIST calibrated temperature display

Alarm includes NIST calibrated display of the current interior and high/low temperature

Self-closing door

Door closes automatically when opened at angles less than 90º

3/8" access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

Hospital grade cord and plug

Secure three-pronged 'green dot' cord for added unit safety in high traffic settings

Automatic defrost

Reduced user maintenance with automatic defrost

Factory installed lock

Keyed lock for a secure interior

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Internal fan

Fan-cooled interior maintains a consistent temperature from top to bottom

Built-in capable

Front-breathing design allows built-in installation under counters

Fully finished white cabinet

Allows the unit to be used freestanding

Height Adjustable

Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high

Factory reversible door

Standard unit ships RHD but can be ordered LHD

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

The Accucold® VAC Series refrigerators are specially designed to store sensitive medical and pharmaceutical materials under the proper conditions, with innovative construction for temperature stability and user-friendly features for added convenience.

Sized with a 24" footprint, the FF7LWBIVAC is an all-refrigerator that can be used built-in or freestanding. The automatic defrost interior is equipped with fan-forced cooling to ensure even temperature distribution from top to bottom. Three slide-out wire basket drawers make it easy to organize the interior while the plastic drawer fronts help to shield stored contents from being exposed to room temperature when the door is open. As recommended by the CDC for vaccine storage, this unit has a flat interior door liner.

The FF7LWBIVAC includes a factory installed front lock for added security. The self-closing door is an ideal feature for lab or medical settings, helping to protect valuable samples and vaccines when a busy staff may not always have time to ensure a tight seal. The hospital grade 'green dot' cord offers added safety in high-traffic locations.

For temperature precision, the FF7LWBIVAC includes a digital thermostat. A high/low temperature alarm sends an audible alert if the unit is out of set range, while also displaying a NIST calibrated temperature readout to the nearest tenth of a degree. A pre-installed probe hole/access port allows users to install additional monitoring equipment.

In addition to the standard features of the VAC line, the FF7LWBIVAC can be further customized to your exact specifications. Additional options include temperature loggers, keypad locks, open door alarms, door reversals, and more. For more information, call our office to discuss your complete medical refrigeration needs with our sales team.

This unit is also available in a 32" height for use under lower counters complying with ADA guidelines (see the FF7LWBIVACADA).

NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. At this time, Accucold refrigerators have not been evaluated to the new NSF 456 standard. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.
